User Manual for Manfrotto 190X3 Three Section Tripod with MHXPRO-2W Fluid Head Click to enlarge the picture
Contents of the user manual for the Manfrotto 190X3 Three Section Tripod with
- Product category: Tripod Systems Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Systems
 |
User manual for the Manfrotto 190X3 Three Section Tripod with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|

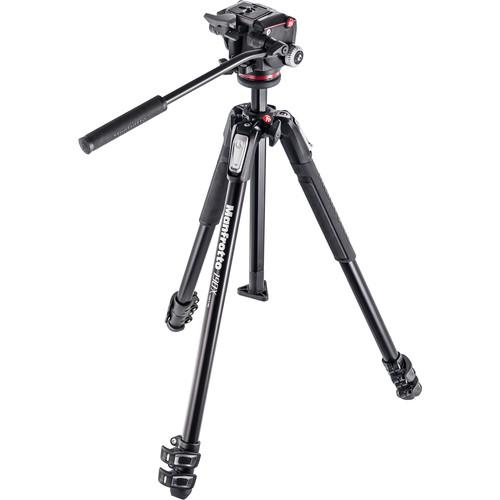

Product description Manfrotto's 190X3 Three Section Tripod with MHXPRO-2W Fluid Head is suitable for still photographers, video shooters, and even birdwatchers who want professional features in a small package. The included head supports over eight pounds of camera and accessories on a head with two fluid drag settings to smooth your tilts. The head allows you to tilt from straight down to almost straight up in one continuous move, and the quick release camera plate lets you quickly pull your camera from the head when you have to move quickly.

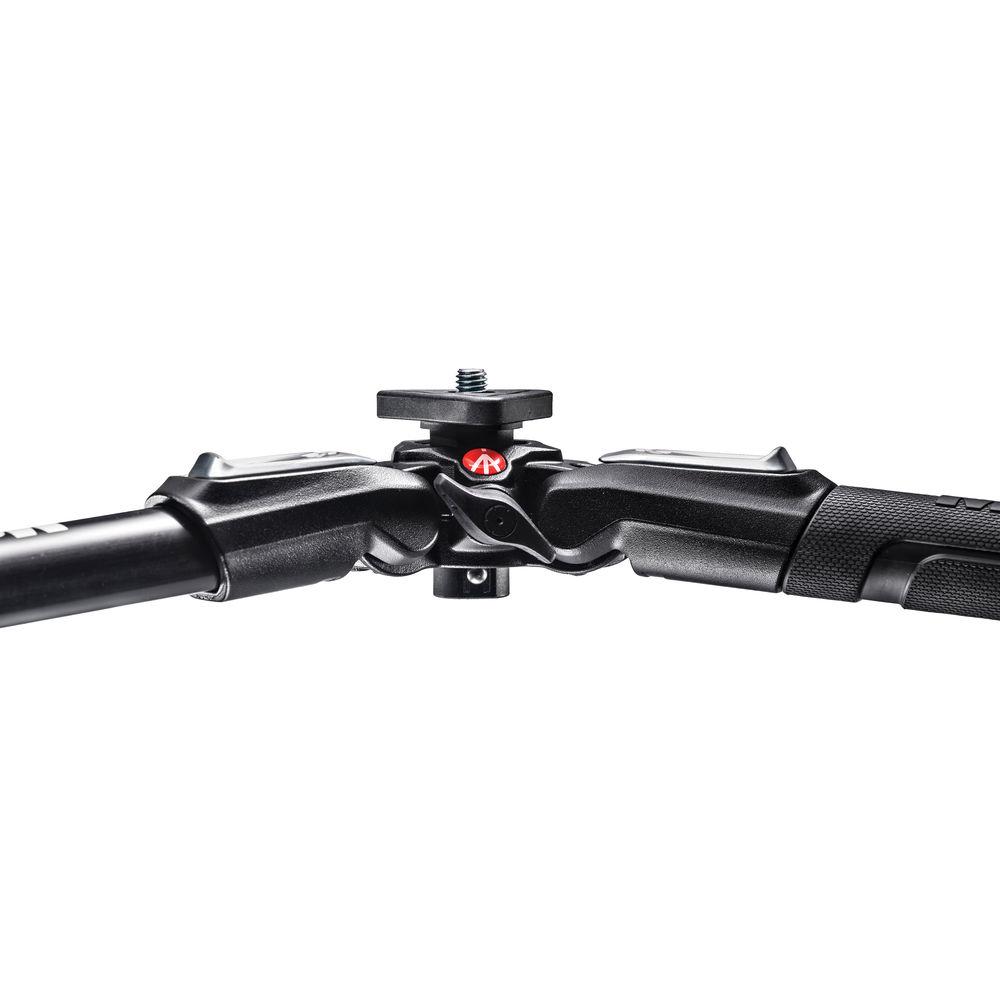

Two tilt drag settings allow you to adjust the head to match the needs of the shot, and the fixed pan settings provides you resistance for slow smooth pans. The aluminum legs feature a 10" triangular shaped center column that adds height while maintaining torsional stability. The spreaderless design and independent leg height adjustment allows you to use the legs on uneven surfaces without sufferening from wobble that ground level spreaders can cause. Four preset locking positions allow you to lower the legs to approx. 7.5" high or nearly to the ground with the optional ground level adapter. Head - The fixed pan drag, and two settings for tilt drag allow you to tune the head to provide smooth moves when used used with optional cameras and accessories that weigh less than 8.8 pounds.
- Dual panhandle rosettes allow you to mount the included panhandle on either side of the fluid head.
- The included quick release plate mounts on the head, the quick release mechanism features a safety release mechanism that helps keep your gear secure.

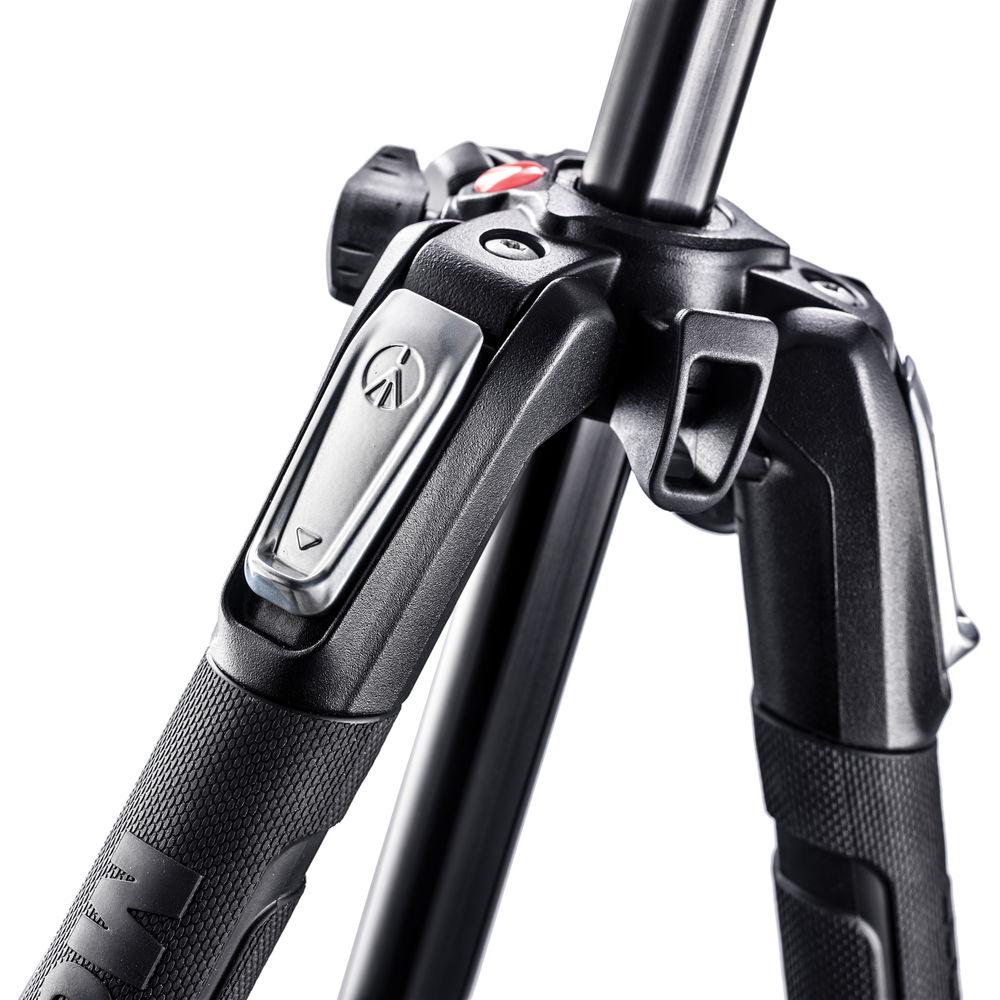

Legs - Quick Power Lock leg clamps allow single hand operation, while securely locking the legs against slipping.

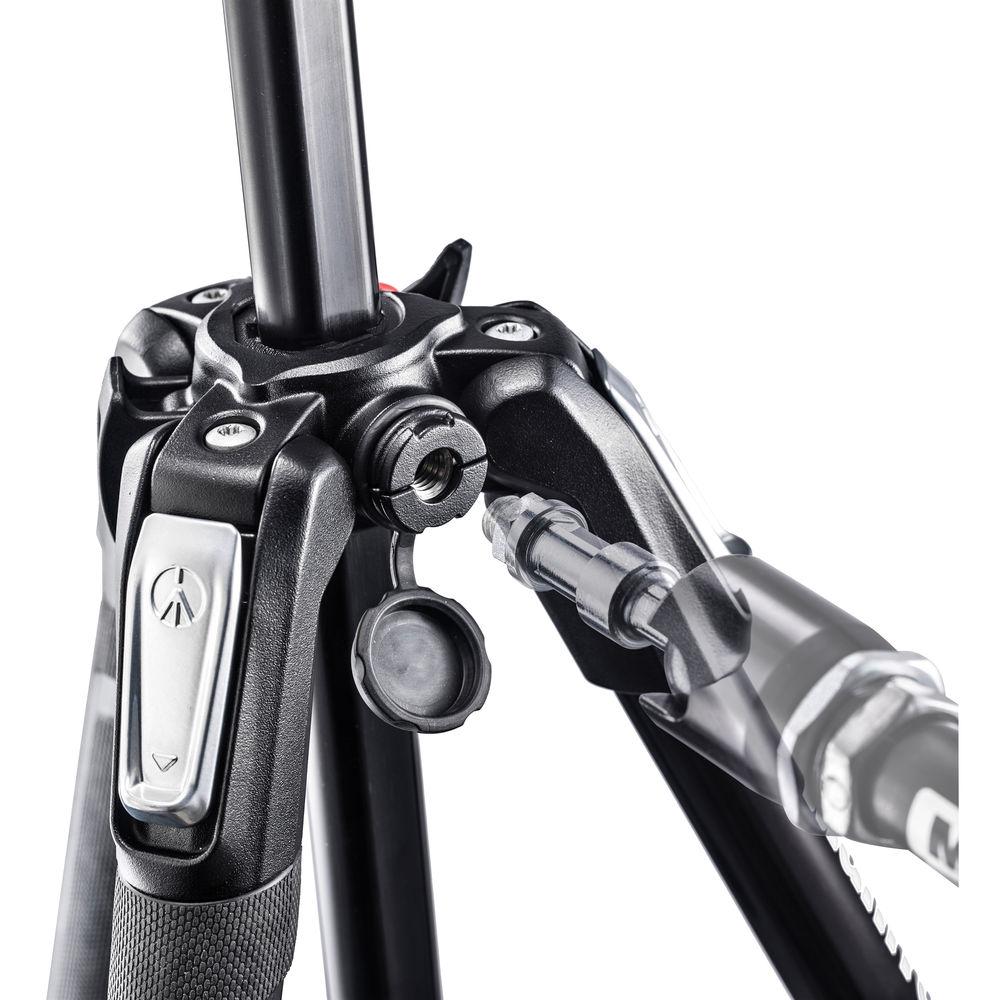

- Manfrotto/s Easy Link port is a 3/8"-16 that is built into the top casting, and allows you to easily attach optional accessories to your legs.
UPC: 719821378693 In the Box Manfrotto 190X3 Three Section Tripod with MHXPRO-2W Fluid Head MHXPRO 2-Way, Pan-and-Tilt Head with 200PL-14 Quick Release Panhandle Tripod Legs Limited 6-Month Warranty, Extendable to 10 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 190X3 Three Section Tripod with MHXPRO-2W Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto MK190X3-2W Specs | | | Load Capacity | 8.8 lb / 4 kg | | Height | Max Height
66.9" / 170 cm (with center column extended)
58.3" / 148 cm (with center column retracted)
Min Height
7.5" / 19 cm
Folded
27.2" / 69 cm | | Weight | 5.8 lb / 2.7 kg | | | | Load Capacity | 2.2" (55 mm) center of gravity: 8.8 lb / 4 kg | | Material | AdaptoTechnopolymer, aluminum | | Quick Release | Yes, 200PL | | Camera Mount Thread Size | 1/4"-20 | | Tripod Mount Thread Size | 3/8"-16 | | Tilt Range | -60 to 90° | | Bubble Level | Yes | | Fluid Drag | Tilt: 2 steps, variable
Pan: fixed | | Independent Pan Lock | Yes | | Independent Tilt Lock | Yes | | Height | 3.9" (10 cm) | | Weight | 1.7 lb (0.76 kg) | | | | Material of Construction | Aluminum | | Load Capacity | 15.4 lb / 7 kg | | Height | Max Height
63" / 160 cm (with center column extended)
53.1" / 135 cm (with center column retracted)
Min Height
3.5" / 9 cm
Folded
23.2" / 59 cm | | Weight | 4.4 lb / 2 kg | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 30.5 x 6.0 x 6.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
