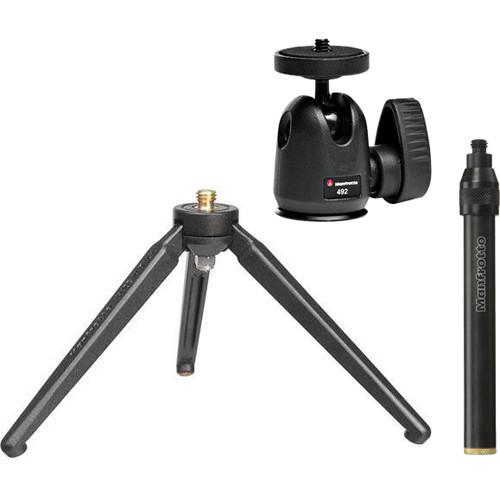

User Manual for Manfrotto 209,492LONG Tabletop Tripod with Ball Head Kit Click to enlarge the picture
Contents of the user manual for the Manfrotto 209,492LONG Tabletop Tripod with Ball
- Product category: Tabletop & Mini Tripods Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tabletop & Mini Tripods
|
User manual for the Manfrotto 209,492LONG Tabletop Tripod with Ball contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description The Manfrotto 209,492LONG Tabletop Tripod with Ball Head Kit combines the 209 Tripod with the 492 Ball Head and a 259B Extension Column. This combination gives you a tabletop tripod that has a minimum height of 4.2" without the extension column, and a maximum height of 17.5" with the column extended. The ball head has one single locking knob for the ball movement and two notches for +/-90° tilts. Included with the kit is a carrying case to keep the parts together and protected. - 209 Tabletop Tripod Made of rugged, heavy-duty aluminum, the Manfrotto 209 Tabletop Tripod folds down small enough to slip into your camera bag or coat pocket, and is ready to give quick support to a lightweight camera. It features sturdy legs with sure-grip tips for stability. The tripod is 5.12" end-to-end when folded, and provides a working height of 1.77" when in use. The optional 259B column can be added to give an extra 10" extension. UPC: 719821288251
- 492 Micro Ball Head The Manfrotto 492 Micro Ball Head has a load capacity of 4.4 lb and can be attached to tripods or other support systems that feature a 1/4"-20 mount. By loosening the 492 Micro Ball Head's locking knob, its ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 492 Micro Ball Head's rubberized, non-slip platform. -
- 4.4 lb load capacity
- Compatible with tripods or support systems that feature a 1/4"-20 mount
- Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
- Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
- Dual, ball-and-socket joint notches enable two-sided tilt control
- Rubberized, non-slip platform with 1/4"-20 mount
- Locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Durable, aluminum-alloy construction
UPC: 719821310921 - 259B Extension Column for 209 Tabletop Tripod - 10" The Manfrotto 259B Extension Column is a 10" extension that adds height to the 209 (3007) tabletop tripod. With 3/8" socket at the bottom and 3/8" screw at the top. Replaces old part number 3007X. UPC: 719821287759
In the Box Bundle Items 209 Tabletop Tripod eqqduyatrsswwbfacwszacxysduybvwxbwz - Limited 8-Year Warranty Extension after Online Registration
492 Micro Ball Head eqqduyatrsswwbfacwszacxysduybvwxbwz - Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
259B Extension Column for 209 Tabletop Tripod - 10" - 2-Year Warranty + Additional 3-Years after Registering Online or by Mail
Also Includes - Carrying Case
- Limited 2-Year Warranty Extendable to 10 Years with Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 209,492LONG Tabletop Tripod with Ball Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 209 Tabletop Tripod
| | | Load Capacity | 4.4 lb / 2.0 kg | | Maximum Working Height | 1.8" / 4.5 cm | | Minimum Working Height | 1.8" / 4.5 cm | | Dimensions | H: 5.1" / H: 13.0 cm (Folded) | | Weight | 3.3 oz / 93 g | | | | Mounting Screw | 3/8"-16 Male | | | | Box Dimensions (LxWxH) | 5.5 x 1.5 x 1.0" | - 492 Micro Ball Head
| | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | No Quick Release | | Load Capacity | 4.41 lb / 2.0 kg | | Number of Bubble Levels | None | | Friction Control | No | | Independent Pan Lock | No | | Material | Aluminum | | | | Lateral Tilt | -90
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
