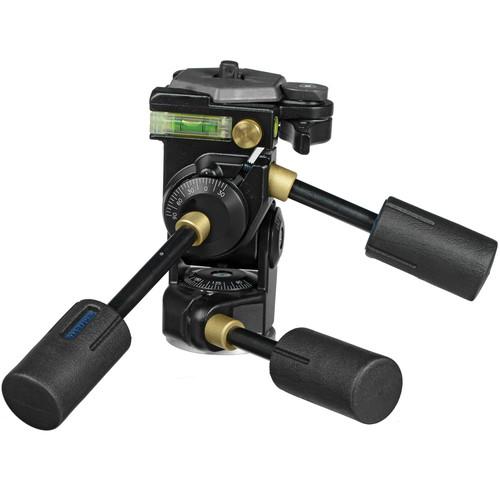

User Manual for Manfrotto 229 3-Way, Pan-and-Tilt Head with 030-14 Quick Release Plate Click to enlarge the picture
Contents of the user manual for the Manfrotto 229 3-Way, Pan-and-Tilt Head with
- Product category: Tripod Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Heads
|
User manual for the Manfrotto 229 3-Way, Pan-and-Tilt Head with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description The 229 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 26.5 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC0 quick release cam lock and a 030-14 Quick Release Plate. RC0 compatible quick release plates such as the 030-14 can removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 030-14 Quick Release Plate, which measures 2.6 x 2.6 x 0.4" and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 25° backwards, as well as 30° sideways for portrait orientation. Each of these three movements function independently of each other, have dedicated control handles, and can be locked into place by twisting each corresponding handle's rubberized grip.
To promote fast, repeatable, and accurate device positioning, the 229 3-Way, Pan-and-Tilt Head also includes dedicated angle scales for its rotational and sideways tilt movements that are designed for easy visibility. - 229 3-Way, Pan-and-Tilt Head
-
- 26.5 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Can be rotated 360°, tilted 90° forwards or 25° backwards, as well as 90° sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other, have dedicated control handles, and can be locked into place
- Dedicated angle scales for rotational and sideways tilt movements that are designed for easy visibility promote fast, repeatable, as well as accurate device positioning
- Integrated, RC0 quick release cam lock
- Two bubble levels for landscape orientations and one bubble level for portrait orientations
- Durable, aluminum-alloy construction
- 030-14 Quick Release Plate
-
- Compatible with Manfrotto RC0 quick release cam lock
- Measures 2.6 x 2.6 x 0.4" and has a rubberized, non-slip surface
- 1/4"-20 mount
- Durable, aluminum-alloy construction
UPC: 719821287636 In the Box Manfrotto 229 3-Way, Pan-and-Tilt Head with 030-14 Quick Release Plate 030-14 Hexagonal Quick Release Plate with 1/4"-20 Screw Limited 6-Month Warranty, Extendable to 10 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 229 3-Way, Pan-and-Tilt Head with 030-14 Quick Release Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto 229 Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Load Capacity | 26.5 lb / 12.02 kg | | Number of Bubble Levels | 3 | | Material | Aluminum | | | | Lateral Tilt | -90
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
