Product description

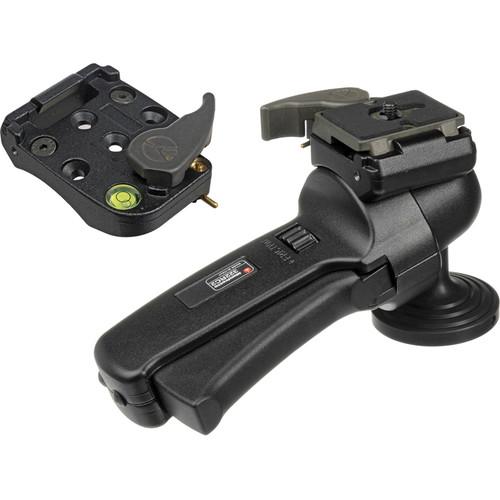

• Manfrotto 322RC2 Ball Head with 200PL-14 Quick Release Plate and 322RA Quick Release Adapter The 322RC2 Ball Head from Manfrotto can be attached to tripods or other support systems that feature a 3/8"-16 mount. By squeezing the control handle's integrated trigger, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A thumbwheel set within the control handle can be rotated to apply tension control to the ball-and-socket joint's movements. Once the squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place.

  The control handle is initially oriented to provide a horizontal grip for the right hand. However, the included 322RA Quick Release Adapter with 200PL-14 Quick Release Plate are detachable and can be repositioned to enable left-handed use with a horizontal grip. Alternatively, the 322RC2 can be transformed into a joystick-grip ball head suitable for right or left-handed use with the control handle oriented vertically and the quick release adapter attached to the top of the configuration.

  When oriented for a horizontal grip, the 322RC2 has a load capacity of 11.0 lb, and 7.0 lb when configured as joystick for a vertical grip. The 322RA Quick Release Adapter features an RC2 quick release cam lock for the 200PL-14 Quick Release Plate. RC2 compatible quick release plates can be removed from the quick release adapter by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a quick release plate from accidentally disconnecting.

  Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface.
  322RC2 Ball Head
  • • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Uses ball-and-socket joint with easy-to-grip control handle to help maximize pan-and-tilt flexibility
    • By squeezing the control handle's integrated trigger, the ball-and-socket joint can be quickly swiveled 360°, fully tilted down to a 90° angle, or returned to its upright position
    • When the control handle's squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place
    • A thumbwheel set within the control handle can be rotated to apply tension control to the ball-and-socket joint's movements
    • Built-in tension-control indicator within the control handle
    • Can provide a horizontal grip for either right or left-handed use
    • Available joystick-grip ball head configuration for right or left-handed use
    • When oriented for a horizontal grip, has a load capacity of 11.0 lb, and 7.0 lb when configured as joystick for a vertical grip
    • 322RA Quick Release Adapter with RC2 quick release cam lock and built-in bubble level
    • Hex key to adjust position of 322RA Quick Release Adapter and tension on ball-and-socket joint
  200PL-14 Quick Release Plate
  • • Compatible with Manfrotto RC2 quick release cam lock
    • Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
    • 1/4"-20 mount
    • Durable, aluminum-alloy construction
  UPC: 719821236429
• Manfrotto 322RA Quick Release Adapter The Manfrotto 322RA Quick Release Adapter can be a replacement RC2 quick release assembly specifically for the 322RC2 Grip Action Ballhead, or it can be used as an additional camera adapter so that the weight of your camera stays centered over the tripod whether you're composing a horizontal or a vertical image.  RC2 (3157N) type plates are required for this adapter. UPC: 719821239604

• 322RC2 Ball Head with 200PL-14 Quick Release Plate and 322RA Quick Release Adapter
• 200PL-14 Quick Release Plate
• 322RA Quick Release Adapter
• Hex Key for 322RA Quick Release Adapter and Ball-and-Socket Joint
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

• 322RA Quick Release Adapter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto 322RC2 Ball Head with 200PL-14 Quick Release Plate and 322RA Quick Release Adapter

  Head Type	Ball Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male
  Quick Release Plate Type	200PL-14
  Load Capacity	11.0 lb / 4.99 kg
  Number of Bubble Levels	1
  Friction Control	Yes
  Independent Pan Lock	No
  Material	Magnesium

  Lateral Tilt
