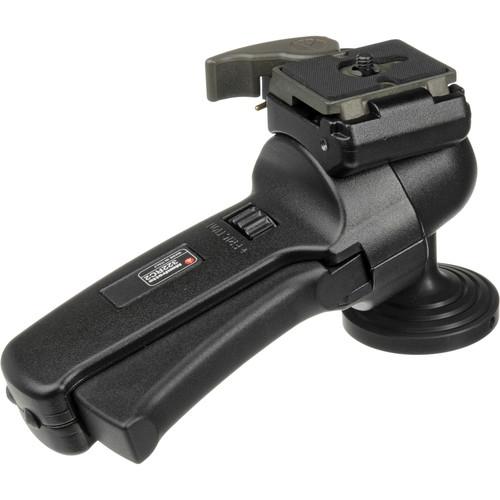

Product description The 322RC2 Ball Head from Manfrotto can be attached to tripods or other support systems that feature a 3/8"-16 mount. By squeezing the control handle's integrated trigger, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A thumbwheel set within the control handle can be rotated to apply tension control to the ball-and-socket joint's movements. Once the squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place.

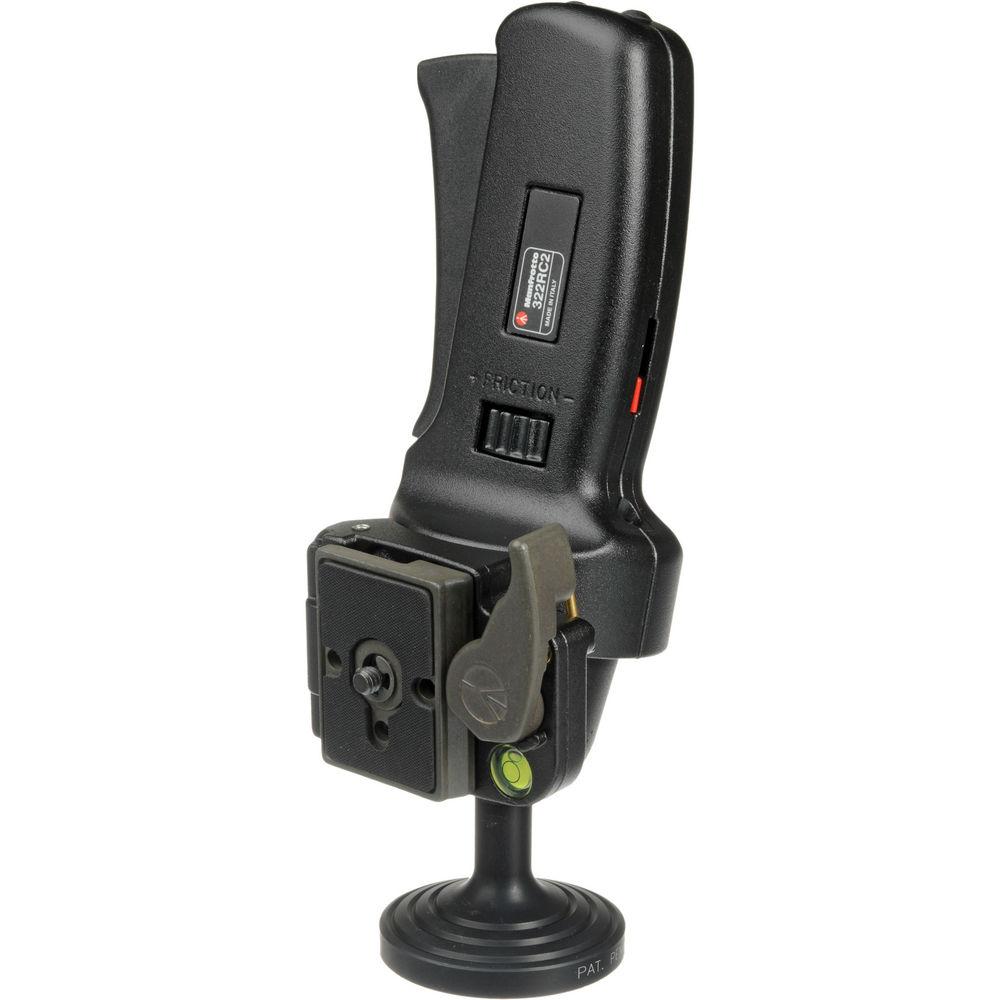

The control handle is initially oriented to provide a horizontal grip for the right hand. However, the included 322RA Quick Release Adapter with 200PL-14 Quick Release Plate are detachable and can be repositioned to enable left-handed use with a horizontal grip. Alternatively, the 322RC2 can be transformed into a joystick-grip ball head suitable for right or left-handed use with the control handle oriented vertically and the quick release adapter attached to the top of the configuration.

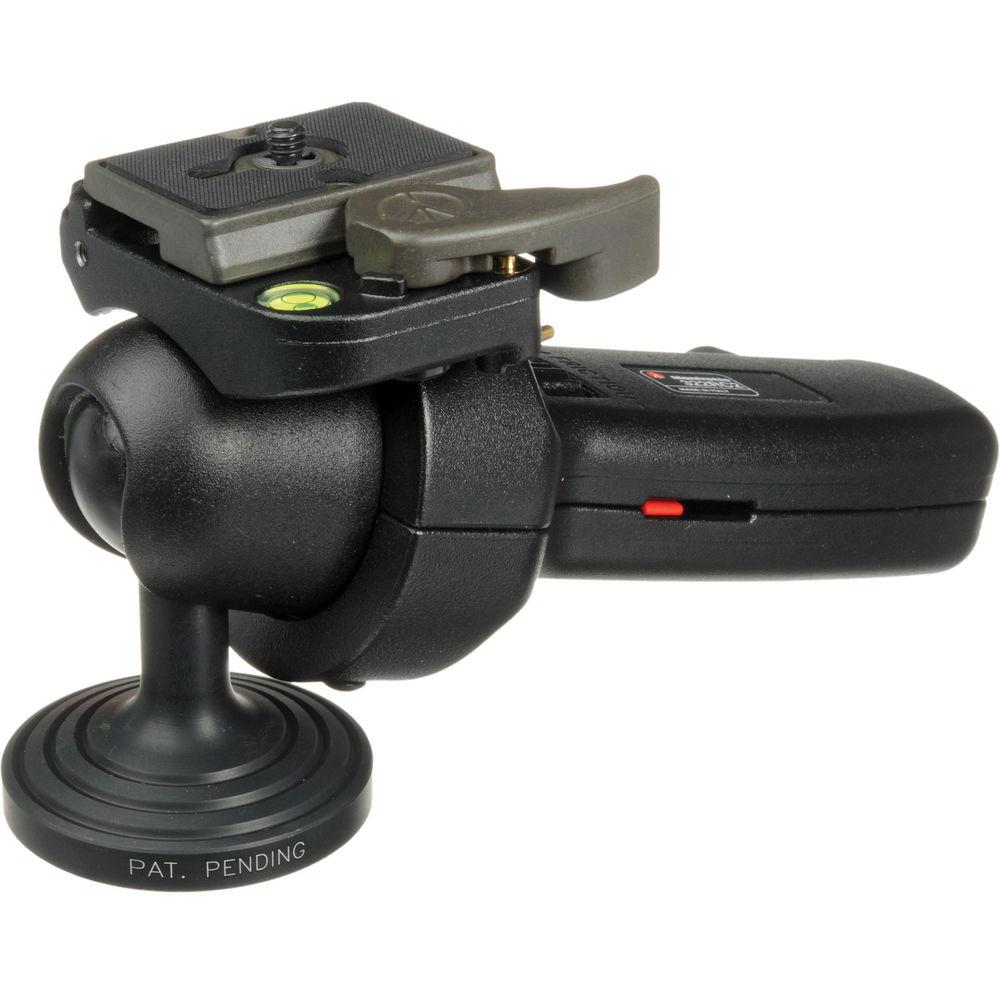

When oriented for a horizontal grip, the 322RC2 has a load capacity of 11.0 lb, and 7.0 lb when configured as joystick for a vertical grip. The 322RA Quick Release Adapter features an RC2 quick release cam lock for the 200PL-14 Quick Release Plate. RC2 compatible quick release plates can be removed from the quick release adapter by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a quick release plate from accidentally disconnecting.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface. - 322RC2 Ball Head
-
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Uses ball-and-socket joint with easy-to-grip control handle to help maximize pan-and-tilt flexibility
- By squeezing the control handle's integrated trigger, the ball-and-socket joint can be quickly swiveled 360°, fully tilted down to a 90° angle, or returned to its upright position
- When the control handle's squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place

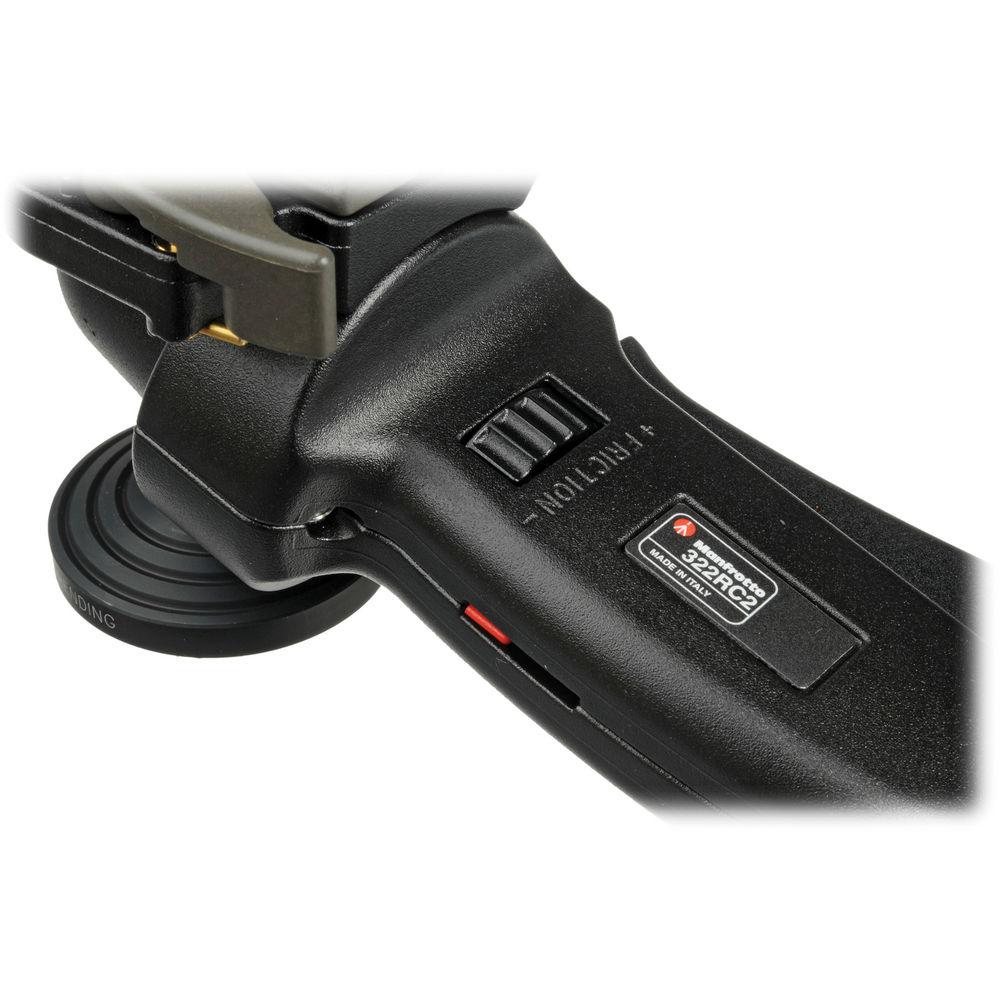

- A thumbwheel set within the control handle can be rotated to apply tension control to the ball-and-socket joint's movements
- Built-in tension-control indicator within the control handle
- Can provide a horizontal grip for either right or left-handed use
- Available joystick-grip ball head configuration for right or left-handed use
- When oriented for a horizontal grip, has a load capacity of 11.0 lb, and 7.0 lb when configured as joystick for a vertical grip
- 322RA Quick Release Adapter with RC2 quick release cam lock and built-in bubble level
- Hex key to adjust position of 322RA Quick Release Adapter and tension on ball-and-socket joint
- 200PL-14 Quick Release Plate
-
- Compatible with Manfrotto RC2 quick release cam lock
- Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
- 1/4"-20 mount
- Durable, aluminum-alloy construction
UPC: 719821236429 In the Box Manfrotto 322RC2 Ball Head with 200PL-14 Quick Release Plate and 322RA Quick Release Adapter 200PL-14 Quick Release Plate 322RA Quick Release Adapter uraxzeardtucxydfyxvv Hex Key for 322RA Quick Release Adapter and Ball-and-Socket Joint Limited 6-Month Warranty, Extendable to 10 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 322RC2 Ball Head with 200PL-14 Quick Release Plate and 322RA Quick Release Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto 322RC2 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | 200PL-14 | | Load Capacity | 11.0 lb / 4.99 kg | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | No | | Material | Magnesium | | | | Lateral Tilt | -90
