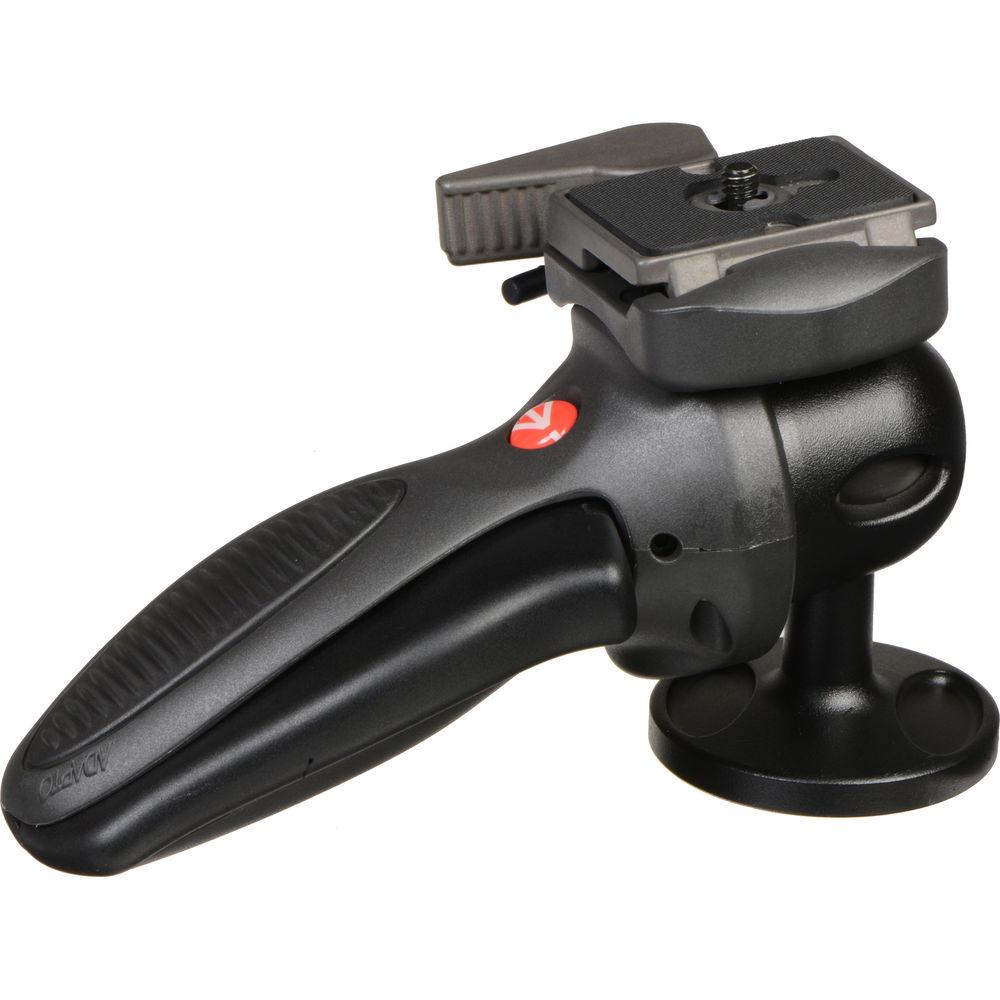

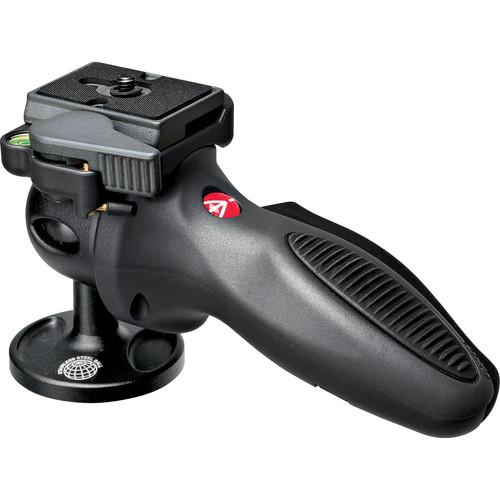

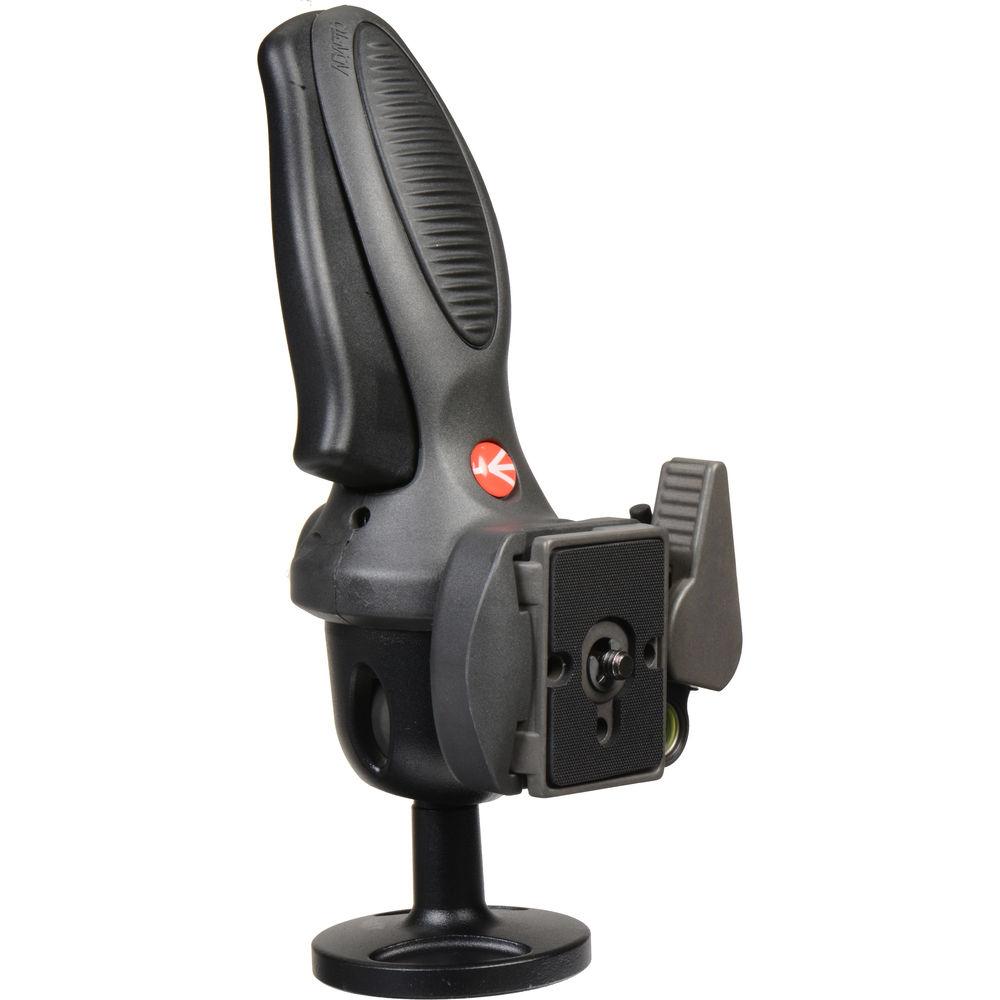

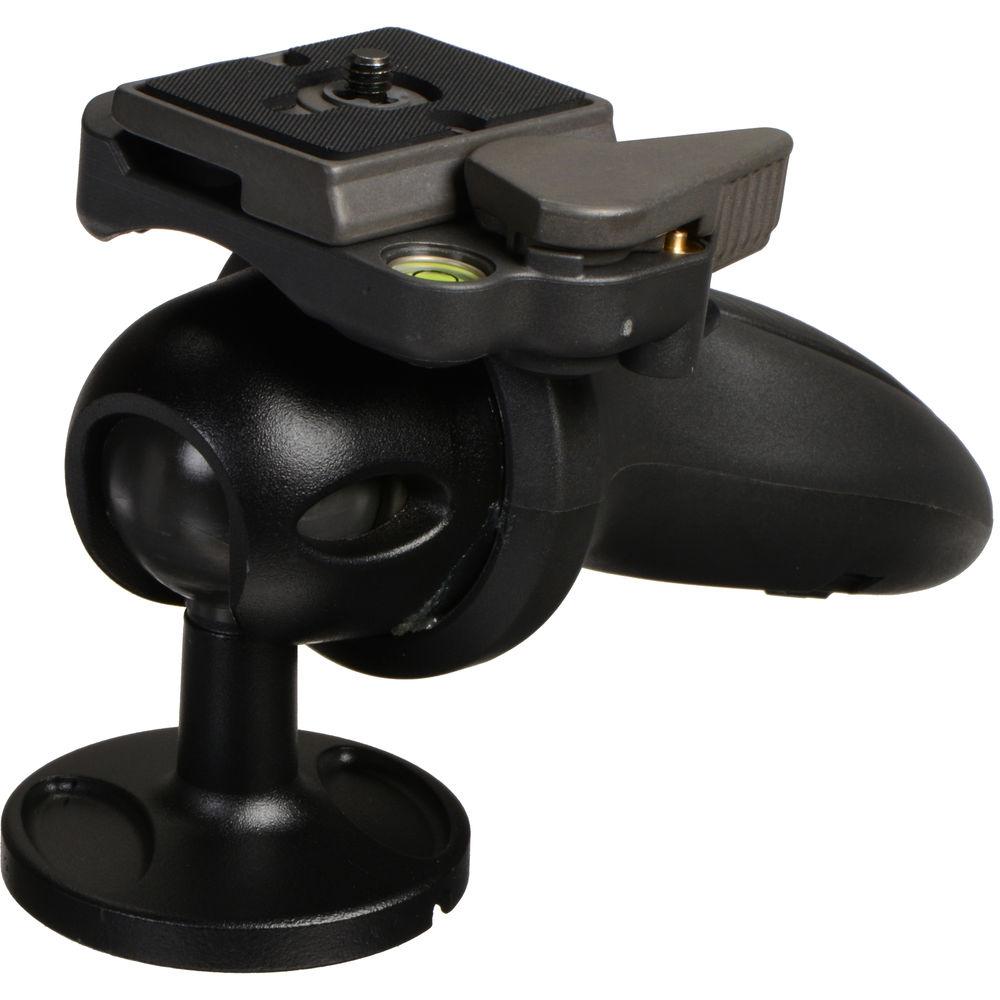

Product description This 324RC2 Ball Head from Manfrotto has a load capacity of 7.7 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a quick release plate from accidentally disconnecting.
The 324RC2 features a ball-and-socket joint with an easy-to-grip control handle. By squeezing the control handle's integrated trigger, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A thumbwheel set within the underside of the control handle can be rotated to apply tension control to the ball-and-socket joint's movements. Once the squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-14 quick release plate, which measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface. The 324RC2 is initially configured for use with the right hand. An included hex key allows the RC2 quick release cam lock to be repositioned along with the control handle, enabling left-handed use. - 324RC2 Ball Head
-
- 7.7 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Uses ball-and-socket joint with easy-to-grip control handle to help maximize pan-and-tilt flexibility
- By squeezing the control handle's integrated trigger, the ball-and-socket joint can be quickly swiveled 360°, fully tilted down to a 90° angle, or returned to its upright position
- When the control handle's squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place
- A thumbwheel set within the underside of the control handle can be rotated to apply tension control to the ball-and-socket joint's movements
- RC2 quick release cam lock
- Built-in bubble level
- Can be configured for left-handed use
- Durable and lightweight aluminum, polymer, and fiberglass construction
- Hex key to adjust position of RC2 quick release cam lock
- Hex key to adjust tension on ball-and-socket joint
- 200PL-14 Quick Release Plate
-
- Compatible with Manfrotto RC2 quick release cam lock
- Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
- 1/4"-20 mount
- Durable, aluminum-alloy construction
UPC: 719821312529 In the Box Manfrotto 324RC2 Ball Head with 200PL-14 Quick Release Plate 200PL-14 Quick Release Plate Hex Key for RC2 Quick Release Cam Lock Hex Key for Ball-and-Socket Joint Limited 6-Month Warranty, Extendable to 10 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 324RC2 Ball Head with 200PL-14 Quick Release Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto 324RC2 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | 200PL-14 | | Load Capacity | 7.7 lb / 3.5 kg | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | No | | Material | Aluminum, Technopolymer | | | | Lateral Tilt | -19
