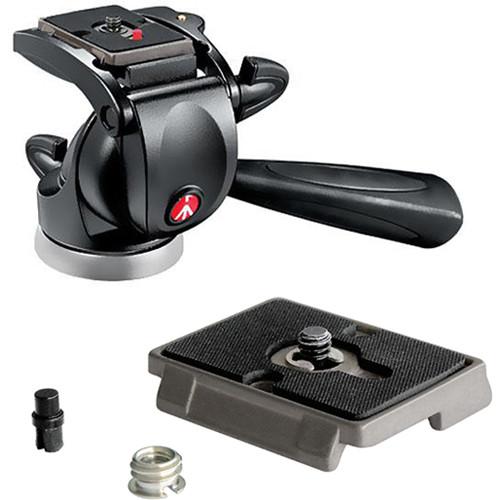

User Manual for Manfrotto 391RC2 3-Way, Pan-and-Tilt Head Kit with 200PL-14 and 200PL Quick Release Plates Click to enlarge the picture
Contents of the user manual for the Manfrotto 391RC2 3-Way, Pan-and-Tilt Head Kit
- Product category: Tripod Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Heads
|
User manual for the Manfrotto 391RC2 3-Way, Pan-and-Tilt Head Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description This Manfrotto 391RC2 3-Way, Pan-and-Tilt Head Kit from includes one 391RC2 3-Way, Pan-and-Tilt Head with an integrated RC2 quick release cam lock, a 200PL-14 Quick Release Plate, and a 200PL Quick Release Plate. - Manfrotto 391RC2 3-Way, Pan-and-Tilt Head with 200PL-14 Quick Release Plate The 391RC2 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 11 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached.
Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate before securing it to the pan-and-tilt head. The head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation. Each of these three movements function independently of each other and can be locked into place. - 391RC2 3-Way, Pan-and-Tilt Head
-
- 11 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and can be locked into place
- Integrated, RC2 quick release cam lock
- Durable, aluminum-alloy construction
- 200PL-14 Quick Release Plate
-
- Compatible with Manfrotto RC2 quick release cam lock
- Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
- 1/4"-20 mount
- Removable, anti-twist index pin
- Durable, aluminum-alloy construction
UPC: 719821297666 - Manfrotto 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter The Manfrotto 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter is the replacement quick release plate for all heads that use the RC2 (3157N) system. The plate comes with a 1/4"-20 camera screw and a 3/8" bushing adapter, and is compatible with 35mm and standard thread-mounted medium format cameras. UPC: 719821345015
In the Box - 391RC2 3-Way, Pan-and-Tilt Head with 200PL-14 Quick Release Plate
- 200PL-14 Quick Release Plate
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 391RC2 3-Way, Pan-and-Tilt Head Kit with 200PL-14 and 200PL Quick Release Plates in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto 391RC2 3-Way, Pan-and-Tilt Head with 200PL-14 Quick Release Plate
| | | Head Type | Pan & Tilt Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | 200PL-14 | | Load Capacity | 11.0 lb / 4.99 kg | | Number of Bubble Level(s) | None | | Material | Aluminum | | | | Lateral Tilt | -90
