User Manual for Manfrotto 400 3-Way Geared Pan-and-Tilt Head with Select Quick Release Plates Click to enlarge the picture
Contents of the user manual for the Manfrotto 400 3-Way Geared Pan-and-Tilt Head
- Product category: Tripod Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Heads
 |
User manual for the Manfrotto 400 3-Way Geared Pan-and-Tilt Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|

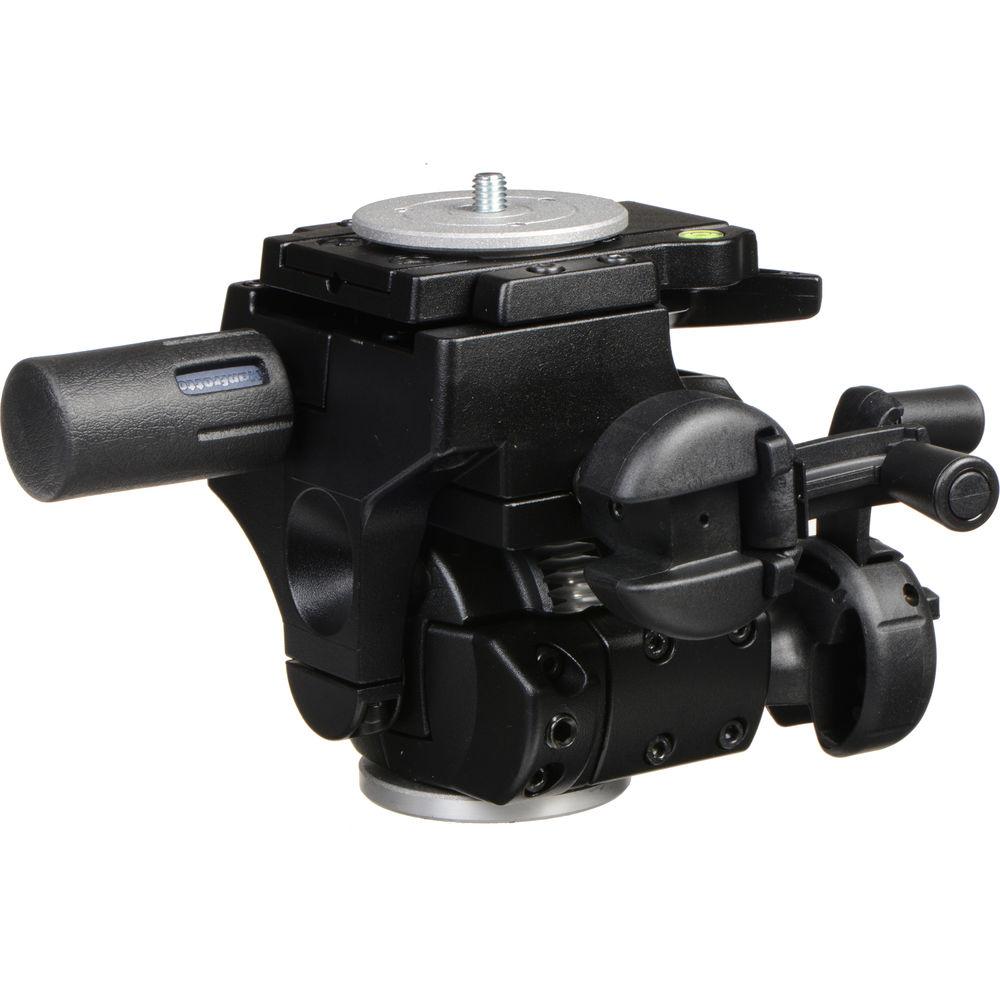

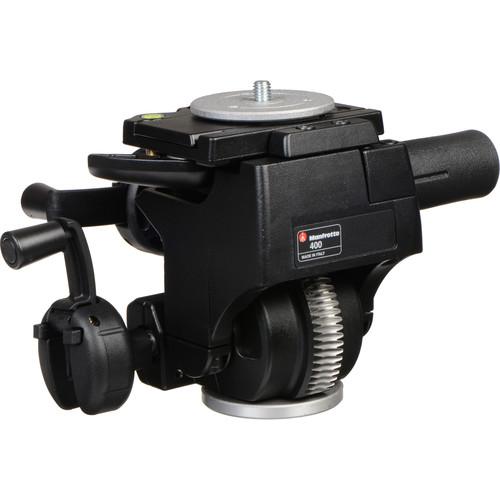

Product description This 400 3-Way Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 22.1 pounds and can be attached to studio stands, tripods, or other support systems that feature a 3/8"-16 screw mount. The head provides 360° of rotation, 90° of forwards and 30° of backwards tilt, as well as 7.5° of left or right tilt. Each of these three movements function independently of each other and have individual control knobs that utilize incremental geared adjustments, which help to ensure that any device mounted to this 400 3-Way Geared Pan-and-Tilt Head is precisely positioned relative to the subject.
The knob for the 400 3-Way Geared Pan-and-Tilt Head's forwards and backwards tilt is located along its rear, while the knob that controls rotation rests along the head's base. When fully turned, either of those knobs applies 8.6° of adjustment. Both knobs also feature a folding crank handle for enhanced control and reduce needed space during storage or transport.

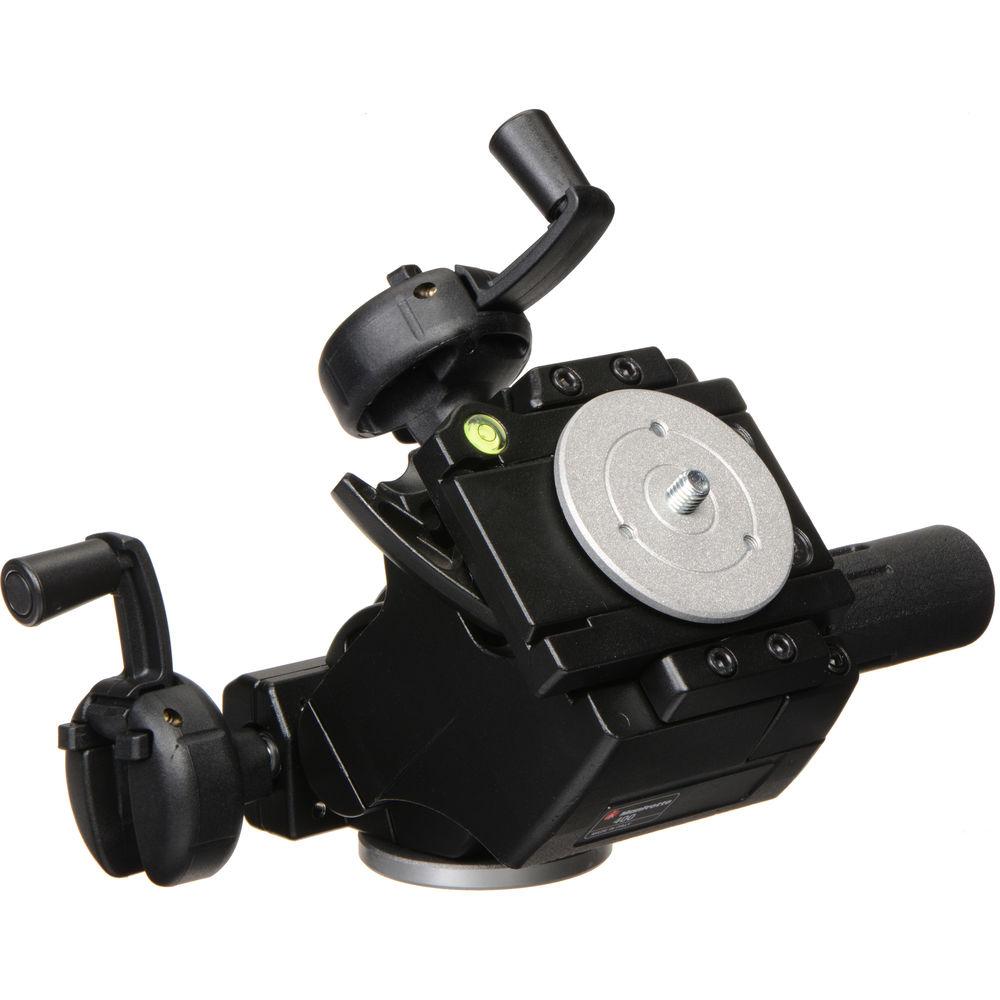

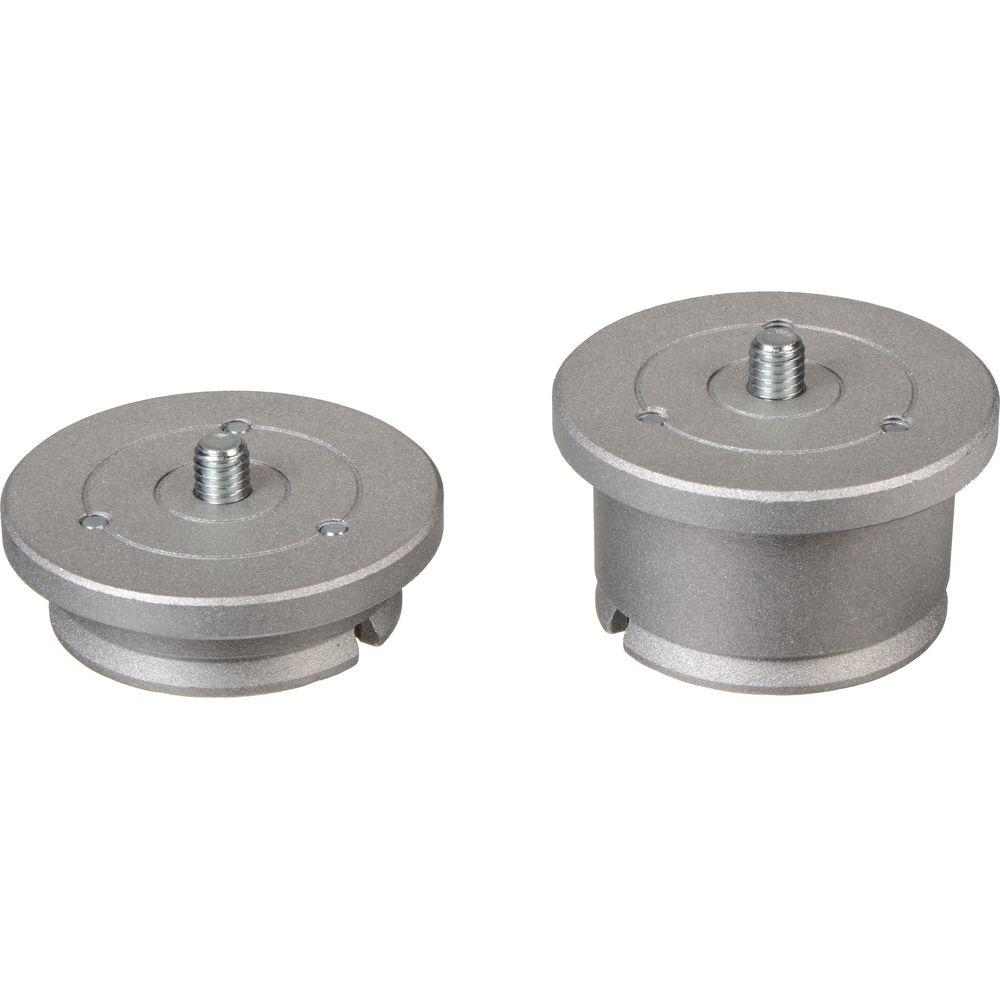

Cameras or accessories that are compatible with a 1/4"-20 or 3/16"-20 screw mount can be connected to one of three included quick release plates. An integrated, quick release cam lock enables a quick release plate's removal from the top of the head by pulling the lock's spring-loaded lever, which also allows the plate to be instantly reattached. The quick release plates measure 13, 23, or 42mm tall and are designed to be selected based on the minimum height needed for the attached camera or accessory not to interfere with the ability to move the rear control knob while its crank handle is deployed. Opposite the knob at the 400 3-Way Geared Pan-and-Tilt Head's base and along its cam lock is an easy-to-grip rubberized knob that when turned, applies a left or right tilt directly to the attached quick release plate and the device placed on it.
To promote fast and repeatable device positioning, this 400 3-Way Geared Pan-and-Tilt Head also includes a dedicated angle scale for forwards and backwards tilt movements that is designed for easy visibility. -
- 22.1-pound load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 screw mount
- Can be rotated 360°, tilted 90° forwards or 30° backwards, and provides up to 7.5° of tilt, left or right
- Rotation, forwards and backwards tilt, as well as left and right tilt each function independently of each other and have individual control knobs that utilize incremental geared adjustments
- Both control knobs for forwards and backwards tilt, as well as rotation, apply 8.6° of adjustment when fully turned
- Control knobs for forwards and backwards tilt, as well as rotation, feature a folding crank handle for enhanced control and reduce needed space during storage or transport
- Cameras or accessories that are compatible with a 1/4"-20 or 3/16"-20 mount can be connected to one of three included quick release plates
- Integrated quick release cam lock enables a quick release plate's removal from and reattachment to the top of the head
- Quick release plates measure 13, 23, or 42mm tall and are designed to be selected based on the minimum height needed for the attached camera or accessory not to interfere with the ability to move the forwards and backwards tilt control knob while its crank handle is deployed
- Rubberized, easy-to-grip knob for left or right tilt applies movement directly to quick release plate
- Dedicated angle scale for forwards and backwards tilt movements is positioned for easy visibility, which helps promote fast and repeatable device positioning
- Built-in bubble level
- Durable, aluminum-alloy construction
UPC: 719821287674 In the Box Manfrotto 400 3-Way Geared Pan-and-Tilt Head with Select Quick Release Plates 400PL-LOW Quick Release Plate (13mm) for 400 Deluxe Geared Head 400PL-MED Quick Release Plate (23mm) for 400 Deluxe Geared Head 400PL-HIG Quick Release Plate (44mm) for 400 Deluxe Geared Head Limited 6-Month Warranty, Extendable to 10 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 400 3-Way Geared Pan-and-Tilt Head with Select Quick Release Plates in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto 400 Specs | | | Head Type | Geared Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male, 3/8"-16 Male | | Load Capacity | 22.1 lb / 10.02 kg | | Number of Bubble Levels | 1 | | Friction Control | No | | Independent Pan Lock | Yes | | Material | Aluminum | | | | Lateral Tilt | -8
