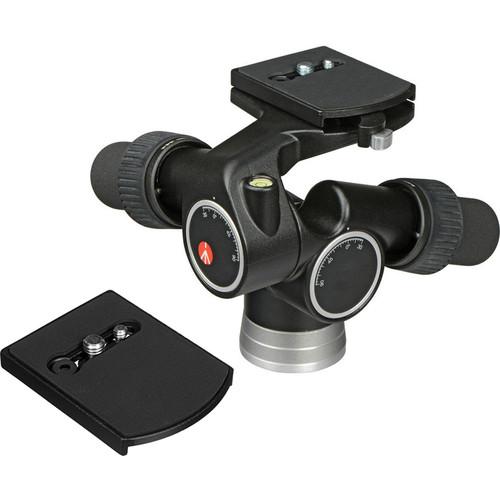

User Manual for Manfrotto 405 3-Way, Geared Pan-and-Tilt Head Kit with 410PL Quick Release Plates Click to enlarge the picture
Contents of the user manual for the Manfrotto 405 3-Way, Geared Pan-and-Tilt Head
- Product category: Tripod Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Heads
|
User manual for the Manfrotto 405 3-Way, Geared Pan-and-Tilt Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description This 405 3-Way, Geared Pan-and-Tilt Head Kit from includes one 405 3-Way, Geared Pan-and-Tilt Head with an integrated RC4 quick release cam lock and two 410PL Quick Release Plates. - Manfrotto 405 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate This 405 3-Way, Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 16.5 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC4 quick release cam lock and a 410PL Quick Release Plate. RC4 compatible quick release plates such as the 410PL can removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached.
Cameras or accessories that are compatible with a 1/4"-20 or 3/16"-20 mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, snap-lock knobs with easy-to-turn, fluted grips. Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place. An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments, which help to ensure that any device mounted to this 405 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject.
To further promote fast and repeatable device positioning, this 405 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility. - 405 3-Way, Geared Pan-and-Tilt Head
-
- 16.5 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and have individual snap-lock knobs with easy-to-turn, fluted grips
- Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place
- An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments
- Dedicated angle scales for each movement that are designed for easy visibility further promote fast, repeatable, and accurate device positioning
- Integrated, RC4 quick release cam lock
- Two bubble levels for landscape orientations and one bubble level for portrait orientations
- Durable, aluminum-alloy construction
- 410PL Quick Release Plate
-
- Compatible with Manfrotto RC4 quick release cam lock
- Measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface
- 1/4"-20 and 3/8"-16 mount
- Durable, aluminum-alloy construction
UPC: 719821193500 - Manfrotto 410PL Quick Release Plate - for RC4 Quick Release System The Manfrotto 410PL Quick Release Plate is a low profile plate for the RC4 quick release system. It is larger than Manfrotto's standard RC2 system's plate, and it comes supplied with both 1/4"-20 and 3/8" threaded screws. Its screw travels along a 2" grooved slot, to better accommodate professional cameras of different dimensions. Replaces old part number 3271. UPC: 719821156321
In the Box - 405 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate drqacfextz
- 410PL Quick Release Plate - for RC4 Quick Release System
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- 410PL Quick Release Plate - for RC4 Quick Release System drqacfextz
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 405 3-Way, Geared Pan-and-Tilt Head Kit with 410PL Quick Release Plates in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto 405 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate
| | | Head Type | Pan & Tilt Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male, 3/8"-16 Male | | Quick Release Plate Type | RC4 | | Load Capacity | 16.5 lb / 7.48 kg | | Number of Bubble Levels | 3 | | Material | Aluminum | | | | Lateral Tilt | -90
