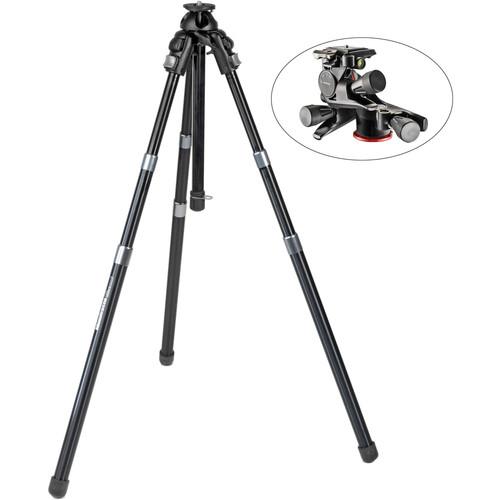

User Manual for Manfrotto 458B NeoTec Pro Photo Aluminum Tripod with XPRO Geared 3-Way Pan Tilt Head Kit Click to enlarge the picture
Contents of the user manual for the Manfrotto 458B NeoTec Pro Photo Aluminum
- Product category: Tripods with Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripods with Heads
|
User manual for the Manfrotto 458B NeoTec Pro Photo Aluminum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More Employing the innovative NeoTec rapid opening and closing mechanism, the 458B NeoTec Pro Photo Aluminum Tripod with XPRO Geared 3-Way Pan/Tilt Head Kit from Manfrotto features legs that open up by simply pulling down on each one, and automatically lock into any position, with no screws, knobs or levers to tighten. By pressing the release button at the top of the legs the legs can be collapsed again fully, or locked at any intermediate point for perfect positioning. This mechanism exerts more locking power the heavier the weight is pushing down on it from above. Other professional features include an improved minimum-maximum height range and a 90° horizontal center column feature.
The included XPRO Geared 3-Way Head can hold up to 8.8 lb while weighing only 1.7 lb. It is made from a rigid technopolymer called Adapto that maintains strength without adding excess weight.
The head features micrometric knobs, allowing you to place your camera exactly where you need it. For larger adjustments the knobs can be pressed down against a lever, unlocking the movement of each axis individually. The head has a front tilt range of -20/+90°, a lateral tilt range of -90/+30°, and a 360° pan range. A 200PL quick release plate is included for fast and easy camera attachment and detachment. - Manfrotto 458B NeoTec Pro Photo Aluminum Tripod Employing the innovative NeoTec rapid opening and closing mechanism, the Manfrotto 458B Neotec Pro Photo Aluminum Tripod has legs that open up by simply pulling down on each one, and automatically lock into any position, with no screws, knobs or levers to tighten. By pressing the release button at the top of the legs the legs can be collapsed again fully, or locked at any intermediate point for perfect positioning. This mechanism exerts more locking power the heavier the weight pushing down on it from above. Other professional features include an improved minimum-maximum height range and a 90° horizontal center column feature. UPC: 719821240181
- Manfrotto XPRO 3-Way, Geared Pan-and-Tilt Head with 200PL-14 Quick Release Plate This XPRO 3-Way, Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 8.8 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached. The cam lock also features a safety catch to prevent the 200PL-14, or another compatible quick release plate from accidentally disconnecting.
Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate before securing it to the pan-and-tilt head. The head can be rotated 360°, tilted 90° forwards or 20° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, spring-clamp controls. Squeezing each clamp's two handles allows the corresponding movement to be rapidly adjusted, and once the handles are released, the adjustment is locked into place. One handle on each clamp is also an integrated twist knob that allows incremental, geared adjustments, which help to ensure that any device mounted to this XPRO 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject.
To further promote fast and repeatable device positioning, this XPRO 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility. - XPRO 3-Way, Geared Pan-and-Tilt Head
-
- 8.8 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Can be rotated 360°, tilted 90° forwards or 20° backwards, as well as 90° sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and have individual spring-clamp controls
- Squeezing each clamp's two handles allows the corresponding rotation, backwards and forwards tilt, or portrait orientation tilt to be rapidly adjusted; and once the handles are released, the adjustment is locked into place
- One handle on each clamp is also an integrated twist knob that allows incremental, geared adjustments for precise device positioning
- Dedicated angle scales for each movement that are designed for easy visibility further promote fast, repeatable, and accurate device positioning
- Integrated, RC2 quick release cam lock
- Two bubble levels for landscape orientations and one bubble level for portrait orientations
- Durable and lightweight polymer and fiberglass construction
- 200PL-14 Quick Release Plate
-
- Compatible with Manfrotto RC2 quick release cam lock
- Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
- 1/4"-20 mount
- Durable, aluminum-alloy construction
UPC: 719821376088 In the Box - 458B NeoTec Pro Photo Aluminum Tripod etfcteyfu
- Detachable Carrying Handle
- Limited 2-Year Warranty Extendable to 10 Years with Registration
- XPRO 3-Way, Geared Pan-and-Tilt Head with 200PL-14 Quick Release Plate
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 458B NeoTec Pro Photo Aluminum Tripod with XPRO Geared 3-Way Pan Tilt Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto 458B NeoTec Pro Photo Aluminum Tripod
| | | Load Capacity | 17.6 lb / 8 kg | | Maximum Working Height | 61.4" / 156 cm | | Max Height without Center Column | 51.6" / 131.1 cm | | Minimum Working Height | 3.9" / 9.9 cm | | Folded Length | 25.2" / 64 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 5.2 lb / 2.4 kg | | Materials | Aluminum Alloy | | Bubble Level | Yes | | | | Leg Lock Type | Push-Pull, with Release Button | | Leg Positions | 4 Positions | | Leg Sections | 3 | | Feet Features | Rubber | | | | Center Column Features | Ballast Hook | | Center Column Shape | Faceted | | Center Column Extension Type | Rapid | | Center Column Diameter | 1" / 25.4 mm | | Lateral / 90-Degree Center Column | Yes | | | | Box Dimensions (LxWxH) | 26.221 x 6.221 x 5.433" | - Manfrotto XPRO 3-Way, Geared Pan-and-Tilt Head with 200PL-14 Quick Release Plate
| | | Head Type | Pan & Tilt Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | 200PL-14 | | Load Capacity | 8.8 lb / 3.99 kg | | Number of Bubble Levels | 3 | | Material | Technopolymer | | | | Lateral Tilt | -90
