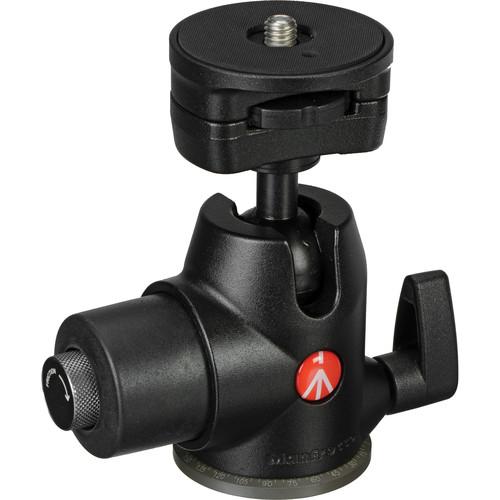

User Manual for Manfrotto 468MG Hydrostatic Ball Head Click to enlarge the picture
Contents of the user manual for the Manfrotto 468MG Hydrostatic Ball Head
- Product category: Tripod Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Heads
|
User manual for the Manfrotto 468MG Hydrostatic Ball Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description This Manfrotto 468MG Hydrostatic Ball Head features a ball-and-socket joint that utilizes pressurized fluid, which helps to provide a 35.3 lb load capacity and an easy-to-tighten locking mechanism. By loosening the 468MG Hydrostatic Ball Head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. An additional knob set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.
The 468MG Hydrostatic Ball Head's rubberized, non-slip platform includes a 1/4"-20 mount inside a spring-loaded 3/8"-16 expansion sleeve. When securing cameras, lenses, sport optics, or accessories that feature 1/4"-20 female accessory threads to the ball head, the expansion sleeve is automatically depressed, allowing those devices to be firmly attached. For items with 3/8"-16 female accessory threads, the expansion sleeve remains engaged and provides a reliable connection point that is reinforced by the 1/4"-20 mount.
An integrated thumbwheel under the ball head's platform allows both the mount and expansion sleeve, or the mount alone, to be screwed into a corresponding accessory thread. This permits a camera, lens, or sport optic to be attached to the 468MG Hydrostatic Ball Head while it is simultaneously pointed in the subject's direction. To further promote fast and repeatable device positioning, the ball head's platform is engraved with an angle scale along its outer rim. -
- 35.3 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Easy-to-tighten hydrostatic ball-and-socket joint that utilizes pressurized fluid which helps maximize pan-and-tilt flexibility while enhancing load capacity
- Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
- Dual, ball-and-socket joint notches enable two-sided tilt capability
- Rubberized, non-slip platform with dual function mount accommodates cameras, lenses, sport optics, or accessories that feature 1/4"-20 or 3/8"-16 female accessory threads
- Integrated thumbwheel under the ball head's non-slip platform allows both the mount and expansion sleeve, or the mount alone, to be screwed into a corresponding accessory thread, permitting a camera, lens, or sport optic to be attached while it is simultaneously pointed in the subject's direction
- Non-slip platform is engraved with an angle scale along its outer rim to further promote fast and repeatable device positioning
- Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Secondary locking knob allows head to rotate 360°
- Dedicated tension control knob for the ball-and-socket joint's movements
- Durable, magnesium-alloy construction
UPC: 719821246718 In the Box Manfrotto 468MG Hydrostatic Ball Head Limited 6-Month Warranty, Extendable to 10 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 468MG Hydrostatic Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto 468MG Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male, 3/8"-16 Male | | Quick Release Plate Type | No Quick Release | | Load Capacity | 35.3 lb / 16.01 kg | | Number of Bubble Level(s) | None | | Friction Control | Yes | | Independent Pan Lock | Yes | | Material | Magnesium | | | | Lateral Tilt | -90
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
