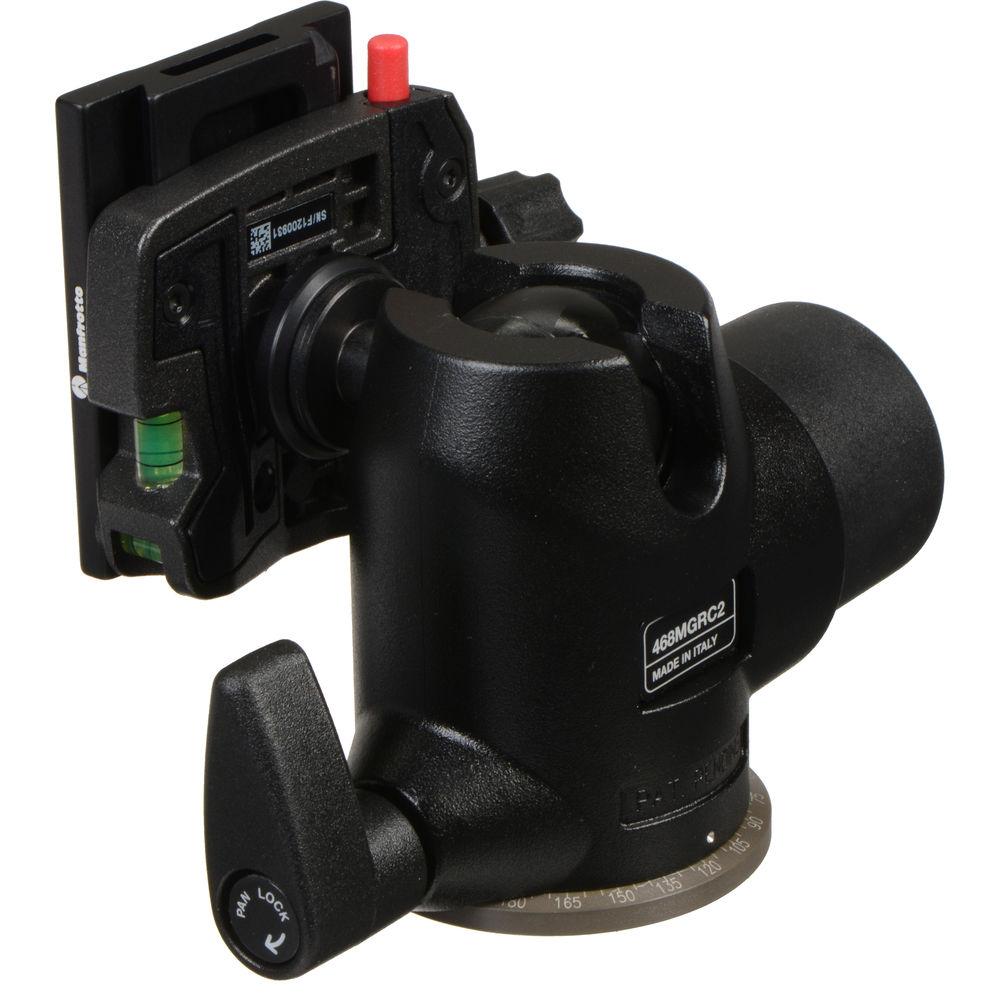

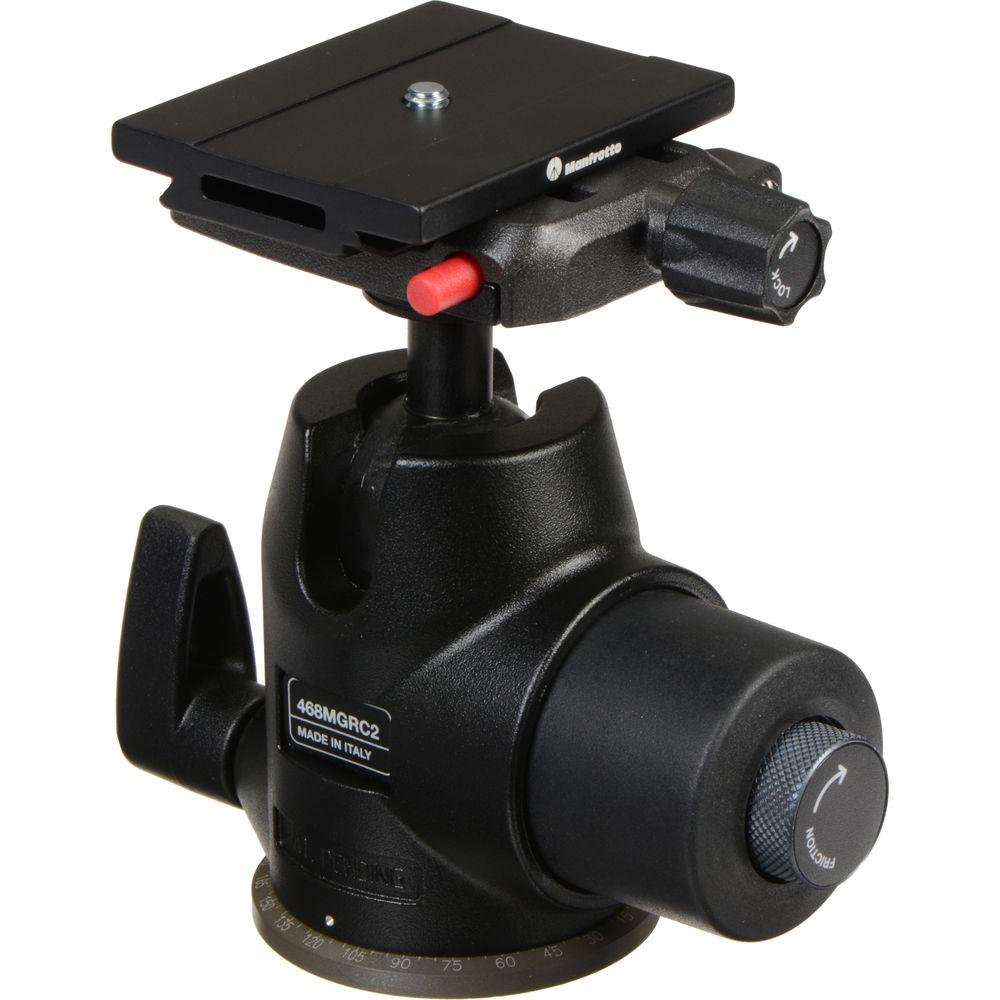

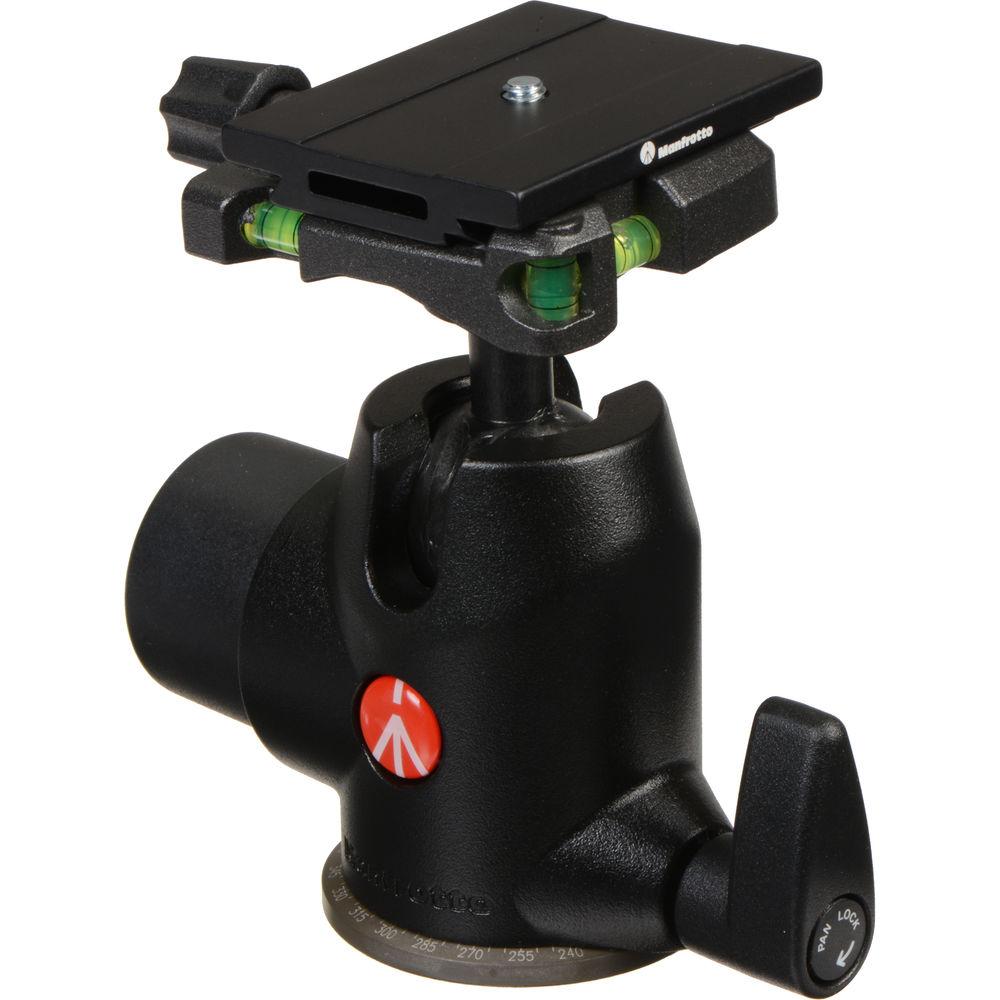

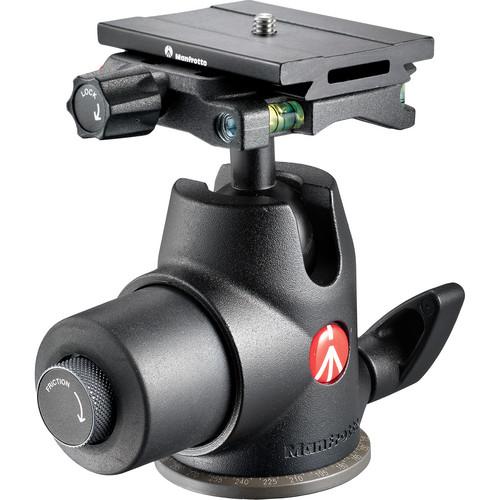

User Manual for Manfrotto 468MG Hydrostatic Ball Head with MSQ6PL Quick Release Plate Click to enlarge the picture
Contents of the user manual for the Manfrotto 468MG Hydrostatic Ball Head with
- Product category: Tripod Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Heads
 |
User manual for the Manfrotto 468MG Hydrostatic Ball Head with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description This 468MG Hydrostatic Ball Head from Manfrotto includes an integrated Arca-type clamp and a MSQ6PL Quick Release Plate. Arca-type compatible quick release plates such as the MSQ6PL can be attached or removed from the Arca-type clamp located at the top of the ball-and-socket joint by tightening or loosening the clamp's locking knob. Within the recessed surface between the clamp's jaws is a retaining pin. This pin prevents an installed quick release plate from accidentally sliding off when the clamp is opened.
The 468MG Hydrostatic Ball Head with MSQ6PL Quick Release Plate features a ball-and-socket joint that utilizes pressurized fluid, which helps to provide a 35.3 lb load capacity and an easy-to-tighten locking mechanism. By loosening the 468MG Hydrostatic Ball Head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. An additional knob set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the MSQ6PL Quick Release Plate which, measures 2.8 x 2.2 x 0.4". - 468MG Hydrostatic Ball Head
-
- 35.3 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Easy-to-tighten hydrostatic ball-and-socket joint that utilizes pressurized fluid, which helps maximize pan-and-tilt flexibility while enhancing load capacity
- Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
- Dual, ball-and-socket joint notches enable two-sided tilt capability
- Integrated Arca-type clamp on top of on the ball-and-socket joint is compatible with Arca-type quick-release plates
- Retaining pin on the clamp prevents a quick release plate from accidentally sliding off when the clamp is opened
- Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Secondary locking knob allows head to rotate 360°
- Dedicated tension control knob for the ball-and-socket joint's movements
- Two bubble levels for landscape orientations and one bubble level for portrait orientations
- Durable, magnesium-alloy construction
- MSQ6PL Quick Release Plate
-
- Compatible with Arca-type quick release clamps
- Measures 2.8 x 2.2 x 0.4"
- 1/4"-20 mount
- Durable, aluminum-alloy construction
UPC: 719821348375 In the Box Manfrotto 468MG Hydrostatic Ball Head with MSQ6PL Quick Release Plate MSQ6PL Quick Release Plate for Q6 Top Lock System Limited 6-Month Warranty, Extendable to 10 Years with Product Registration User Manual PDF 639.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 468MG Hydrostatic Ball Head with MSQ6PL Quick Release Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto 468MGQ6 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | Q6 | | Load Capacity | 35.3 lb / 16.01 kg | | Number of Bubble Levels | 3 | | Friction Control | Yes | | Independent Pan Lock | Yes | | Material | Magnesium | | | | Lateral Tilt | -90
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
