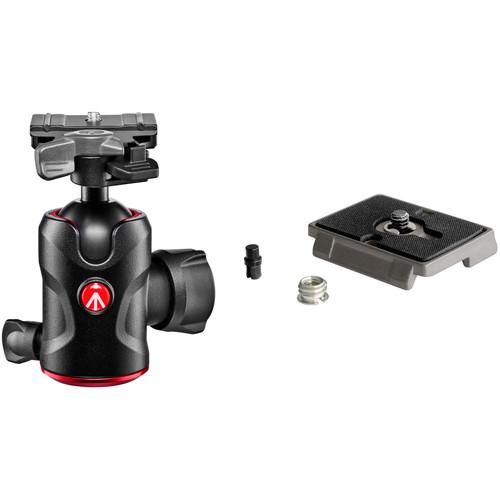

Manfrotto 496 Center Ball Head Kit

User Manual for Manfrotto 496 Center Ball Head Kit with 200PL-PRO and 200PL Quick Release Plates

• Product category: Tripod Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripod Heads

Product description

• Manfrotto 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter The Manfrotto 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter is the replacement quick release plate for all heads that use the RC2 (3157N) system. The plate comes with a 1/4"-20 camera screw and a 3/8" bushing adapter, and is compatible with 35mm and standard thread-mounted medium format cameras.
  • RC2 Quick Release System
  UPC: 719821345015
• Manfrotto 496 Center Ball Head with 200PL-PRO Quick Release Plate This Manfrotto 496 Center Ball Head features an integrated RC2 quick release cam lock and a 200PL-PRO Quick Release Plate. Compatible quick release plates can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting.

  The 496 Center Ball Head with 200PL-PRO Quick Release Plate has a load capacity of 22 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A recessed dial set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.

  Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-PRO quick release plate, as well as 3/8"-16 threads via an included bushing adapter. The plate is also compatible with separately available tripod heads that feature an Arca-type clamp.
  496 Center Ball Head
  • • 22 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
    • Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
    • Integrated RC2 quick release cam lock
    • Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
    • Secondary locking knob allows head to rotate 360°
    • Dedicated tension control dial for the ball-and-socket joint's movements
    • Durable, aluminum-alloy construction
  200PL-PRO Quick Release Plate
  • • Compatible with Manfrotto RC2 quick release cam lock and Arca-type quick release clamps
    • 1/4"-20 mount with support for 3/8"-16 via bushing adapter
    • Durable, aluminum-alloy construction
  UPC: 719821423911

• 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter sazbaqydfatqcszc
• Limited 1-Year Warranty

• 496 Center Ball Head with 200PL-PRO Quick Release Plate

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter

  Materials	Aluminum
  Weight	1.43 oz / 40.5 g

  Box Dimensions (LxWxH)	2.6 x 2.0 x 0.5"

• Manfrotto 496 Center Ball Head with 200PL-PRO Quick Release Plate

  Head Type	Ball Head
  Base Mount	3/8"-16 Female
  Camera Mounting Screw	1/4"-20 Male & 3/8"-16 with Bushing
  Quick Release Plate Type	Arca-Type, RC2
  Load Capacity	22 lb / 9.98 kg
  Number of Bubble Levels	None
  Friction Control	Yes
  Independent Pan Lock	Yes
  Material	Aluminum

  Panning Range
