User Manual for Manfrotto 502A Video Head, 546GB Tripod, and Carry Bag Bundle Click to enlarge the picture
Contents of the user manual for the Manfrotto 502A Video Head, 546GB Tripod,
- Product category: Tripod Systems Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Systems
 |
User manual for the Manfrotto 502A Video Head, 546GB Tripod, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|

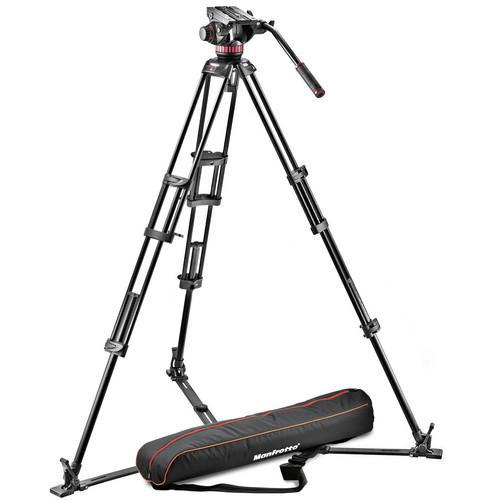

Product description This Manfrotto Bundle includes the 502A Pro Video Head, the 546GB Tripod with a Ground Spreader, and a Tripod Carry Bag. The 502A features a 75mm half ball and 15.5 lb payload, and the 546GB offers a max height of 62". - 502A Pro Video Head with 75mm Half Ball
- Manfrotto 502 Heads - Tutorial Video
- Manfrotto Fluid Video Head Range - Tutorial Video
The Manfrotto 502A Pro Video Head with 75mm Half Ball is an affordable yet remarkably fully featured professional head that represents an advance over the popular 501HDV, with sturdier construction and a half ball for precise leveling on a corresponding tripod. The 502A comes in two versions—the "A" ball-base version such as this one, and the "AH" flat-base version which is separately available.Featuring Manfrotto's patented bridging technology (inherited from the 509 and 504 heads), the 502A is designed for executing cinematic moves with compact camcorders and DSLR video cameras. The weight limit is 15.43 lb and counterbalance supports up to 8.8 lb. The balance plate's 3.27" range allows you to correct for uneven payloads that might be due to matte boxes or exotic DSLR rig configurations.The bridging technology ensures that the pan friction control is intuitive and easy to set, but also protected against knocks. There are independent locks for pan and tilt, and drag for both is selectable in a continuous range from zero to the max level. This allows you to operate the head in a confident, smooth manner using the included pan bar. - For video tripods with 75mm half balls
- 75mm half ball connects to the corresponding bowl in a tripod
- Pan drag and tilt drag are continuously adjustable from 0 (no drag) to the maximum level
- Sliding quick release plate secured by secondary safety system

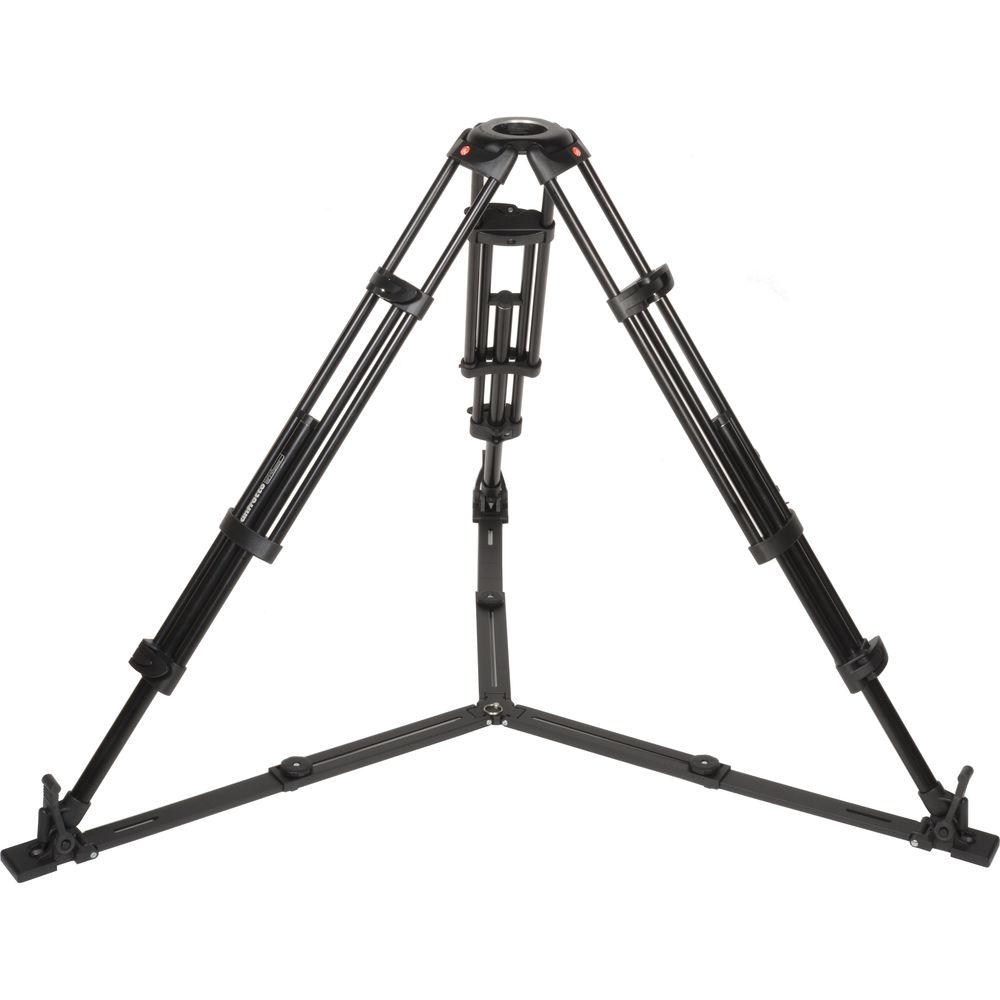

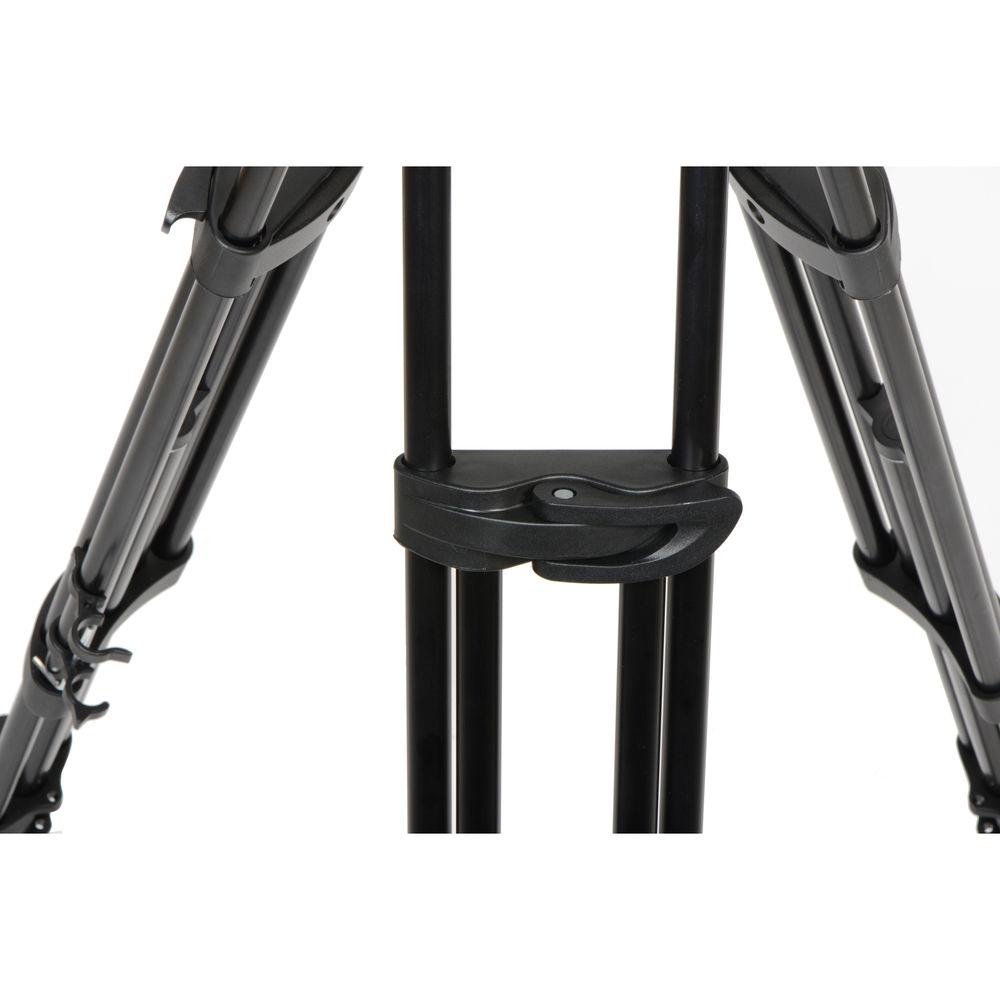

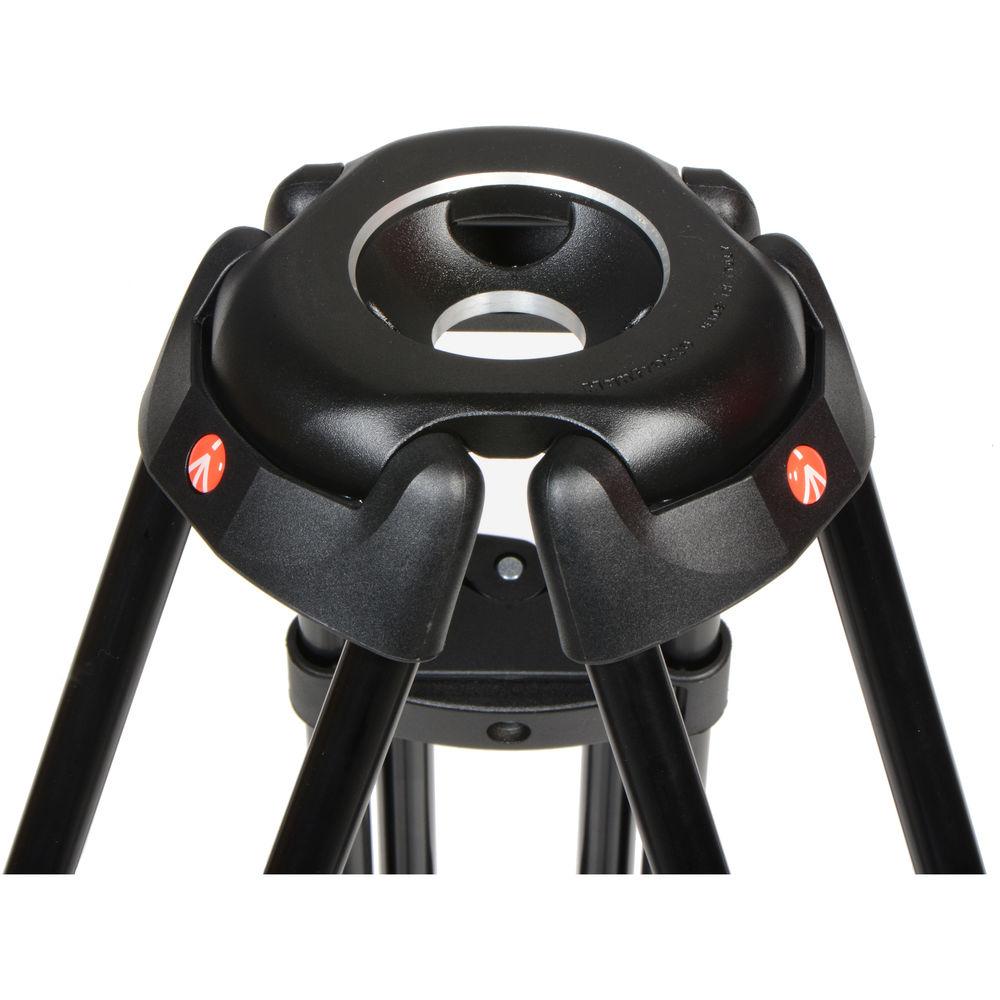

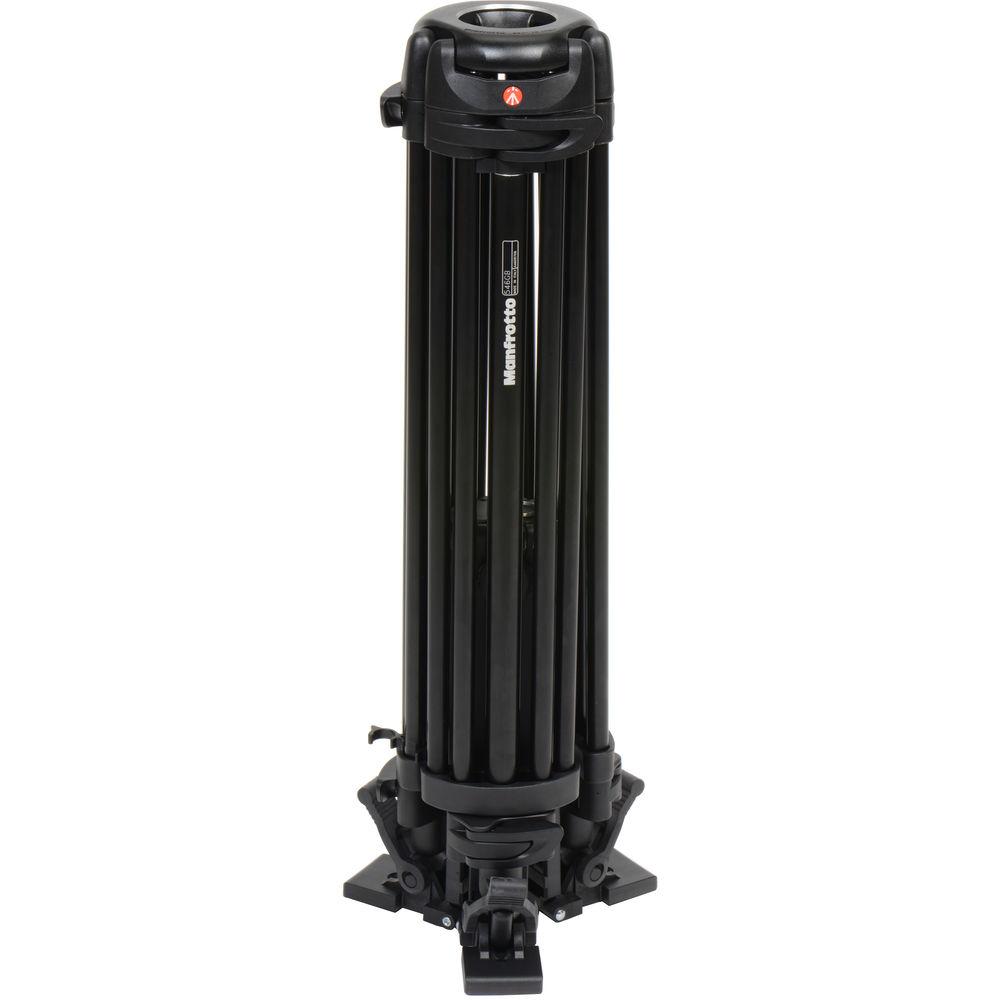

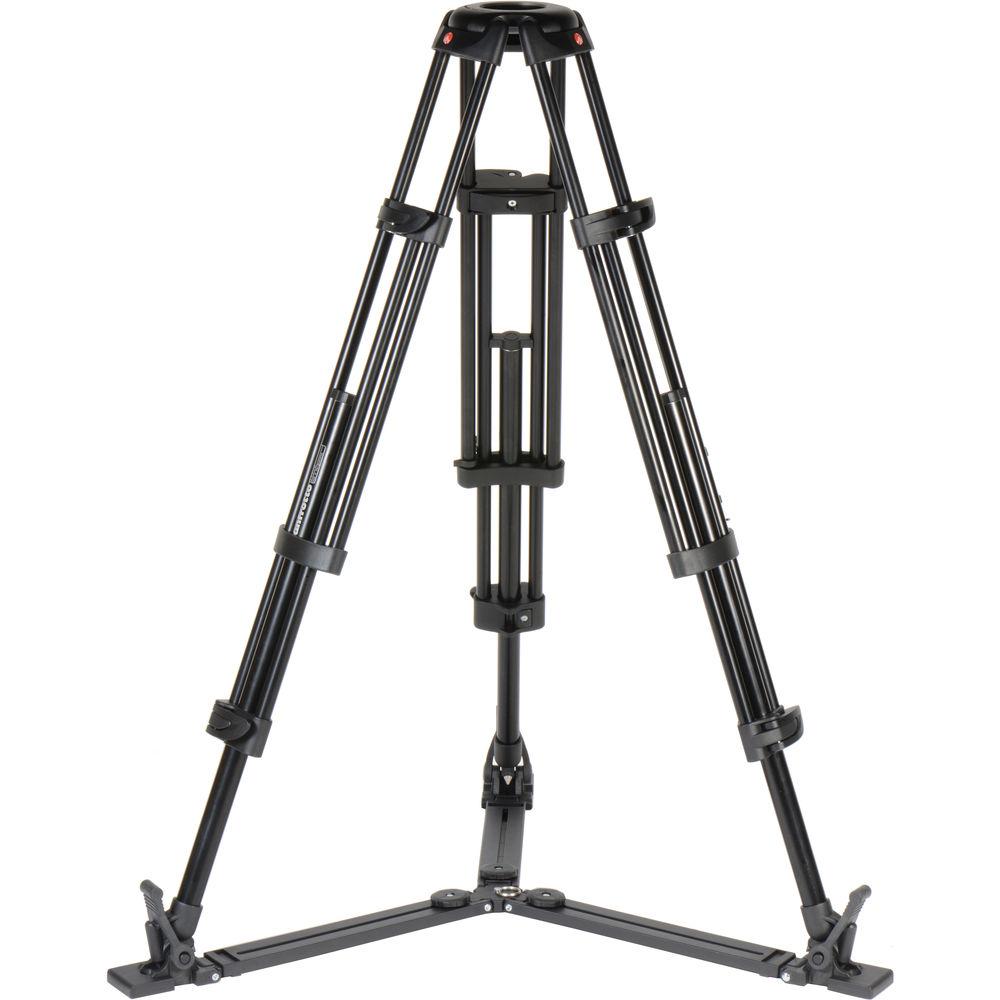

UPC: 719821334644 - 546GB Pro Video Tripod with Ground-Level Spreader The Manfrotto 546GB Pro Video Tripod with Ground-level Spreader is an aluminum two stage/3 section tripod that combines stability and strength with affordability. Reaching a maximum height of 62.4", the 546GB is capable of supporting up to 44 lbs (20kg). Its spiked feet come with rubber overshoes, allowing setups on both smooth floors and uneven surfaces, while a newly designed ground-level telescopic spreader keeps the legs exactly where you need them. UPC: 719821311706
In the Box Bundle Items 502A Pro Video Head with 75mm Half Ball sraddrfctruryvuwrxstwxbrxvxyurcy - 504PLONG Long Quick Release Mounting Plate
- Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
546GB Pro Video Tripod with Ground-Level Spreader - Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
- Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
Also Includes - Red & Black Tripod Carrying Bag
- Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 502A Video Head, 546GB Tripod, and Carry Bag Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 502A Pro Video Head with 75mm Half Ball
| | | Camera Mounting Screw | 1 x 1/4"-20 Male
1 x 3/8"-16 Male | | Balance Plate Sliding Range | 3.3" / 83 mm | | | | Load Capacity | 15.43 lb / 7 kg | | Counter Balance | Fixed (8.8 lb / 4 kg) | | Dimensions | 5.91" / 15 cm | | | | Box Dimensions (LxWxH) | 15.0 x 8.5 x 8.5" | - 546GB Pro Video Tripod with Ground-Level Spreader
| | | Head Mount Type | 75 mm Bowl | | Load Capacity | 44 lb / 20 kg | | Maximum Working Height | 62.4" / 158.5 cm | | Minimum Working Height | 12.8" / 32.5 cm | | Folded Length | 27.17" / 69 cm | | Materials | Aluminum | | Bubble Level | Yes | | Weight | 7.72 lb / 3.5 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | No | | Leg Sections | 3 | | Leg Diameter | 1" / 25 mm | | Feet Features | Rubber, Removable | | | | Center Column Features | Center Brace | | | | Box Dimensions (LxWxH) | 31.0 x 9.0 x 9.0" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
