Manfrotto 502AH Video Head, 028B Triman

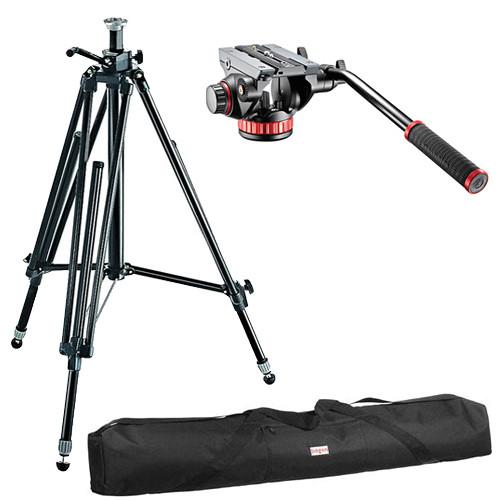

User Manual for Manfrotto 502AH Video Head, 028B Triman Tripod, and Padded Bag Kit

• Product category: Tripod Systems Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripod Systems

Product description

• Manfrotto 502AH Pro Video Head with Flat Base
  • Manfrotto 502 Heads - Tutorial Video
  The Manfrotto 502AH Pro Video Head with Flat Base is an affordable yet remarkably fully featured professional head that represents an advance over the popular 501HDV, with sturdier construction and featuring Manfrotto's patented bridging technology (inherited from the 509 and 504 heads). This head is designed for executing cinematic moves with compact camcorders and DSLR video cameras. The 502AH comes in two versions—the "AH" flat-base version such as this, and the "A" ball base version which is separately available.The weight capacity is 15.4 lb and counterbalance supports 8.8 lb. The balance plate's 3.27" range allows you to correct for uneven payloads due to matte boxes or DSLR rig configurations.The bridging technology ensures that the pan friction control is intuitive and easy to set, but also protected against knocks. There are independent locks for pan and tilt, and drag for both is selectable in a continuous range from zero to the max level. This allows you to operate the head in a confident, smooth manner using the included pan bar.
  • Pan drag and tilt drag are continuously adjustable from 0 (no drag) to the maximum level
  • Sliding quick release plate secured by secondary safety system
  UPC: 719821334651
• Manfrotto 028B Triman Camera Tripod with Geared Center Column
  • Manfrotto 502 Heads - Tutorial Video
  The Manfrotto 028B Triman Camera Tripod is a strong, sturdy tripod with a geared center column built for industrial and studio applications. Standard features include the tandem leg design, built-in bubble level, and rubber feet with retractable spikes. The geared center column has a non roll-back feature and has a threaded 3/8"-16 mount on the bottom of the column to allow low-angle shots. Strong enough for even the most ardent of medium format applications. The 028B is compatible with the 181B dolly. A mid-level spreader and a carrying strap are included with the tripod. UPC: 719821288367
• Manfrotto 3281B (AW-3281B) 42" Padded Tripod Bag (Black)
  • Manfrotto 502 Heads - Tutorial Video
  The Manfrotto 3281B (AW-3281B) Tripod Bag is a soft padded bag made of heavy duty Cordura nylon designed to carry Manfrotto tripods. The bag has 1 outside pocket for accessories and is carried by handles or an included shoulder strap.
  • Soft tripod bag made from heavy duty Cordura nylon
  • 1 pocket on outside of the case
  Compatible with;
  • Bogen/Manfrotto tripods with head up to 42" long
  UPC: 719821156475

• 502AH Pro Video Head with Flat Base cfxxqzcyaawcaqxrebvuxxwyexxvsreurta
• Pan Bar
• 504PLONG Long Quick Release Mounting Plate
• Limited 6-Month Warranty, Extendable to 5 Years with Product Registration

• 028B Triman Camera Tripod with Geared Center Column

• 3281B (AW-3281B) 42" Padded Tripod Bag (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto 502AH Pro Video Head with Flat Base

  Balance Plate Sliding Range	3.3" / 83 mm

  Load Capacity	15.43 lb / 7 kg
  Counter Balance	Fixed (8.8 lb / 4 kg)
  Dimensions	5.12" / 13 cm

  Box Dimensions (LxWxH)	15.0 x 8.5 x 8.4"

• Manfrotto 028B Triman Camera Tripod with Geared Center Column

  Load Capacity	26.5 lb / 12 kg
  Maximum Working Height	89.4" / 227.1 cm
  Max Height without Center Column	70.5" / 179.1 cm
  Minimum Working Height	30.4" / 77.2 cm
  Folded Length	32.3" / 82 cm
  Head Mount Type	3/8"-16 Screw
  Weight	9.2 lb / 4.2 kg
  Materials	Aluminum Alloy
  Bubble Level	Yes

  Leg Lock Type	Wingnut
  Independent Leg Spread	No
  Leg Sections	3
  Feet Features	Spiked

  Center Column Features	Center Brace
  Center Column Sections	1
  Center Column Extension Type	Geared
  Lateral / 90-Degree Center Column	No

  Box Dimensions (LxWxH)	33.75 x 7.0 x 6.75"

• Manfrotto 3281B (AW-3281B) 42" Padded Tripod Bag (Black)

  Carrying/Transport Options	Connecting Handles, Shoulder Strap
  Type of Closure	Zipper
  Exterior Material	Nylon
  Padded	Yes
  Interior Dimensions	Rating 80% users recommend this product to others. And what about you? This product has already been rated by 53 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
