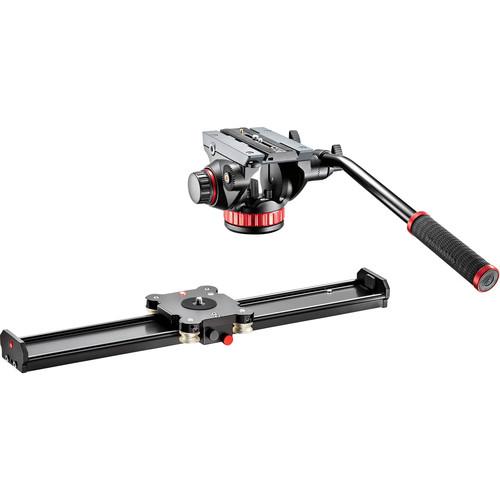

User Manual for Manfrotto 502AH Video Head & 24" Camera Slider Kit Click to enlarge the picture
Contents of the user manual for the Manfrotto 502AH Video Head & 24"
- Product category: Camera Sliders Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Camera Sliders
|
User manual for the Manfrotto 502AH Video Head & 24" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description This Kit includes the Manfrotto 502AH Pro Video Head and a 24" Camera Slider. The 502AH features a flat base and 15.5 lb payload, and the slider has a roller bearing sliding system and adjustable friction. - Manfrotto Camera Slider 60cm (23.6")
- Manfrotto 502 Heads - Tutorial Video
- Manfrotto Fluid Video Head Range - Tutorial Video
The 23.6" Camera Slider from Manfrotto is a sturdy, portable solution for adding short-length tracking shots and subtle motion to your videos with loads up to 22 lb. It features high-precision steel ball bearings and quiet PSU polymer wheels for smooth camera carriage slides and an adjustable friction system to dial in the right amount of resistance for each slide. The carriage has a maximum travel distance of 18.4". The slider is constructed from machined anodized aluminum and weighs 4.83 lb. It can be setup on any flat and level surface or mounted on a tripod via the 1/4"-20 and 3/8"-16 threads at the center and ends of the tripod. The threads also allow you to attach a variety of optional accessories, such as articulating arms and Manfrotto's Digital Director. - Key Features
-
- 18.4" travel distance
- Machined anodized aluminum construction
- Steel ball bearings and PSU polymer wheels for smooth and quiet operation
- Adjustable friction system
- 1/4"-20 and 3/8"-16 attachment points
- Leveling bubble
- Made in Italy
UPC: 719821394198 - Manfrotto 502AH Pro Video Head with Flat Base
- Manfrotto 502 Heads - Tutorial Video
- Manfrotto Fluid Video Head Range - Tutorial Video
The Manfrotto 502AH Pro Video Head with Flat Base is an affordable yet remarkably fully featured professional head that represents an advance over the popular 501HDV, with sturdier construction and featuring Manfrotto's patented bridging technology (inherited from the 509 and 504 heads). This head is designed for executing cinematic moves with compact camcorders and DSLR video cameras. The 502AH comes in two versions—the "AH" flat-base version such as this, and the "A" ball base version which is separately available.The weight capacity is 15.4 lb and counterbalance supports 8.8 lb. The balance plate's 3.27" range allows you to correct for uneven payloads due to matte boxes or DSLR rig configurations.The bridging technology ensures that the pan friction control is intuitive and easy to set, but also protected against knocks. There are independent locks for pan and tilt, and drag for both is selectable in a continuous range from zero to the max level. This allows you to operate the head in a confident, smooth manner using the included pan bar. - Pan drag and tilt drag are continuously adjustable from 0 (no drag) to the maximum level
- Sliding quick release plate secured by secondary safety system
UPC: 719821334651 In the Box - Camera Slider 60cm (23.6")
- Limited 2-Year Warranty (Extendable to 5 Years with Online Product Registration)
- 502AH Pro Video Head with Flat Base
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 502AH Video Head & 24" Camera Slider Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto Camera Slider 60cm (23.6")
| | | Load Capacity | 22 lb / 10 kg | | Travel Distance | 18.4" / 46.8 cm | | | | Camera Mounting Screw | 3/8"-16 Male | | Tripod Mounting | 3 x 1/4"-20 Female Thread
3 x 3/8"-16 Female Thread | | | | Body Material | Aluminum | | Track Length | 23.6" / 60 cm | | Weight | 4.8 lb / 2.2 kg | | | | Box Dimensions (LxWxH) | 26.0 x 7.0 x 4.5" | - Manfrotto 502AH Pro Video Head with Flat Base
| | | Balance Plate Sliding Range | 3.3" / 83 mm | | | | Load Capacity | 15.43 lb / 7 kg | | Counter Balance | Fixed (8.8 lb / 4 kg) | | Dimensions | 5.12" / 13 cm | | | | Box Dimensions (LxWxH) | 15.0 x 8.5 x 8.4" |
