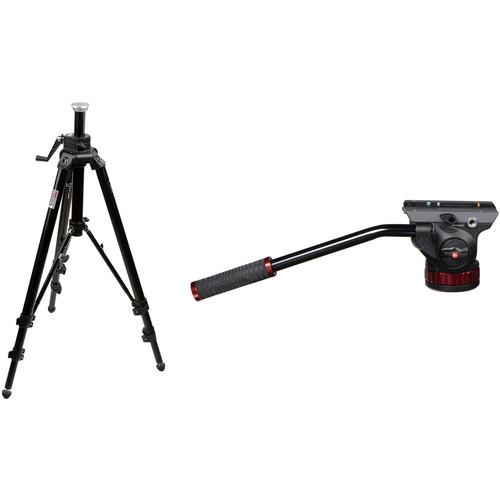

User Manual for Manfrotto 502AH Video Head & 475B Pro Tripod Kit Click to enlarge the picture
Contents of the user manual for the Manfrotto 502AH Video Head & 475B
- Product category: Tripod Systems Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Systems
|
User manual for the Manfrotto 502AH Video Head & 475B contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description This Kit includes the Manfrotto 502AH Pro Video Head and the 475B Pro Tripod with a Geared Column. The 502AH features a flat base and 15.5 lb payload, and the 475B offers a max height of 74" with the center column raised. The standard max height is 64". - Manfrotto 475B Pro Geared Tripod with Geared Column The Manfrotto 475B Pro Geared Tripod with Geared Column is a workhorse with modernized features, in essence a much improved version of the venerable 3036. It can extend to over 6' tall, and the geared center column cannot lose height accidentally. The 475 maintains stability at all heights, and the innovative leg braces allow for both infinite leg spread & quick setup. A spirit level and convertible rubber/spike feet are included. To avoid delays in leveling the tripod, the telescopic center braces have been designed with two click stop positions that allow you to easily find the same spread angle on all three legs.
- Quick flip locks require only 45° of movement
- Click stop detents allow speedy independent leg angle positioning
- Geared center column with folding crank
UPC: 719821195405 - Manfrotto 502AH Pro Video Head with Flat Base The Manfrotto 502AH Pro Video Head with Flat Base is an affordable yet remarkably fully featured professional head that represents an advance over the popular 501HDV, with sturdier construction and featuring Manfrotto's patented bridging technology (inherited from the 509 and 504 heads). This head is designed for executing cinematic moves with compact camcorders and DSLR video cameras. The 502AH comes in two versions—the "AH" flat-base version such as this, and the "A" ball base version which is separately available.The weight capacity is 15.4 lb and counterbalance supports 8.8 lb. The balance plate's 3.27" range allows you to correct for uneven payloads due to matte boxes or DSLR rig configurations.The bridging technology ensures that the pan friction control is intuitive and easy to set, but also protected against knocks. There are independent locks for pan and tilt, and drag for both is selectable in a continuous range from zero to the max level. This allows you to operate the head in a confident, smooth manner using the included pan bar.
- Pan drag and tilt drag are continuously adjustable from 0 (no drag) to the maximum level
- Sliding quick release plate secured by secondary safety system
UPC: 719821334651 In the Box - 475B Pro Geared Tripod with Geared Column ftsqdyrdvqycbebdvfxfztcxtaxwyx
- Limited 2-Year Warranty Extendable to 10 Years with Registration
- 502AH Pro Video Head with Flat Base
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 502AH Video Head & 475B Pro Tripod Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto 475B Pro Geared Tripod with Geared Column
| | | Load Capacity | 26.5 lb / 12 kg | | Maximum Working Height | 74" / 188 cm | | Max Height without Center Column | 63.8" / 162.1 cm | | Minimum Working Height | 16.9" / 42.9 cm | | Folded Length | 31.5" / 80 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 9.5 lb / 4.3 kg | | Materials | Aluminum Alloy | | Bubble Level | Yes | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Leg Diameter | 1.4" / 35.6 mm | | Feet Features | Spiked, Retractable | | | | Center Column Features | Center Brace | | Center Column Sections | 1 | | Center Column Extension Type | Geared | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 34.0 x 7.0 x 7.0" | - Manfrotto 502AH Pro Video Head with Flat Base
| | | Balance Plate Sliding Range | 3.3" / 83 mm | | | | Load Capacity | 15.43 lb / 7 kg | | Counter Balance | Fixed (8.8 lb / 4 kg) | | Dimensions | 5.12" / 13 cm | | | | Box Dimensions (LxWxH) | 15.0 x 8.5 x 8.4" |
