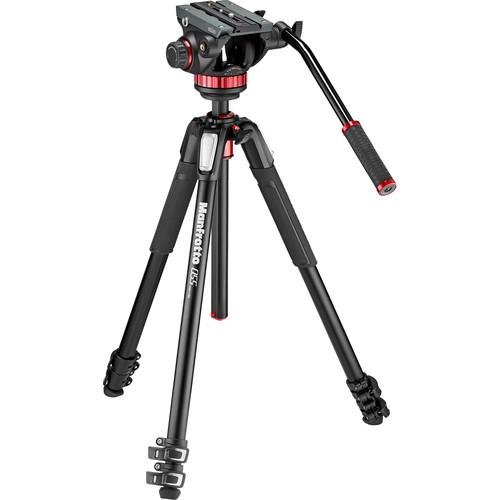

Product description This B&H Kit includes the Manfrotto 502AH Pro Video Head and the MT055XPRO3 Aluminum Tripod. The 502AH features a flat base and 15.5 lb payload, and the tripod offers a max height of 67" with the center column raised. The standard max height is 55". - 502AH Pro Video Head with Flat Base
- Manfrotto 502 Heads - Tutorial Video
- Manfrotto Fluid Video Head Range - Tutorial Video

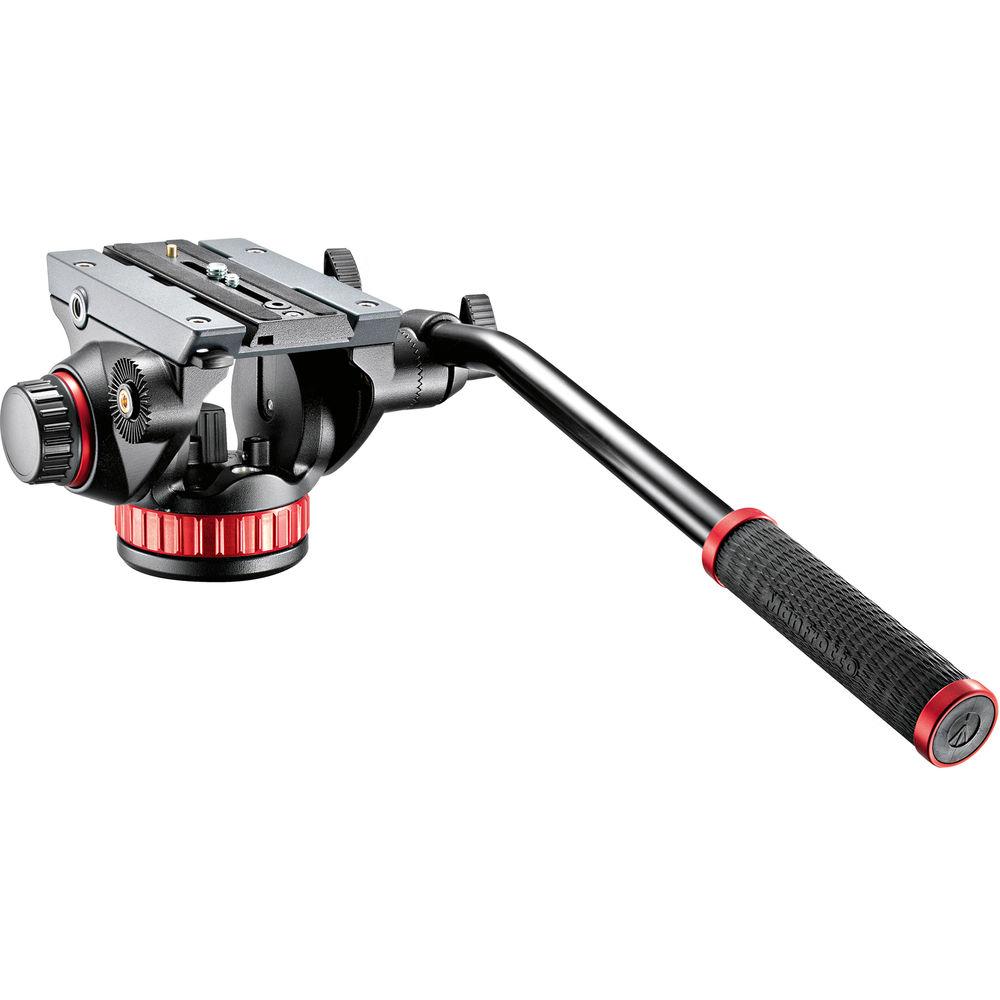

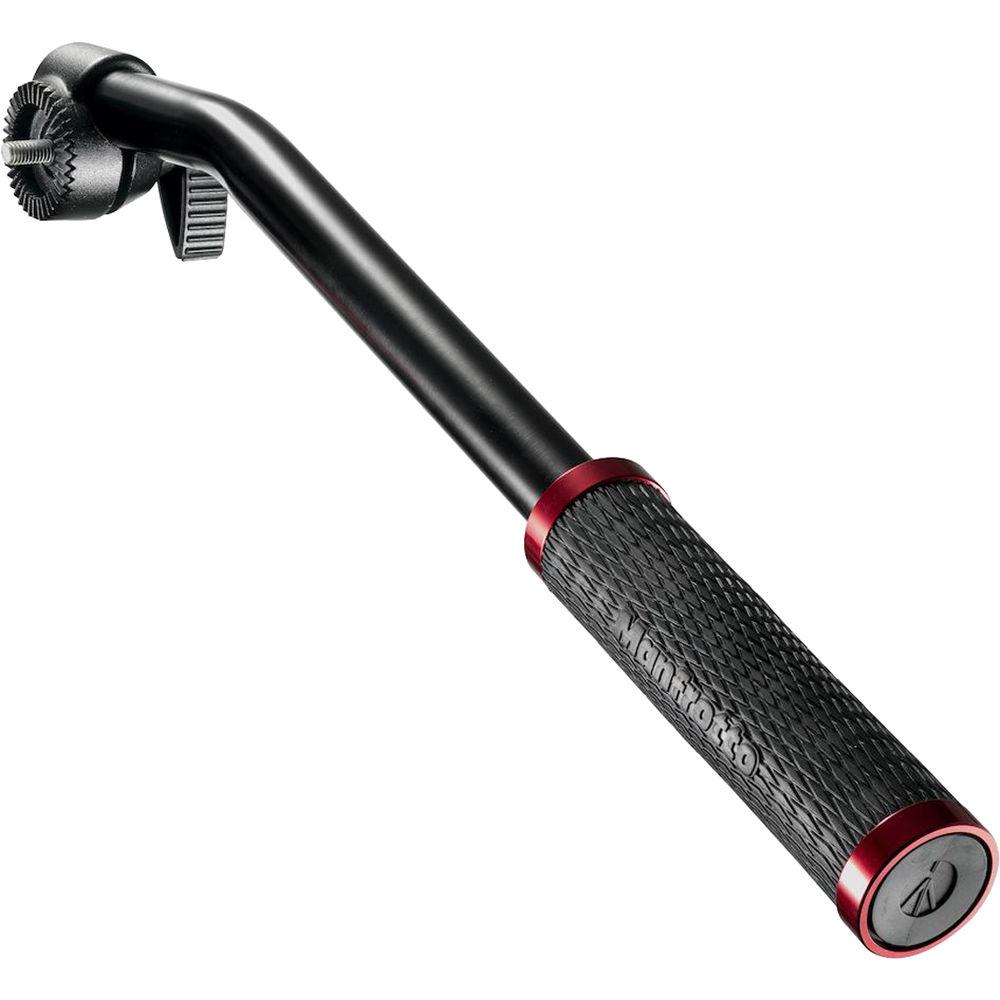

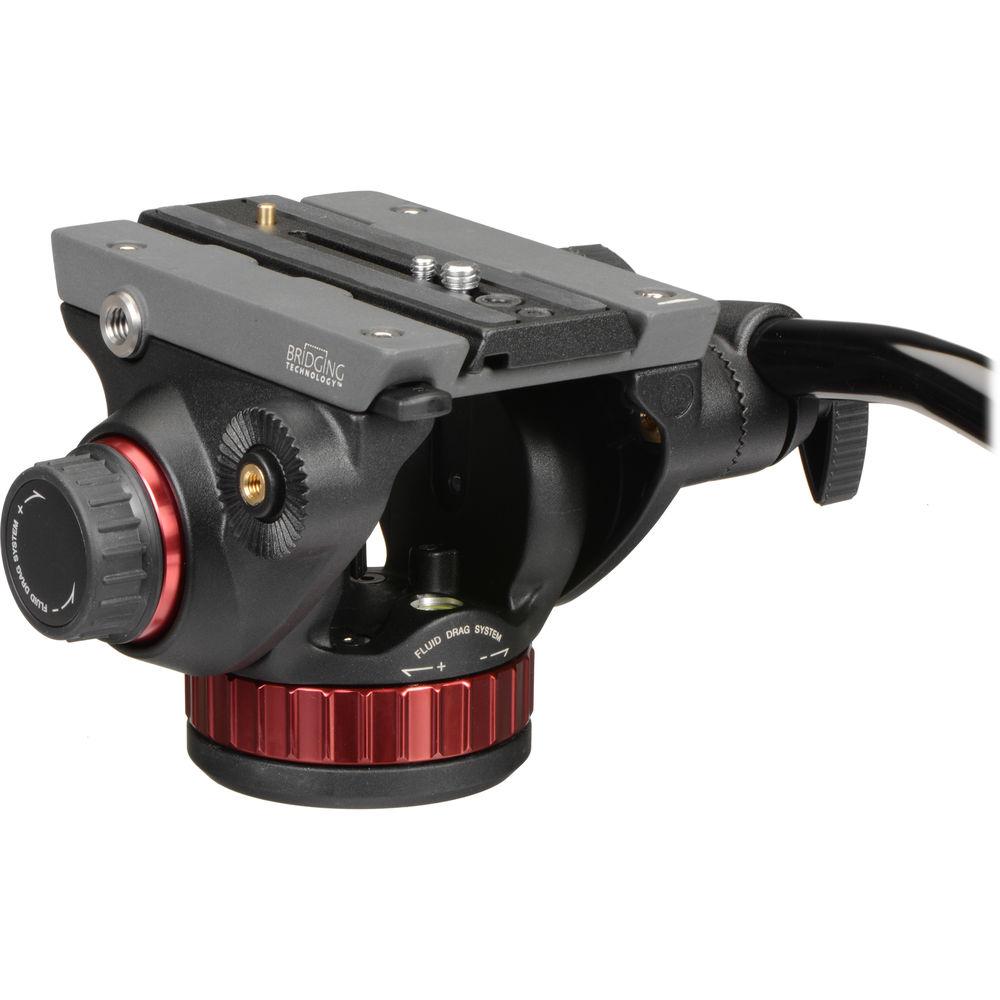

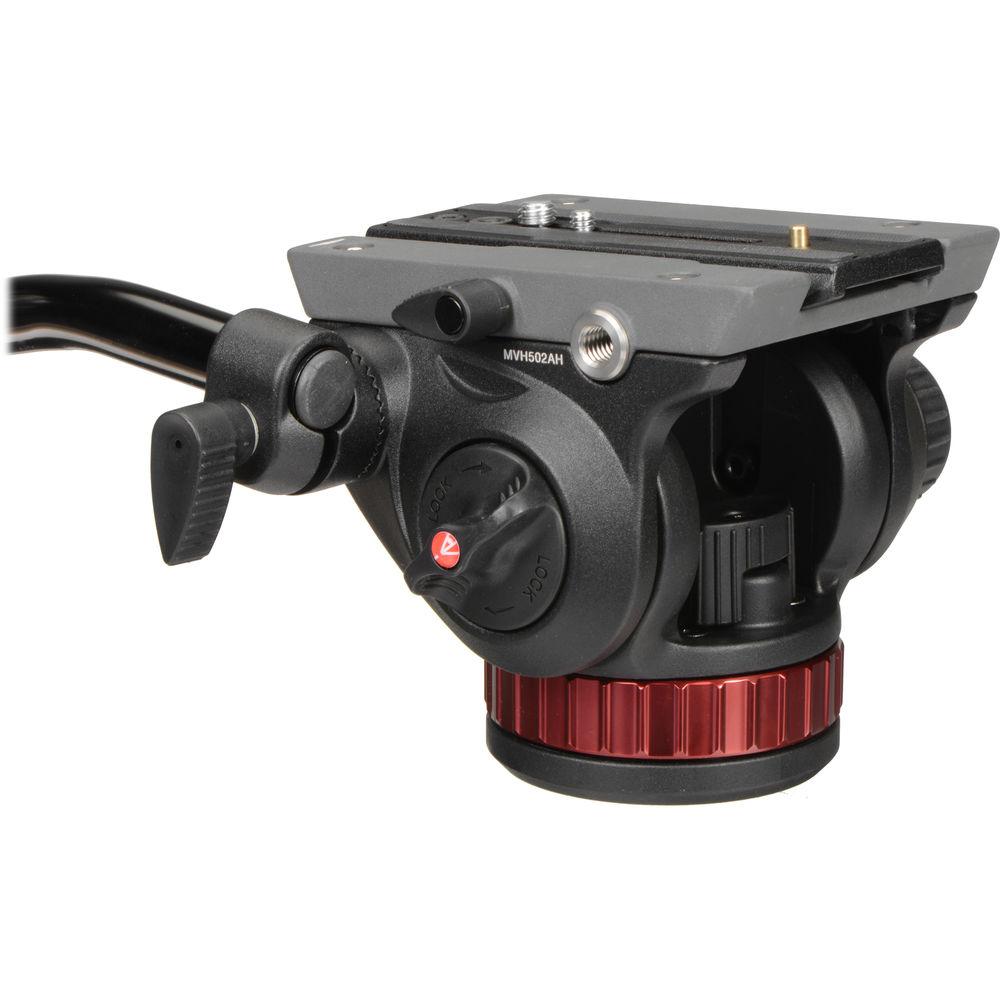

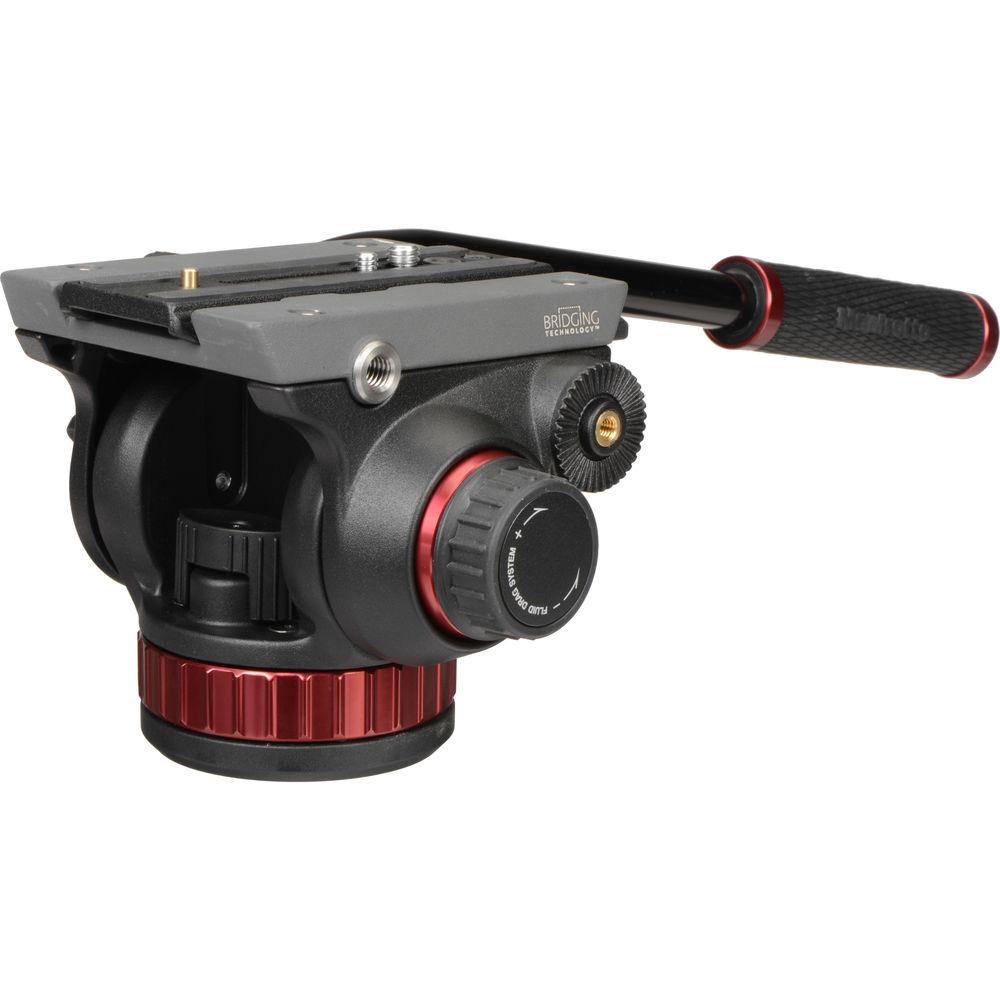

The Manfrotto 502AH Pro Video Head with Flat Base is an affordable yet remarkably fully featured professional head that represents an advance over the popular 501HDV, with sturdier construction and featuring Manfrotto's patented bridging technology (inherited from the 509 and 504 heads). This head is designed for executing cinematic moves with compact camcorders and DSLR video cameras. The 502AH comes in two versions—the "AH" flat-base version such as this, and the "A" ball base version which is separately available.The weight capacity is 15.4 lb and counterbalance supports 8.8 lb. The balance plate's 3.27" range allows you to correct for uneven payloads due to matte boxes or DSLR rig configurations.The bridging technology ensures that the pan friction control is intuitive and easy to set, but also protected against knocks. There are independent locks for pan and tilt, and drag for both is selectable in a continuous range from zero to the max level. This allows you to operate the head in a confident, smooth manner using the included pan bar. - Pan drag and tilt drag are continuously adjustable from 0 (no drag) to the maximum level

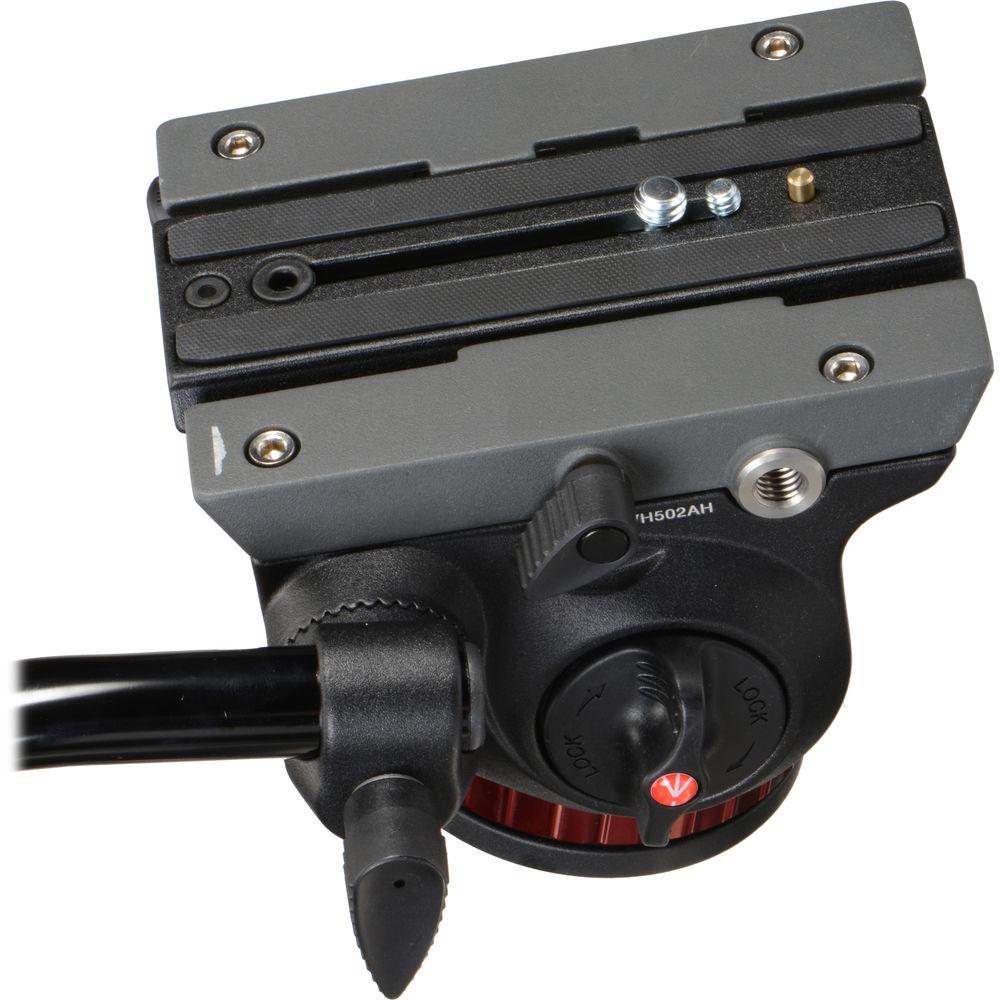

- Sliding quick release plate secured by secondary safety system

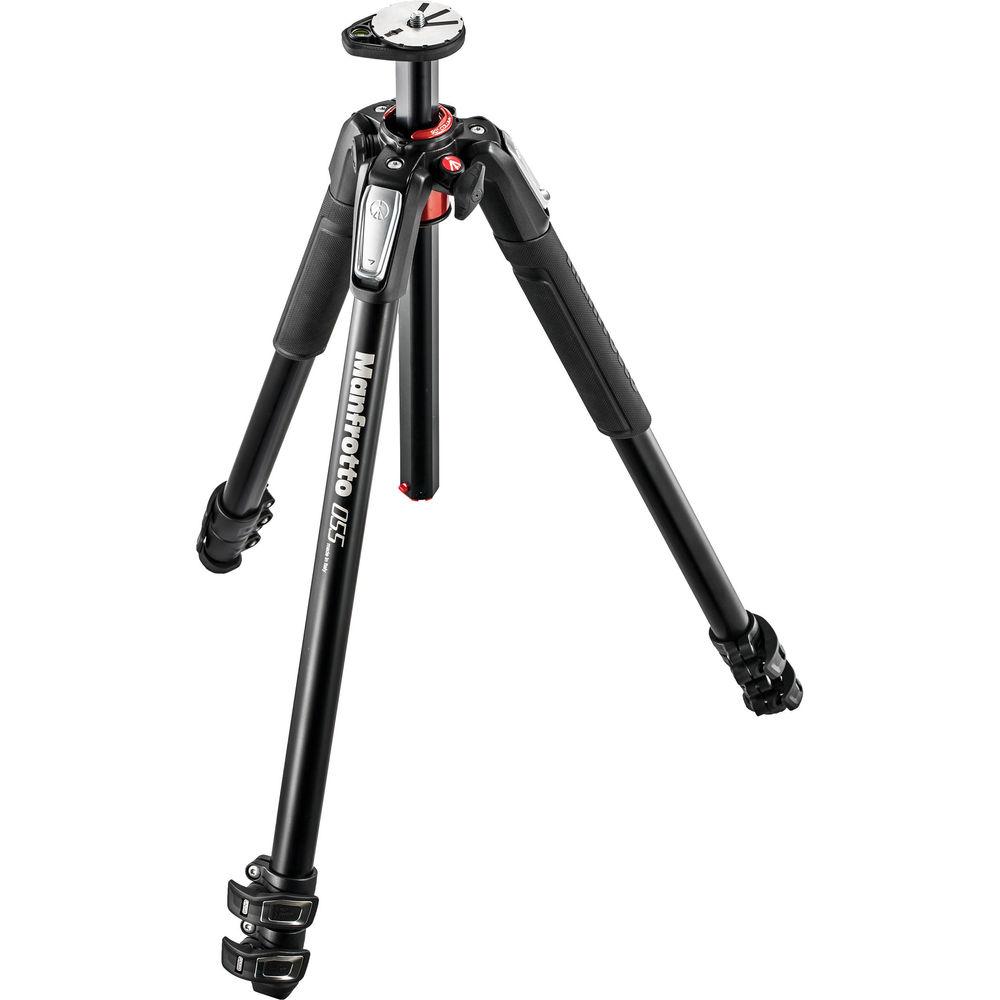

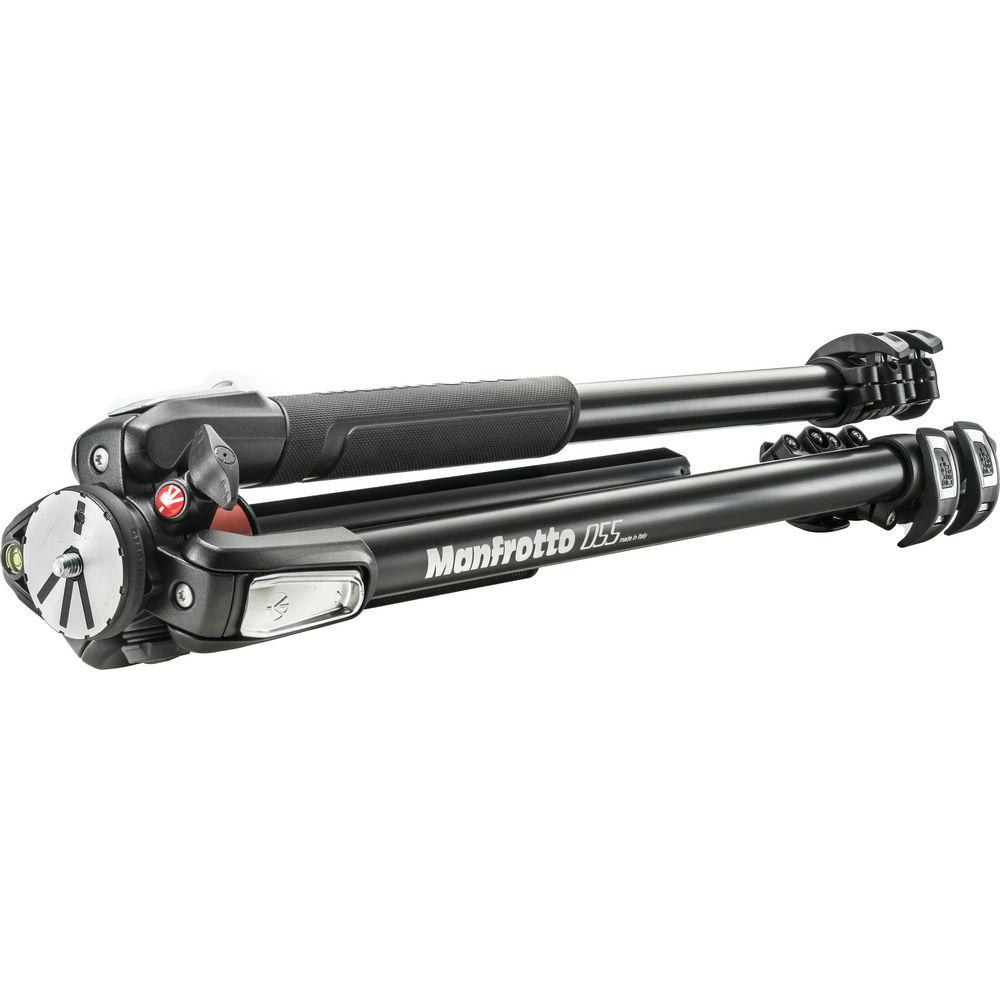

UPC: 719821334651 - MT055XPRO3 Aluminum Tripod The Manfrotto MT055XPRO3 Aluminum Tripod is a three-section support that replaces the 055XPROB tripod. It has a load capacity of 19.8 lb and extends from 3.5" to 66.9". Its legs are secured by the Quick Power Locks. These updated flip locks increase the tripod's rigidity by 50%, and its load capacity by 4.4 lb over its predecessor.

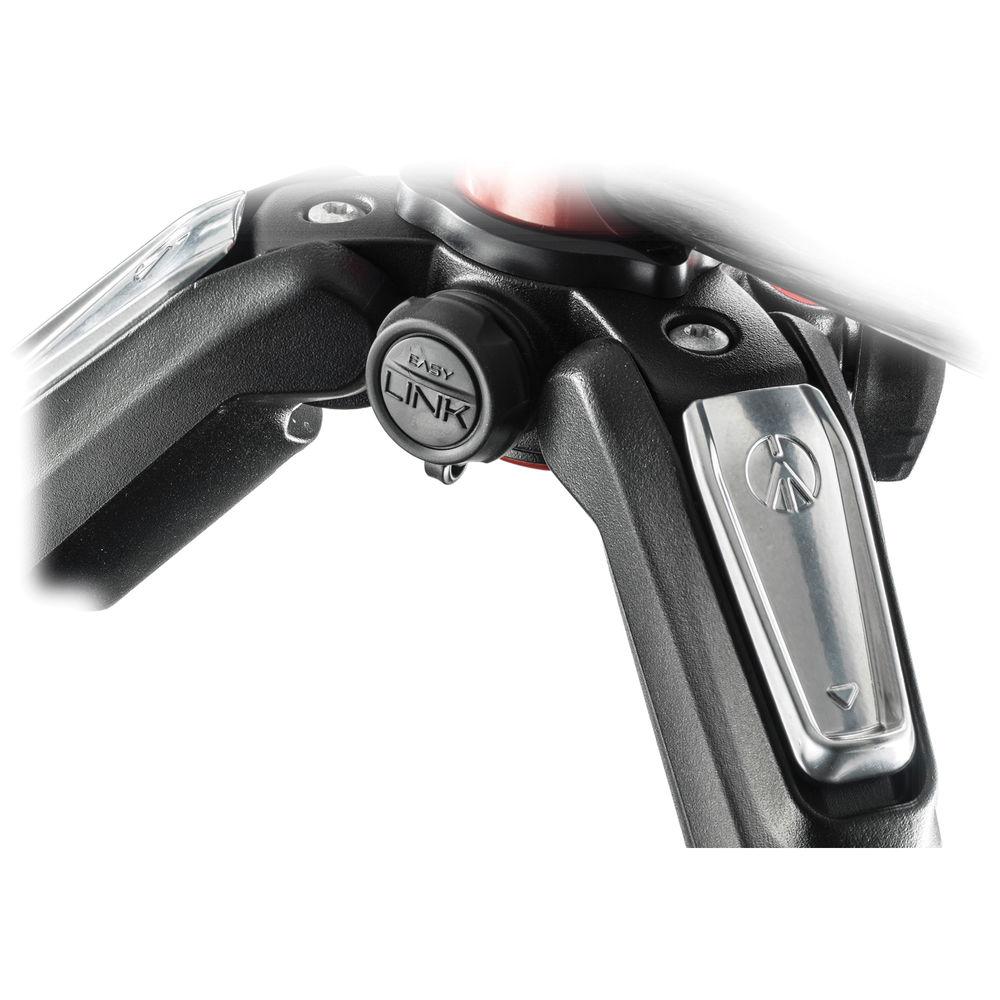

A redesigned center column has a "one finger" operation, and includes an Easy Link attachment for attaching accessories such as an LED light or a reflector. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull's eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes. UPC: 719821364634 In the Box Bundle Items 502AH Pro Video Head with Flat Base sausuxtuxbytdasczxrzrq - 504PLONG Long Quick Release Mounting Plate
- Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
MT055XPRO3 Aluminum Tripod User Manual PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 502AH Video Head & MT055XPRO3 Aluminum Tripod Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 502AH Pro Video Head with Flat Base
| | | Balance Plate Sliding Range | 3.3" / 83 mm | | | | Load Capacity | 15.43 lb / 7 kg | | Counter Balance | Fixed (8.8 lb / 4 kg) | | Dimensions | 5.12" / 13 cm | | | | Box Dimensions (LxWxH) | 15.0 x 8.5 x 8.4" | - MT055XPRO3 Aluminum Tripod
| | | Load Capacity | 19.8 lb / 9 kg | | Maximum Working Height | 66.9" / 169.9 cm | | Max Height without Center Column | 55.1" / 140 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Folded Length | 24" / 61 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 5.5 lb / 2.5 kg | | Materials | Aluminum Alloy | | Bubble Level | Yes | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | Yes | | | | Box Dimensions (LxWxH) | 25.5 x 5.5 x 5.3" |
