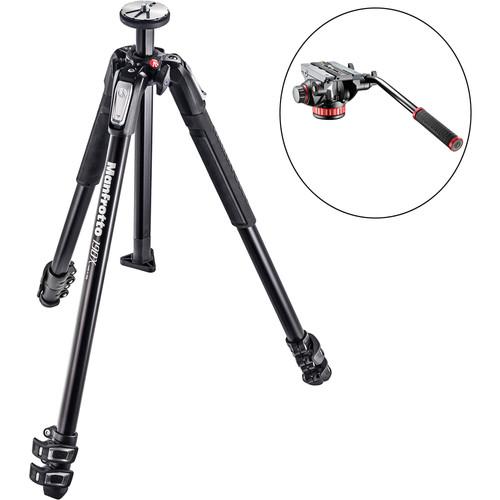

Product description This B&H Kit includes the Manfrotto 502AH Pro Video Head and the MT190X3 Aluminum Tripod. The 502AH features a flat base and 15.5 lb payload, and the tripod offers a max height of 63" with the center column raised. The standard max height is 53". - Manfrotto MT190X3 Aluminum Tripod The Manfrotto MT190X3 Aluminum Tripod is an addition to the popular 190 series, adding a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 15.4 lb of gear, and has a maximum height of 63". The ground-level adapter replaces the center column to allow the tripod's mounting plate to sit just 3.5" above the ground with the legs at their widest angle.
The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg can be set at four different angles to accommodate uneven ground or rough terrain. UPC: 719821378037 - Manfrotto 502AH Pro Video Head with Flat Base The Manfrotto 502AH Pro Video Head with Flat Base is an affordable yet remarkably fully featured professional head that represents an advance over the popular 501HDV, with sturdier construction and featuring Manfrotto's patented bridging technology (inherited from the 509 and 504 heads). This head is designed for executing cinematic moves with compact camcorders and DSLR video cameras. The 502AH comes in two versions—the "AH" flat-base version such as this, and the "A" ball base version which is separately available.The weight capacity is 15.4 lb and counterbalance supports 8.8 lb. The balance plate's 3.27" range allows you to correct for uneven payloads due to matte boxes or DSLR rig configurations.The bridging technology ensures that the pan friction control is intuitive and easy to set, but also protected against knocks. There are independent locks for pan and tilt, and drag for both is selectable in a continuous range from zero to the max level. This allows you to operate the head in a confident, smooth manner using the included pan bar.
- Pan drag and tilt drag are continuously adjustable from 0 (no drag) to the maximum level
- Sliding quick release plate secured by secondary safety system
UPC: 719821334651 In the Box - MT190X3 Aluminum Tripod yscvzuqbrscfsvbscfwfbazsyacaav
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- 502AH Pro Video Head with Flat Base
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 502AH Video Head & MT190X3 Aluminum Tripod Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto MT190X3 Aluminum Tripod
| | | Load Capacity | 15.4 lb / 7 kg | | Maximum Working Height | 63" / 160 cm | | Max Height without Center Column | 53.1" / 135 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Folded Length | 23.2" / 58.9 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 4.3 lb / 2 kg | | Materials | Aluminum Alloy | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | | | Center Column Features | Removable | | Center Column Shape | Faceted | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 26.0 x 5.4 x 5.4" | - Manfrotto 502AH Pro Video Head with Flat Base
| | | Balance Plate Sliding Range | 3.3" / 83 mm | | | | Load Capacity | 15.43 lb / 7 kg | | Counter Balance | Fixed (8.8 lb / 4 kg) | | Dimensions | 5.12" / 13 cm | | | | Box Dimensions (LxWxH) | 15.0 x 8.5 x 8.4" |
