Product description

• 504HD Fluid Video Head The Manfrotto 504HD Fluid Video Head introduces a revolutionary new design that improves performance while reducing weight, as well as offering a soupçon of style. The head's patented Bridging Technology allows for a wider top plate and longer sliding plate that add stability and balance to a set of state-of-the-art professional features. With its ability to support up to 16.5 lbs, the 504HD can be used with a variety of video and photo cameras. The newly designed counterbalance system includes four presets--from 0 to 16.5 lbs--enabling proper balance no matter what the camera's size or weight.

  At the same time, redesigned variable friction components--with clearly marked degree scales and vibration-free movement--bring new levels of fine tuning to your tilts and pans. An illuminated leveling bubble keeps horizons from tilting, even in the dark, while independent disc-brake locks make sure the head stays secure when at rest.

  Whether you're using a pro camcorder or a highly accessorized video DSLR on a rod/rail system, the 504HD takes some of the strain off your support rig by providing two 3/8" threads integrated into the sides of the top plate. These Easy Link Connectors allow attachment of monitors, arms, and other accessories directly to the head, making the camera less top-heavy while reducing setup time. All while being oh-so-stylish!
  • PAN fluid drag system for a more ergonomic operation
  • Easy Link Connectors for a more flexible accessory attachment
  • Wider top plate and longer sliding plate for extra stability and balance while using video or photo equipment
  • More rigid structure for maximum precision and improved responsiveness
  • 4-step counterbalance system ensures quick set-up and optimal performance
  • Ball-bearing drag system for precise, smooth movements
  • Lightweight modern materials for optimum balance of strength and size
  UPC: 719821317753

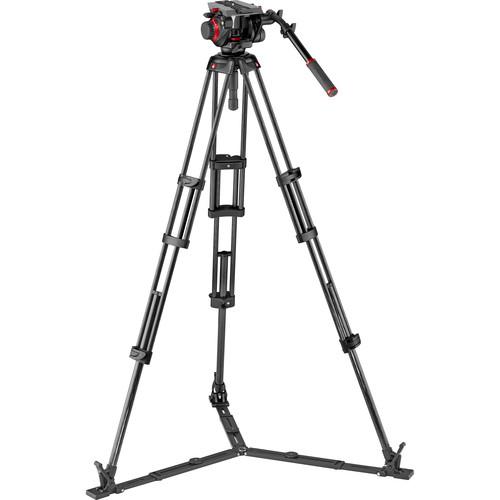

• Carbon Fiber Twin Leg Video Tripod Legs with Ground Spreader (100/75mm Bowl) The Manfrotto Carbon Fiber Twin Leg Video Tripod Legs with Ground Spreader is suitable for use on flat, smooth surfaces, and it features carbon fiber tubes that are both strong and lightweight while being corrosion resistant. The legs incorporate a 100mm half bowl and include a 75mm adapter ring, so you can use them with heads that have either a 100 or 75mm half ball. The legs support up to 44.1 pounds, which allows you to mount an appropriately sized fluid head, camera, and accessories without straining the capacity of the legs.

  With the included ground spreader attached the height of the legs can be adjusted from just over a foot to over 5 feet high, and the legs collapse to under 28 inches in length for transport and storage. Removing the spreader reveals the dual spiked feet, which are useful for soft surfaces such as gravel, dirt, or sand. The legs weigh a mere 7.21 pounds, making them easy to take almost anywhere you can go.
  • The integrated lever locks are strong, durable, and increase the torsional stability of the legs.
  • The included adapter ring is removable and attaches with three mounting screws. Attaching the adapter converts the 100mm bowl into a 75mm bowl.
  • The ground spreader is well suited for use on smooth and flat surfaces, and securely attach to the tripod's dual spiked feet.
  UPC: 719821433989

• 504HLV Pan Handle

• 504PLONG Long Quick Release Mounting Plate

• Limited 6-Month Warranty, Extendable to 5 Years with Product Registration

• 100 to 75mm Adapter Ring

• Limited 6-Month Warranty, Extendable to 5 Years with Product Registration

Also Includes

• Padded Carry Bag
