User Manual for Manfrotto 504HD Head w 535 2-Stage Carbon Fiber Tripod System Click to enlarge the picture
Contents of the user manual for the Manfrotto 504HD Head w 535 2-Stage
- Product category: Tripod Systems Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Systems
 |
User manual for the Manfrotto 504HD Head w 535 2-Stage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description - Manfrotto Fluid Video Head Range - Tutorial Video
- Manfrotto "Crossover" - 504HD system

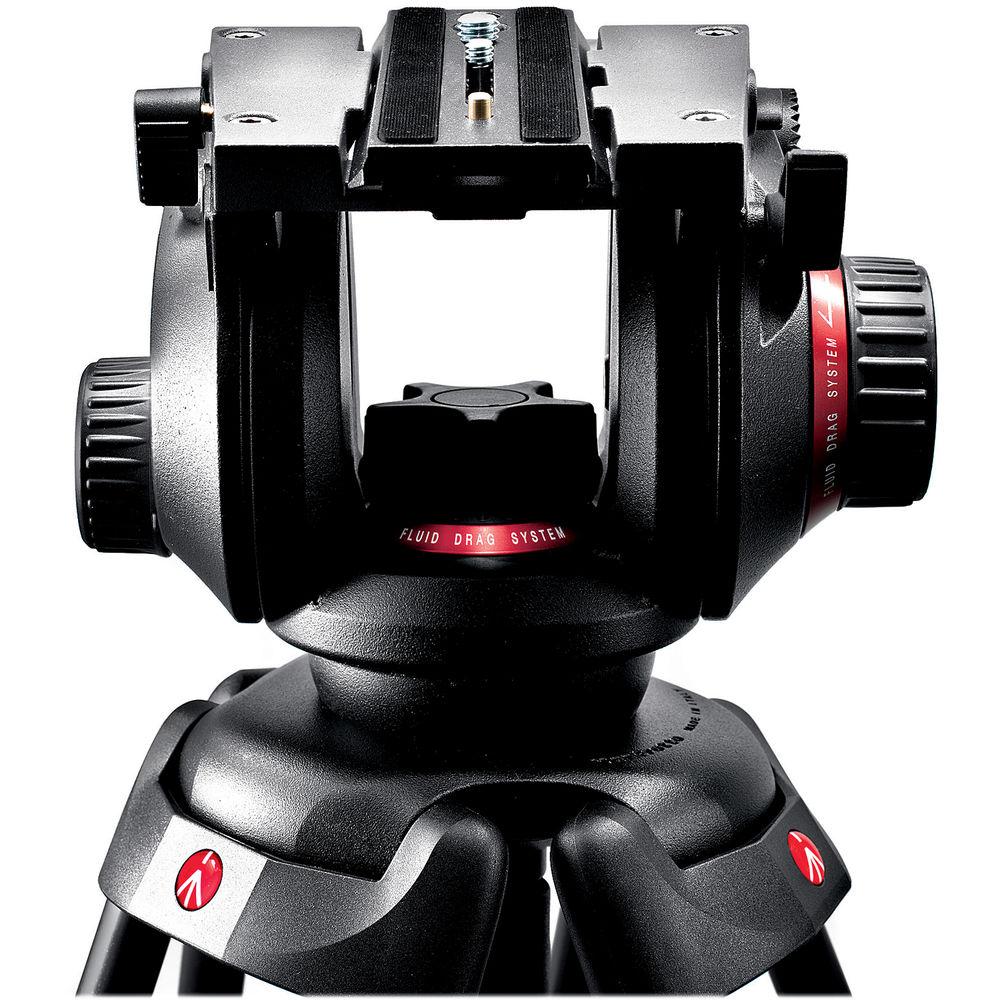

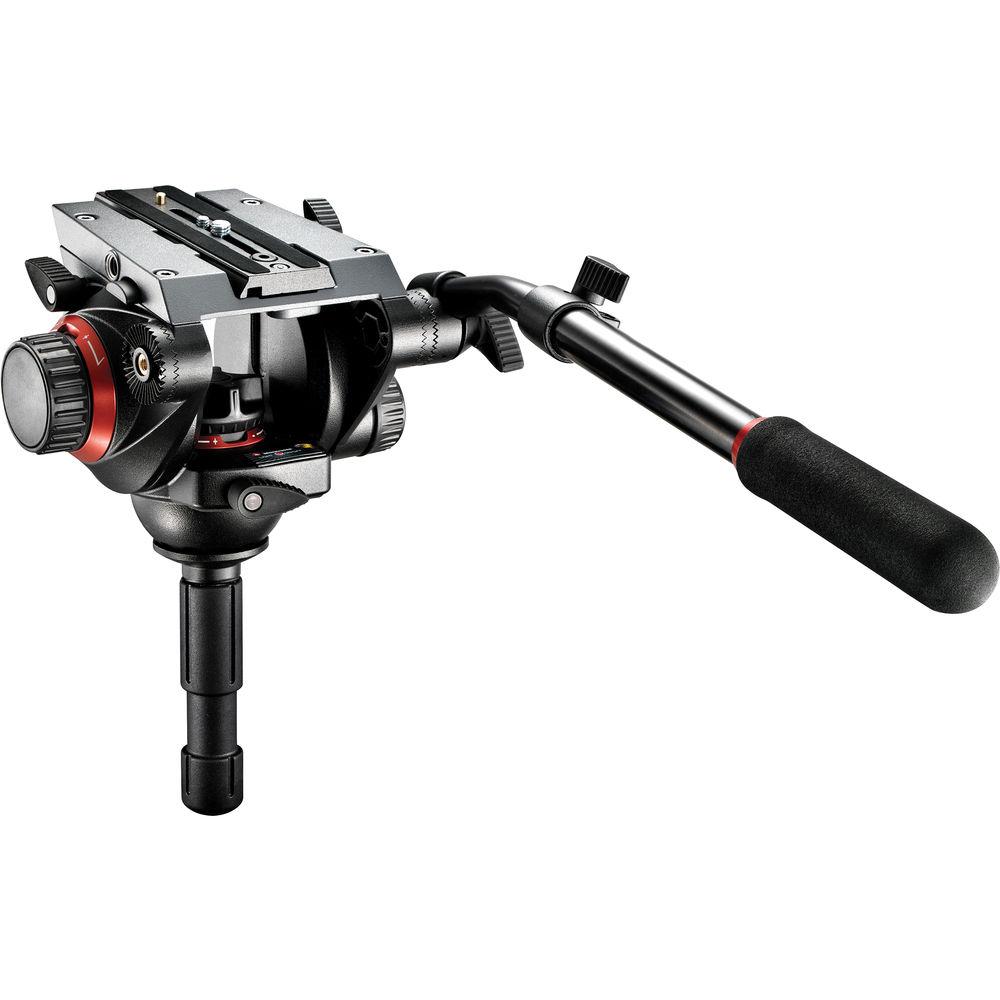

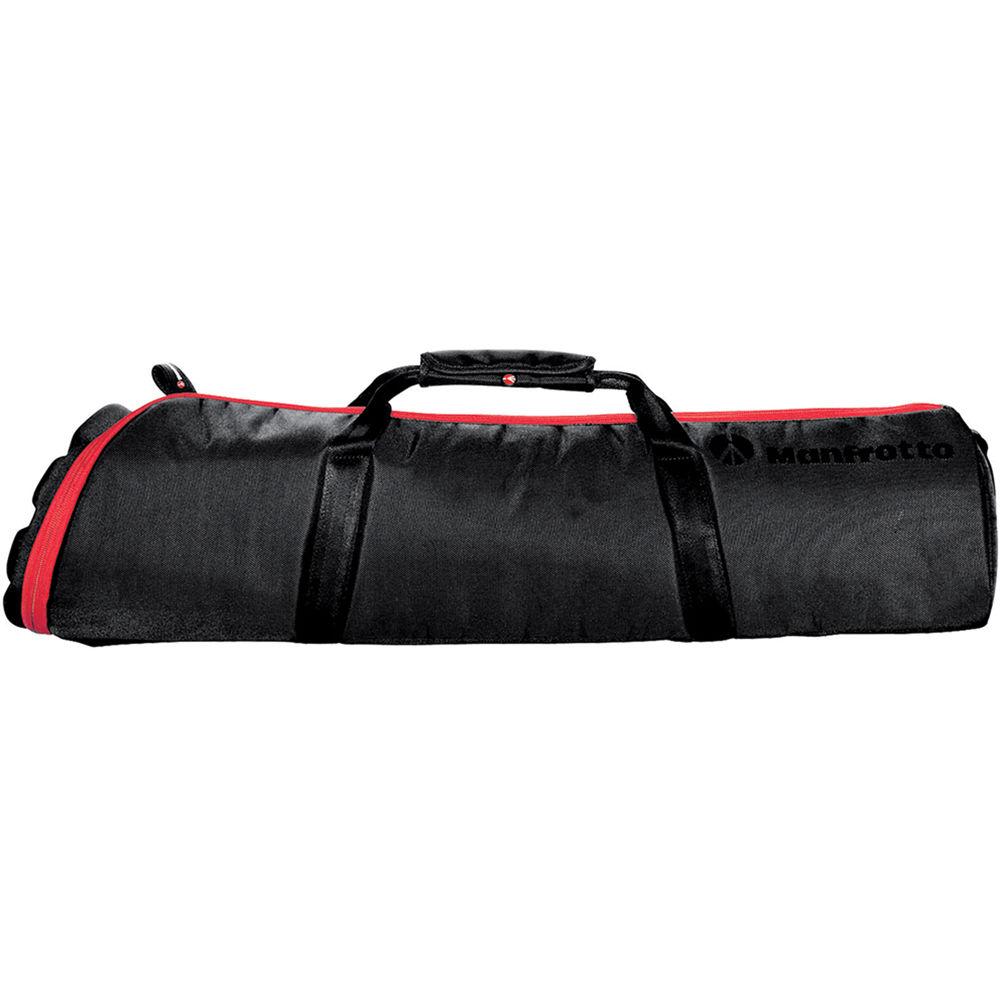

The Manfrotto 504HD Head w/535 2-Stage Carbon Fiber Tripod System combines the innovative and stylish 504HD Fluid Video Head with the 2-stage/3-section carbon fiber 535 Tripod--providing the perfect intersection of affordability, range, and weight with smooth, precise control. This compact and versatile system was designed with both video and DSLR rigs in mind, and provides the ergonomics and support called for by today's small crews and solo event shooters. Also included is a 39" ballistic nylon bag, with special stitching to fit the 504HD head. - 504HD Fluid Video Head

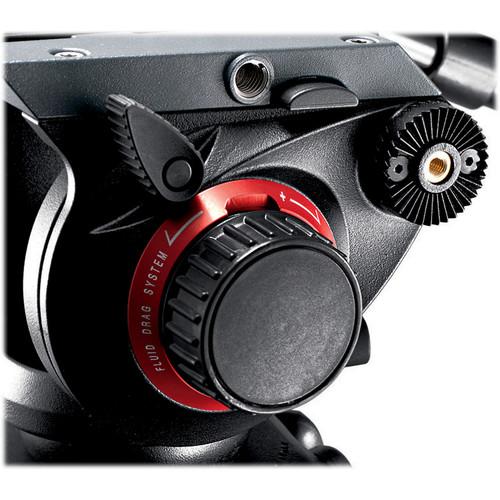

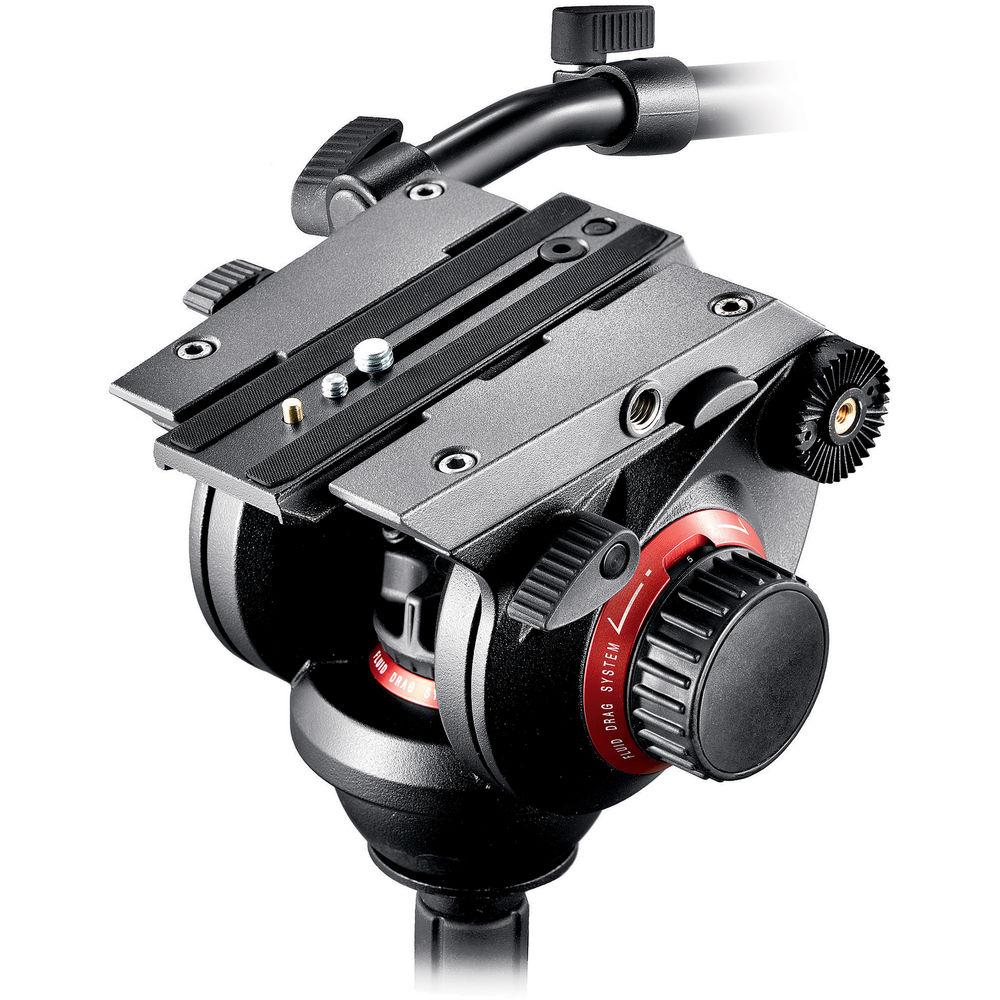

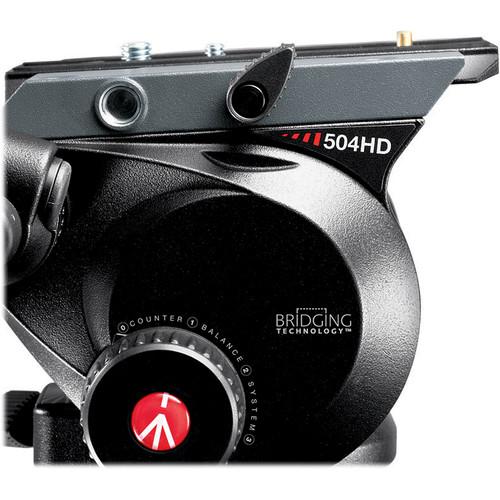

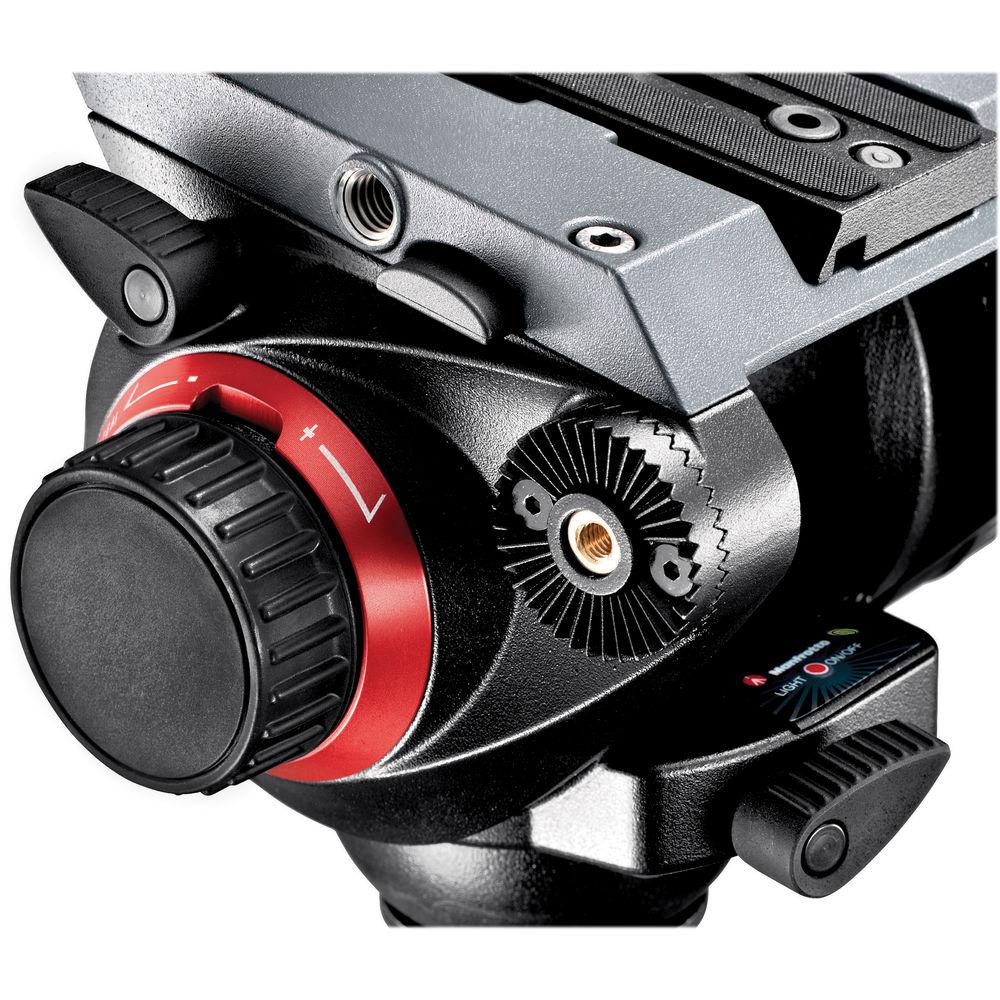

- The 504HD's patented Bridging Technology allows for a wider top plate and longer sliding plate that add stability and balance to a set of state-of-the-art professional features. A newly designed counterbalance system includes four presets--from 0 to 16.5 lbs--enabling proper balance for camera loads up to 16.5 lbs, while 3/8" threads in the top plate allow attachment of monitors, arms, and other accessories directly to the head.
- 535 Tripod
- Thanks to carbon fiber single tube and magnesium die castings, this tripod provides great stability and load capability in a lightweight, ergonomic, and easy-to-use design. Along with its low minimum height of 16" (with head) and high maximum of 72", the 535 offers an angle selector for adjusting leg angles with precision and ease.

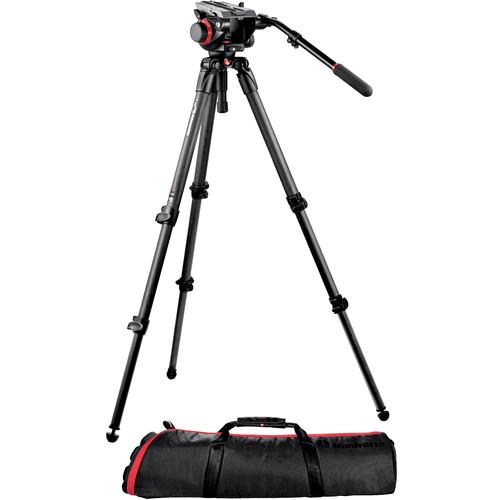

UPC: 719821317784 In the Box Manfrotto 504HD Head w/535 2-Stage Carbon Fiber Tripod System 504HD Fluid Video Head 535 Carbon Fiber Video Tripod MBAG100PN Padded Tripod Bag Limited 6-Month Warranty, Extendable to 5 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 504HD Head w 535 2-Stage Carbon Fiber Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto 504HD Specs | | | Load Capacity | 16.5 lbs (7.5kg) | | Maximum Height | 72.4" (184cm) | | Maximum Height w/o Column Extended | N/A | | Minimum Height | 16" (40.5cm) | | Folded Length | 34.8" (88.4cm) | | Leveling Bubble/Illuminated | Yes/Yes | | Weight | 11.02 lb (5 kg) | | | | Counter Balance System | 4-Step | | Quick Release/Wedge Plate | Yes | | Balance Plate | Sliding, 1/4" and 3/8" Screws | | Tilt Drag | Continuous | | Tilt Range | -60° / +90° | | Tilt Lock | Independent | | Spring Loaded Counter Balance | Continuous | | Pan Range | 360° | | Pan Lock | Independent | | | | Material | Carbon Fiber | | Head Attachment Fitting | 75mm Bowl | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Spiked/Retractable Feet | Retractable Spikes | | Center Brace | No, Leg Angle Selector | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 40.0 x 10.0 x 10.0" |
