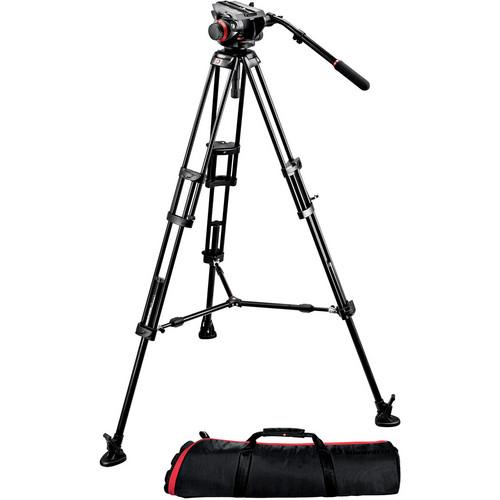

The Manfrotto 504HD Head w/546B 2-Stage Aluminum Tripod System combines the innovative and stylish 504HD Fluid Video Head with the 2-stage aluminum 546B Pro Video Tripod--creating an ideal combo of affordability, stability, and smooth, precise control. This compact, versatile system was designed with independent video and DSLR shooters in mind, and provides the level of ergonomics and support required by today's small crews and one-man bands.

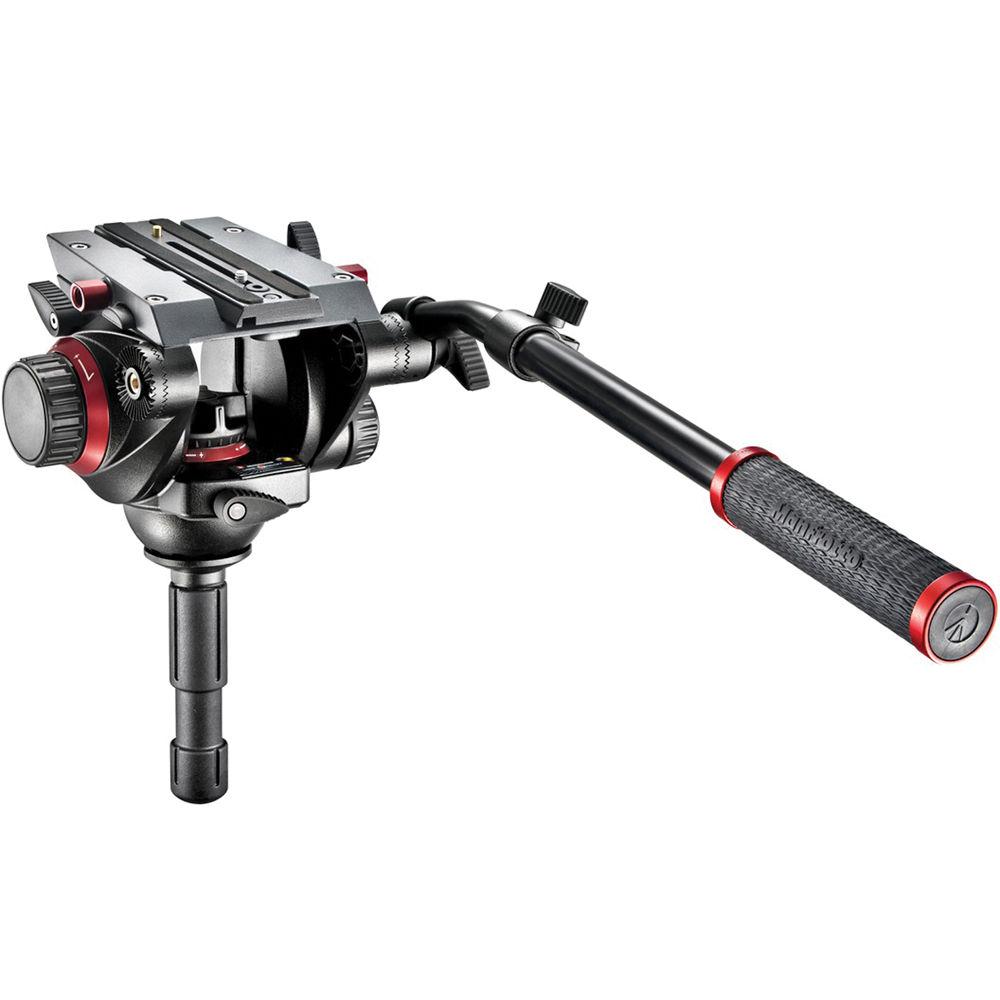

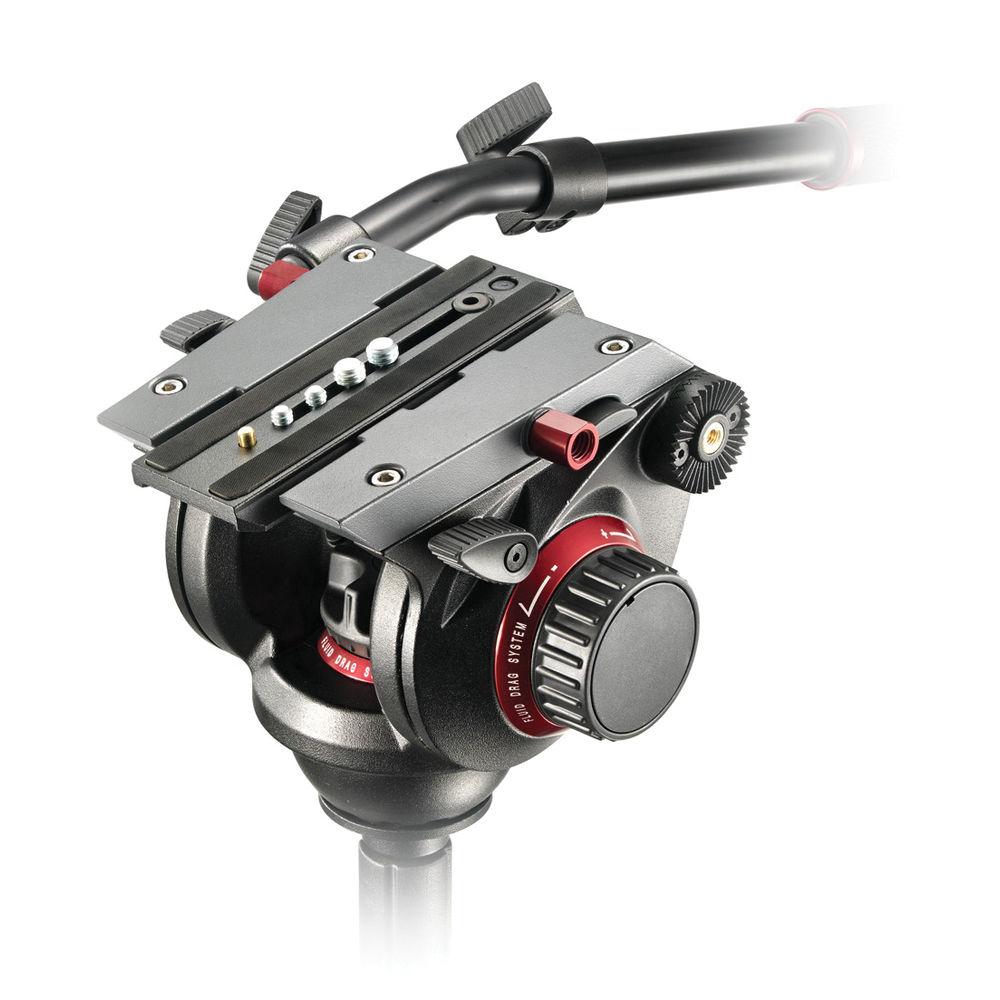

    504HD Fluid Video Head

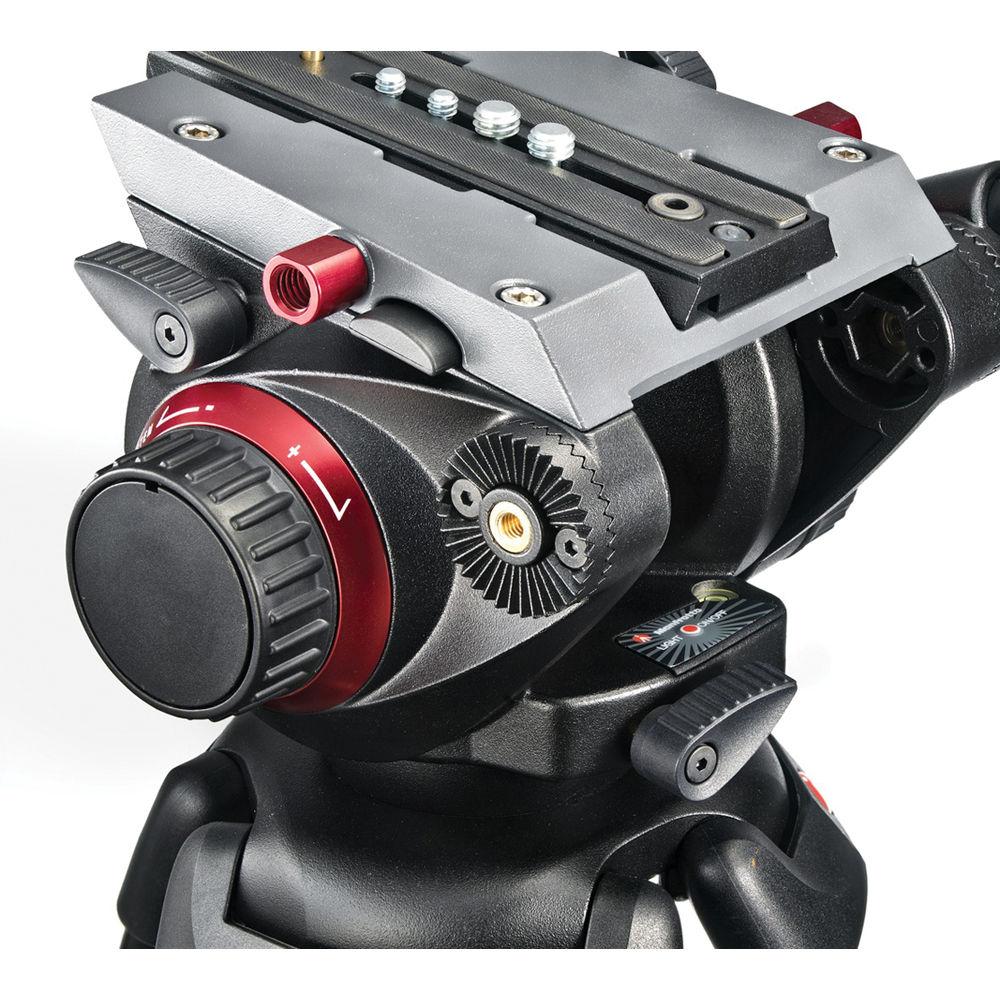

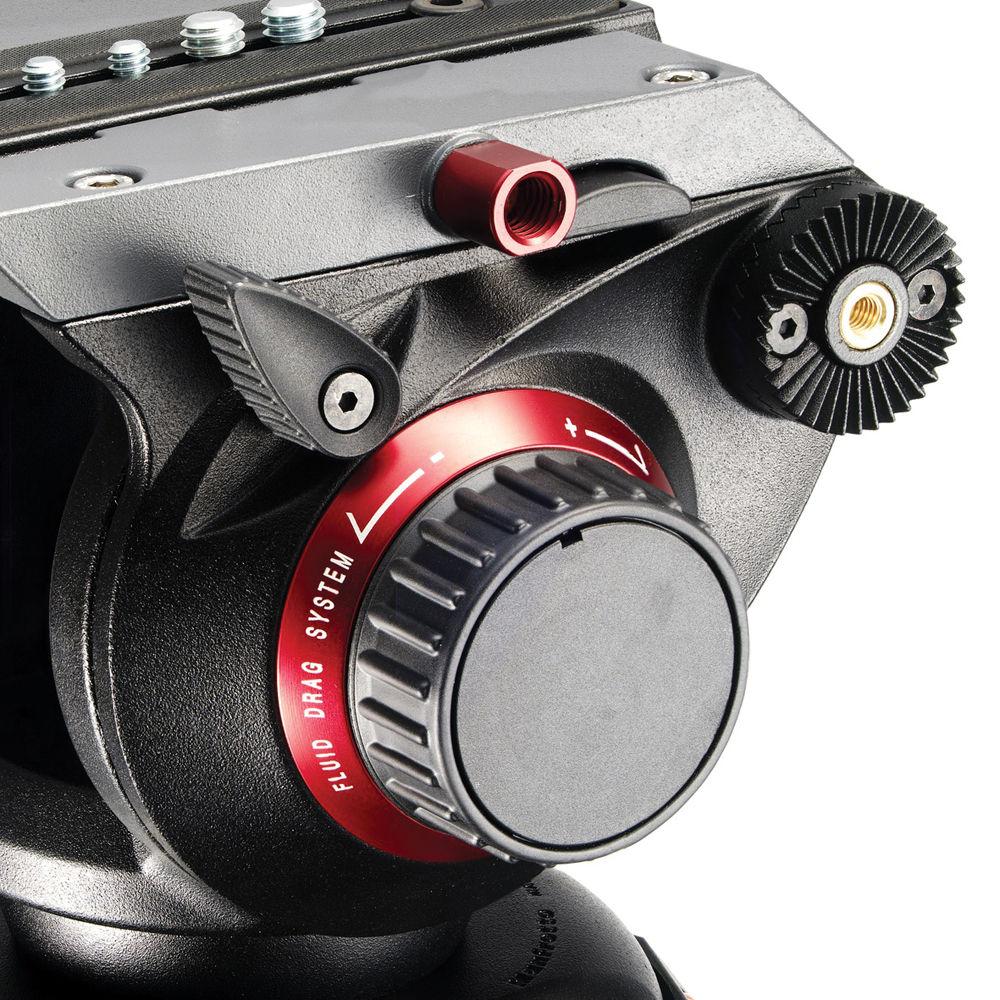

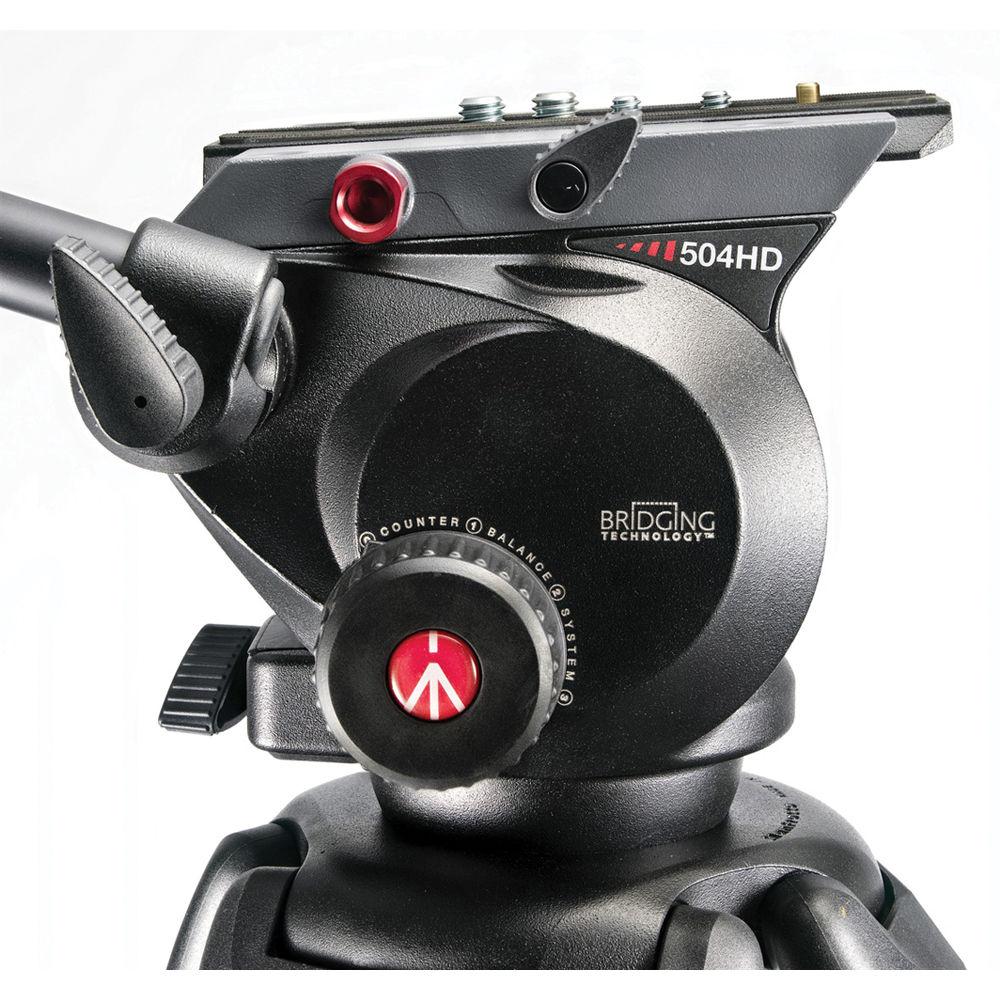

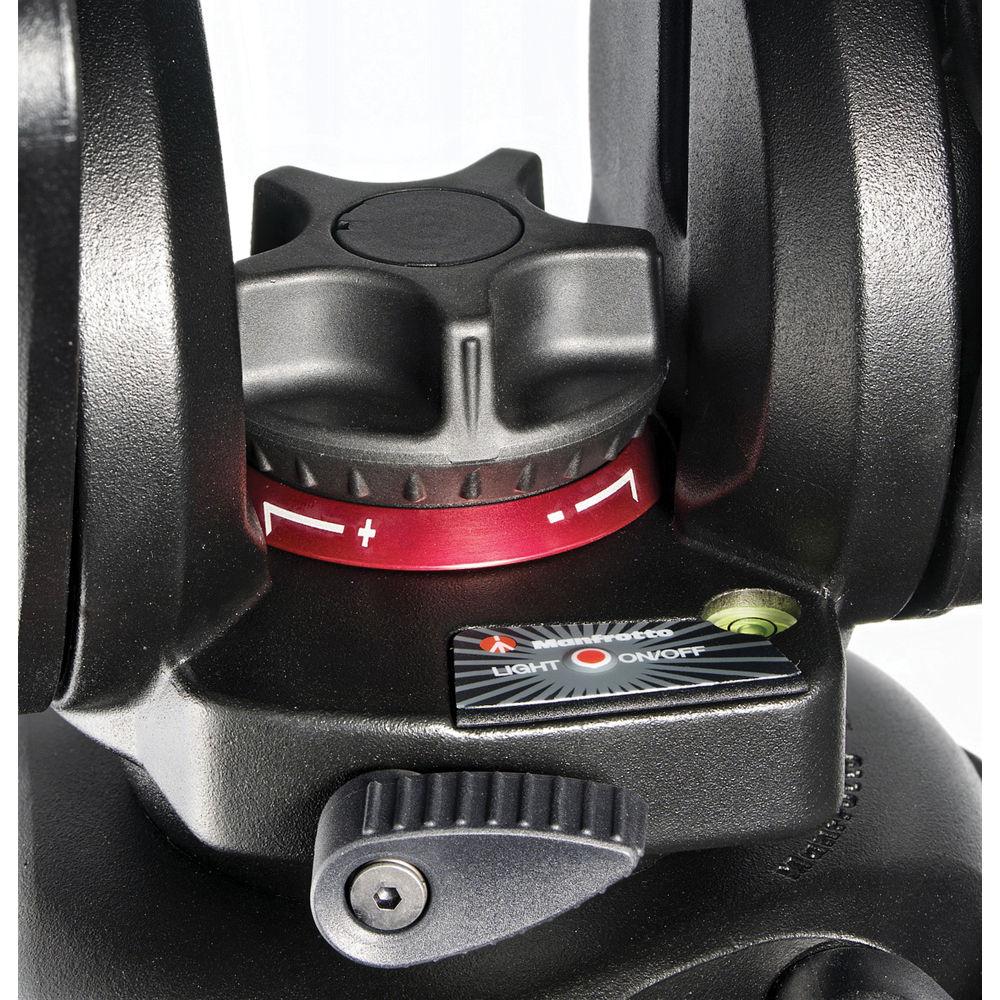

  • The 504HD's patented Bridging Technology allows for a wider top plate and longer sliding plate that add stability and balance to a set of state-of-the-art professional features. A newly designed counterbalance system includes four presets--from 0 to 16.5 lbs--enabling proper balance for camera loads up to 19.8 lbs, while 3/8" threads in the top plate allow attachment of monitors, arms, and other accessories directly to the head.
    546B Tripod
  • This aluminum two-stage tripod combines stability and strength with affordability. Reaching a maximum height of 60.6" (154cm), the 546B is capable of supporting up to 44 lbs (20kg). Its spiked feet come with rubber overshoes, allowing setups on both smooth floors and uneven surfaces, while a newly designed mid-level telescopic spreader keeps the legs exactly where you need them.
UPC: 719821317760 In the Box Manfrotto 504HD Head w/546B 2-Stage Aluminum Tripod System
  • 504HD Fluid Video Head
  • 546B Pro Video Tripod with Mid-level Spreader

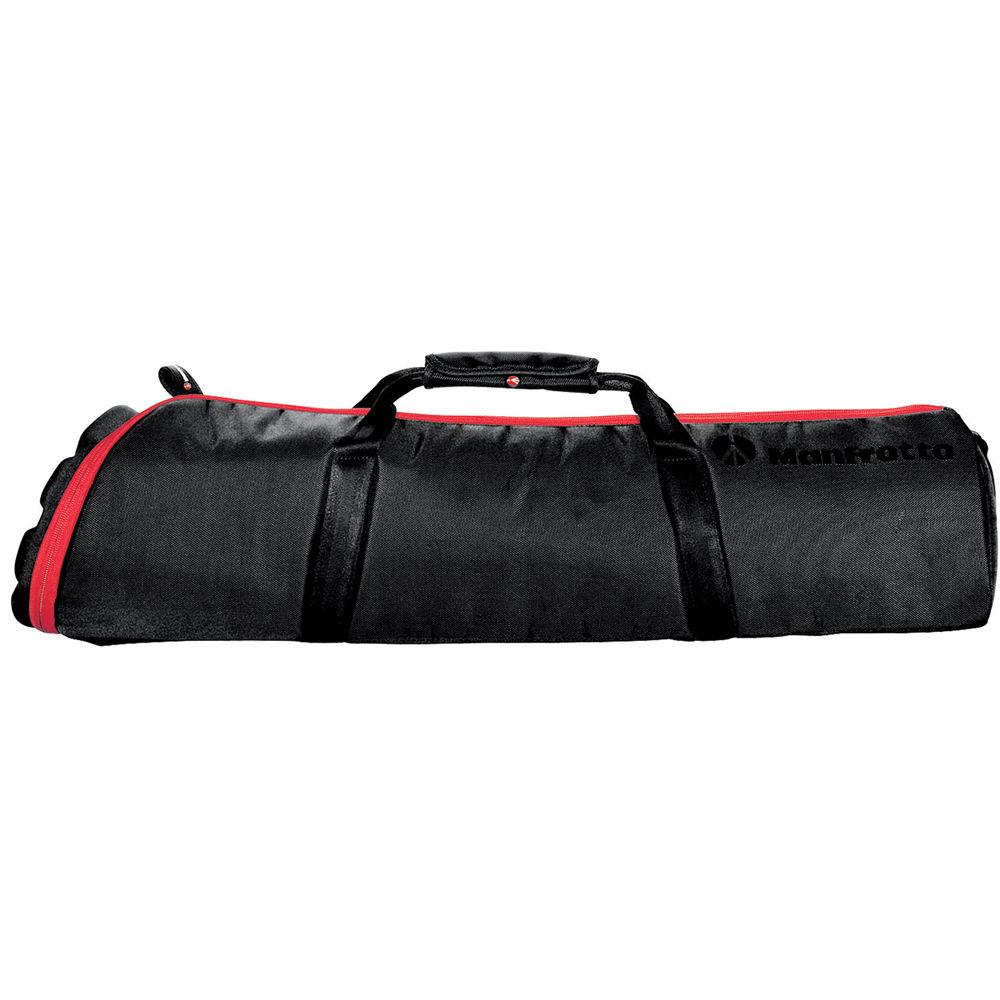

  • MBAG100PN Padded Tripod Bag
  • CR1220 Battery
  • Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Manfrotto 504HD Head w 546B 2-Stage Aluminum Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Manfrotto 504HD Specs

    Load Capacity 16.5 lbs (7.5kg)
    Maximum Height 66.7" (169.4cm)
    Maximum Height w/o Column Extended N/A
    Minimum Height 17.9" (45.5cm)
    Folded Length 33.3" (84.6cm)
    Leveling Bubble/Illuminated Yes/Yes
    Weight 13.6 lbs (6.2kg)
    Counter Balance System 4-Step
    Quick Release/Wedge Plate Yes
    Balance Plate Sliding, 1/4" and 3/8" Screws
    Tilt Drag Continuous
    Tilt Range -60° / +90°
    Tilt Lock Independent
    Spring Loaded Counter Balance Continuous
    Pan Range 360°
    Pan Lock Independent
    Material Aluminum
    Head Attachment Fitting 75mm Bowl
    Leg Stages/Sections 2/3
    Leg Lock Type Flip Levers
    Independent Leg Spread Yes
    Spiked/Retractable Feet Yes, w/rubber covers
    Center Brace Mid-level Spreader
    Package Weight 18.5 lb
    Box Dimensions (LxWxH) 41.0 x 10.2 x 10.2"
