Manfrotto 504HD Video Fluid Head &

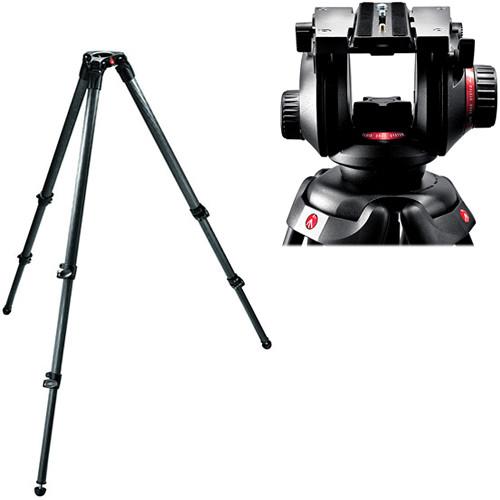

User Manual for Manfrotto 504HD Video Fluid Head & 535 3-Section Carbon Fiber Tripod Kit

• Product category: Tripod Systems Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripod Systems

Product description

• Manfrotto 504HD Fluid Video Head
  • Manfrotto Fluid Video Head Range - Tutorial Video
  • Manfrotto "Crossover" - 504HD system
  The Manfrotto 504HD Fluid Video Head introduces a revolutionary new design that improves performance while reducing weight, as well as offering a soupçon of style. The head's patented Bridging Technology allows for a wider top plate and longer sliding plate that add stability and balance to a set of state-of-the-art professional features. With its ability to support up to 16.5 lbs, the 504HD can be used with a variety of video and photo cameras. The newly designed counterbalance system includes four presets--from 0 to 16.5 lbs--enabling proper balance no matter what the camera's size or weight.

  At the same time, redesigned variable friction components--with clearly marked degree scales and vibration-free movement--bring new levels of fine tuning to your tilts and pans. An illuminated leveling bubble keeps horizons from tilting, even in the dark, while independent disc-brake locks make sure the head stays secure when at rest.

  Whether you're using a pro camcorder or a highly accessorized video DSLR on a rod/rail system, the 504HD takes some of the strain off your support rig by providing two 3/8" threads integrated into the sides of the top plate. These Easy Link Connectors allow attachment of monitors, arms, and other accessories directly to the head, making the camera less top-heavy while reducing setup time. All while being oh-so-stylish!
  • PAN fluid drag system for a more ergonomic operation
  • Easy Link Connectors for a more flexible accessory attachment
  • Wider top plate and longer sliding plate for extra stability and balance while using video or photo equipment
  • More rigid structure for maximum precision and improved responsiveness
  • 4-step counterbalance system ensures quick set-up and optimal performance
  • Ball-bearing drag system for precise, smooth movements
  • Lightweight modern materials for optimum balance of strength and size
  UPC: 719821317753
• Manfrotto 535 Carbon Fiber Video Tripod
  • Manfrotto Fluid Video Head Range - Tutorial Video
  • Manfrotto "Crossover" - 504HD system
  The Manfrotto 535 Carbon Fiber Video Tripod has 3-sections and a 75 mm half bowl for fluid heads. With carbon fiber tubes and magnesium die castings, the 535 boasts great stability, high load capability, and light weight. UPC: 719821290575

• 504HD Fluid Video Head sdqdxyfsfxsybuetzstsazsfbc
• 504HLV Pan Handle
• 504PLONG Long Quick Release Mounting Plate
• Limited 6-Month Warranty, Extendable to 5 Years with Product Registration

• 535 Carbon Fiber Video Tripod sdqdxyfsfxsybuetzstsazsfbc

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto 504HD Fluid Video Head

  Camera Plate Features	Sliding Balance Plate, Quick Release
  Camera Mounting Screw	1 x 1/4"-20 Male 1 x 3/8"-16 Male

  Base Mount	75 mm Half Ball 3/8"-16 Thread

  Drag Control	Tilt: Continuous Pan: Continuous
  Vertical Tilt	+90 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 81 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
