User Manual for Manfrotto 509HD Video Head & 545GB Aluminum Tripod Pro Ground-Twin Kit 100 Click to enlarge the picture
Contents of the user manual for the Manfrotto 509HD Video Head & 545GB
- Product category: Tripod Systems Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Systems
 |
User manual for the Manfrotto 509HD Video Head & 545GB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|

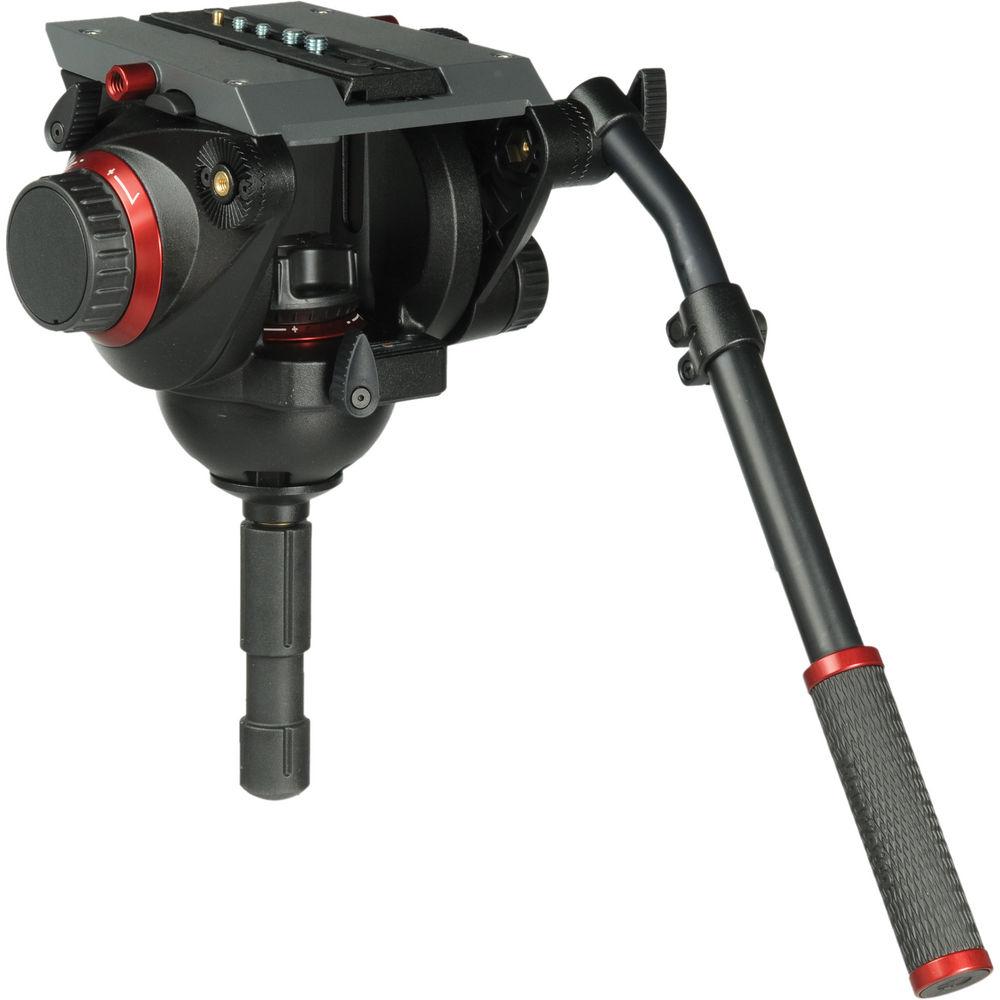

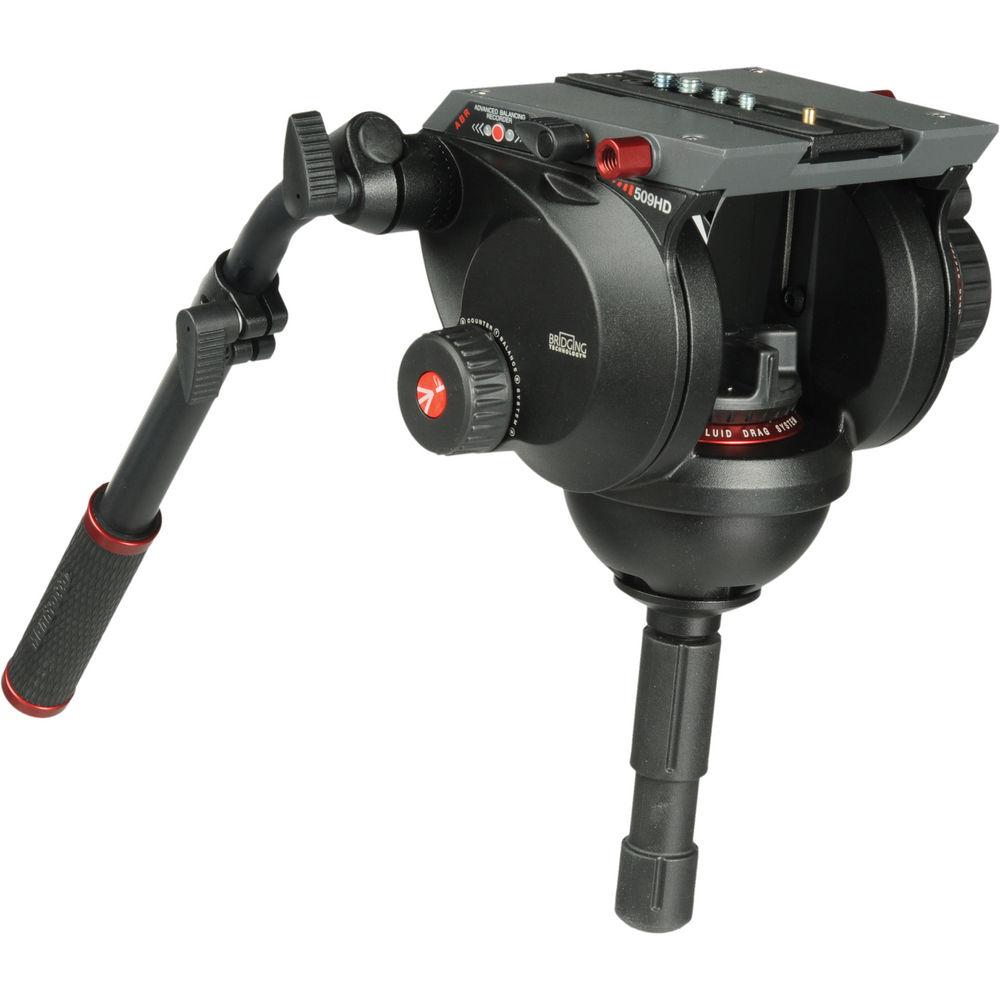

Product description Steady your professional video system with this 509HD Video Head & 545GB Aluminum Tripod Pro Ground-Twin Kit 100 from Manfrotto. Able to hold up to 29.8 lb on the fluid head, users will have excellent stability and security for their shots. The 509HD head offers a sliding 509PLONG quick release plate and a four-step counterbalance system for a quick setup. The head also features easily accessed adjustments, easy-link connectors, and is lightweight. Also, it has Manfrotto Bridging Technology with a ball bearing drag system for smooth, precise movements well suited to stills and video. An Advanced Balancing Recorder feature can save the balancing position of your camera to help expedite your next setup.

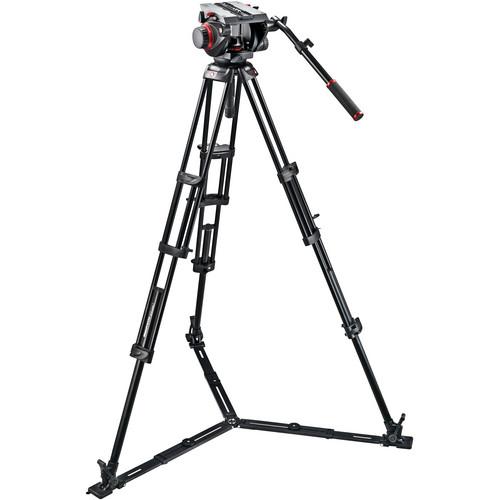

The 545GB aluminum legs feature a two-stage design along with a ground-level spreader for maximum stability and control. The system can be adjusted from 18.9 to 67.7" and has an illuminated leveling bubble for checking your alignment under any lighting condition. It also has a 100mm bowl head and comes with a padded bag to keep everything safe. UPC: 719821330745 In the Box Manfrotto 509HD Video Head & 545GB Aluminum Tripod Pro Ground-Twin Kit 100 509HD Professional Video Head MBAG100PNHD Tripod Bag Padded 100CM (Black/Red Trim) Limited 6-Month Warranty, Extendable to 5 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 509HD Video Head & 545GB Aluminum Tripod Pro Ground-Twin Kit 100 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto 509HD Specs | | | Load Capacity | 29.8 lb / 13.5 kg | | Maximum Height | 67.7" / 172 cm | | Minimum Height | 18.9" / 48 cm | | Folded Length | 33.1" / 84 cm | | Leveling Bubble/Illuminated | Yes, illuminated | | Weight | 21.6 lb / 9.8 kg | | | | Counter Balance System | Yes | | Quick Release/Wedge Plate | Yes | | Tilt Drag | Yes | | Tilt Range | -60 to +90° | | Tilt Lock | Yes | | Pan Range | 360° | | Pan Lock | Yes | | | | Material | Aluminum | | Head Attachment Fitting | 100 mm bowl | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Flip | | Center Brace | Ground-level spreader | | | | Package Weight | 22.2 lb | | Box Dimensions (LxWxH) | 41.0 x 10.5 x 10.5" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
