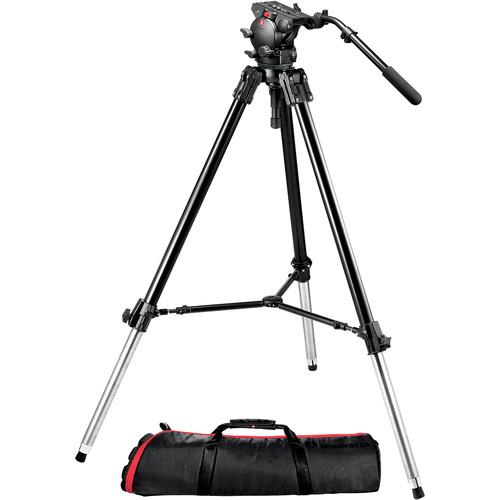

Manfrotto 526-1 Fluid Video Head with

User Manual for Manfrotto 526-1 Fluid Video Head with 528XBK Tripod & Carrying Bag

• Product category: Tripod Systems Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripod Systems

Product description

• 526-1 Professional Fluid Video Head The 526-1 Professional Fluid Video Head from Manfrotto supports camera rigs up to 35 lb and includes the 357PLV-1 sliding plate with secure, two-screw 1/4"-20 or 3/8"-16 mounting. Controls are placed at the operator's left side, and the rosette-mounted pan arm can be easily removed or replaced if necessary.This head features fluid drag with three levels each of pan and tilt as well as a zero-drag setting for whip-pans and fast tilts. Counterbalance is continuously variable for weights ranging from 17.5 to 33 lb. The 526-1 mounts via its 100mm ball and can be leveled using the bright bubble.

  Features

  • 357PL-1 sliding camera plate mounts securely using two screws, either 1/4"-20 or 3/8"-16 (included)
  • Supports payloads up to 35 lb
  • Pro-style features include left-side controls and a removable pan handle
  • Continuously adjustable counterbalance, three steps plus zero setting of pan and tilt drag
  • Bright bubble level for easy adjustments
  UPC: 719821438175
• 528XB Heavy Duty Tripod With a maximum load capacity of 110 lbs, the Manfrotto 528XB Heavy Duty Tripod is built to handle really heavy loads, and ideal for supporting camera jib arms. Despite its obvious strength, however, a close inspection reveals that this tripod offers quite a bit of brains and good looks to go along with its brawn. The 528XB incorporates a fully adjustable mid-level spreader, which features telescopic ratchet braces that click into place in each of the preset positions for faster deployment. It also features an industry-standard 100mm bowl to accept 100mm half-ball video heads, and reversible leg ends which have rubber feet as well as stainless-steel spikes, for use in virtually any environment.
  Construction
  • Constructed from steel tubes and aluminum leg extensions, the 528XB utilizes a sturdy single-tube leg structure with an adjustable leg spread. The leg spread also incorporates a 30° locked position for faster set-up and greater strength.
  100 mm Bowl
  • Industry standard 100mm bowl accepts 100 mm half-ball video heads and allows the user to level the head quickly and easily for smooth, accurate panoramic work. In addition, the built-in 100 mm claw ball allows for use of the tripod even with heads not equipped with a half-ball.
  Mid-Level Spreader
  • Incorporates a fully adjustable mid-level spreader, which features telescopic ratchet braces that click into place in each of the preset positions for faster deployment. The braces can be immediately set, allowing each leg to be individually positioned for maximum stability. The tripod's wing-nut style locking system further ensures its stability once setup is complete.
  Reversible Leg Ends
  • The 528XB is designed to accommodate heavy loads in virtually any environment. This is evident in the reversible feet, which also have stainless steel spikes for use on uneven terrain.
  UPC: 719821212003

• 357PLV-1 Sliding Plate with 1/4"-20 & 3/8"-16 Screws

• Pan Arm

• Limited 6-Month Warranty

• 500BALL 100mm Half Ball Leveler w/3/8" Screw for 100mm Bowl Tripods

• Limited 6-Month Warranty, Extendable to 5 Years with Product Registration

• Limited 6-Month Warranty, Extendable to 5 Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 526-1 Professional Fluid Video Head

  Camera Plate Features	Sliding Balance Plate
  Camera Mounting Screw	2 x 1/4"-20 Male 2 x 3/8"-16 Male With 1 x Locating Pin.
  Safety Lock	Yes

  Base Mount	100 mm Half Ball 3/8"-16 Female

  Drag Control	Pan: 3-Step Plus 0 Tilt: 3-Step Plus 0
  Drag Type	Fluid
  Vertical Tilt	+75 Rating 70% users recommend this product to others. And what about you? This product has already been rated by 38 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
