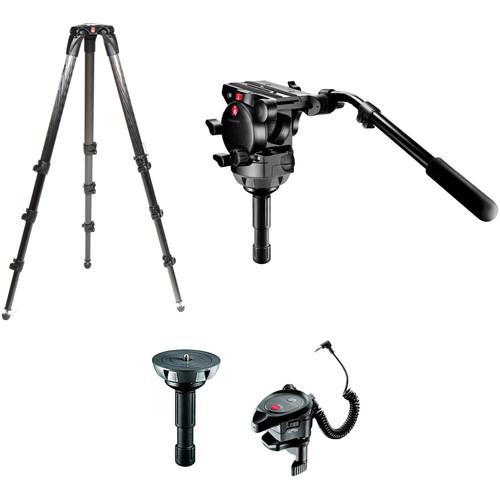

Manfrotto 526 Pro Video Tripod Kit

User Manual for Manfrotto 526 Pro Video Tripod Kit

• Product category: Tripod Systems Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripod Systems

Product description

• Manfrotto 526 Professional Fluid Video Head The 526 Professional Fluid Video Head from Manfrotto is designed to address the heavy-duty, high-end ENG and EFP video market by offering a feature-packed fluid video head that borrows all the combined benefits of the 500 series heads with the ability to support top-weight loads over 15 lbs. It offers a removable and replaceable pan arm rosette so that if any damage occurs to the side castings, only a small part needs to be replaced. Large rubber padded knobs are provided for better grip, and all the controls are located on the left side for easy access. This model features a fluid drag system comprised of three step settings for low, medium, and high drag levels, as well as the additional no-drag setting for snap-pans and tilts. Counterbalance is achieved through an adjustable spring for camera weights between 17.5 and 33 lbs. The built-in 4" half-ball adapts to a number of tripods with a 4-inch receiver. The camera can be leveled with the aid of the bright leveling bubble. It comes with one pan arm and the long 357PLV plate.
  • Adjustment knobs include: a sliding quick-release knob, interchangeable pan bar rosette, a counterbalance adjustment knob, and tilt & pan locking knob.
  • A spirit level makes for easy adjustments.
  • This model features a pan drag control.
  • This unit features a sliding quick-release plate.
  • It offers a sliding safety-plate release button.
  UPC: 719821260189
• Manfrotto 536 Carbon Fiber Video Tripod The Manfrotto 536 Carbon Fiber Video Tripod has 4-sections and a 75/100 mm half bowl adapter for industry standard fluid heads. With carbon fiber tubes and magnesium die castings, the 536 boasts great stability, high load capability, and light weight.
  Materials
  • Thanks to carbon fiber single tube and magnesium die castings, this tripod provides great stability and load capability in a lightweight, ergonomic, easy-to-use and compact design
  Angle Selector
  • An angle selector is offered for adjusting the leg angle in an easy and precise way
  Half Bowl Adapter
  • A screw-in half bowl adapter offers the user the ability to work with 75 or 100 mm half bowl heads
  UPC: 719821290582
• Manfrotto 500BALL 100mm Half Ball Leveler w/3/8" Screw for 100mm Bowl Tripods The Manfrotto 500BALL 100mm Half Ball Leveler w/3/8" Screw for 100mm Bowl Tripods is designed to facilitate quick leveling of 100mm bowl tripods such as the 3141, 3190, 3191, 3192 & 3193 tripods. It can also be used with the Gitzo G-1424 100mm Bowl Interface Adapter to provide an economical and low profile leveling base with any of the Gitzo Series 4 & 5 "systematic" tripods (which feature an interchangeable top plate that accepts rapid or geared center columns as well as leveling bases). Replaces part number 3141BALL. UPC: 719821287582
• Manfrotto Clamp-On Zoom Remote Control for LANC and Panasonic Cameras Designed for Canon & Sony camcorders with LANC control and Panasonic camcorders, the Manfrotto Clamp-On Zoom Remote Control helps you to control your camcorder's zoom with its “Fast Zoom” and “Max Speed” features. Furthermore, this remote control helps in stabilizing your camcorder when shooting or capturing images and tweaking your camcorder’s settings without manual effort.

  The clamp-on zoom remote control can be easily connected to the camcorder with its 2.5mm male/male jack coiled cord cable measuring 55” when extended. The clamp-on feature allows you to easily mount the remote control onto a pan bar, tubes, piping, tabletops, and handle bars as per your requirement.
  Compatibility
  • Canon/Sony Cameras with LANC Control and Panasonic Cameras
  • "Fast Zoom" and "Max Speed" features for customizing the camcorder's zoom
  • Reduces manual intervention for camcorder management
  • 55" cable and jack for easy camcorder connectivity
  • Quick-lock fastening clamp with steel core
  • Heavy-duty, anti-scratch, dirt-repellent polycarbonate film keyboard
  • Wide-rotation (±50°), multi-speed zoom knob
  • Software-controlled zoom direction knob
  • Direct adjusting of maximum zoom speed
  • Rec and Zoom indicator LEDs
  • LANC/Panasonic switch for use as per your camcorder
  • Stand-by push button (for LANC only)
  • Rec/Stop push button
  • Rec/Stop LED (for LANC only)
  • Anti-slip, soft-touch finish
  UPC: 719821331391

• 526 Professional Fluid Video Head sqxvdvvsbrrart
• 357PLV
• Pan Arm
• 2-Year Warranty + Additional 3-Years after Registering Online or by Mail

• 536 Carbon Fiber Video Tripod sqxvdvvsbrrart

• 500BALL 100mm Half Ball Leveler w/3/8" Screw for 100mm Bowl Tripods

• Clamp-On Zoom Remote Control for LANC and Panasonic Cameras

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto 526 Professional Fluid Video Head

  Camera Plate Features	Sliding Balance Plate
  Camera Plate Type	357PLV
  Camera Mounting Screw	1 x 1/4"-20 Male 1 x 3/8"-16 Male
  Balance Plate Sliding Range	3.1" / 80 mm
  Safety Lock	Yes

  Base Mount	100 mm Half Ball 3/8"-16 Thread

  Drag Control	Pan: 3-Step Plus 0 Tilt: 3-Step Plus 0
  Vertical Tilt	+75 Rating 90% users recommend this product to others. And what about you? This product has already been rated by 66 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
