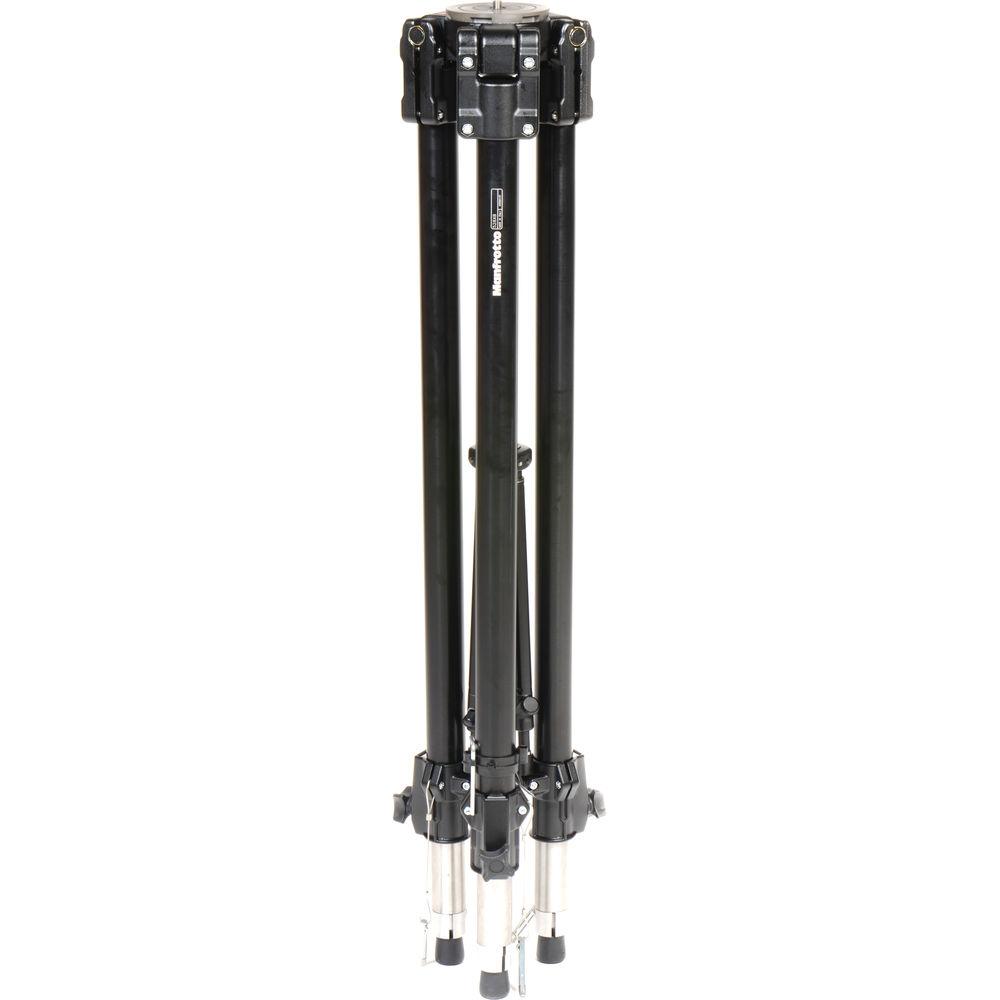

Product description With a maximum load capacity of 110 lbs, the Manfrotto 528XB Heavy Duty Tripod is built to handle really heavy loads, and ideal for supporting camera jib arms. Despite its obvious strength, however, a close inspection reveals that this tripod offers quite a bit of brains and good looks to go along with its brawn. The 528XB incorporates a fully adjustable mid-level spreader, which features telescopic ratchet braces that click into place in each of the preset positions for faster deployment. It also features an industry-standard 100mm bowl to accept 100mm half-ball video heads, and reversible leg ends which have rubber feet as well as stainless-steel spikes, for use in virtually any environment. - Construction

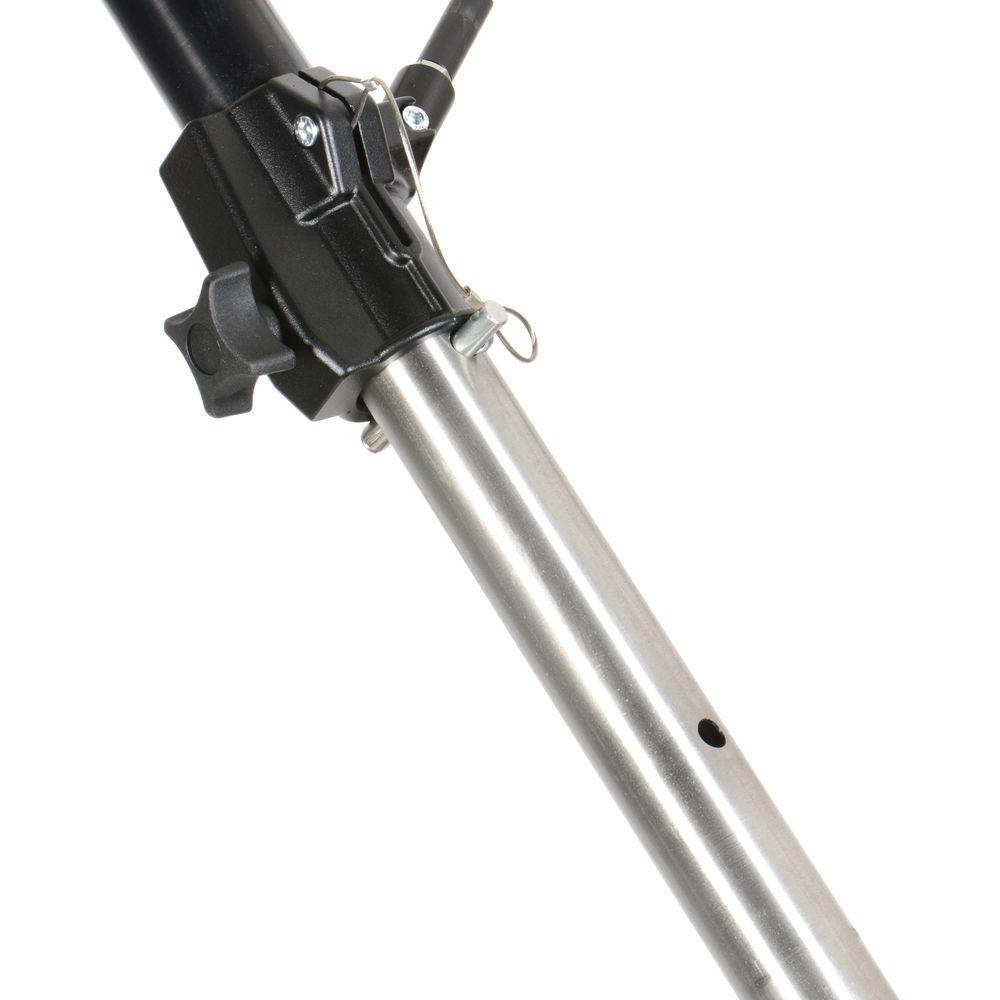

- Constructed from steel tubes and aluminum leg extensions, the 528XB utilizes a sturdy single-tube leg structure with an adjustable leg spread. The leg spread also incorporates a 30° locked position for faster set-up and greater strength.
- 100 mm Bowl
- Industry standard 100mm bowl accepts 100 mm half-ball video heads and allows the user to level the head quickly and easily for smooth, accurate panoramic work. In addition, the built-in 100 mm claw ball allows for use of the tripod even with heads not equipped with a half-ball.
- Mid-Level Spreader
- Incorporates a fully adjustable mid-level spreader, which features telescopic ratchet braces that click into place in each of the preset positions for faster deployment. The braces can be immediately set, allowing each leg to be individually positioned for maximum stability. The tripod's wing-nut style locking system further ensures its stability once setup is complete.
- Reversible Leg Ends
- The 528XB is designed to accommodate heavy loads in virtually any environment. This is evident in the reversible feet, which also have stainless steel spikes for use on uneven terrain.
UPC: 719821212003 In the Box Manfrotto 528XB Heavy Duty Tripod 500BALL 100mm Half Ball Leveler w/3/8" Screw for 100mm Bowl Tripods asbzydfzvxtdusuqbvxyswevcbxus Limited 6-Month Warranty, Extendable to 5 Years with Product Registration Limited 6-Month Warranty, Extendable to 5 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 528XB Heavy Duty Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto 528XB Specs | | | Head Mount Type | 100 mm Bowl
3/8"-16 Male | | Load Capacity | 110.2 lb / 50 kg | | Maximum Working Height | 58.27" / 148 cm | | Minimum Working Height | 28.74" / 73 cm | | Folded Length | 40" / 99 cm | | Materials | Aluminum, Steel | | Weight | 16.3 lb / 7.4 kg | | | | Leg Lock Type | Rotating Locking Lever | | Independent Leg Spread | Yes | | Leg Sections | 2 | | Leg Diameter | 1.6" / 40 mm | | Feet Features | Retractable, Spiked | | | | Center Column Features | Center Brace | | | | Package Weight | 19.7 lb | | Box Dimensions (LxWxH) | 43.0 x 8.5 x 8.0" |
