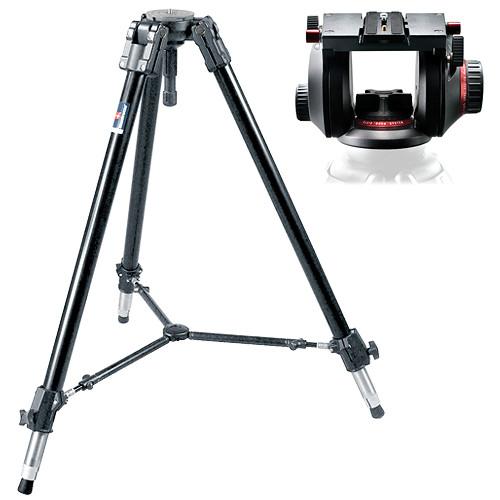

Product description The Manfrotto 528XB Heavy-Duty Tripod with 509HD Professional Video Head Kit from pairs a two-section, single-stage aluminum & stainless-steel tripod with a pro video fluid head to form a camera support system that holds up to 28.7 lb and reaches a maximum height of 65.3". The legs themselves hold up to 110 lb; so if you need extreme weight support for an alternative setup (for example, attaching a jib arm), the 528XB tripod has you covered. The 509HD head features four steps of counterbalance, an Advanced Balancing Recorder, and a long sliding plate to achieve precise balance with full-sized camcorders. The head also features a variable fluid drag system to control action & resistance for both its -60° to +90° tilt and its 360° pan. - Manfrotto 528XB Heavy Duty Tripod With a maximum load capacity of 110 lbs, the Manfrotto 528XB Heavy Duty Tripod is built to handle really heavy loads, and ideal for supporting camera jib arms. Despite its obvious strength, however, a close inspection reveals that this tripod offers quite a bit of brains and good looks to go along with its brawn. The 528XB incorporates a fully adjustable mid-level spreader, which features telescopic ratchet braces that click into place in each of the preset positions for faster deployment. It also features an industry-standard 100mm bowl to accept 100mm half-ball video heads, and reversible leg ends which have rubber feet as well as stainless-steel spikes, for use in virtually any environment.
- Construction
- Constructed from steel tubes and aluminum leg extensions, the 528XB utilizes a sturdy single-tube leg structure with an adjustable leg spread. The leg spread also incorporates a 30° locked position for faster set-up and greater strength.
- 100 mm Bowl
- Industry standard 100mm bowl accepts 100 mm half-ball video heads and allows the user to level the head quickly and easily for smooth, accurate panoramic work. In addition, the built-in 100 mm claw ball allows for use of the tripod even with heads not equipped with a half-ball.
- Mid-Level Spreader
- Incorporates a fully adjustable mid-level spreader, which features telescopic ratchet braces that click into place in each of the preset positions for faster deployment. The braces can be immediately set, allowing each leg to be individually positioned for maximum stability. The tripod's wing-nut style locking system further ensures its stability once setup is complete.
- Reversible Leg Ends
- The 528XB is designed to accommodate heavy loads in virtually any environment. This is evident in the reversible feet, which also have stainless steel spikes for use on uneven terrain.
UPC: 719821212003 - Manfrotto 509HD Professional Video Head The Manfrotto 509HD Professional Video Head supports professional video camera systems weighing up to 29 lb (13.1 kg). A 4-step counterbalance mechanism ensures optimum balance and helps for quick setup. The tripod head features ergonomic adjustments, easy-link connectors and uses light-weight PVC free materials in its components. Featuring the Bridging Technology with a ball bearing drag system, the tripod head offers professional quality stability as well as precise, smooth movements.
A unique Advance Balancing Recorder feature can record the perfect balanced position for your camera equipment so that the position can be recalled later on. This electronic ABR feature reduces the time needed for setting up and balancing your camera system on the tripod head. - Complete tripod solution with the 509HLV Pan bar and 509PLONG quick-release plate for professional video camera systems
509HD Tripod Head - Tripod head for professional video applications
- Load capacity up to 29 lb (13.1 kg)
- 4-step counterbalance mechanism ensures optimum balance and helps for quick setup
- Ergonomic adjustments and easy-link connectors
- Uses light-weight PVC free materials in its components
- Bridging Technology with a ball bearing drag system, the tripod head offers professional quality stability as well as precise, smooth movements
- Advance Balancing Recorder (ABR) feature can record the perfect balanced position for your camera equipment so that the position can be recalled later on
- ABR reduces camera setting up / balancing time
UPC: 719821330721 In the Box - 528XB Heavy Duty Tripod utxxycezdfaaxcsuvqbysrvxeqds
- 500BALL 100mm Half Ball Leveler w/3/8" Screw for 100mm Bowl Tripods
- Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
- Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
- 509HD Professional Video Head
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 528XB Heavy-Duty Tripod with 509HD Professional Video Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto 528XB Heavy Duty Tripod
| | | Head Mount Type | 100 mm Bowl
3/8"-16 Male | | Load Capacity | 110.2 lb / 50 kg | | Maximum Working Height | 58.27" / 148 cm | | Minimum Working Height | 28.74" / 73 cm | | Folded Length | 40" / 99 cm | | Materials | Aluminum, Steel | | Weight | 16.3 lb / 7.4 kg | | | | Leg Lock Type | Rotating Locking Lever | | Independent Leg Spread | Yes | | Leg Sections | 2 | | Leg Diameter | 1.6" / 40 mm | | Feet Features | Retractable, Spiked | | | | Center Column Features | Center Brace | | | | Box Dimensions (LxWxH) | 43.0 x 8.5 x 8.0" | - Manfrotto 509HD Professional Video Head
| | | Load Capacity | 28.66 lb / 13 kg | | Counter Balance | Incremental 3-Step Plus 0 (0 to 28.6 lb / 0 to 13 kg) | | Dimensions | 7.01" / 17.8 cm | | | | Box Dimensions (LxWxH) | 16.2 x 10.6 x 7.7" |
