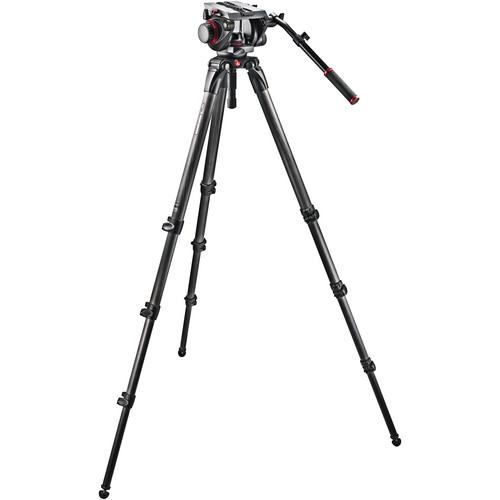

User Manual for Manfrotto 536 Carbon Fiber Tripod with 509HD Video Head and Padded Carry Bag Click to enlarge the picture
Contents of the user manual for the Manfrotto 536 Carbon Fiber Tripod with
- Product category: Tripod Systems Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Systems
 |
User manual for the Manfrotto 536 Carbon Fiber Tripod with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description The 536 Carbon Fiber Tripod with 509HD Video Head and Padded Carry Bag offers a complete tripod solution for professional video camera systems weighing up to 29 lb (13.1 kg). A 4-step counterbalance mechanism of the 509HD head ensures optimum balance and allows the videographer to get the camera in position quickly. The tripod head features ergonomic adjustments, easy-link connectors and uses light-weight PVC free materials in its components. Featuring the Bridging Technology with a ball bearing drag system, the tripod head offers professional quality stability as well as precise, smooth movements.
A unique Advance Balancing Recorder feature can record the perfect balanced position for your camera equipment so that the position can be recalled later on. This electronic ABR feature reduces the time needed for setting up and balancing your camera system on the tripod head.
The 536 video tripod legs feature a 3-stage design which comfortably support the 509HD head and professional camera equipment. Carbon fiber ensures sturdy construction and extremely light weight (7.1 lb / 3.25 kg) for a professional video camera tripod. The leg angle selector allows you to quickly adjust the leg angles in a precise way.
A padded bag included in the kit is useful to store as well as carry the 536 tripod legs with the 509HD head. - Complete tripod solution for professional video camera systems
- Comes in a padded bag for storage and transport

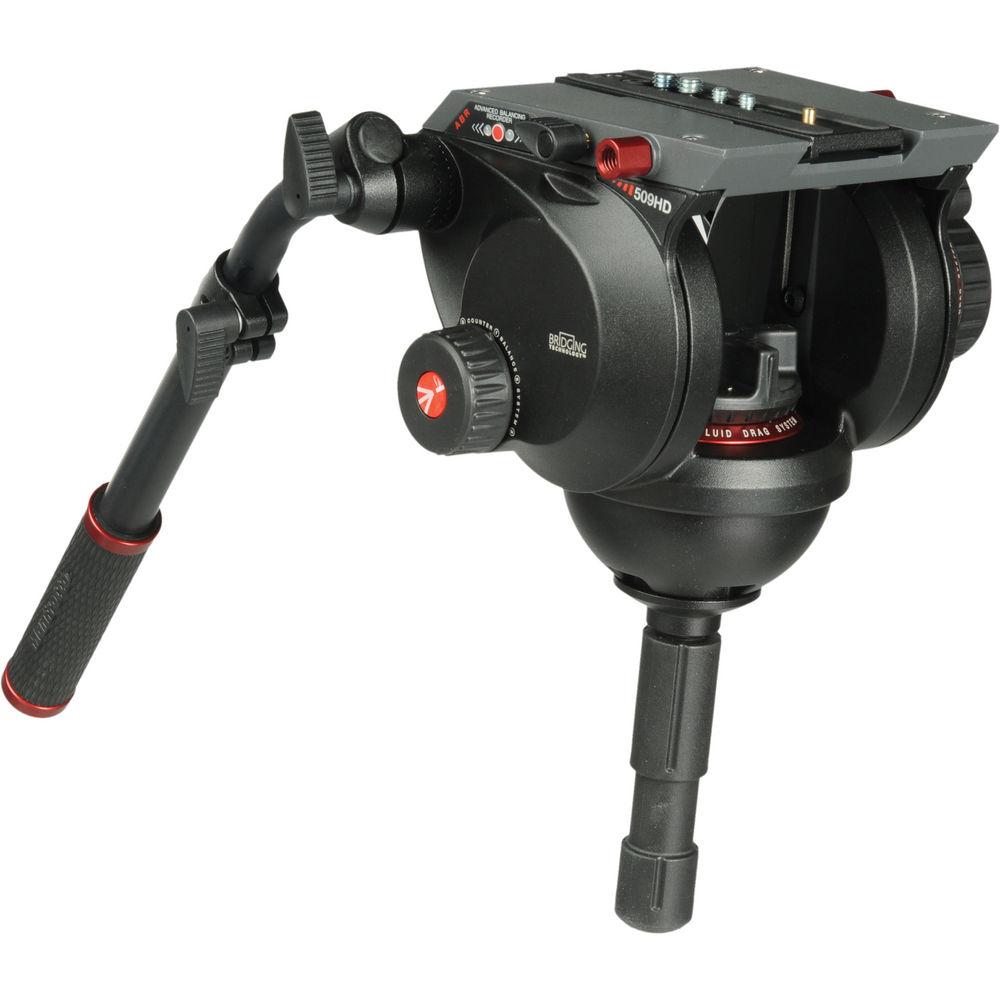

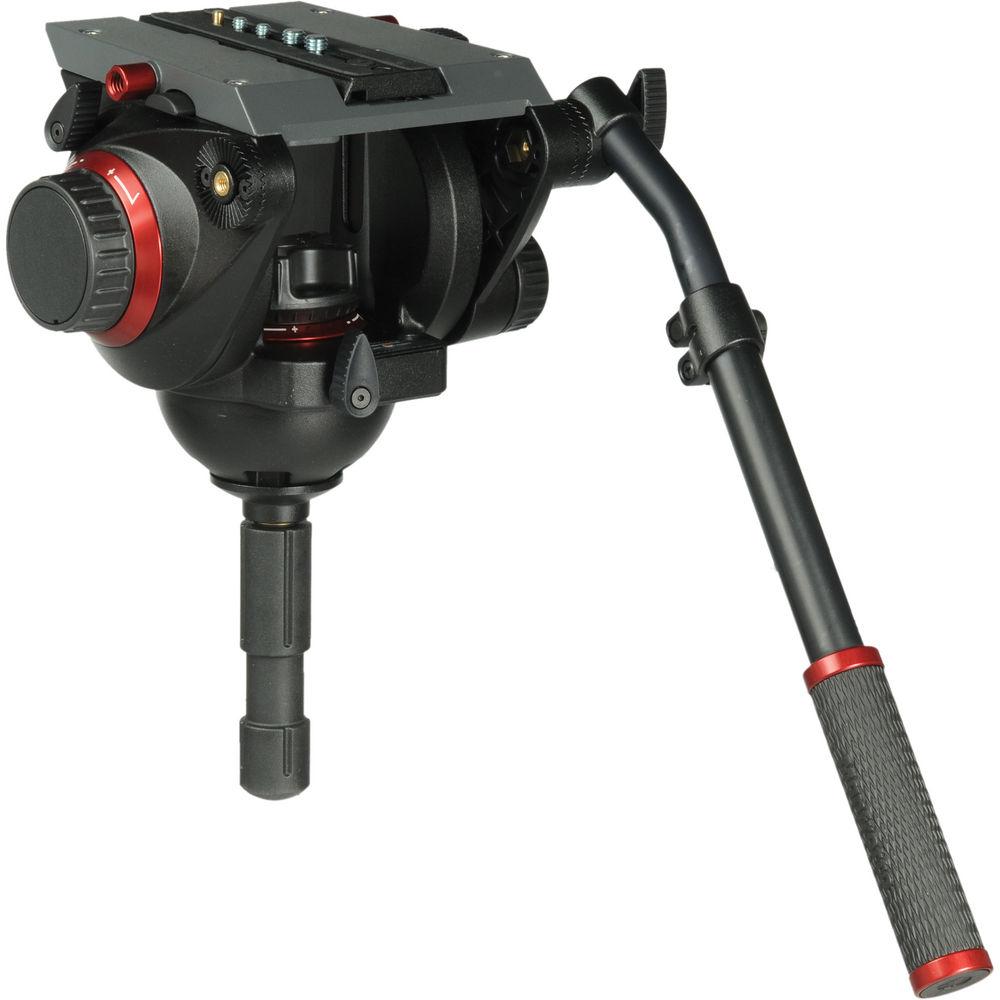

- 509HD Tripod Head - Tripod head for professional video applications
- Load capacity up to 29 lb (13.1 kg)
- Optimum balance and quick set-ups via 4-step counterbalance mechanism
- Ergonomic adjustments and easy-link connectors
- Uses light-weight PVC free materials in its components
- Bridging Technology with a ball bearing drag system, the tripod head offers professional quality stability as well as precise, smooth movements
- Advance Balancing Recorder (ABR) feature can record the perfect balanced position for your camera equipment so that the position can be recalled later on
- ABR reduces camera setting up / balancing time
- 536 Carbon Fiber Tripod Legs - Three leg sections allow for a more compact form-factor
- With total load capacity up to 55 lb (25 kg), the legs comfortably support the 509HD head and professional camera equipment
- Durable and lightweight carbon fiber construction ensures excellent stability and portability.
- Leg angle selector allows you to quickly adjust the leg angles in a precise way
- Screw-in 75/100 mm adaptor offers flexibility to accept different industry standard half-ball heads
UPC: 719821330752 In the Box Manfrotto 536 Carbon Fiber Tripod with 509HD Video Head and Padded Carry Bag 509HD Professional Video Head 536 Carbon Fiber Video Tripod Tripod Bag Limited 6-Month Warranty, Extendable to 5 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 536 Carbon Fiber Tripod with 509HD Video Head and Padded Carry Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto 509HD Specs | | | Load Capacity | 29 lb (13.1 kg) | | Counter Balance System | Yes | | Quick Release/Wedge Plate | Yes | | | | Material | Carbon fiber tubing + magnesium castings | | Head Attachment Fitting | Screw-in 75/100 mm adaptor | | Leg Stages/Sections | 3-stage / 4-sections | | Maximum Height | 80" (2,030 mm) | | Minimum Height | 10.2" (260 mm) | | Folded Length | 28" (710 mm) | | Center Column | No | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 40.2 x 10.6 x 10.4" |
