User Manual for Manfrotto 587B Blackmagic Pro Stand - 18' Click to enlarge the picture
Contents of the user manual for the Manfrotto 587B Blackmagic Pro Stand -
- Product category: Light Stands Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Light Stands
 |
User manual for the Manfrotto 587B Blackmagic Pro Stand - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|

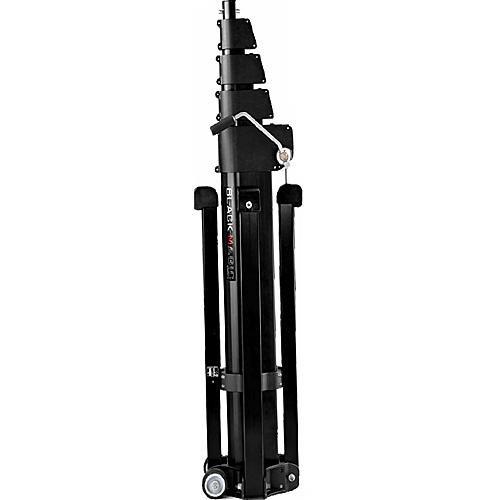

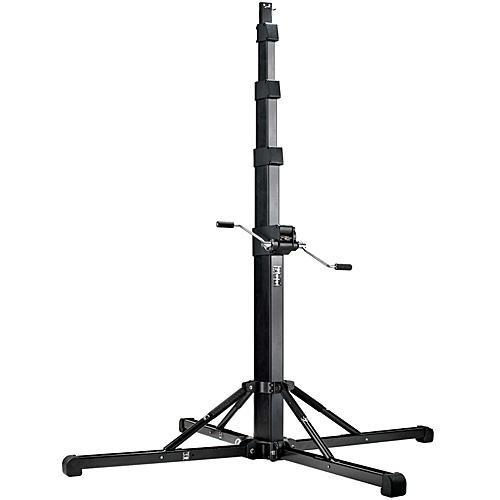

Product description This is the Manfrotto 587B Blackmagic Pro Stand that can support your large light fixture to a height of 18' (5.5 m). The 587B works with a strong, safe and reliable double winch system. The lift system of the 587B is fast and smooth and locks automatically to prevent any "back-sliding" of your fixture.The 587B has four double-braced folding steel legs. The stand sets up easily in seconds. Its top attachment is aluminum and will accept your Junior 1-1/8" (28mm) mount fixture. Wind bracing is possible with your cables or ropes attached to the rings at the top of the stand. - Strong
-
- With its double handle, you can easily hoist up to 440 lbs (220kg) from its 5.4'minimum height

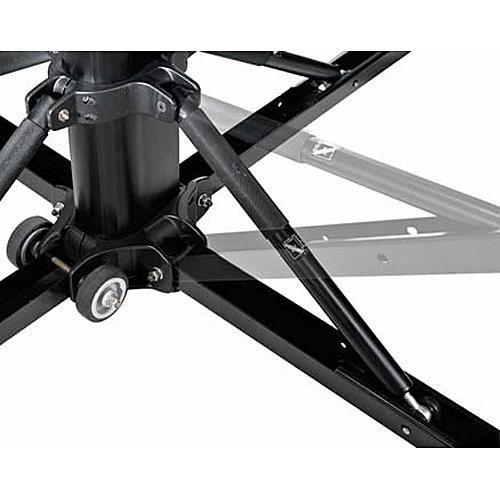

- Four steel legs comprise the base -- each leg's shell wall is 3mm thick
- Tested for 2000 complete extensions, overloaded to 1100 lbs (550kg)
- Tested for 100 hours under salt spray to observe any reaction of the black anodized finish
- Safe
-

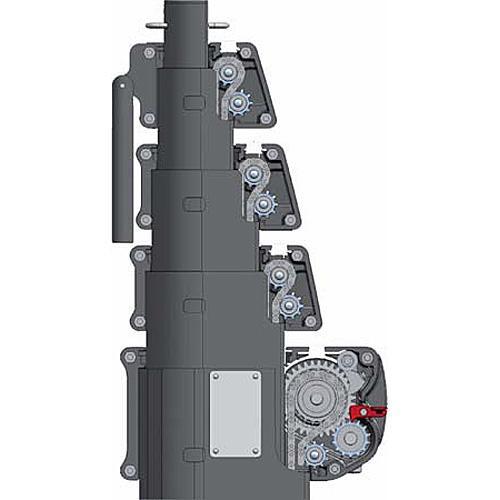

- Self-Locking -- automatically stops "back-sliding" when you release the handle
- Two locking teeth applied to the main cog wheels
- Two automatic clutches
- Safety pin releases the leg sections for positioning
- Four leveling devices for working on uneven surfaces up to 6° inclination
- Wind-bracing rings
- Easy Maintenance
-
- Collars have maintenance windows to enable observation of the condition of internal components
- Assembled with bolts that are easy to replace
In the Box Manfrotto 587B Blackmagic Pro Stand - 18' (5.5m) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 587B Blackmagic Pro Stand - 18' in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto 587B Specs | Load Capacity | 440 lb / 200 kg | | Mounting Options | 1-1/8" Receiver | | Maximum Working Height | 18' / 5.5 m | | Minimum Working Height | 5.4' / 1.6 m | | Collapsed Height | 5.4' / 1.6 m | | Footprint Diameter | 7.8' / 2.38 m | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 176.0 lb / 80.0 kg | | | | Package Weight | 198.5 lb | | Box Dimensions (LxWxH) | 71.5 x 20.0 x 16.5" |
