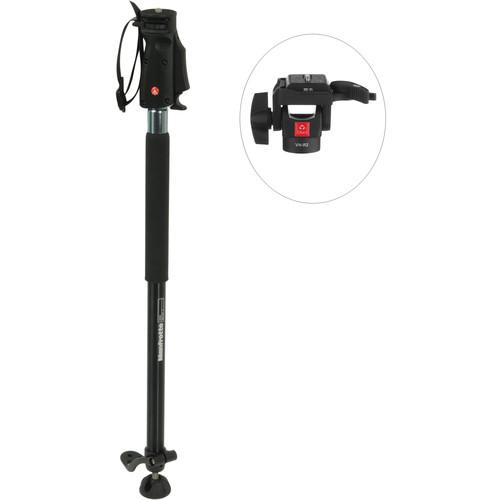

User Manual for Manfrotto 685B NeoTec Pro Photo Monopod with Tilt Head Click to enlarge the picture
Contents of the user manual for the Manfrotto 685B NeoTec Pro Photo Monopod
- Product category: Monopods Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Monopods
|
User manual for the Manfrotto 685B NeoTec Pro Photo Monopod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description 9 Alternative Camera Supports Read More This kit from Photo combines the Manfrotto 685B NeoTec Pro Photo Monopod with a Tilt Head for a camera-ready support. The monopod features the innovative NeoTec rapid opening and closing mechanism. The leg opens up by simply pulling down on it, and automatically locks into any position with no knobs or levers to tighten. The 685B also sports a safety lever that prevents accidental deployment of the locking release mechanism. To close the monopod, simply activate the safety lever, which then allows the grip action handle to be depressed. The lever is simple to operate while still maintaining one-handed closing operation. The heavier the weight pushing down on it from above the more locking power this innovative mechanism exerts.
The tilt head is designed for use on monopods and has 180° one-axis front-to-back movement. An included quick release plate allows for fast camera attachment and a safety lock helps to prevent accidental release. A bubble level helps ensure even horizons. - Manfrotto 685B NeoTec Pro Photo Monopod with Safety Lock The Manfrotto 685B NeoTec Pro Photo Monopod with Safety Lock features the innovative NeoTec rapid opening and closing mechanism. The leg opens up by simply pulling down on it, and automatically locks into any position, with no screws, knobs or levers to tighten. The 685B also sports a safety lever that prevents accidental deployment of the locking release mechanism. To close the monopod, simply activate the safety lever with the 'pinkie' finger, which then allows the grip action handle to be depressed. The lever is simple to operate while still maintaining one-handed closing operation. The heavier the weight pushing down on it from above the more locking power this innovative mechanism exerts. To further improve the single-handed performance of the NeoTec Monopod, Manfrotto has added a lightweight rubber foot pedal to make opening or closing a snap. To increase the height of the camera, simply step on the pedal and lift the monopod to the new position. For storage and transportation, the foot pedal folds away against the bottom leg section.
- Special aluminum alloy used in the aeronautical industry
- NeoTec rapid opening and closing mechanism
- Lightweight rubber foot pedal to make opening or closing easier
- Protective foam leg-warmer on the bottom leg section to provide protection against the elements and offer a comfortable grip during transportation.
- Suction cup foot for extra ground support and increased grip.
UPC: 719821255680 - Oben VH-R2 Tilt Head for Monopods The Oben VH-R2 Tilt Head for Monopods is a compact head specifically designed for monopods. The head has 180° one-axis movement, allowing you to position your camera for a 90° vertical format when using a monopod. Included is a 1/4-20"-3/8" reducer bushing, which makes this head compatible with either 1/4"-20 or 3/8" mounting threads.
- A locking knob on the head provides smooth, accurate, and quick operation to rotate the head 180° for horizontal or vertical shooting.
- Has a locking pin to prevent accidental camera release.
- A snap-in RP-20 Quick-Release Plate for rapid mounting and dismounting of the camera is included.
- A 3/8"-1/4" reducer bushing is included to ensure a proper fit for your monopod.
UPC: 847628016811 In the Box - 685B NeoTec Pro Photo Monopod with Safety Lock uubwduzzsqrzsxvz
- Wrist/Hand Strap
- Limited 2-Year Warranty
- Limited 8-Year Warranty Extension after Online Registration
- Oben - VH-R2 Tilt Head for Monopods
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 685B NeoTec Pro Photo Monopod with Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto 685B NeoTec Pro Photo Monopod with Safety Lock
| | | Head Type | Pistol Grip Head | | Camera Mounting Screw | 1/4"-20 Male, 3/8"-16 Male | | | | Leg Lock Type | Push-Pull, with Release Button | | Leg Sections | 3 | | Leg Diameter | 1.1" / 28 mm (Maximum)
0.87" / 22 mm (Minimum) | | | | Load Capacity | 17.6 lb / 8.0 kg | | Maximum Working Height | 66.9" / 170 cm | | Folded Length | 29.3" / 74.5 cm | | Materials | Aluminum Alloy | | Weight | 2.38 lb / 1.08 kg | | | | Box Dimensions (LxWxH) | 31.0 x 4.0 x 3.0" | - Oben VH-R2 Tilt Head for Monopods
| Load Capacity | 11 lb (5 kg) | | Tilt | 180° | | Working Temperature | -4° to 158°F (-20° to 70°C) | | Quick Release Plate | Yes, RP-20 QR plate is included | | Tripod Mount Thread Size | 1/4" or 3/8" (with included bushing) | | Height | 2.6" (67mm) | | Weight | 10.2 oz (290 g) | | | | Box Dimensions (LxWxH) | 5.0 x 4.3 x 3.3" |
