User Manual for Manfrotto 755CX3 MagFiber Tripod & MH055M8-Q5 Photo-Movie Head with Q5 Quick Release Click to enlarge the picture
Contents of the user manual for the Manfrotto 755CX3 MagFiber Tripod & MH055M8-Q5
- Product category: Tripod Systems Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Systems
 |
User manual for the Manfrotto 755CX3 MagFiber Tripod & MH055M8-Q5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|

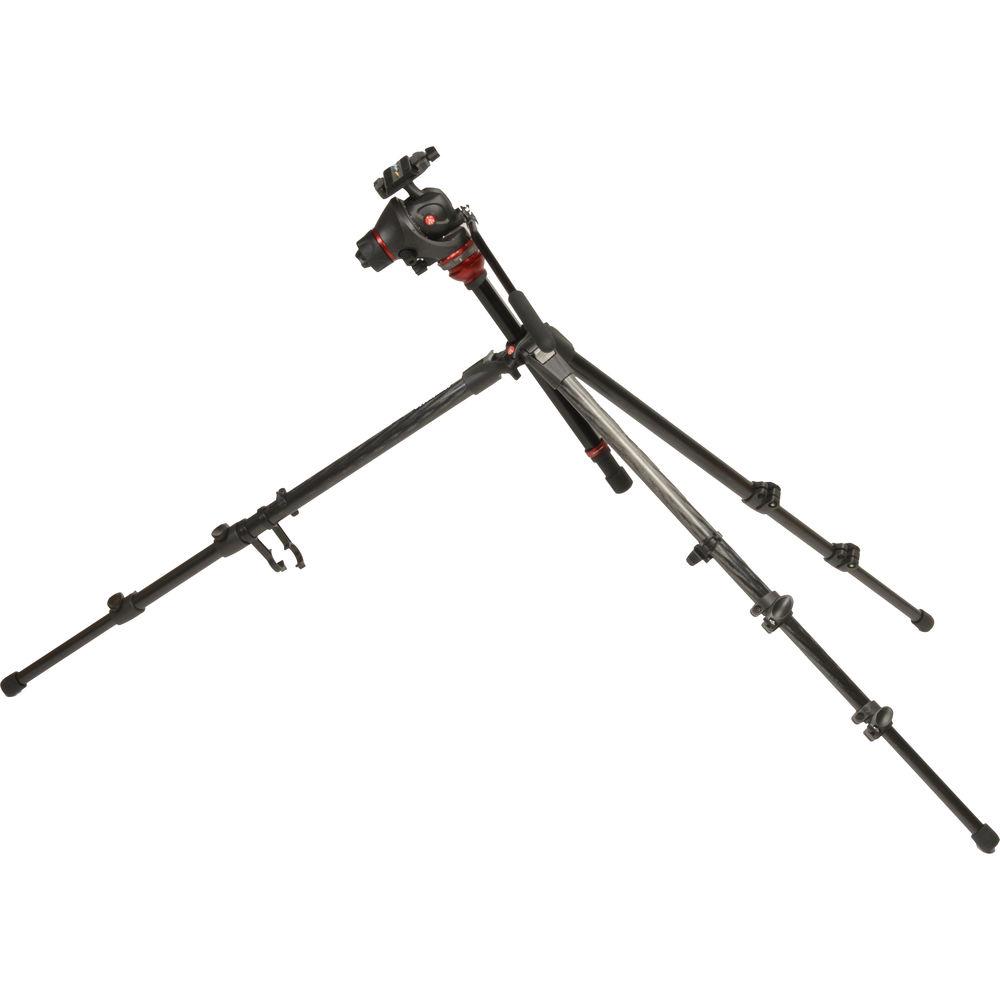

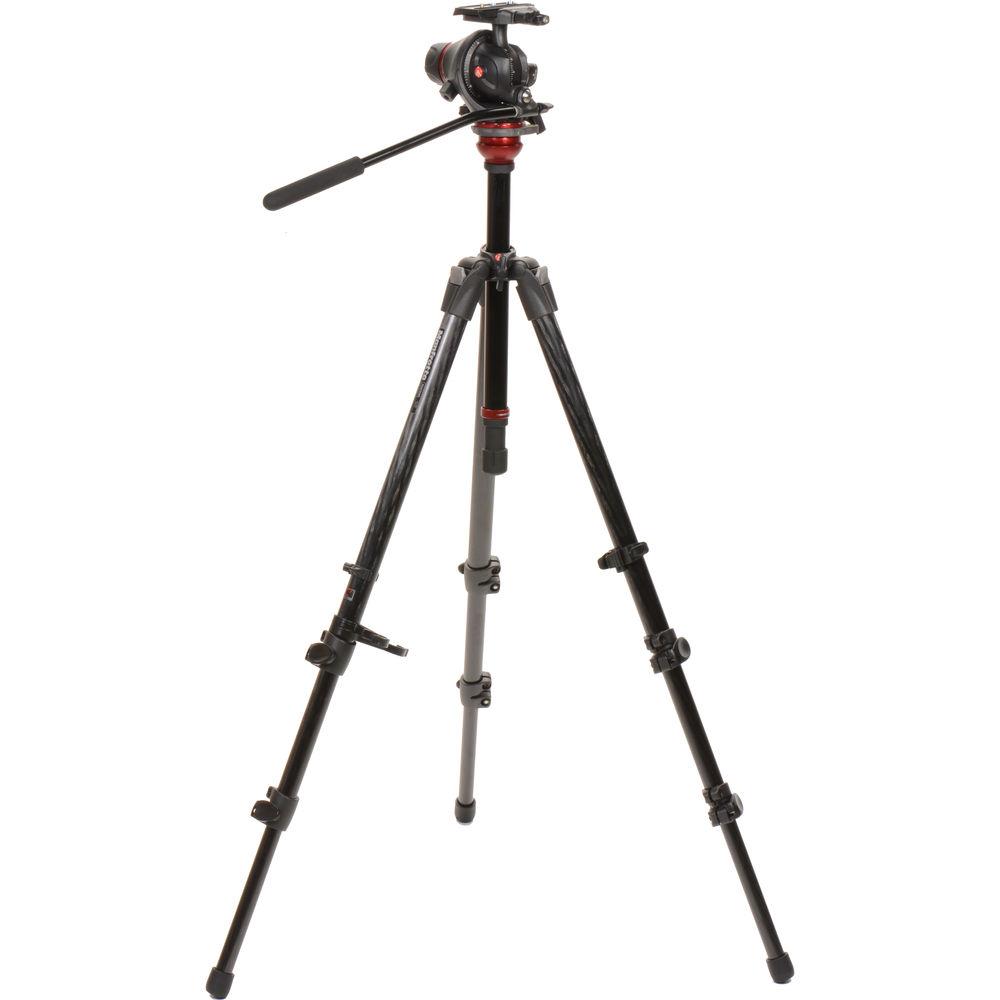

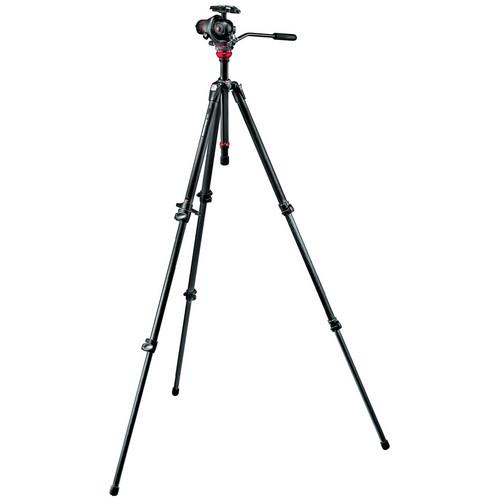

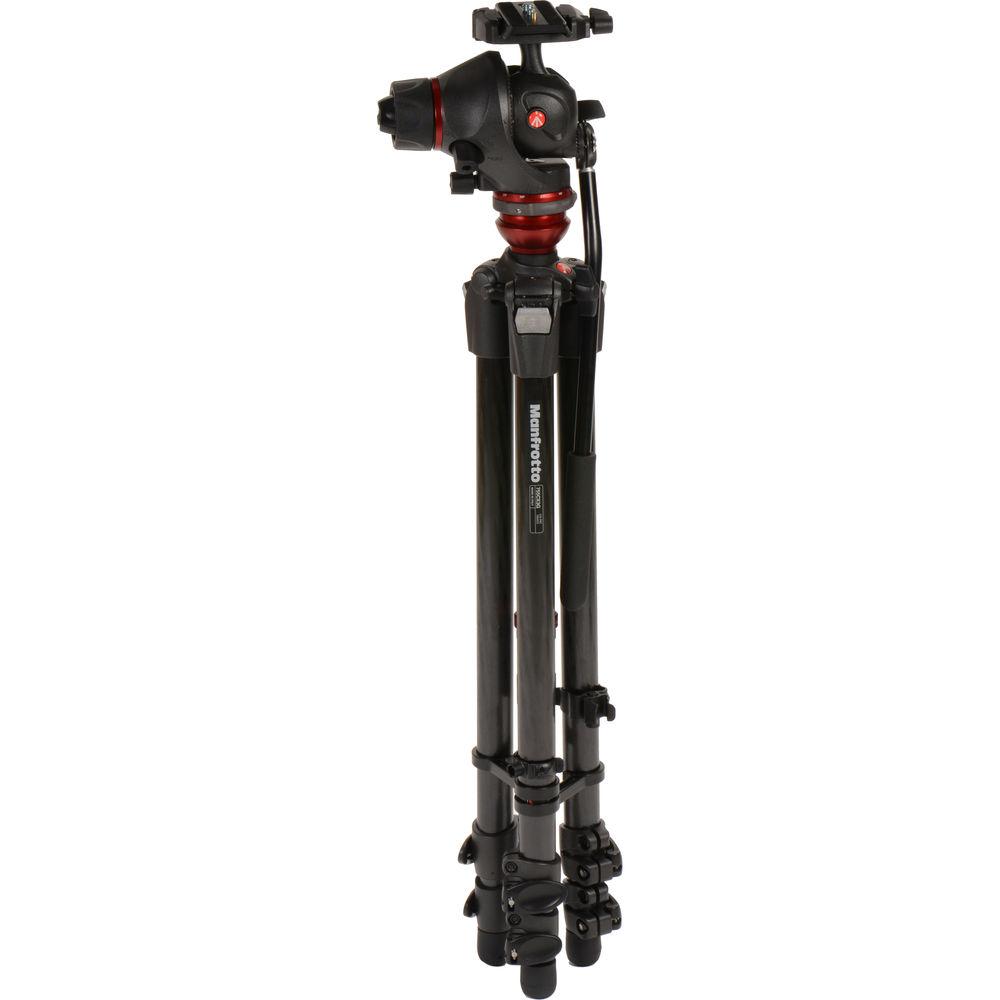

Product description Hybrid stills and video shooters can benefit greatly by the addition of the 755CX3 MagFiber Tripod & MH055M8-Q5 Photo-Movie Head with Q5 QR Plate from Manfrotto to their kit. Starring a dual-purpose head with a 15.4 lb capacity paired with a two-stage tripod with flip locks, shooters will be able to get going quickly and effectively. The head uses a 501PL sliding quick release plate, an adjustable counterbalance control, and friction control for pan and tilt. Also, it has a photo mode that offers a ball head type all-direction movement. The legs have a leveling column with 50mm half ball, can be independently adjusted, and offer a height range of 23.6 to 69.9". - 755CX3 MagFibre Video Tripod Legs with Rapid Center Column The Manfrotto 755CX3 MagFibre 2-Stage Tripod is intended for high-definition camcorders weighing up to 15.4 lb (7kg). It features carbon fiber composite leg tubes and fast-action stage clamps. There is also a built-in 50mm half-ball leveling system that can be locked via a detachable rotating grip. This facilitates camera platform leveling without adjusting leg length. The rapid center column adds 10" to the maximum height of the cameras platform.The system is covered by a 2-year warranty with an additional 3 years by registering online or by mail.
- Magnesium Alloy Castings
- Lightweight magnesium alloy is used for die-cast parts. Magnesium alloy has a density of 1.74g/cm3 as opposed to aluminum alloy's 2.70g/cm3 - a 35% reduction. Despite its lower weight, magnesium alloy is more rigid than aluminum alloy and has the same strength per volume.
- 100% Carbon Fiber Tubes
- Manfrotto tubes are made of 100% carbon fiber in order to reach high quality standards and high levels of performance, rigidity and lightness. Manfrotto pull winding technology (to maximize performance, resistance and reliability.

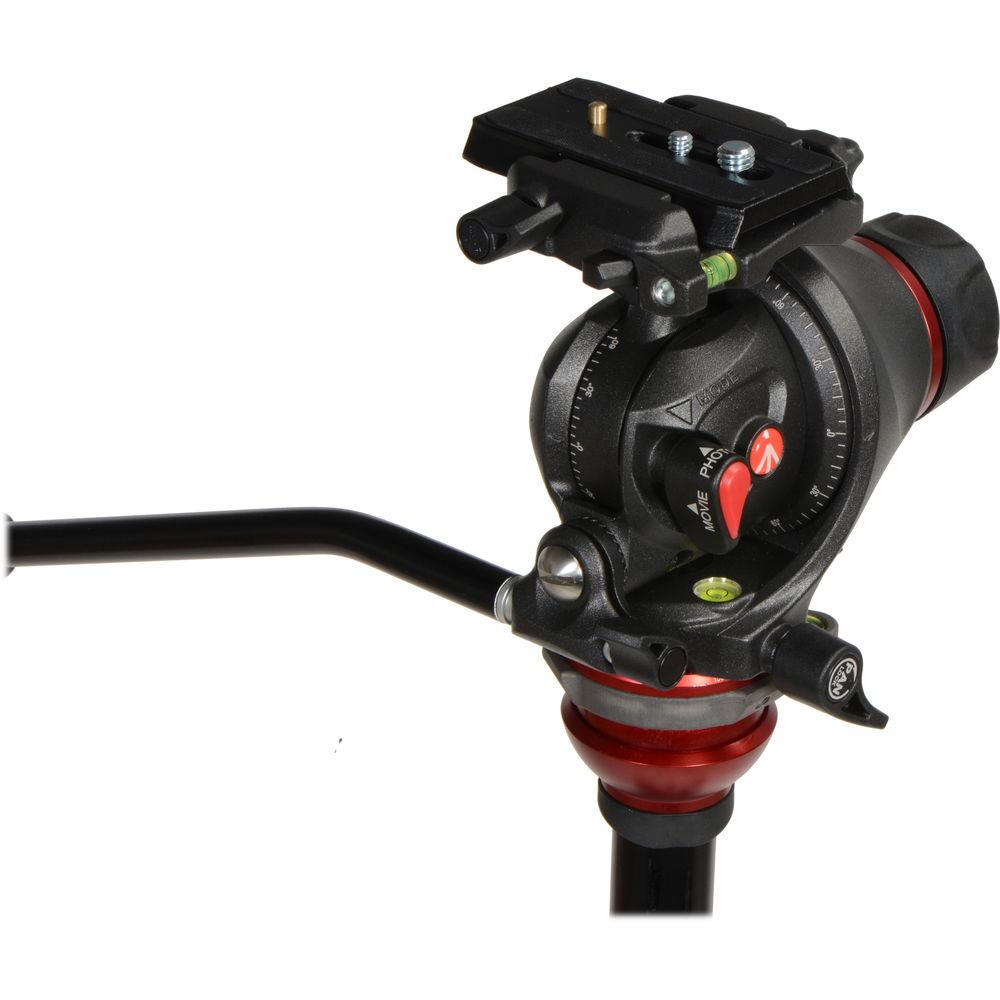

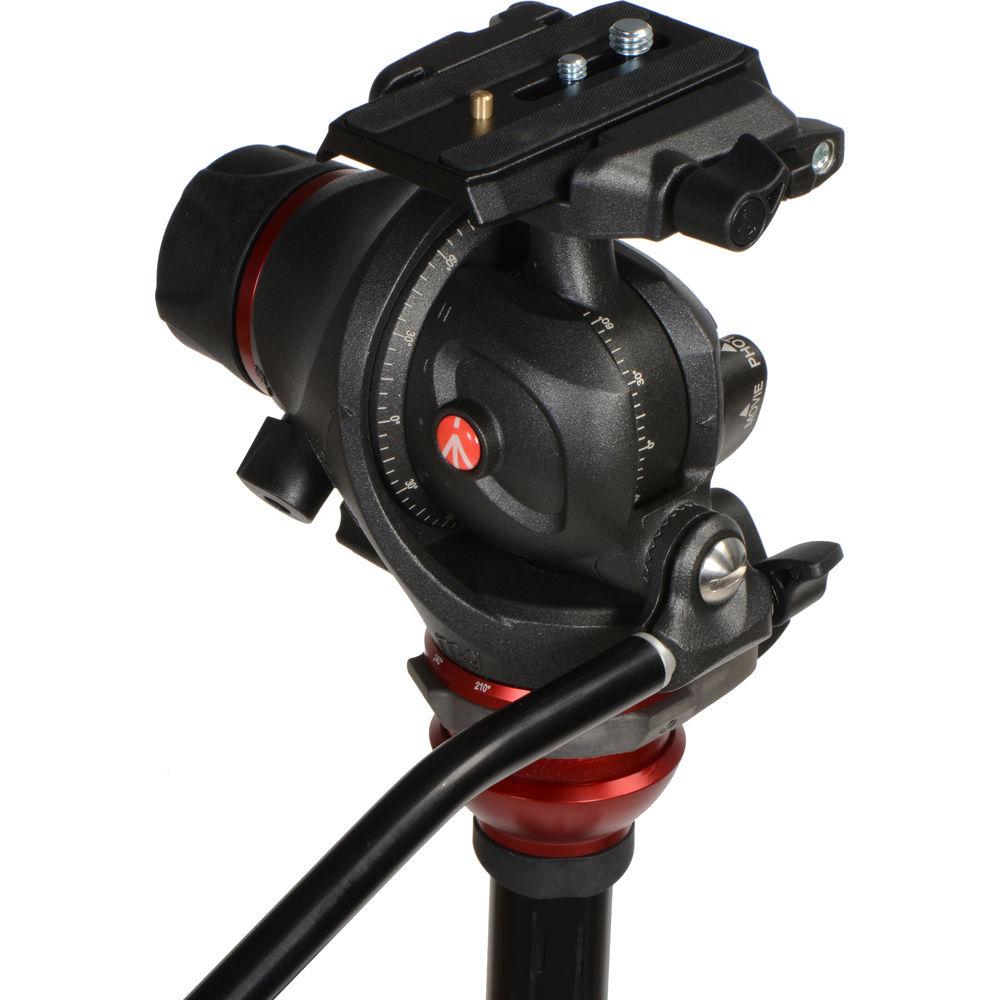

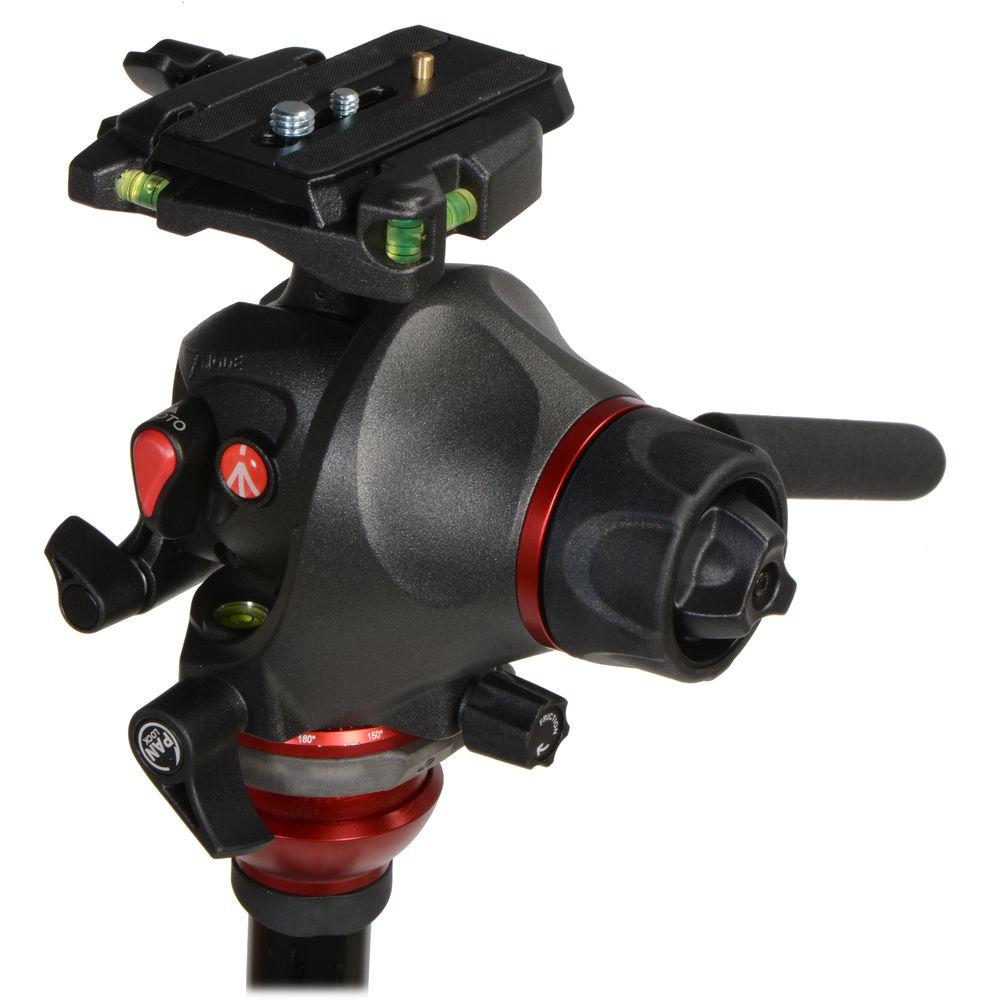

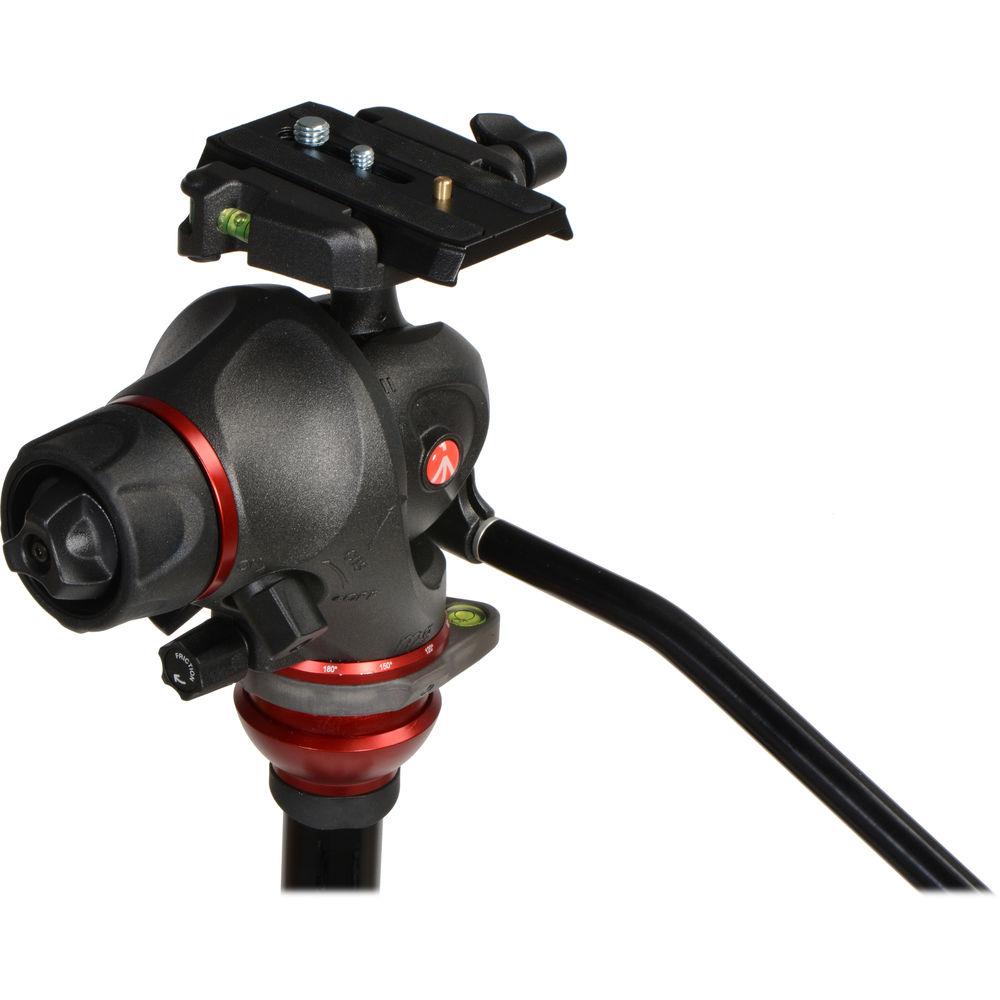

UPC: 719821296393 - MH055M8-Q5 Photo-Movie Tripod Head with Q5 QR Plate The Manfrotto MH055M8-Q5 Photo-Movie Tripod Head offers optimal function for still photo shooting as well as videography. Primarily designed for DSLR cameras with movie shooting ability, the tripod head features a Photo-Video selector for quickly switching between the two modes.
In Photo mode, the MH055M8-Q5 head offers free movement in all directions just like a typical ball head. Equipped with fluid cartridges and an adjustable counterbalance control, the tripod head provides precise, smooth, and controlled movement.
In Video mode, the head restricts all-direction movement to precise pan-and-tilt operation, which works well with videography. The MH055M8-Q5 head comes with a pan bar and offers fluid movement as well as friction control. The pan bar is reversible for right- or left-handed users and can be quickly detached. An included rest clip allows the pan bar to be attached to a tripod leg after being removed. A Q5 quick release plate is included. - Tripod head for still photo and video shooting
- Ideal for DSLR cameras capable of photo and video shooting
- Photo mode provides free movement in all directions just like a typical ball head
- Fluid cartridge ensures precise and smooth movement
- Adjustable counterbalance control
- Video mode restricts all-direction movement to precise pan-and-tilt operation, which works well in videography
- Fluid movement suitable for jerk-free movie recording
- Suitable for right-handed as well as left-handed users
- Rest clip (included) allows pan bar to be removed from head and attached to a tripod leg
UPC: 719821324157 In the Box Bundle Items 755CX3 MagFibre Video Tripod Legs with Rapid Center Column eyfzvfdsrcxzdcwzrsxtsrtasvcre - Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
MH055M8-Q5 Photo-Movie Tripod Head with Q5 QR Plate - Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto 755CX3 MagFiber Tripod & MH055M8-Q5 Photo-Movie Head with Q5 Quick Release in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 755CX3 MagFibre Video Tripod Legs with Rapid Center Column
| | | Load Capacity | 15.4 lb / 7 kg | | Maximum Working Height | 64.6" / 164.1 cm | | Max Height without Center Column | 54.7" / 138.9 cm | | Minimum Working Height | 18.3" / 46.5 cm | | Folded Length | 25" / 63.5 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 4.1 lb / 1.9 kg | | Materials | Carbon Fiber | | Bubble Level | Yes | | | | Leg Lock Type | Flip Lock | | Leg Positions | 4 Positions | | Leg Sections | 3 | | Leg Diameter | 1.2" / 30.5 mm | | | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 26.3 x 5.7 x 5.6" | - MH055M8-Q5 Photo-Movie Tripod Head with Q5 QR Plate
| | | Lateral Tilt | -20
