User Manual for Manfrotto BeFree Compact Travel Aluminum Tripod and Advanced Travel Backpack Kit Click to enlarge the picture
Contents of the user manual for the Manfrotto BeFree Compact Travel Aluminum Tripod
- Product category: Tripods with Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripods with Heads
|
User manual for the Manfrotto BeFree Compact Travel Aluminum Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|

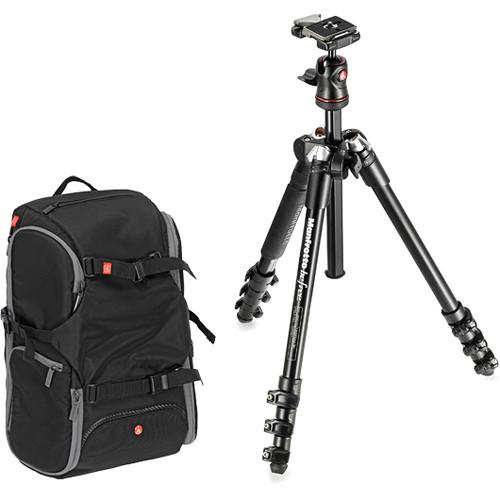

Product description Time-Lapse Tips and Tools Read More This Kit features the Manfrotto BeFree Compact Travel Aluminum Tripod and the Advanced Travel Backpack. This tripod and bag are an ideal combination for the traveling photographer.
The BeFree tripod is a sturdy, compact tripod that extends to 56.7", supports 8.8 lb, and folds up to only 15.75". The tripod's legs can be spread independently, with two-position leg angle stops. The legs fold up and around the head of the tripod, adding to its compactness. The ball head offers a large ergonomic locking handle and a quick release with an included QR plate that has a 1/4"-20 mounting screw and a durable carrying case for storage and transport.
The Advanced Travel Backpack accommodates a DSLR with an attached lens, two additional lenses, a flash and accessories between touch-fastened dividers inside a modular main camera compartment. A dedicated rear pocket holds up to a 13" laptop, and an expandable side pocket holds the BeFree tripod. For accessories, there is a spacious top storage area and multiple exterior and interior storage pockets.
To access your camera gear, there is a side access panel to quickly obtain your DSLR and lenses. The panel opens to reveal a variety of pockets on the inside for grabbing your accessories. In addition to the expandable side pocket, you can also secure a tripod to the front of the backpack. Also, when you don't need your camera gear, the main compartment divider can be removed to create one large spacious interior for your everyday travel items. To carry the backpack, there is a comfortably padded backpack harness as well as a top grip handle. - Manfrotto BeFree Compact Travel Aluminum Alloy Tripod
- Manfrotto Befree tripod: follow Adam Barker in his travels around California
The Manfrotto BeFree Compact Travel Aluminum Alloy Tripod is a sturdy, compact tripod that extends to 56.7", supports 8.8 lb, and folds up to only 15.75". The tripod's legs can be spread independently, with two-position leg angle stops. The legs fold up and around the ball head, a feature that helps makes this tripod so compact. The ball head has a large ergonomic locking handle and a quick release with an included QR plate that has a 1/4"-20 mounting screw and a durable carrying case for storage and transport. UPC: 719821362364 - Manfrotto Advanced Travel Backpack (Black)
- Manfrotto Befree tripod: follow Adam Barker in his travels around California
The black Advanced Travel Backpack from Manfrotto accommodates a DSLR with an attached lens, two additional lenses, a flash and accessories between touch-fastened dividers inside a modular main camera compartment. A dedicated rear pocket holds up to a 13" laptop, and an expandable side pocket holds a Manfrotto Befree Compact Travel Photo Tripod. For accessories, there is a spacious top storage area and multiple exterior and interior storage pockets.
To access your camera gear, there is a side access panel to quickly obtain your DSLR and lenses. The panel opens to reveal a variety of pockets on the inside for grabbing your accessories. In addition to the expandable side pocket, you can also secure a tripod to the front of the backpack. Also, when you don't need your camera gear, the main compartment divider can be removed to create one large spacious interior for your everyday travel items. To carry the backpack, there is a comfortably padded backpack harness as well as a top grip handle. UPC: 719821369547 In the Box - BeFree Compact Travel Aluminum Alloy Tripod
- 200PL Quick Release Plate
- Fitted Case
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- Advanced Travel Backpack (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto BeFree Compact Travel Aluminum Tripod and Advanced Travel Backpack Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto BeFree Compact Travel Aluminum Alloy Tripod
| | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | 200PL | | | | Load Capacity | 8.8 lb / 4 kg | | Maximum Working Height | 56.7" / 144 cm | | Max Height without Center Column | 48.4" / 123 cm | | Minimum Working Height | 13.4" / 34 cm | | Folded Length | 15.75" / 40 cm | | Materials | Aluminum Alloy | | Weight | 3 lb / 1.4 kg | | | | Leg Lock Type | Flip Lock | | Leg Positions | 2 Positions | | Leg Sections | 4 | | Leg Diameter | 0.9" / 22.5 mm | | | | Center Column Shape | Faceted | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Center Column Diameter | 0.87" / 22.0 mm | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 19.5 x 4.7 x 4.6" | - Manfrotto Advanced Travel Backpack (Black)
| Features | Laptop Compartment | | Carrying/Transport Options | Backpack Straps, Top Handle, Waist Belt | | Camera Support Strap | Tripod | | | | Laptop Compartment Screen Size | 13.0" | | | | Exterior Dimensions | 18.9 x 11.8 x 9.1" / 48 x 30 x 23 cm | | Exterior Material | Nylon | | Type of Closure | Zipper | | Water Resistance | Rain Cover | | | | Box Dimensions (LxWxH) | 20.315 x 11.654 x 6.772" |
