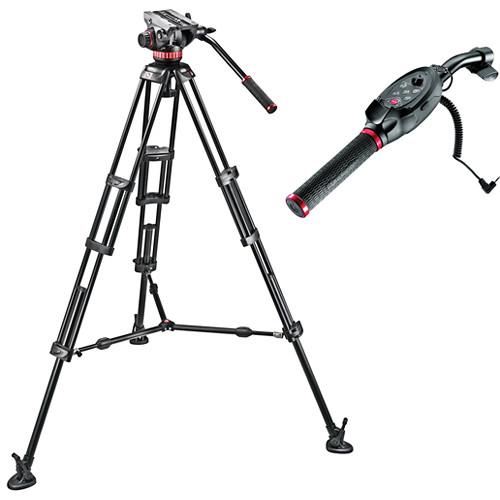

Manfrotto Blackmagic Cinema Tripod Bundle

User Manual for Manfrotto Blackmagic Cinema Tripod Bundle

• Product category: Tripod Systems Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripod Systems

Product description

• Manfrotto RC Pan Bar EX Remote Control for LANC Cameras Add pan-handle based camera control to your setup with the Manfrotto RC Pan Bar EX Remote Control. This version works with LANC-compatible cameras and will replace a standard Manfrotto rosette-mounted pan-handle. Controls offered include record start/stop, zoom, zoom speed, RET (plays back last 5 seconds of recorded footage), and standby. UPC: 719821331384
• Manfrotto MVH502A Fluid Head and 546B Tripod System with Carrying Bag The MVH502A Fluid Head and 546B Tripod System with Carrying Bag is a professional tripod system designed for HDSLR and interchangeable lens cameras. The system combines the MVH502A 75mm half ball fluid head with the 546B tripod with mid spreader. The MVH502 head has a pre-set counterbalance of 8.8 pounds, but can support loads up to 15.4 pounds. It features two Easy Link connectors to allow an external monitor or other accessory equipment to be fitted directly on the head.

  The 546B is a two-stage tripod with a built-in 75mm bowl. The tripod's telescopic mid-level spreader helps set leg angles accurately. Spiked feet with rubber overshoes are provided for solid grounding on both smooth floors and uneven terrain. A padded carrying bag comes included.
  • • Fluid video head supports 15.4 lb
    • 8.8 lb counterbalance
    • 75mm ball/bowl
    • 2-stage, aluminum telescopic twin tube legs
    • Mid-level spreader
  UPC: 719821362302

• RC Pan Bar EX Remote Control for LANC Cameras dttaxycdtavtbsxzfaybtdbysfsbeuvb
• 1-Year Warranty

• MVH502A Fluid Head and 546B Tripod System with Carrying Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto RC Pan Bar EX Remote Control for LANC Cameras

  Cable Length	39.4" (1 m)
  Color	Black
  Working Temperature	60 to -10°C
  Weight	0.84 lb (0.38 kg)

  Box Dimensions (LxWxH)	15.9 x 3.2 x 3.2"

• Manfrotto MVH502A Fluid Head and 546B Tripod System with Carrying Bag

  Load Capacity	15.4 lb (7.0 kg)
  Counter Balance System	Supports 8.8 lb (4.0 kg)
  Center of Gravity	2.16" (5.49 cm)
  Quick Release/Wedge Plate	504PLONG
  Tilt Drag	Continuously adjustable from 0 to max level
  Tilt Range	-80° / +90°
  Leg Stages/Sections	Yes
  Spring Loaded Counter Balance	Yes
  Pan Range	360°
  Pan Lock	Yes

  Material	Aluminum
  Head Attachment Fitting	75mm bowl
  Leg Stages	Two/three
  Center Brace	Yes

  Load Capacity	15.4 lbs (7.0 kg)
  Maximum Height	66.14" (168.00 cm)
  Minimum Height	17.32" (43.99 cm)
  Closed Length	32.68" (83.01 cm)
  Leveling Bubble/Illuminated	Yes/No
  Weight	12.13 lb (5.50 kg)

  Box Dimensions (LxWxH)	38.7 x 8.55 x 7.95"
