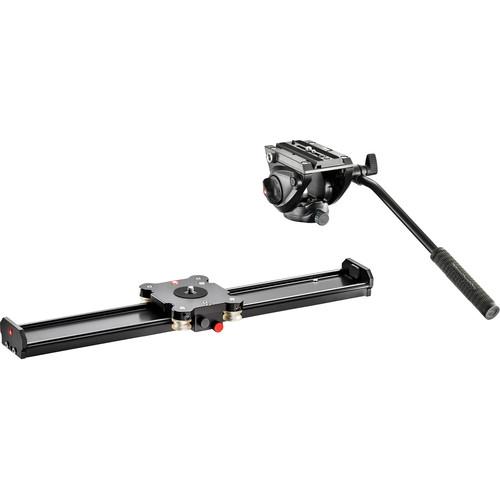

User Manual for Manfrotto Camera Slider 60cm and MVH500AH Fluid Head Kit Click to enlarge the picture
Contents of the user manual for the Manfrotto Camera Slider 60cm and MVH500AH
- Product category: Camera Sliders Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Camera Sliders
|
User manual for the Manfrotto Camera Slider 60cm and MVH500AH contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description Pairing a 23.6" slider with a flat base fluid head, the Manfrotto Camera Slider 60cm and MVH500AH Fluid Head Kit from is a portable solution for adding short-length tracking shots and subtle motion to your videos. The slider itself supports loads up to 22 lb, while the included fluid head supports loads up to 11 lb and features a pre-set, spring-loaded counterbalance of 5.3 lb. For smooth carriage slides, the slider uses high-precision steel ball bearings and quiet PSU polymer wheels, with an adjustable friction system letting you dial in the right amount of resistance for each slide. The carriage has a maximum travel distance of 18.4". For tripod mounting, the slider has 1/4"-20 and 3/8"-16 threads at the center and ends of the tripod, which also allow you to attach a variety of optional accessories, such as articulating arms and Manfrotto's Digital Director. - Manfrotto Camera Slider 60cm (23.6")
- Manfrotto 500 Fluid Video Head
- Manfrotto Fluid Video Head Range - Tutorial Video
The 23.6" Camera Slider from Manfrotto is a sturdy, portable solution for adding short-length tracking shots and subtle motion to your videos with loads up to 22 lb. It features high-precision steel ball bearings and quiet PSU polymer wheels for smooth camera carriage slides and an adjustable friction system to dial in the right amount of resistance for each slide. The carriage has a maximum travel distance of 18.4". The slider is constructed from machined anodized aluminum and weighs 4.83 lb. It can be setup on any flat and level surface or mounted on a tripod via the 1/4"-20 and 3/8"-16 threads at the center and ends of the tripod. The threads also allow you to attach a variety of optional accessories, such as articulating arms and Manfrotto's Digital Director. - Key Features
-
- 18.4" travel distance
- Machined anodized aluminum construction
- Steel ball bearings and PSU polymer wheels for smooth and quiet operation
- Adjustable friction system
- 1/4"-20 and 3/8"-16 attachment points
- Leveling bubble
- Made in Italy
UPC: 719821394198 - Manfrotto MVH500AH Fluid Video Head with Flat Base
- Manfrotto 500 Fluid Video Head
- Manfrotto Fluid Video Head Range - Tutorial Video
The MVH500AH Fluid Video Head with Flat Base from Manfrotto is designed with a wide platform, optimal for HDSLR camera bodies. Smooth and precise, it has a maximum weight load of 11 lb and professional quality fluid cartridges on both its pan and tilt axes. It has a pre-set spring-loaded counterbalance of 5.3 lb, its lateral tilt range is -70°/+90° and it provides 360° panning rotation.The side lock system on the MVH500AH allows the camera and sliding QR plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. This makes it easier and safer to mount your camera on this head. The head attaches to a tripod via a 3/8"-16 thread and includes a 500PLONG sliding balance plate with a captive 1/4"-20 tie-down screw and a 3/8"-16 adapter bushing. It also provides an Easy Link 3/8" connector on the side of the head to attach accessories such as a video monitor. The MVH500AH is made from aluminum alloy, measures 3.74" high and provides a bubble level and precision control handle. - Wide platform fluid pan video head ideal for HDSLR cameras
- 5.3 lb pre-set spring-loaded counterbalance system
- Side-lock system for easier and safer camera mounting
- Aluminum alloy construction
- Includes long quick-release plate
- 11 lb maximum weight capacity
UPC: 719821346975 In the Box - Camera Slider 60cm (23.6") sczdbuyexefdcusqrcscrrxadusrcybcrawvw
- Limited 2-Year Warranty (Extendable to 5 Years with Online Product Registration)
- MVH500AH Fluid Video Head with Flat Base
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto Camera Slider 60cm and MVH500AH Fluid Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto Camera Slider 60cm (23.6")
| | | Load Capacity | 22 lb / 10 kg | | Travel Distance | 18.4" / 46.8 cm | | | | Camera Mounting Screw | 3/8"-16 Male | | Tripod Mounting | 3 x 1/4"-20 Female Thread
3 x 3/8"-16 Female Thread | | | | Body Material | Aluminum | | Track Length | 23.6" / 60 cm | | Weight | 4.8 lb / 2.2 kg | | | | Box Dimensions (LxWxH) | 26.0 x 7.0 x 4.5" | - Manfrotto MVH500AH Fluid Video Head with Flat Base
| | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Camera Plate Type | 500PLONG | | Camera Mounting Screw | 1 x 1/4"-20 Male
1 x 3/8"-16 Male | | | | Base Mount | 3/8"-16 Thread | | | | Drag Control | Fixed | | Drag Type | Fluid | | Vertical Tilt | +90
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
