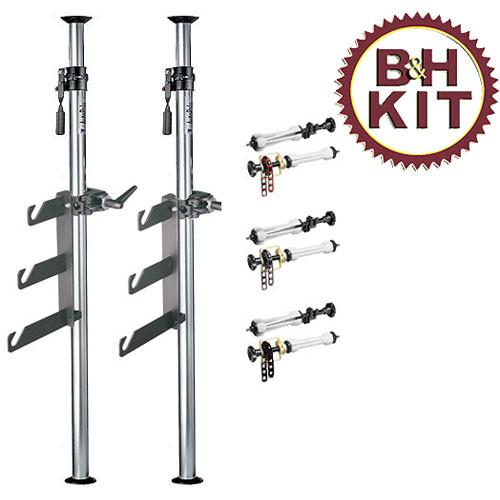

User Manual for Manfrotto Complete AutoPole Expan Kit Click to enlarge the picture
Contents of the user manual for the Manfrotto Complete AutoPole Expan Kit
- Product category: Autopoles Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Autopoles
|
User manual for the Manfrotto Complete AutoPole Expan Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description This is a complete background support system that will allow raising and lowering up to 3 cored backgrounds without climbing a ladder. The Auto Poles are held in place between a floor and ceiling as high as 11 ft 4 in with a hand operated spring lock.
3 Expan Drive Sets work with their plastic color coded drive chains. The Expan Drives are held by the background hook set, which is clamped to the Auto Poles.
If your backgrounds do not have cardboard cores, simply add the Alu-Core crossbars, available separately. - 2 x Manfrotto 032 Single Autopole This is a single Manfrotto Autopole. These single action locking cam Autopoles mount between the floor and ceiling of a studio. If the studio ceiling is higher than 12.2' (3.7 m), Autopole bases or Autopole extensions may be ordered separately.Autopoles support backgrounds, lights, and grip arms with the addition of Super Clamps, Hooks, and crossbars.This replaces old catalog #2950S.
- Strong support for backgrounds, lights and grip
UPC: 719821285403 - Manfrotto 044 Background Holder Hooks and Super Clamps for 3 Backgrounds - Set of 2 This is a background holder hook that will support up to 3 background crossbars or Expan Drives, when mounted onto the Manfrotto AutoPoles. It consists of two 2921 Cast Hooks mounted on Super Clamps. UPC: 719821151920
- 2 x Manfrotto 046MCB Expan Drive Set with Black Metal Chain The Manfrotto 046MCB Expan Drive Set with Black Metal Chain allows easy raising and lowering of rolls of background paper without lowering the support stands. The system uses two expandable technopolymer inserts to support a single roll of seamless paper. Tightening each side expands the drive inserts from 1.8" to 3" to grip the roll solidly from the inside. One side has a large toothed gear to which a metal link chain affixes, permitting convenient raising and lowering of the background paper roll. The other side has an adjustable tension drag. UPC: 719821359111
- Manfrotto 046MC Expan Drive Set with Red Metal Chain The Manfrotto 046MC Expan Drive Set with Red Metal Chain allows easy raising and lowering of rolls of background paper without lowering the support stands. The system uses two expandable technopolymer inserts to support a single roll of seamless paper. Tightening each side expands the drive inserts from 1.8" to 3" to grip the roll solidly from the inside. One side has a large toothed gear to which a metal link chain affixes, permitting convenient raising and lowering of the background paper roll. The other side has an adjustable tension drag. UPC: 719821241959
In the Box - 2 x 032 Single Autopole xyrerxeuuuwzzzctrywzbavuwzvqrfdzcy
- One Year Manufacturer's Warranty
- 044 Background Holder Hooks and Super Clamps for 3 Backgrounds - Set of 2 xyrerxeuuuwzzzctrywzbavuwzvqrfdzcy
- 2 x 046MCB Expan Drive Set with Black Metal Chain
- 046MC Expan Drive Set with Red Metal Chain
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto Complete AutoPole Expan Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Manfrotto 032 Single Autopole
| Minimum Height | 6.9' (2.1 m) | | Maximum Height | 12.2' (3.7 m) | | Diameter | 1.77" (45.4 mm) | | Weight | 4.85 lbs (2.65 kg) | | | | Box Dimensions (LxWxH) | 82.5 x 3.5 x 3.0" | - Manfrotto 044 Background Holder Hooks and Super Clamps for 3 Backgrounds - Set of 2
| | | Box Dimensions (LxWxH) | 13.4 x 8.9 x 4.0" | - 2 x Manfrotto 046MCB Expan Drive Set with Black Metal Chain
| Construction | Technopolymer, aluminum alloy | | Load Capacity | 22.05 lb (10 kg) | | Compatibility | Tubes up to 3.07" (80 mm) | | Adjustments | Drives expandable from 1.8-3.0" (46-78 mm) | | Weight | 4.45 lb (2.0 kg) | | | | Box Dimensions (LxWxH) | 14.15 x 5.25 x 3.5" | - Manfrotto 046MC Expan Drive Set with Red Metal Chain
| Construction | Technopolymer, aluminum alloy | | Load Capacity | 22.05 lb (10 kg) | | Compatibility | Tubes up to 3.07" (80 mm) | | Adjustments | Drives expandable from 1.8-3.0" (46-78 mm) | | Weight | 4.45 lb (2.0 kg) | | | | Box Dimensions (LxWxH) | 14.3 x 5.25 x 3.45" |
