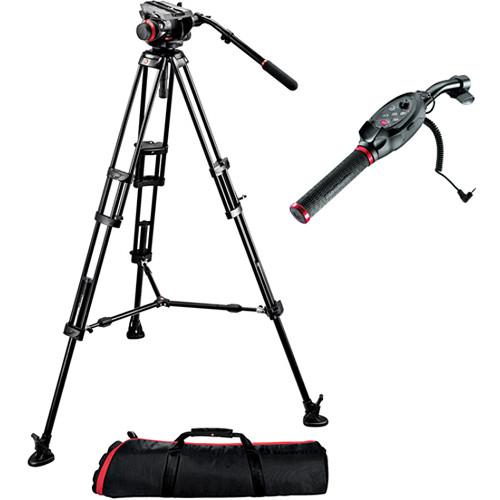

User Manual for Manfrotto Deluxe Blackmagic Cinema Tripod Bundle Click to enlarge the picture
Contents of the user manual for the Manfrotto Deluxe Blackmagic Cinema Tripod Bundle
- Product category: Tripod Systems Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Systems
|
User manual for the Manfrotto Deluxe Blackmagic Cinema Tripod Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description The Manfrotto Deluxe Blackmagic Cinema Tripod Bundle from B&H Photo features a camera support that will help you make the most of your Blackmagic Cinema Camera. It includes a Manfrotto 504HD Fluid Video Head, a two-stage aluminum Manfrotto 546B Pro Video tripod, and a Manfrotto RC Pan Bar EX Remote Control. The 504HD head has a newly designed counterbalance system that includes four presets--from 0 to 16.5 lbs--providing proper balance for camera loads up to 19.8 lb. The 546B tripod has a 75mm bowl head fitting and features a mid-level spreader for improved stability, plus retractable spiked feet with rubber covers. Manfrotto's RC Pan Bar EX Remote Control combines a pan bar with a remote control that's literally always at hand--it can start and stop recording, control focus and zooming, and switch between auto and manual focus. - Manfrotto 504HD Head w/546B 2-Stage Aluminum Tripod System
- Manfrotto Fluid Video Head Range - Tutorial Video
The Manfrotto 504HD Head w/546B 2-Stage Aluminum Tripod System combines the innovative and stylish 504HD Fluid Video Head with the 2-stage aluminum 546B Pro Video Tripod--creating an ideal combo of affordability, stability, and smooth, precise control. This compact, versatile system was designed with independent video and DSLR shooters in mind, and provides the level of ergonomics and support required by today's small crews and one-man bands. - 504HD Fluid Video Head
- The 504HD's patented Bridging Technology allows for a wider top plate and longer sliding plate that add stability and balance to a set of state-of-the-art professional features. A newly designed counterbalance system includes four presets--from 0 to 16.5 lbs--enabling proper balance for camera loads up to 19.8 lbs, while 3/8" threads in the top plate allow attachment of monitors, arms, and other accessories directly to the head.
- 546B Tripod
- This aluminum two-stage tripod combines stability and strength with affordability. Reaching a maximum height of 60.6" (154cm), the 546B is capable of supporting up to 44 lbs (20kg). Its spiked feet come with rubber overshoes, allowing setups on both smooth floors and uneven surfaces, while a newly designed mid-level telescopic spreader keeps the legs exactly where you need them.
UPC: 719821317760 - Manfrotto RC Pan Bar EX Remote Control for LANC Cameras
- Manfrotto Fluid Video Head Range - Tutorial Video
Add pan-handle based camera control to your setup with the Manfrotto RC Pan Bar EX Remote Control. This version works with LANC-compatible cameras and will replace a standard Manfrotto rosette-mounted pan-handle. Controls offered include record start/stop, zoom, zoom speed, RET (plays back last 5 seconds of recorded footage), and standby. UPC: 719821331384 In the Box - 504HD Head w/546B 2-Stage Aluminum Tripod System yczyryzyvrruydevrsuezswfvytecfwzbuxuu
- 504HD Fluid Video Head
- 546B Pro Video Tripod with Mid-level Spreader
- MBAG100PN Padded Tripod Bag
- CR1220 Battery
- Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
- RC Pan Bar EX Remote Control for LANC Cameras
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto Deluxe Blackmagic Cinema Tripod Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto 504HD Head w/546B 2-Stage Aluminum Tripod System
| | | Load Capacity | 16.5 lbs (7.5kg) | | Maximum Height | 66.7" (169.4cm) | | Maximum Height w/o Column Extended | N/A | | Minimum Height | 17.9" (45.5cm) | | Folded Length | 33.3" (84.6cm) | | Leveling Bubble/Illuminated | Yes/Yes | | Weight | 13.6 lbs (6.2kg) | | | | Counter Balance System | 4-Step | | Quick Release/Wedge Plate | Yes | | Balance Plate | Sliding, 1/4" and 3/8" Screws | | Tilt Drag | Continuous | | Tilt Range | -60° / +90° | | Tilt Lock | Independent | | Spring Loaded Counter Balance | Continuous | | Pan Range | 360° | | Pan Lock | Independent | | | | Material | Aluminum | | Head Attachment Fitting | 75mm Bowl | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Flip Levers | | Independent Leg Spread | Yes | | Spiked/Retractable Feet | Yes, w/rubber covers | | Center Brace | Mid-level Spreader | | | | Box Dimensions (LxWxH) | 41.0 x 10.2 x 10.2" | - Manfrotto RC Pan Bar EX Remote Control for LANC Cameras
| Cable Length | 39.4" (1 m) | | Color | Black | | Working Temperature | 60 to -10°C | | Weight | 0.84 lb (0.38 kg) | | | | Box Dimensions (LxWxH) | 15.9 x 3.2 x 3.2" |
