User Manual for Manfrotto Heavy Telephoto Lens Support with Quick Release Adapter and Plate Click to enlarge the picture
Contents of the user manual for the Manfrotto Heavy Telephoto Lens Support with
- Product category: Tripod Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Heads
|
User manual for the Manfrotto Heavy Telephoto Lens Support with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|

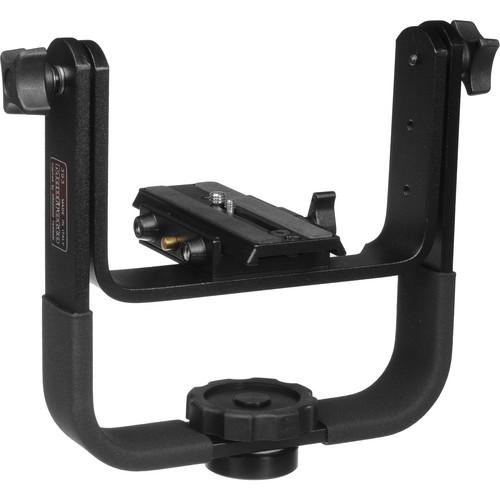

Product description The Manfrotto Heavy Telephoto Lens Support is designed to allow a telephoto lens and camera combination weighing up to 44.1 lb to be easily tilted and locked into place. It features a swing positioned inside a frame that can be attached to tripods or other support systems with a 3/8"-16 mount. Pushing a lens and camera placed on the swing raises the front of the lens upward, while pulling the lens and camera points the front of the lens towards low-angle subjects.
A telephoto lens with an integrated foot or lens collar that is compatible with a 1/4"-20 or 3/8"-16 mount can be connected to the included 357PLV Quick Release Plate, which measures 2.2 x 5.5 x 0.5" and has a rubberized, non-slip surface. The quick release plate and the attached lens can then be set and locked within the 357PL Quick Release Adapter at the center of the Manfrotto Heavy Telephoto Lens Support's swing, which is attached to both sides of the frame using two screw-in locking knobs. While loosened, both locking knobs allow a lens and camera placed on the swing to be pushed and pulled until the desired angle is obtained. The locking knobs can then be tightened, preventing further movement of the swing.
Before a telephoto lens is secured to the Manfrotto Heavy Telephoto Lens Support, the locking knobs can be fully unscrewed and removed from the frame, which also detaches the swing. Three pairs of threaded screw holes each along both sides of the swing allow it to be elevated or lowered relative to the frame. Higher swing positions can provide a lens and camera with additional height when needed, while the lowest position can be maintained to help maximize stability. - Heavy Telephoto Lens Support
-
- 44.1 lb load capacity
- Features a swing positioned inside a frame that can be attached to tripods or other support systems with a 3/8"-16 mount
- Designed to allow a telephoto lens and camera combination to be easily tilted and locked into place before the lens is focused on a subject
- Pushing a lens and camera placed on the swing raises the front of the lens upward; pulling the lens and camera points the front of the lens towards low-angle subjects
- Swing can be elevated or lowered within the frame
- Higher swing positions can provide a lens and camera with additional height when needed, while the lowest position can be maintained to help maximize stability
- Durable, aluminum-alloy construction
- 357PL Quick Release Adapter and 357PLV Quick Release Plate
-
- Quick release adapter with RC3 quick release clamping lock
- Safety catch for clamping lock prevents quick release plate from accidentally disconnecting
- Quick release plate measures 2.2 x 5.5 x 0.5" and has a rubberized, non-slip surface
- 1/4"-20 and 3/8"-16 mount
- Removable, anti-twist index pin
- Durable, aluminum-alloy construction
UPC: 719821288657 In the Box Manfrotto Heavy Telephoto Lens Support with Quick Release Adapter and Plate 357PLV Quick Release Plate 357PL Quick Release Adapter Limited 6-Month Warranty, Extendable to 10 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto Heavy Telephoto Lens Support with Quick Release Adapter and Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto 393 Specs | | | Head Type | Tilt Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male, 3/8"-16 Male | | Load Capacity | 44.1 lb / 20.00 kg | | Number of Bubble Levels | None | | Independent Pan Lock | Yes | | Material | Aluminum | | | | Panning Range | 360
