User Manual for Manfrotto LYKOS Daylight On-Camera LED Light Click to enlarge the picture
Contents of the user manual for the Manfrotto LYKOS Daylight On-Camera LED Light
- Product category: On Camera Lights Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto On Camera Lights
 |
User manual for the Manfrotto LYKOS Daylight On-Camera LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|

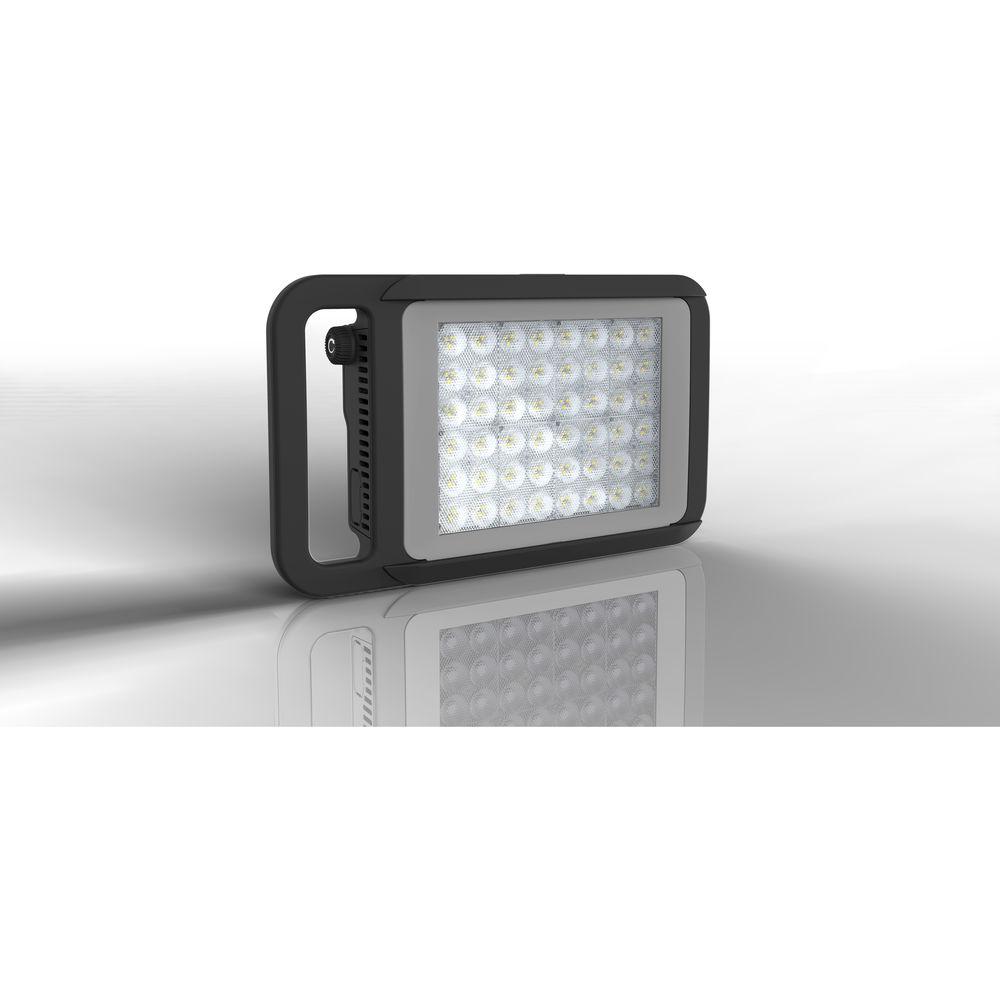

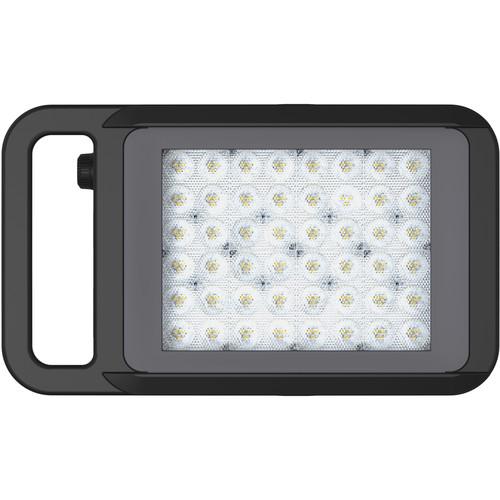

Product description Featuring a lightweight, slim design, a handle on the side for precision adjustment, large SMT LEDs, high CRI, and other outstanding features, the LYCOS Daylight LED Light from Manfrotto is a modern-style, highly-user-oriented on-camera light with a lot of punch.
The 48 SMT LEDs (Surface Mount Technology), designed for improved optical efficiency, feature a >93 CRI high color accuracy and provide 1600 lux max brightness at 3.3 ft. The color-temperature is a constant 5600K daylight, and brightness is adjustable flicker-free by a 100-0% dimmer. The dimmer is positioned next to the handle on the side of the light, so you'll have it right at your fingertips when you adjust the light into position using the handle. The brightness adjustment can also be made remotely via an iPhone app by incorporating an optional LYKOS Bluetooth Dongle. This can be very useful when you have the light mounted on a tripod and especially when you're using multiple units.
There's also an LCD display on the rear and its background color is light-blue, which will make reading it easier in darker environments, and which generally has a richer, more modern look. The LCD provides brightness, battery status, and other info.

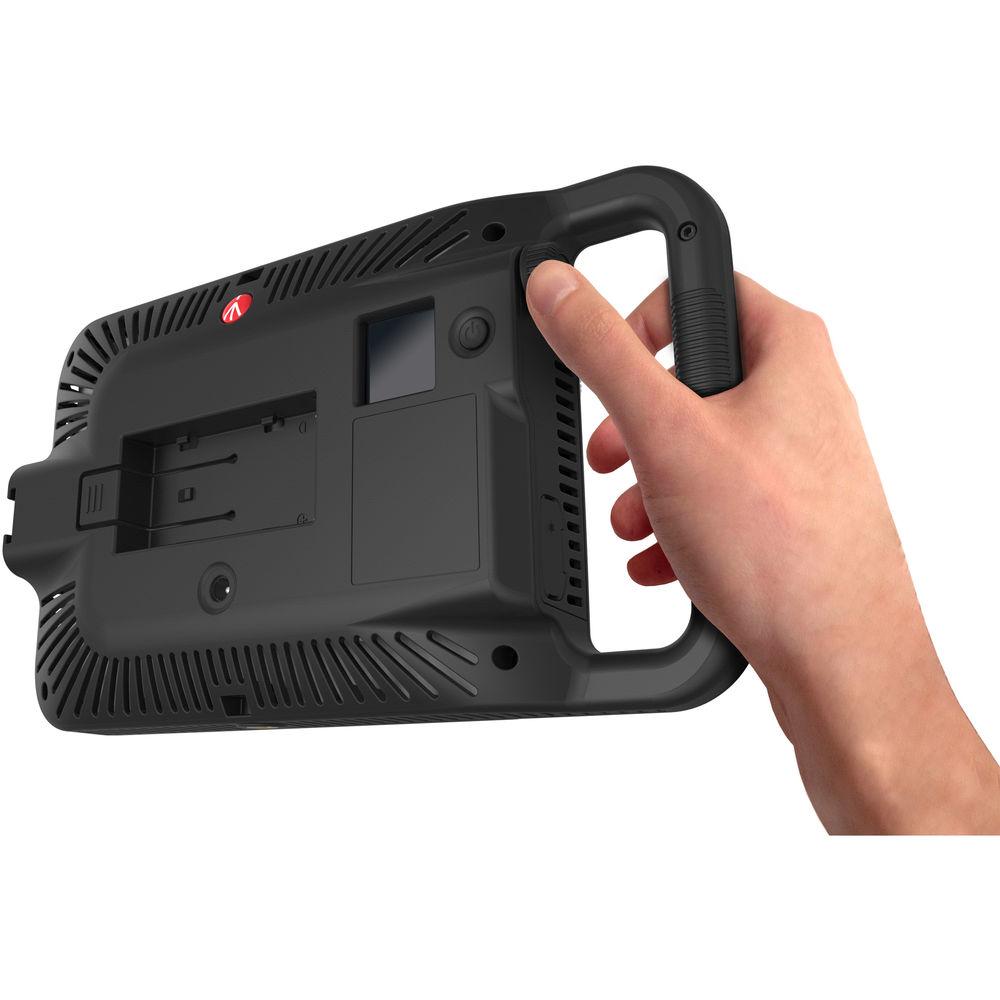

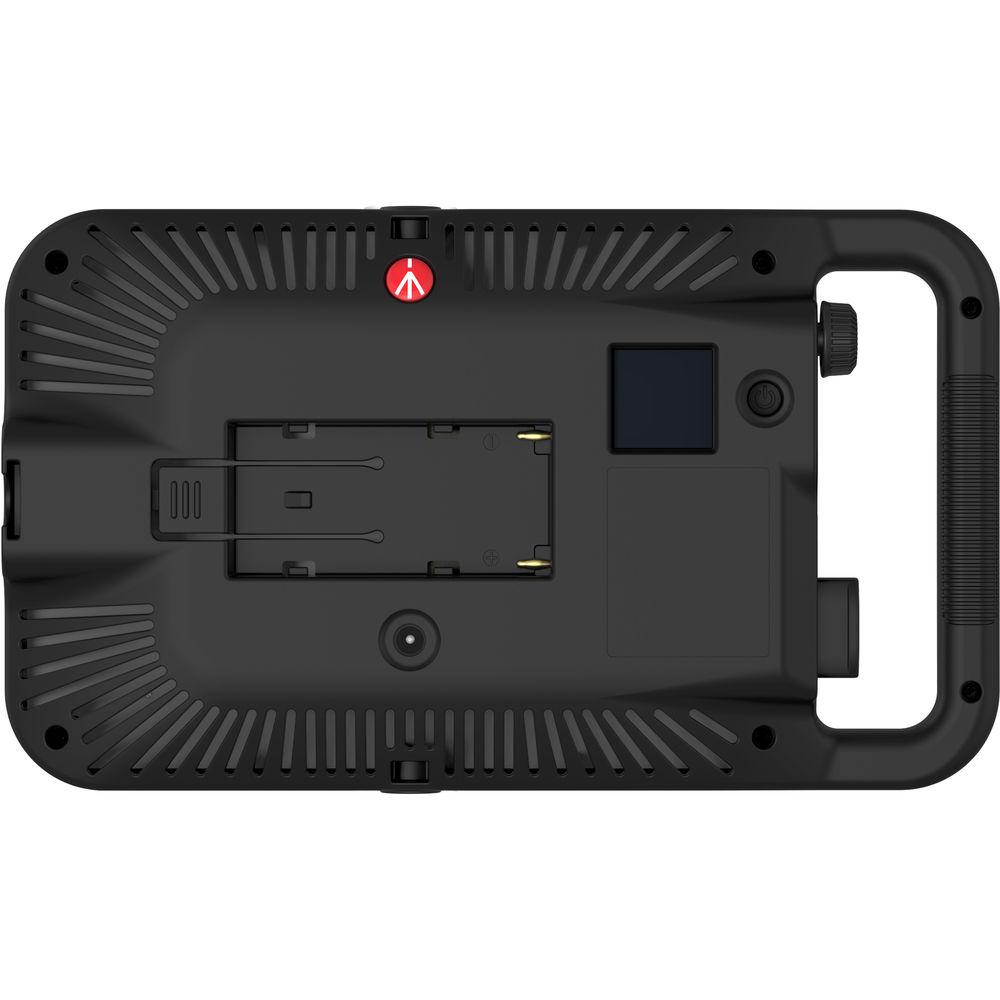

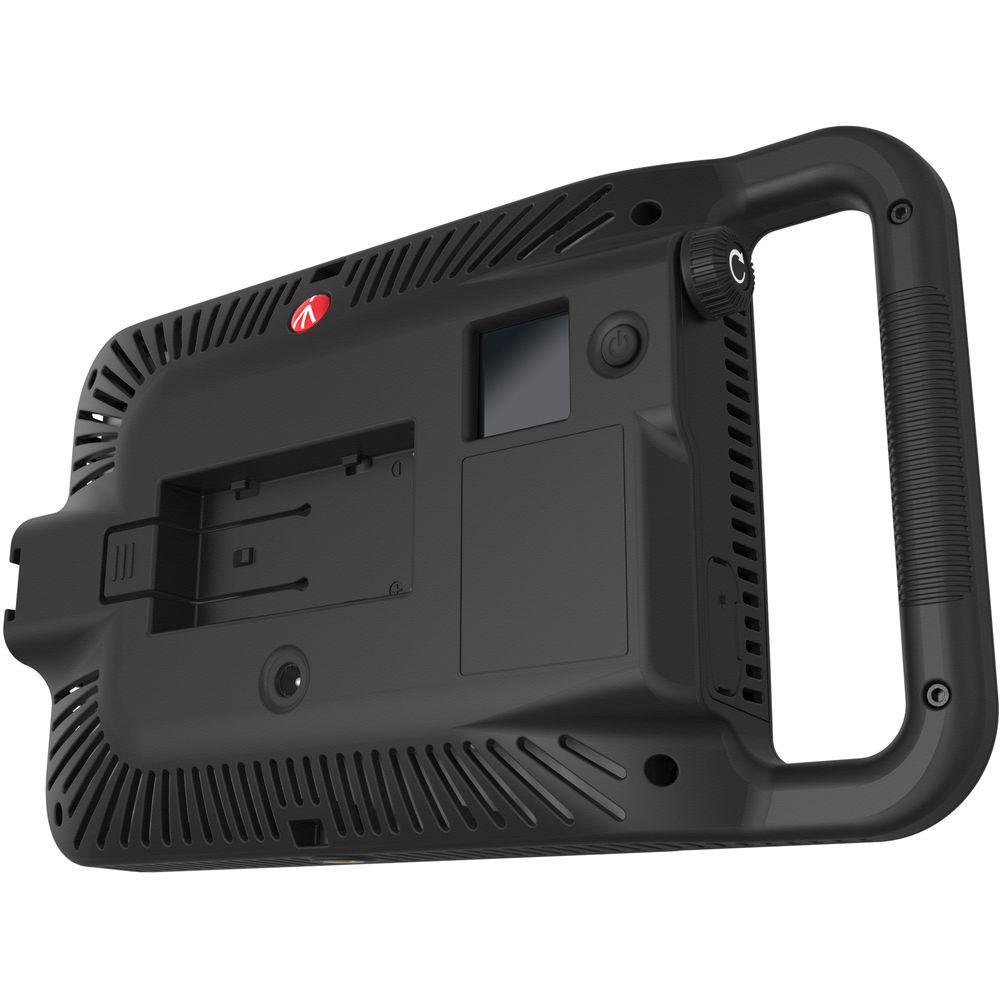

The light features a recessed L-Series battery mount on the rear supporting all Sony and third-party L-Series batteries. It also comes with an AC adapter that will get you started right away and that can be used for continuous studio power. A diffusion gel is also supplied, and you can also attach an optional LYKOS LED Softbox to achieve more effective diffusion. Two 1/4"-20 mounting threads are available: one on top, one on the bottom. - Key Features
-
- Lightweight, slim design with a handle on the side for precision adjustment
- 100-0% flicker-free brightness dial at your fingertips next to the handle
- Optional LYKOS Bluetooth Dongle supported for adjusting brightness via an iPhone app
- 48 SMT LEDs (Surface Mount Technology), designed for improved optical efficiency
- >93 CRI high color accuracy
- 1600 lux max brightness at 3.3 ft
- 5600K color temperature
- Color LCD display on the rear
- L-Series battery mount
- AC adapter included
- Diffusion gel included
- Optional direct-attach LYKOS LED Softbox supported
UPC: 719821395294 In the Box Manfrotto LYKOS Daylight On-Camera LED Light AC Adapter Diffusion Gel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto LYKOS Daylight On-Camera LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto MLL1500-D Specs | | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 93 | | Dimming | Yes, 0 to 100% | | Number of LEDs | 48 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | Power Source | AC Adapter, External Battery | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Weight | 1 lb / 460 g | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 12.5 x 7.5 x 5.7" |
