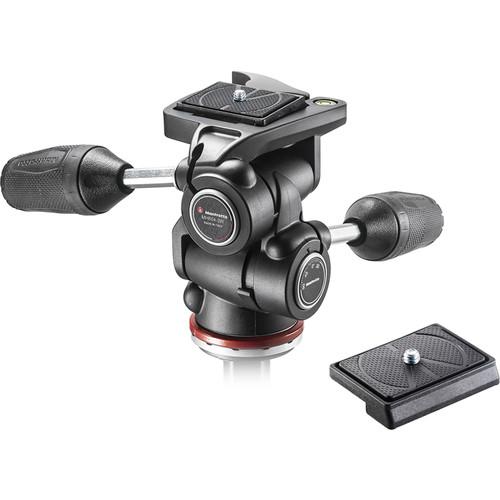

Product description This MH804 3-Way, Pan-and-Tilt Head Kit from includes one MH804 3-Way, Pan-and-Tilt Head with an integrated RC2 quick release cam lock and two 200LT-PL Quick Release Plates. - Manfrotto MH804 3-Way, Pan-and-Tilt Head with 200LT-PL Quick Release Plate This MH804 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 8.8 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200LT-PL Quick Release Plate. RC2 compatible quick release plates such as the 200LT-PL can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached. The cam lock also features a safety catch to prevent the 200LT-PL, or another compatible quick release plate from accidentally disconnecting.
Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate before securing it to the pan-and-tilt head. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other, have dedicated control handles, and can be locked into place. In addition to integrating the ability to individually lock the movements by twisting each corresponding handle's rubberized grip, the telescoping control handles for both tilt functions can also be retracted while the head is not in use for more convenient storage or transport.
To promote fast, repeatable, and accurate device positioning, this MH804 3-Way, Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility. For heavier loads, built-in counterbalance springs help ensure smooth as well as gradual backwards and forwards tilt movements. - MH804 3-Way, Pan-and-Tilt Head
-
- 8.8 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other, have dedicated control handles, and can be locked into place
- Telescoping control handles for both tilt functions can be retracted for more convenient storage or transport
- Dedicated angle scales for each movement that are designed for easy visibility promote fast, repeatable, and accurate device positioning
- Built-in counterbalance springs help ensure smooth as well as gradual backwards and forwards tilt movements for heavier loads
- Integrated, RC2 quick release cam lock
- Built-in bubble level
- Durable and lightweight polymer and fiberglass construction
- 200LT-PL Quick Release Plate
-
- Compatible with Manfrotto RC2 quick release cam lock
- Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
- 1/4"-20 mount
- Durable and lightweight polymer and fiberglass construction
UPC: 719821396536 - Manfrotto 200LT-PL Quick Release Plate The Manfrotto 200LT-PL Quick Release Plate is ideal for quickly attaching cameras onto all compatible Manfrotto quick release assemblies equipped with an RC2/Q2 attachment and a load capacity of 8.8 lb or less. If using this plate on a head with a greater load capacity, it is recommended not to exceed 8.8 lb of gear. Thanks to its lightweight technopolymer body reinforced with extremely stiff glass fibers, the plate can stay attached to your camera without adding excessive weight or volume.
The rubber used on this product provides even greater grip than previous models, keeping the camera securely attached and reducing camera twist. The plate is easily attached to your camera by hand-tightening a D-ring, removing the need for tools. UPC: 719821378587 In the Box - MH804 3-Way, Pan-and-Tilt Head with 200LT-PL Quick Release Plate drqacfextz
- 200LT-PL Quick Release Plate
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- 200LT-PL Quick Release Plate
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MH804 3-Way, Pan-and-Tilt Head Kit with 200LT-PL Quick Release Plates in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto MH804 3-Way, Pan-and-Tilt Head with 200LT-PL Quick Release Plate
| | | Head Type | Pan & Tilt Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | RC2 | | Load Capacity | 8.8 lb / 3.99 kg | | Number of Bubble Levels | 1 | | Material | Technopolymer | | | | Lateral Tilt | -90
