User Manual for Manfrotto MK190X3-BH Aluminum Tripod with 496RC2 Compact Ball Head Click to enlarge the picture
Contents of the user manual for the Manfrotto MK190X3-BH Aluminum Tripod with 496RC2
- Product category: Tripods with Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripods with Heads
 |
User manual for the Manfrotto MK190X3-BH Aluminum Tripod with 496RC2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|

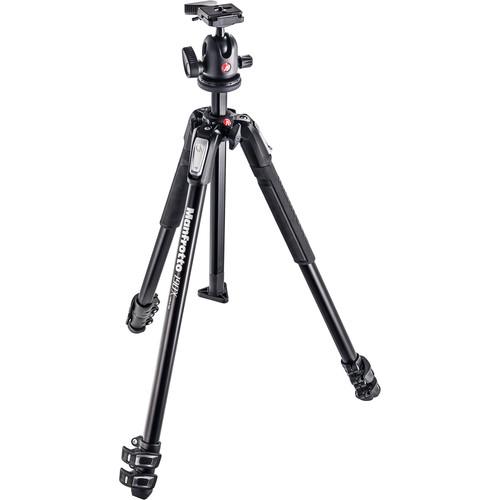

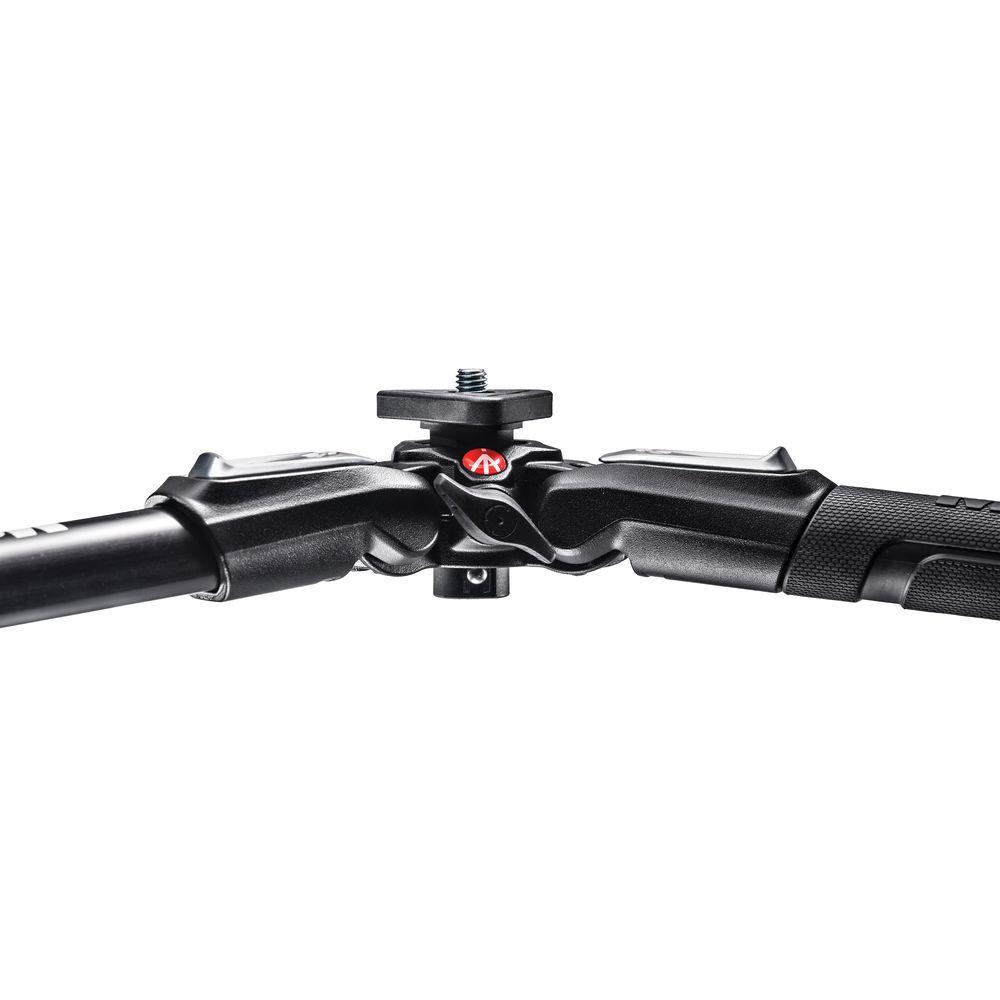

Product description Time-Lapse Tips and Tools Read More The Manfrotto MK190X3-BH Aluminum Tripod includes the 496RC2 compact ball head and a quick release plate. This tripod is an addition to the popular 190 series, adding a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 13.2 lb of gear, and has a maximum height of 67". The ground level adapter replaces the center column to allow the ball head's plate to sit just 7.5" above the ground with the legs at their widest angle.

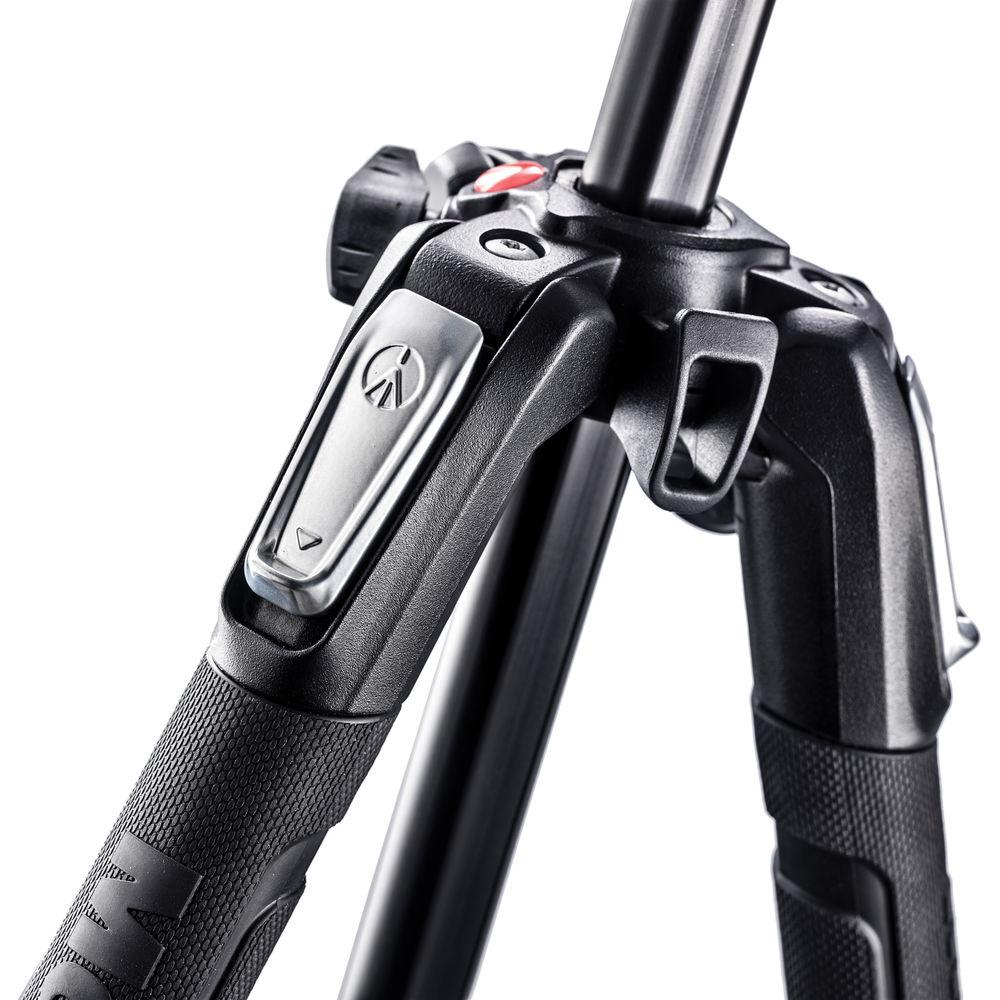

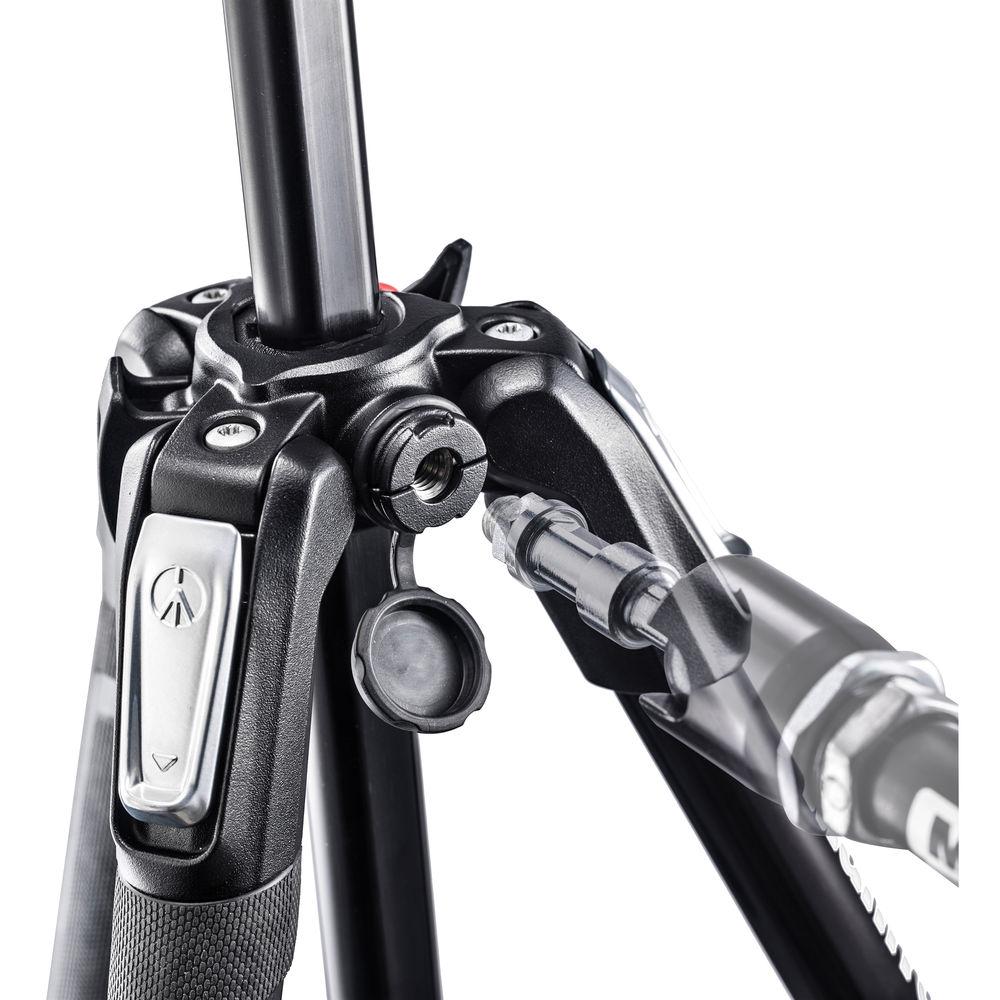

The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg has four angles to accommodate uneven ground or rough terrain.
The 496RC2 compact ball head is constructed of die-cast aluminum and has a single repositionable locking lever, ±90° tilt movement, plus a friction control for precise positioning. The included 200PL quick-release plate attaches to your camera's tripod mount via a 1/4"-20 threaded screw. Additionally, the quick release has a safety system to prevent accidental separation from the head. UPC: 719821378068 In the Box Manfrotto MK190X3-BH Aluminum Tripod with 496RC2 Compact Ball Head 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter Limited 6-Month Warranty, Extendable to 10 Years with Product Registration Limited 6-Month Warranty, Extendable to 10 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MK190X3-BH Aluminum Tripod with 496RC2 Compact Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto MK190X3-BH Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | 200PL | | | | Load Capacity | 15.4 lb / 7 kg | | Maximum Working Height | 67" / 170.2 cm | | Max Height without Center Column | 57.1" / 145.03 cm | | Minimum Working Height | 7.5" / 19.1 cm | | Folded Length | 27.2" / 69.09 cm | | Materials | Aluminum Alloy | | Weight | 5.3 lb / 2.4 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | | | Center Column Shape | Faceted | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 28.6 x 5.4 x 5.4" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
