Manfrotto MK290DUA3-3WUS 290 Dual Aluminum Tripod

User Manual for Manfrotto MK290DUA3-3WUS 290 Dual Aluminum Tripod with 3-Way Pan Tilt Head

• Product category: Tripods with Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripods with Heads

Product description

• MT290DUA3US 290 Dual Aluminum Tripod
  • Manfrotto 290 Series - Tutorial Video

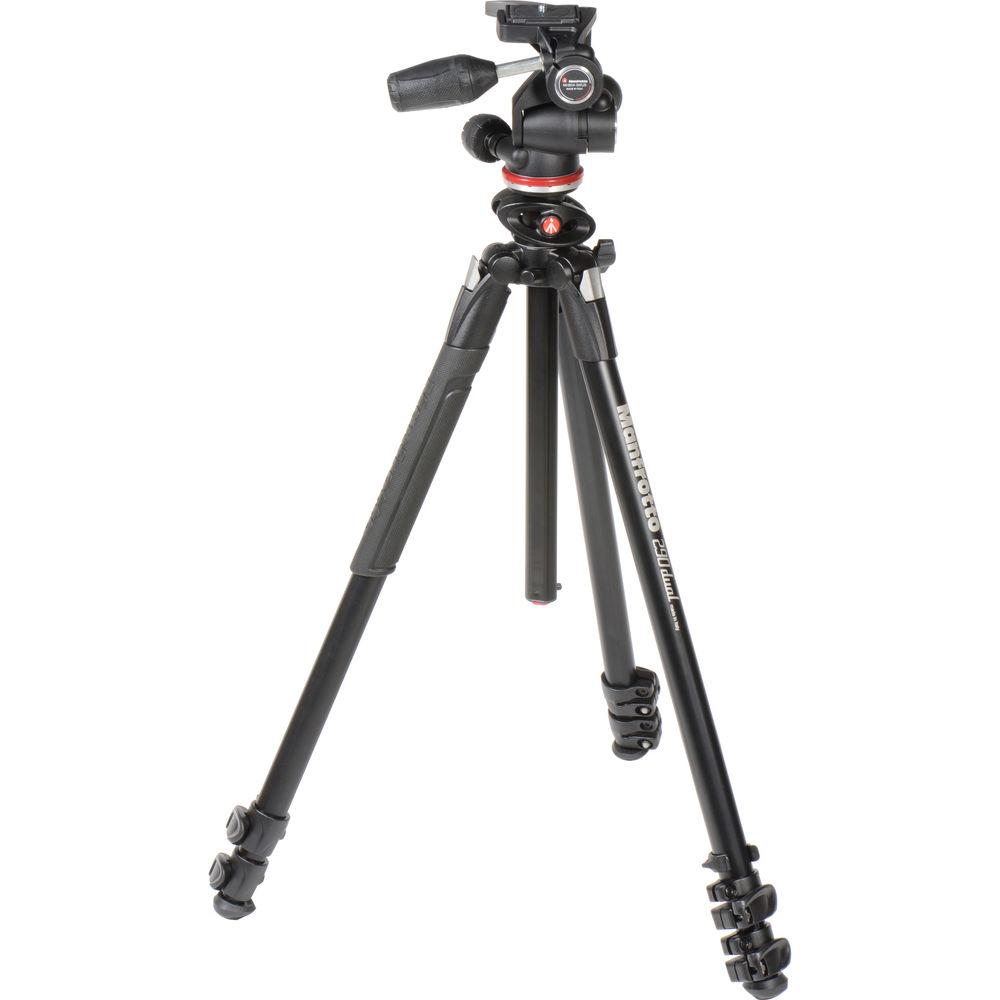

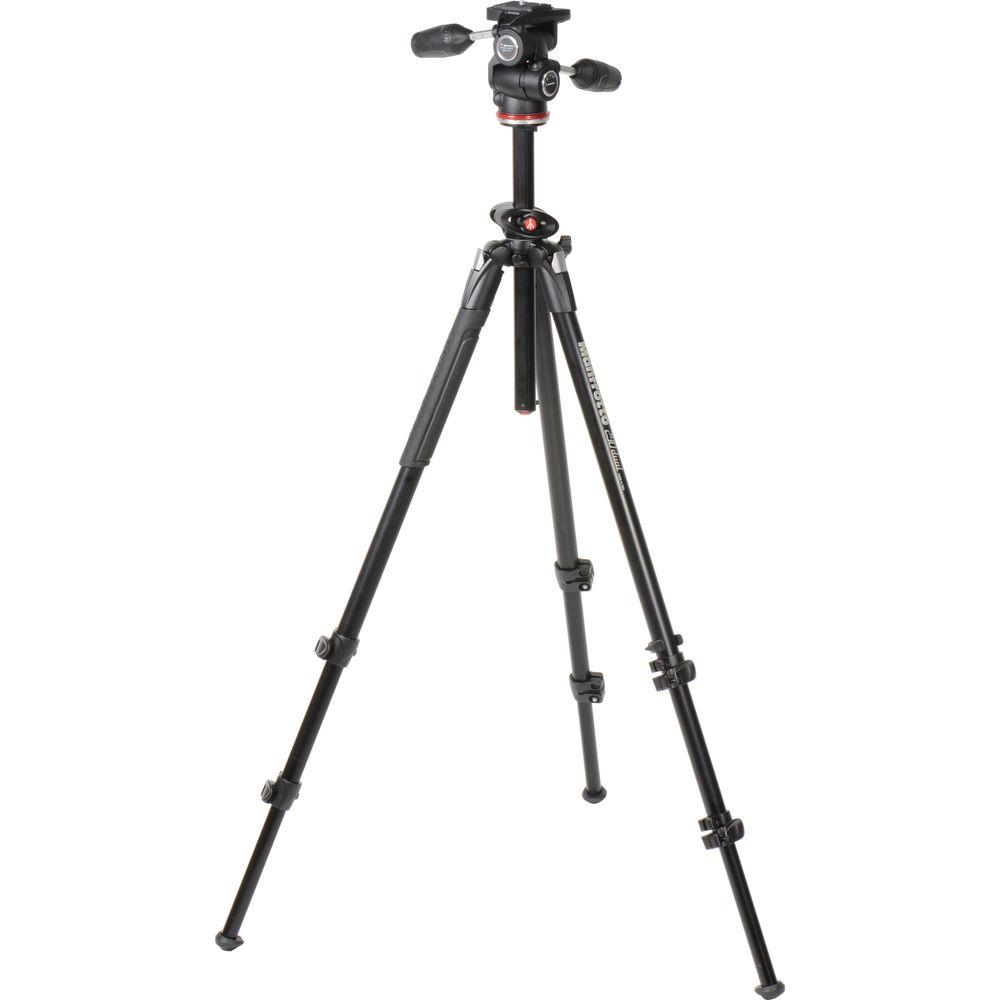

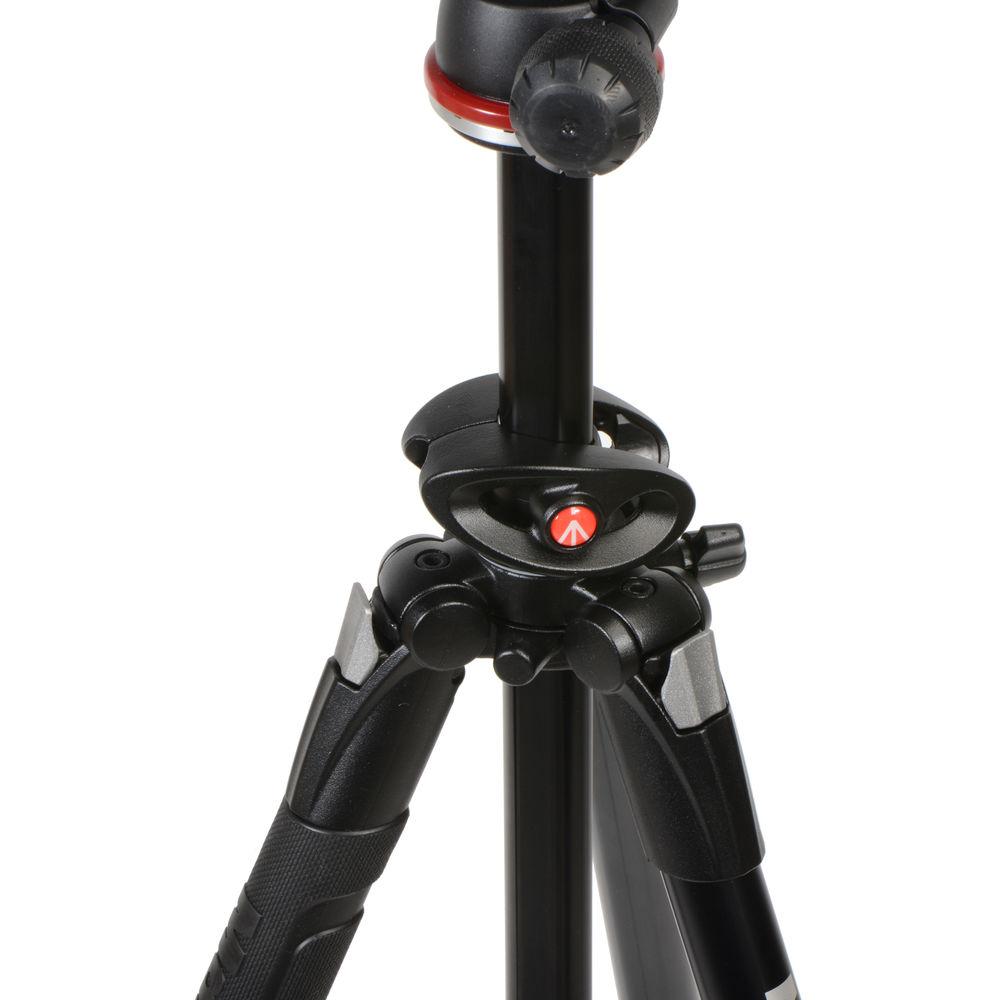

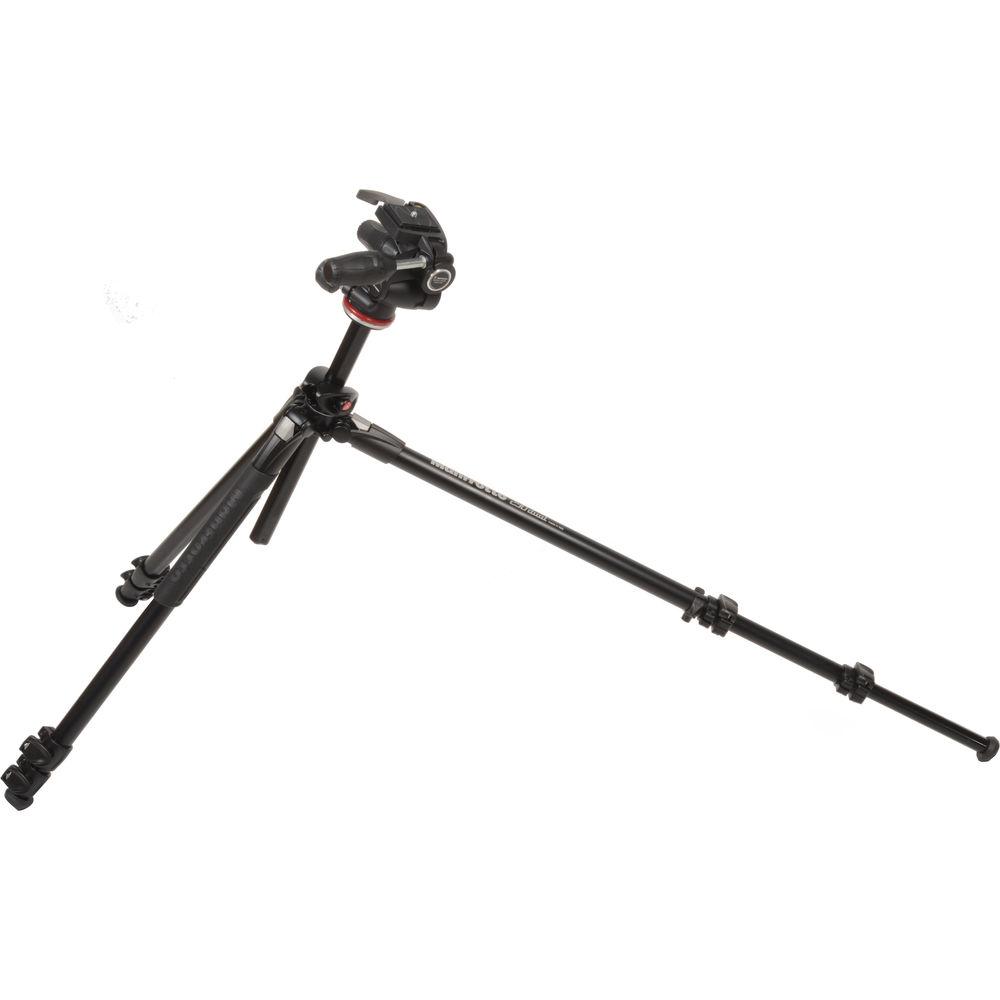

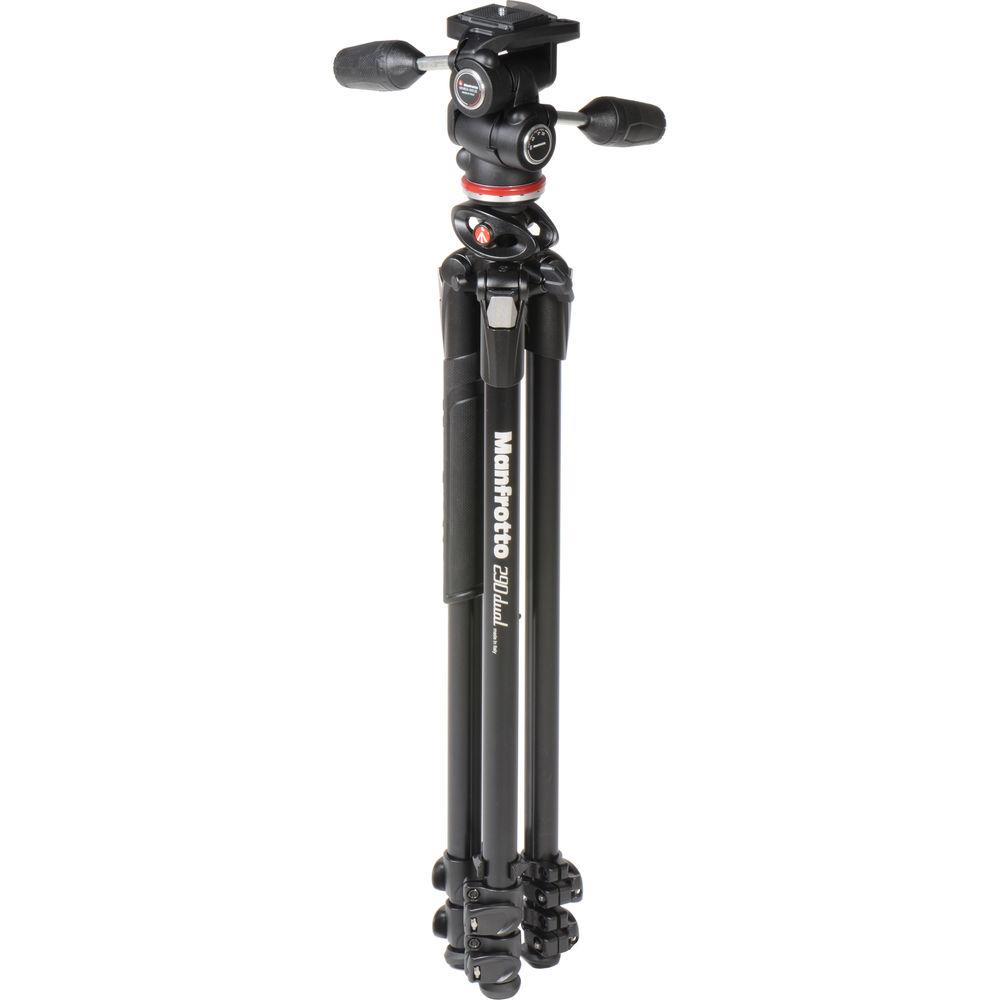

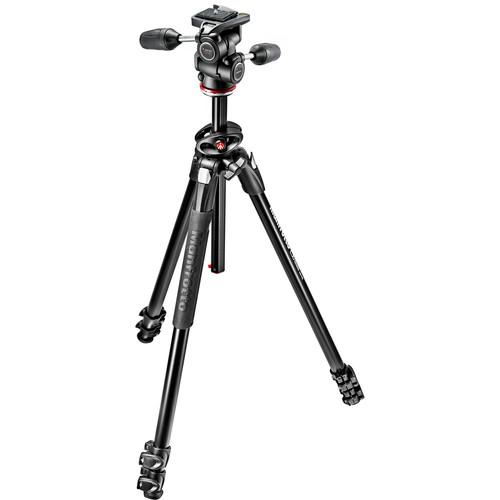

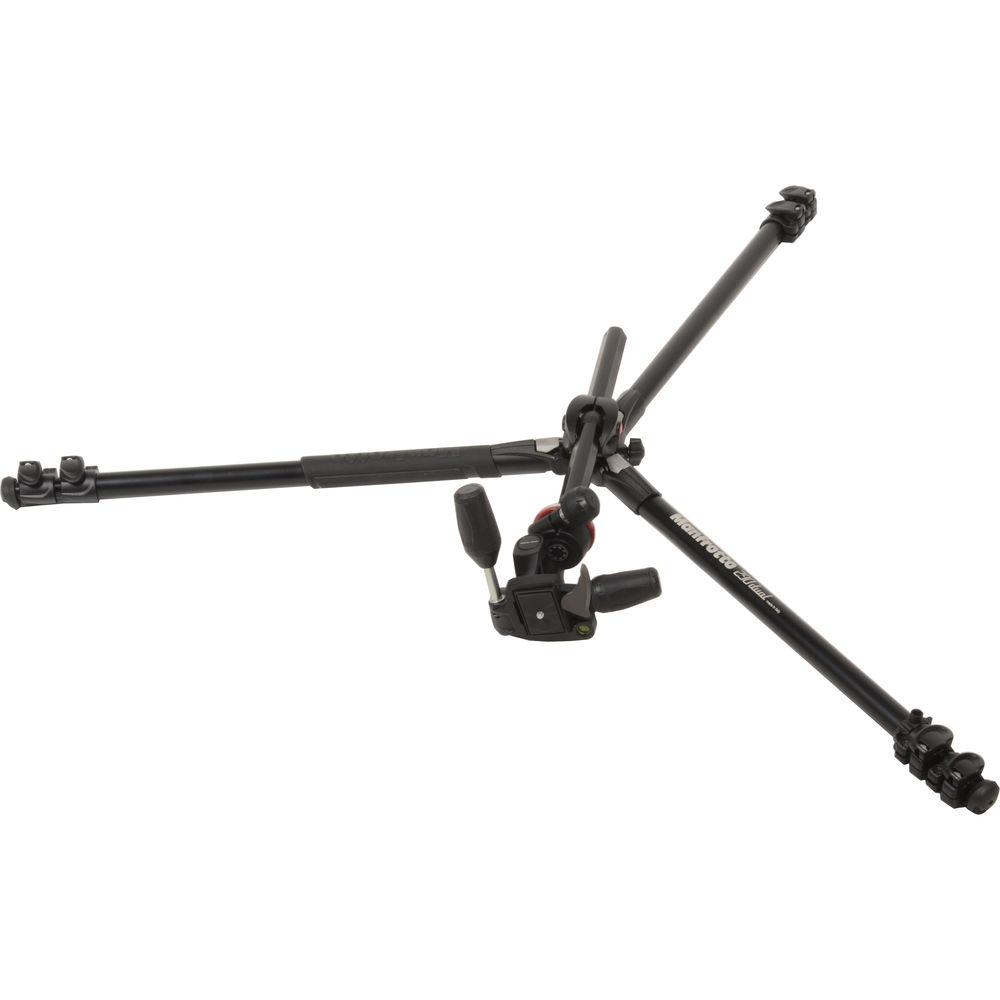

  The Manfrotto MT290DUA3US 290 Dual Aluminum Tripod features a 90° center column for shooting tabletop, low-angle, or macro photography. It extends from just 2.4" above the ground to 64.9" high. The tripod weighs 4 lb and can hold up to 11 lb worth of gear. Its 3-sections legs have tension-adjustable flip locks to individually adjust each leg's height. Four locking leg angles enable you to place the tripod in a variety of positions. A rubber grip on one of the legs aids in carrying the tripod, and rubber feet keep it stable on slippery surfaces. UPC: 719821396697

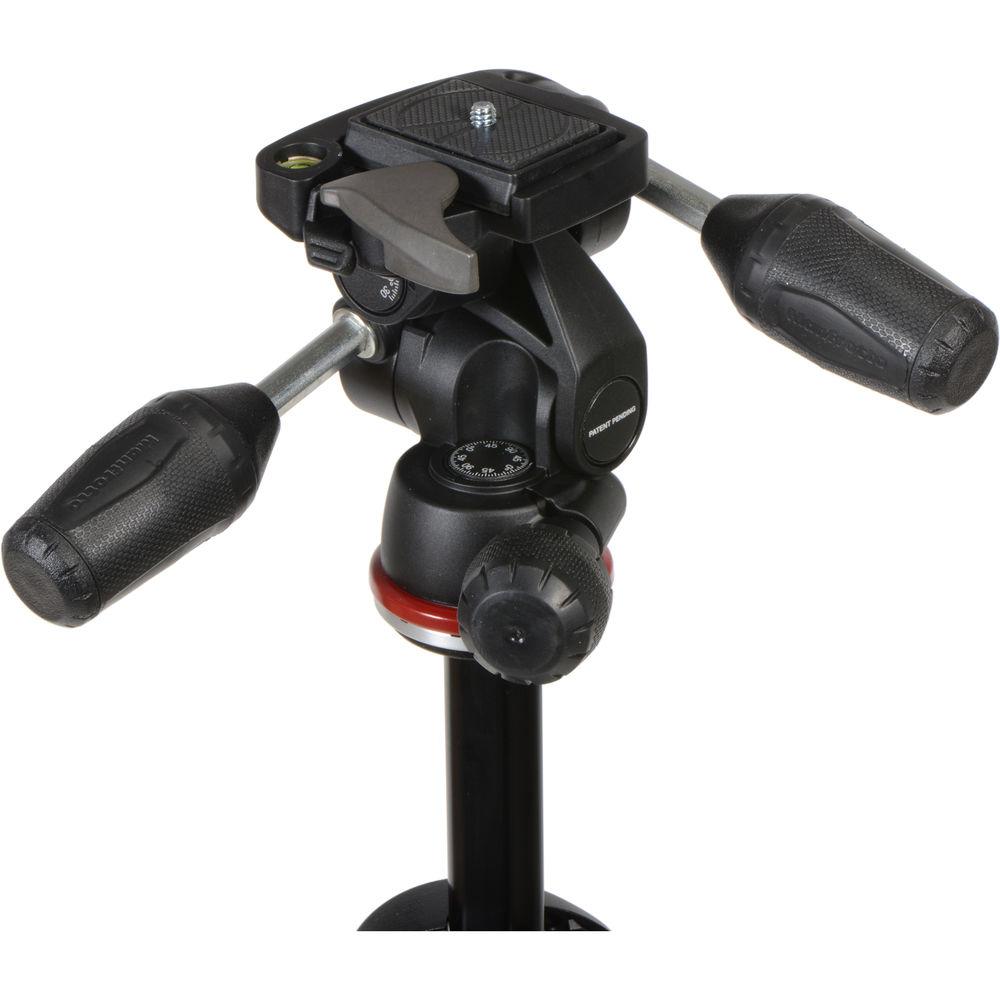

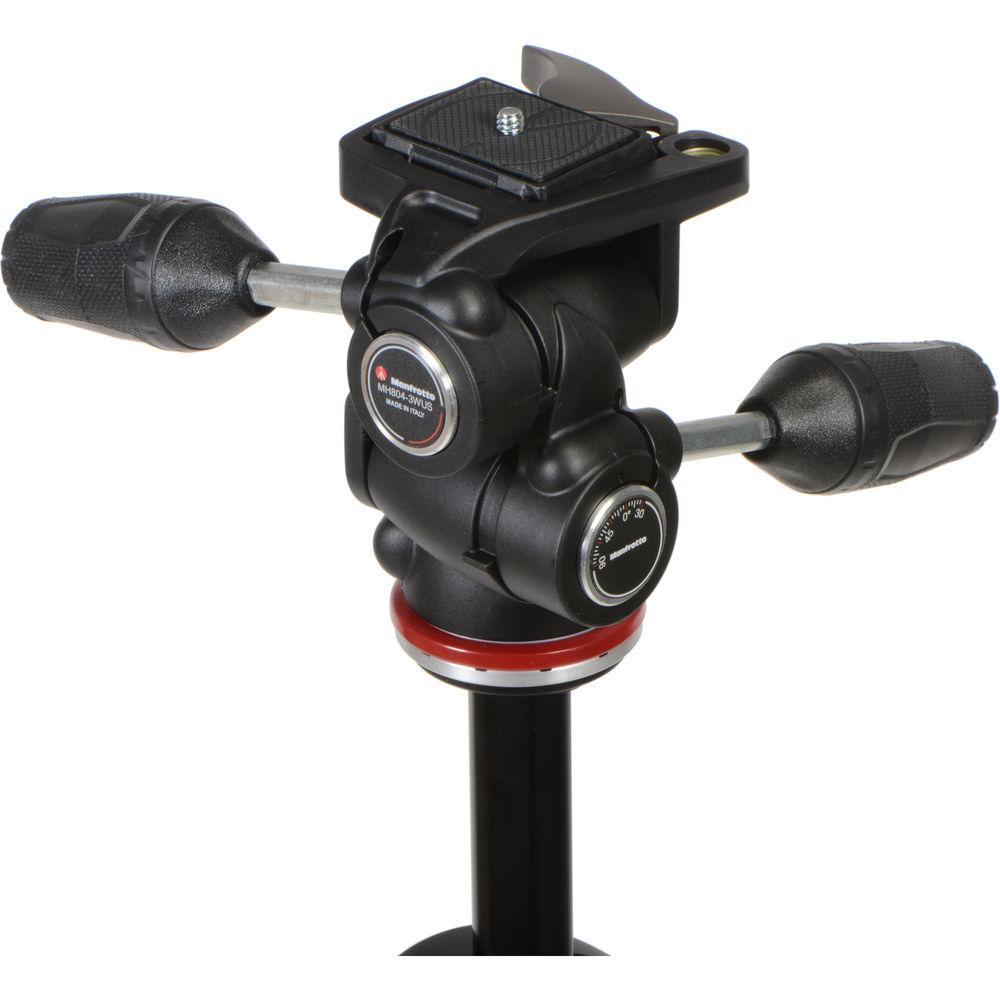

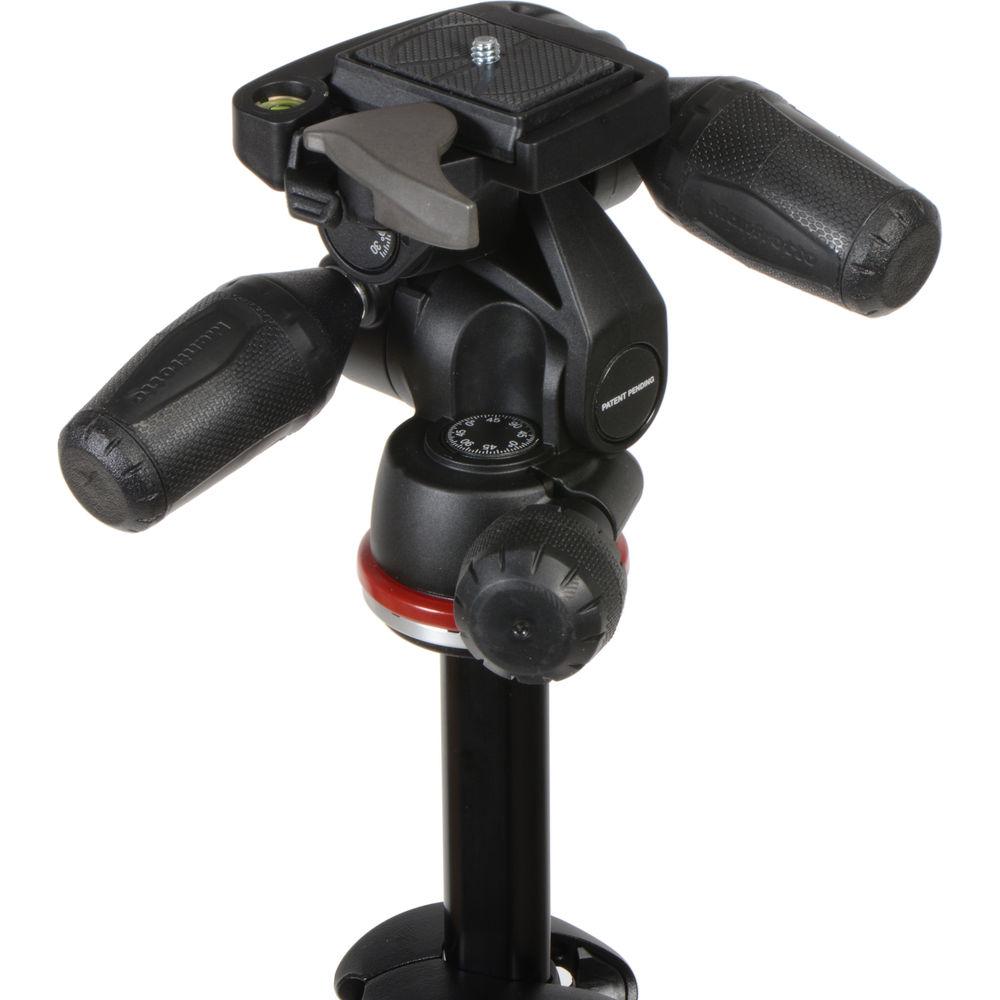

• MH804 3-Way, Pan-and-Tilt Head with 200LT-PL Quick Release Plate This MH804 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 8.8 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200LT-PL Quick Release Plate. RC2 compatible quick release plates such as the 200LT-PL can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached. The cam lock also features a safety catch to prevent the 200LT-PL, or another compatible quick release plate from accidentally disconnecting.

  Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate before securing it to the pan-and-tilt head. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other, have dedicated control handles, and can be locked into place. In addition to integrating the ability to individually lock the movements by twisting each corresponding handle's rubberized grip, the telescoping control handles for both tilt functions can also be retracted while the head is not in use for more convenient storage or transport.

  To promote fast, repeatable, and accurate device positioning, this MH804 3-Way, Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility. For heavier loads, built-in counterbalance springs help ensure smooth as well as gradual backwards and forwards tilt movements.
  MH804 3-Way, Pan-and-Tilt Head
  • • 8.8 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
    • Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other, have dedicated control handles, and can be locked into place
    • Telescoping control handles for both tilt functions can be retracted for more convenient storage or transport
    • Dedicated angle scales for each movement that are designed for easy visibility promote fast, repeatable, and accurate device positioning
    • Built-in counterbalance springs help ensure smooth as well as gradual backwards and forwards tilt movements for heavier loads
    • Integrated, RC2 quick release cam lock
    • Built-in bubble level
    • Durable and lightweight polymer and fiberglass construction
  200LT-PL Quick Release Plate
  • • Compatible with Manfrotto RC2 quick release cam lock
    • Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
    • 1/4"-20 mount
    • Durable and lightweight polymer and fiberglass construction
  UPC: 719821396536

• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

• 200LT-PL Quick Release Plate

• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MT290DUA3US 290 Dual Aluminum Tripod

  Load Capacity	11 lb / 5 kg
  Maximum Working Height	64.9" / 164.8 cm
  Max Height without Center Column	54.7" / 138.9 cm
  Minimum Working Height	2.4" / 6.1 cm
  Folded Length	24.7" / 62.7 cm
  Head Mount Type	3/8"-16 Screw
  Weight	3.9 lb / 1.8 kg
  Materials	Aluminum Alloy

  Leg Lock Type	Flip Lock
  Leg Positions	4 Positions
  Independent Leg Spread	Yes
  Leg Sections	3
  Leg Diameter	1" / 25.4 mm

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes

  Box Dimensions (LxWxH)	26.0 x 5.0 x 5.0"

• MH804 3-Way, Pan-and-Tilt Head with 200LT-PL Quick Release Plate

  Head Type	Pan & Tilt Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male
  Quick Release Plate Type	RC2
  Load Capacity	8.8 lb / 3.99 kg
  Number of Bubble Levels	1
  Material	Technopolymer

  Lateral Tilt
