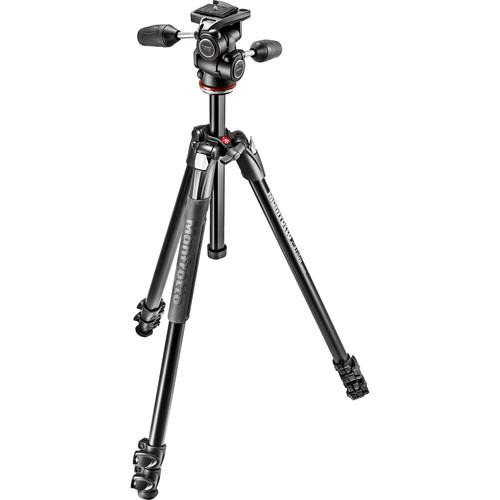

User Manual for Manfrotto MK290XTA3-3WUS 290 Xtra Aluminum Tripod with 804 3-Way Pan Tilt Head Click to enlarge the picture
Contents of the user manual for the Manfrotto MK290XTA3-3WUS 290 Xtra Aluminum Tripod
- Product category: Tripods with Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripods with Heads
 |
User manual for the Manfrotto MK290XTA3-3WUS 290 Xtra Aluminum Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|

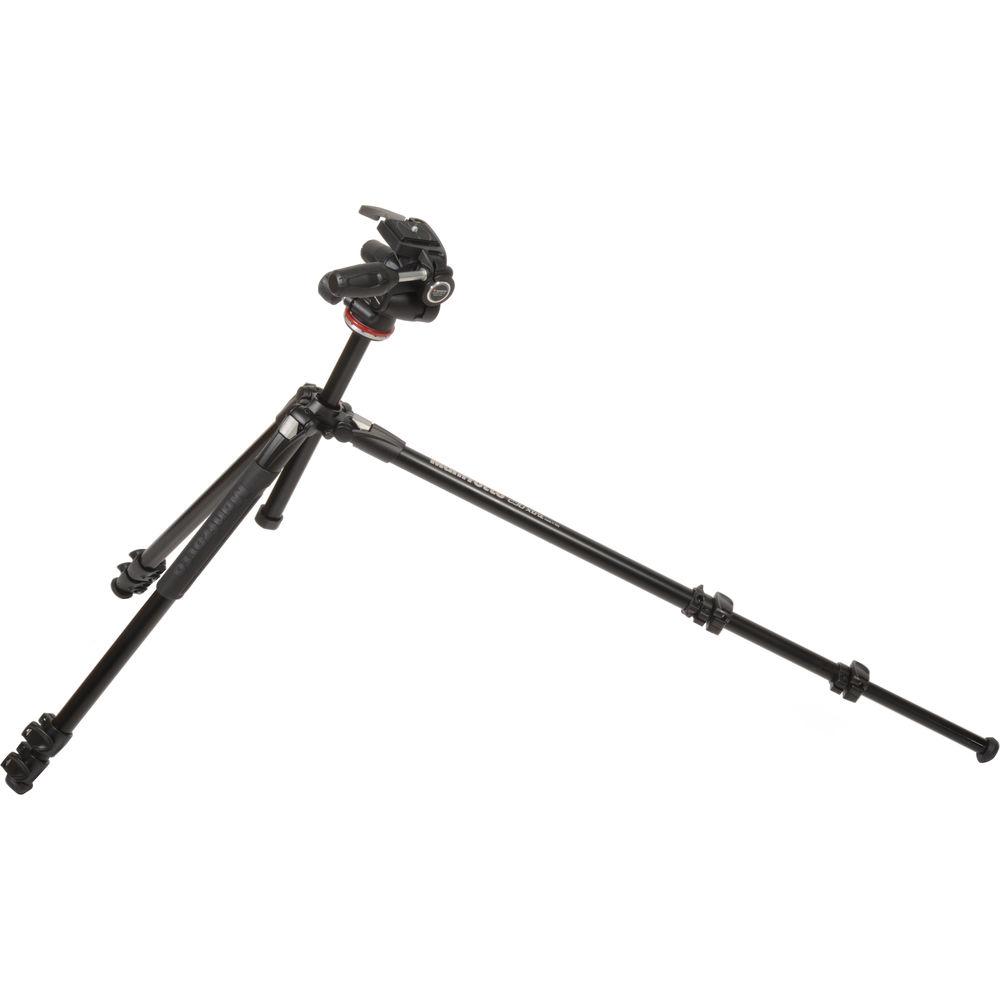

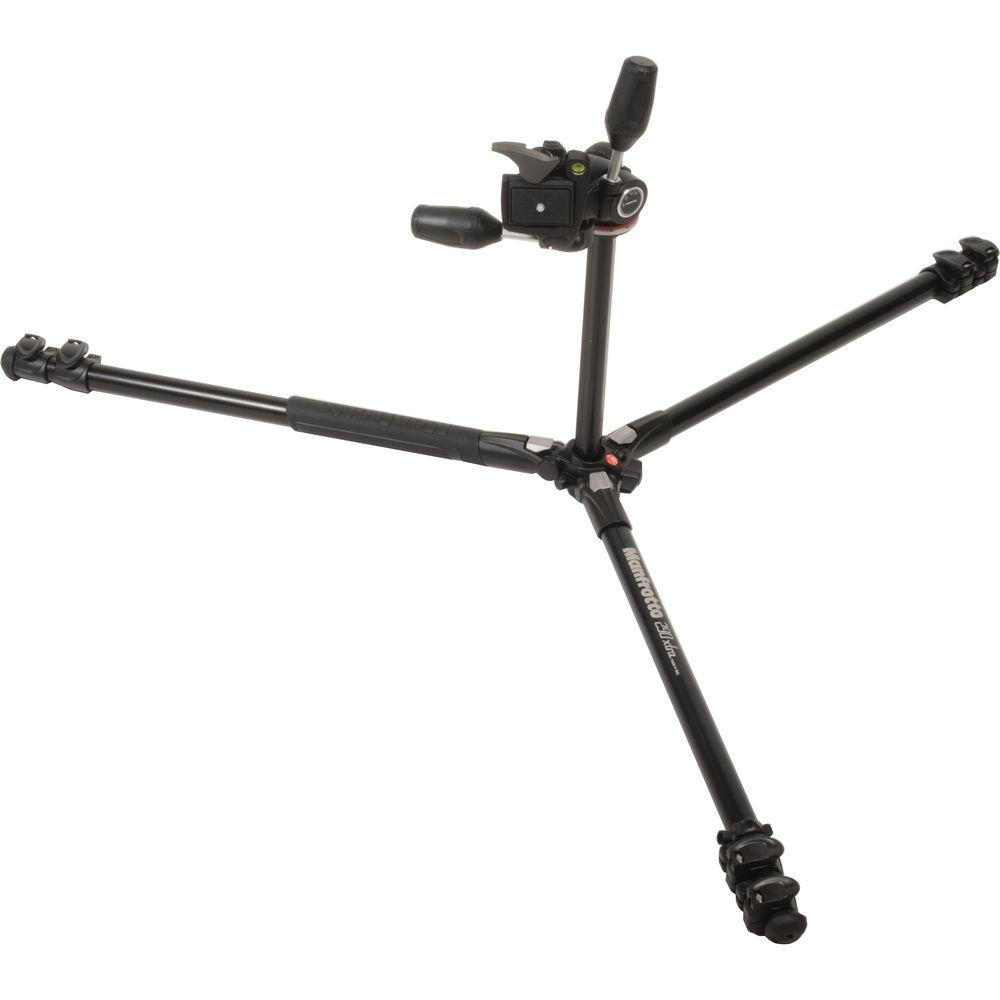

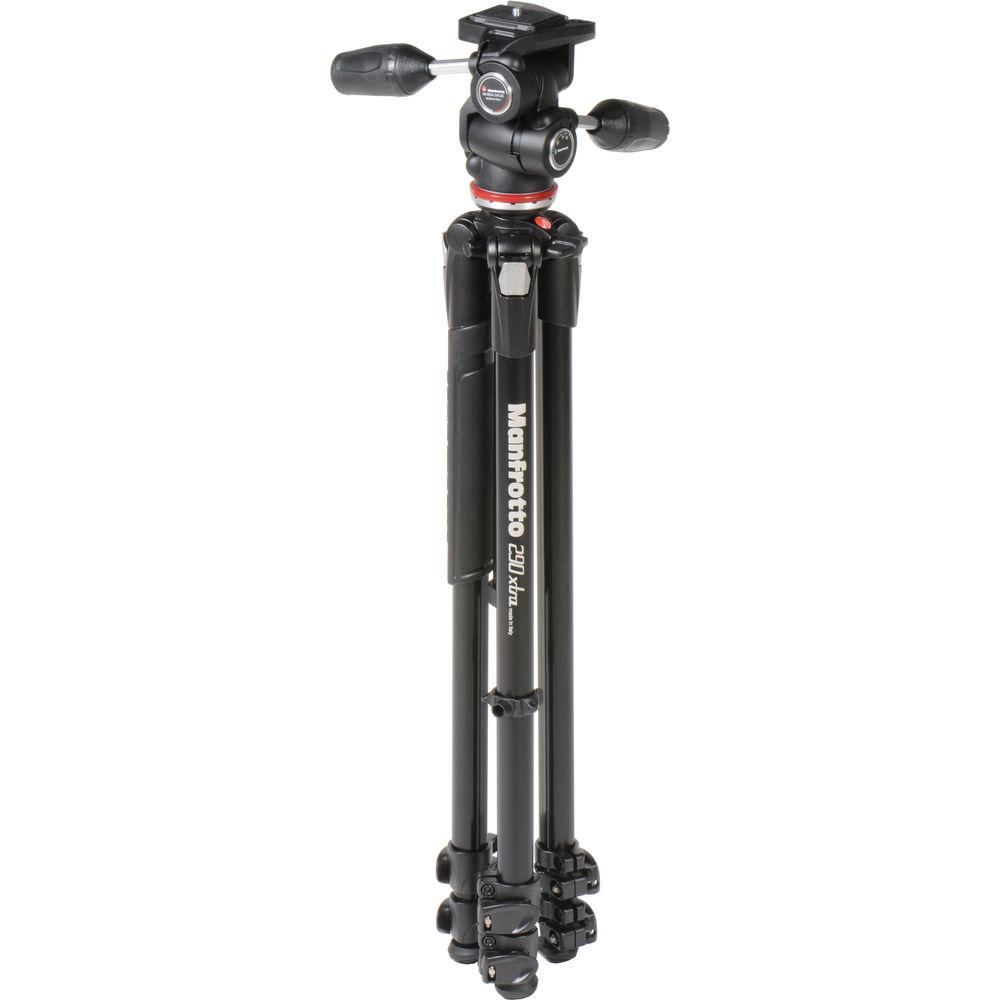

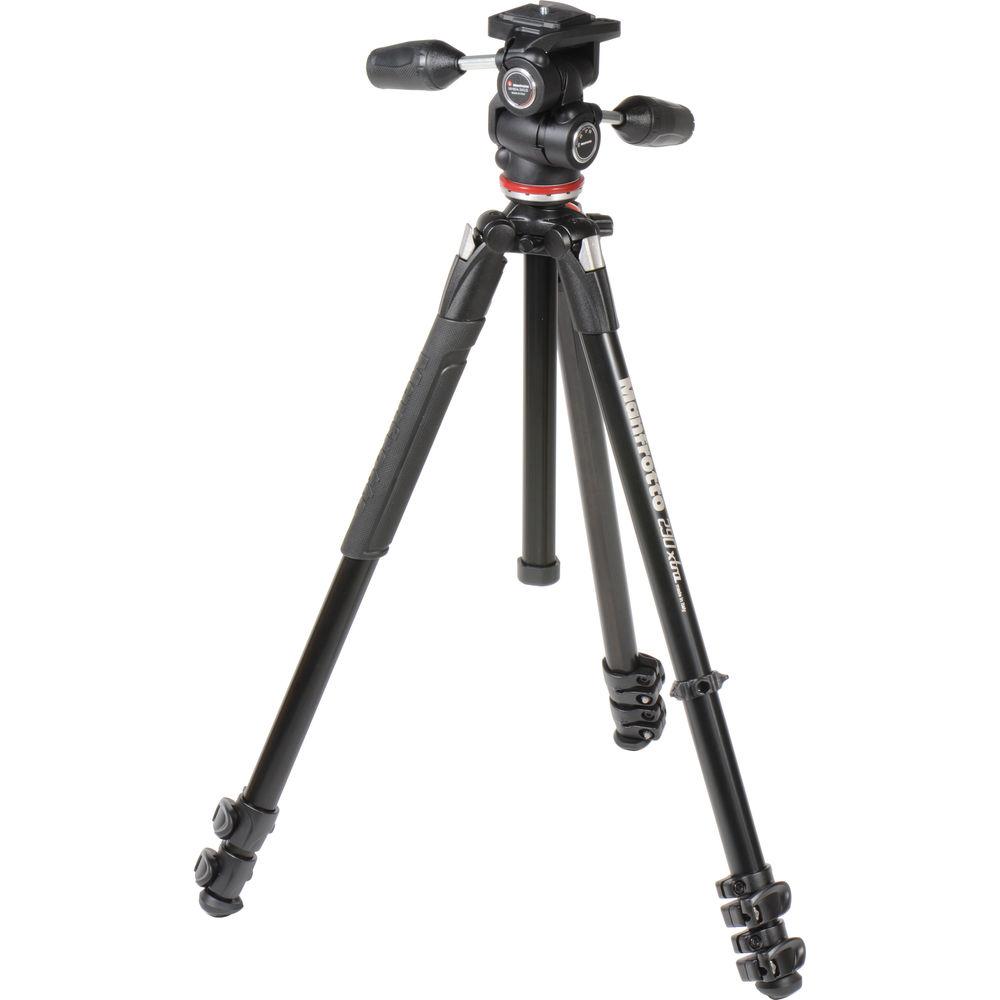

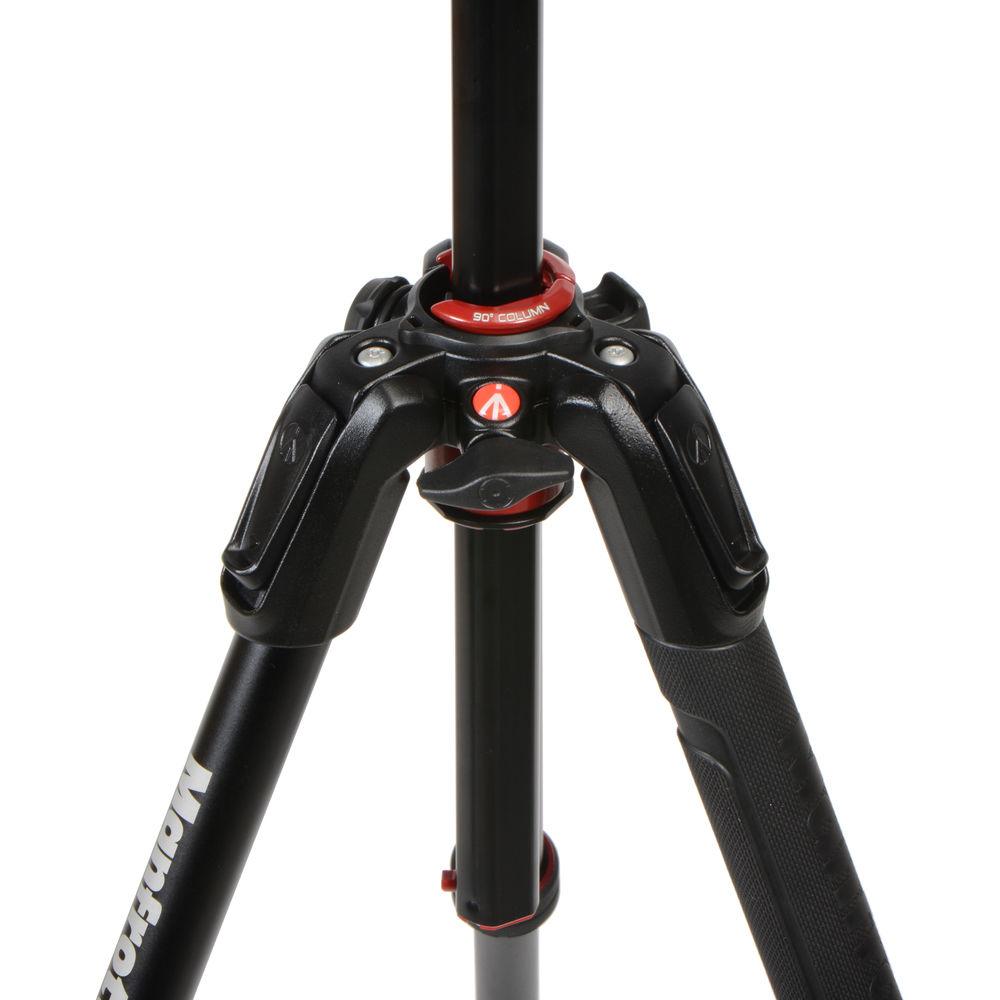

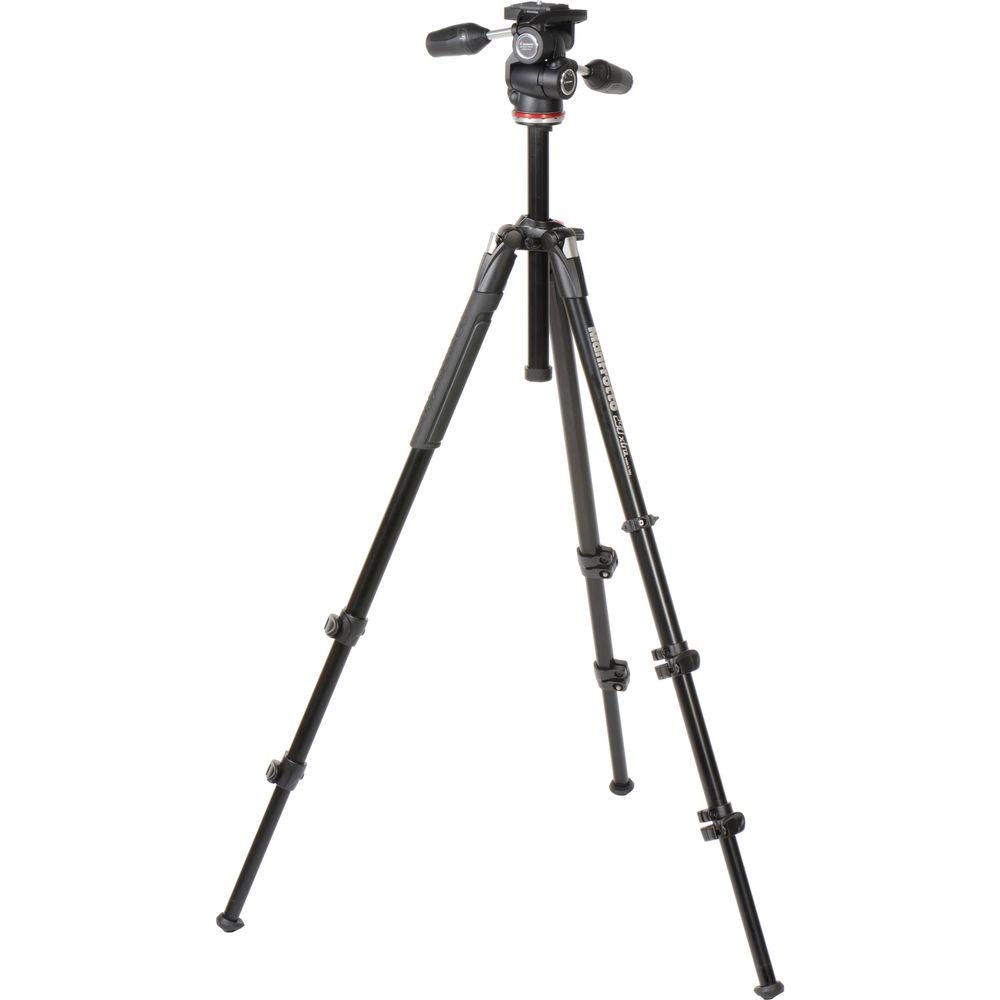

Product description Time-Lapse Tips and Tools Read More The Manfrotto 290 Xtra Aluminum Tripod with 804 3-Way Pan/Tilt Head extends from 16.5" to a maximum height of 67.5". It weighs 5.6 lb and can hold up to 8.8 lb of gear. The tripod's 3-section legs have flip locks to individually change the height of each leg. The locks are tension-adjustable to help maintain a tight lock over the tripod's lifespan. Four leg angles allow you to position the tripod in a variety of ways. A rubber grip on one of the legs aids in carrying the tripod, and rubber feet keep it stable on slippery surfaces.

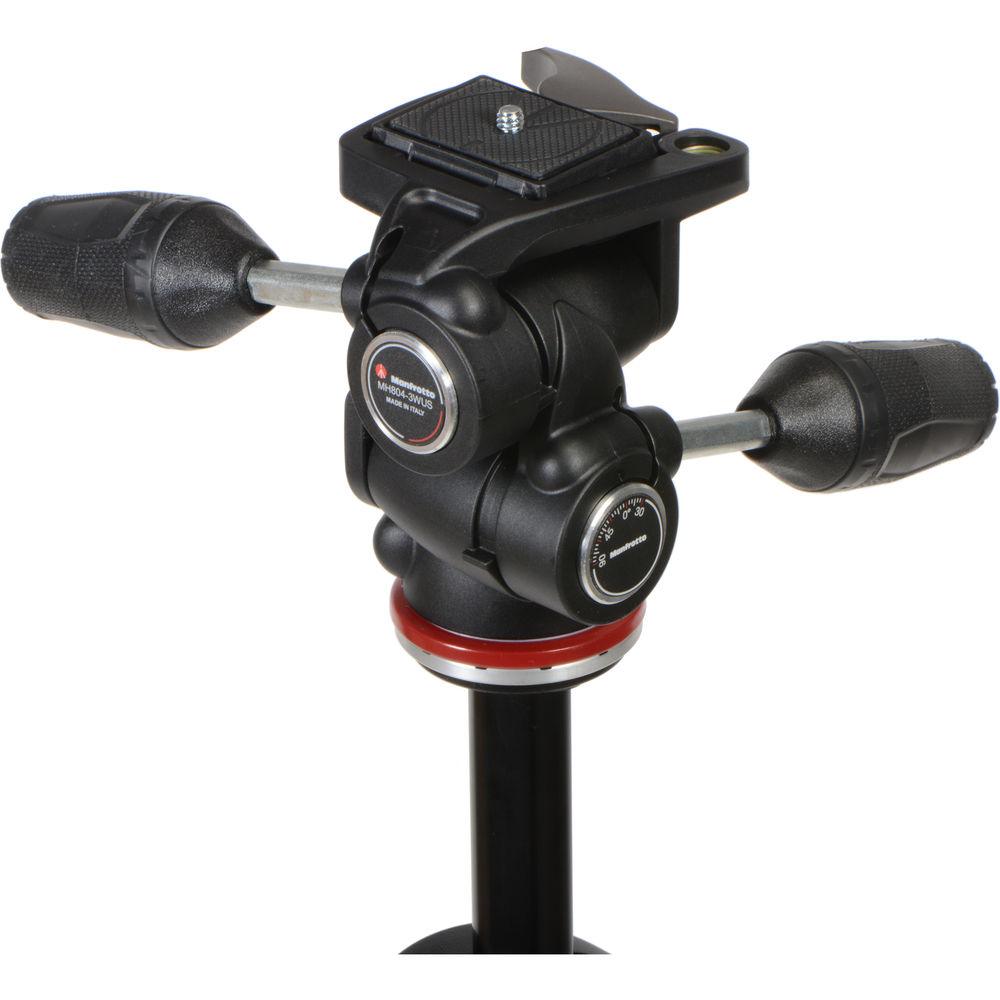

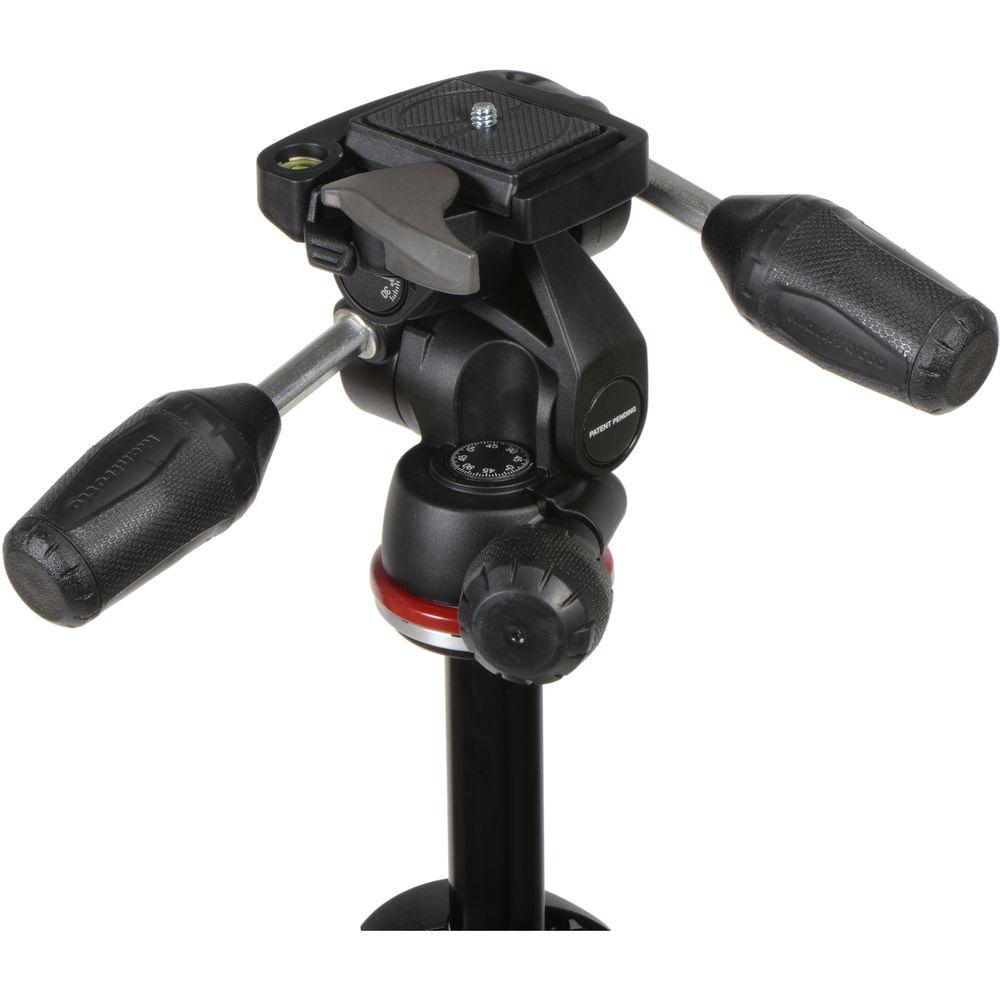

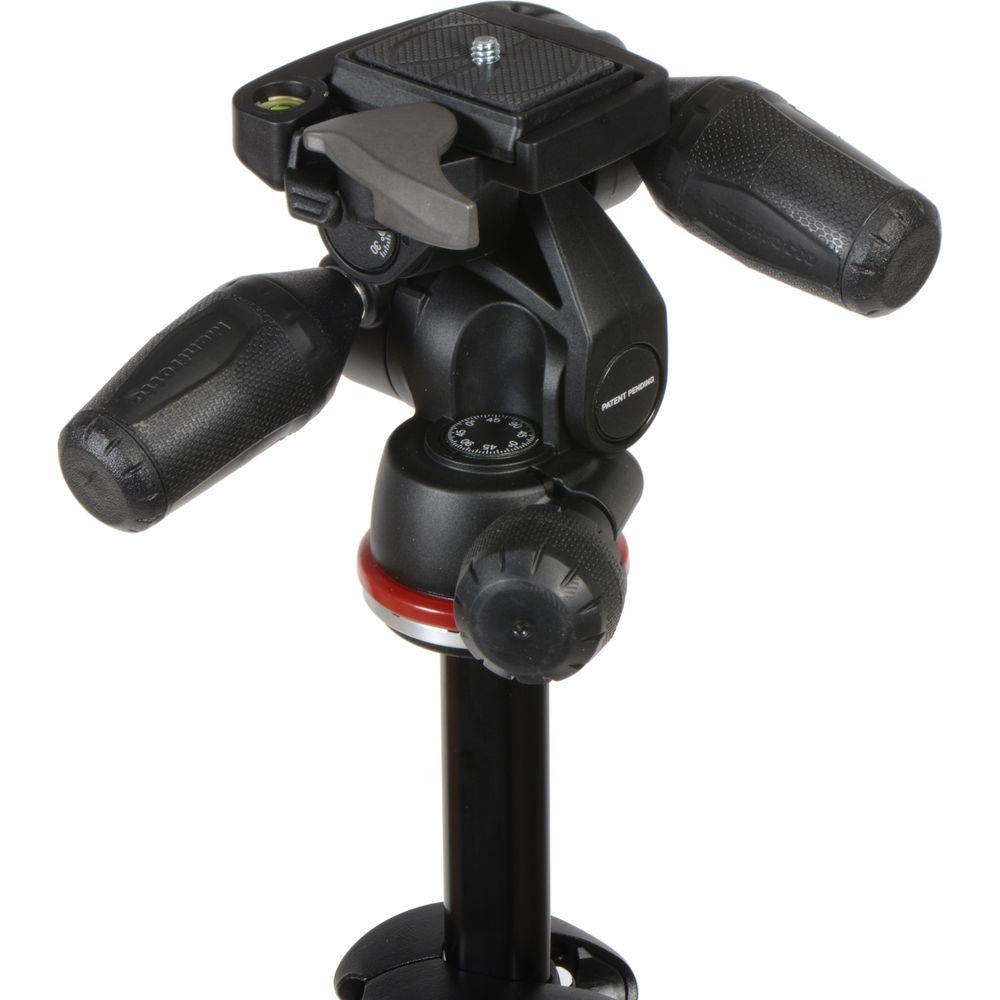

The included 804 3-way pan/tilt head features retractable handles, which decreases the overall size when not in use. A built-in spring assists with the tilting motion of the head by compensating for heavier lenses and cameras with off-center loads. A 200LT-PL quick-release plate is included for quickly attaching and removing your camera from the head. Also included with the tripod is a shoulder bag for added comfort and protection during transport. - MT290XTA3US 290 Xtra Aluminum Tripod
- Manfrotto 290 Series - Tutorial Video
The Manfrotto MT290XTA3US 290 Xtra Aluminum Tripod extends from 12" to a maximum height of 63.2". It weighs 4.4 lb and can hold up to 11 lb of gear. The tripod's 3-section legs have flip locks to individually change the height of each leg. The locks are tension-adjustable to help maintain a tight lock over the tripod's lifespan. Four leg angles allow you to position the tripod in a variety of ways. A rubber grip on one of the legs aids in carrying the tripod, and rubber feet keep it stable on slippery surfaces. Included with the tripod is a shoulder bag for added comfort and protection during transport. UPC: 719821396703 - MH804 3-Way, Pan-and-Tilt Head with 200LT-PL Quick Release Plate This MH804 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 8.8 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200LT-PL Quick Release Plate. RC2 compatible quick release plates such as the 200LT-PL can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached. The cam lock also features a safety catch to prevent the 200LT-PL, or another compatible quick release plate from accidentally disconnecting.
Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate before securing it to the pan-and-tilt head. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other, have dedicated control handles, and can be locked into place. In addition to integrating the ability to individually lock the movements by twisting each corresponding handle's rubberized grip, the telescoping control handles for both tilt functions can also be retracted while the head is not in use for more convenient storage or transport.
To promote fast, repeatable, and accurate device positioning, this MH804 3-Way, Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility. For heavier loads, built-in counterbalance springs help ensure smooth as well as gradual backwards and forwards tilt movements. - MH804 3-Way, Pan-and-Tilt Head
-
- 8.8 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other, have dedicated control handles, and can be locked into place
- Telescoping control handles for both tilt functions can be retracted for more convenient storage or transport
- Dedicated angle scales for each movement that are designed for easy visibility promote fast, repeatable, and accurate device positioning
- Built-in counterbalance springs help ensure smooth as well as gradual backwards and forwards tilt movements for heavier loads
- Integrated, RC2 quick release cam lock
- Built-in bubble level
- Durable and lightweight polymer and fiberglass construction
- 200LT-PL Quick Release Plate
-
- Compatible with Manfrotto RC2 quick release cam lock
- Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
- 1/4"-20 mount
- Durable and lightweight polymer and fiberglass construction
UPC: 719821396536 In the Box Bundle Items MT290XTA3US 290 Xtra Aluminum Tripod tfusrbedax - Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
MH804 3-Way, Pan-and-Tilt Head with 200LT-PL Quick Release Plate - 200LT-PL Quick Release Plate
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
Also Includes - Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MK290XTA3-3WUS 290 Xtra Aluminum Tripod with 804 3-Way Pan Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MT290XTA3US 290 Xtra Aluminum Tripod
| | | Load Capacity | 11 lb / 5 kg | | Maximum Working Height | 63.2" / 160.5 cm | | Max Height without Center Column | 53.9" / 136.9 cm | | Minimum Working Height | 12" / 30.5 cm | | Folded Length | 23.4" / 59.4 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 3.9 lb / 1.8 kg | | Materials | Aluminum Alloy | | | | Leg Lock Type | Flip Lock | | Leg Positions | 4 Positions | | Independent Leg Spread | Yes | | Leg Sections | 3 | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 25.0 x 4.5 x 4.5" | - MH804 3-Way, Pan-and-Tilt Head with 200LT-PL Quick Release Plate
| | | Head Type | Pan & Tilt Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | RC2 | | Load Capacity | 8.8 lb / 3.99 kg | | Number of Bubble Levels | 1 | | Material | Technopolymer | | | | Lateral Tilt | -90
