Manfrotto MK290XTC3-BHUS 290 Xtra Carbon Fiber

User Manual for Manfrotto MK290XTC3-BHUS 290 Xtra Carbon Fiber Tripod with Ball Head

• Product category: Tripods with Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripods with Heads

Product description

• MT290XTC3US 290 Xtra Carbon Fiber Tripod
  • Manfrotto 290 Series - Tutorial Video

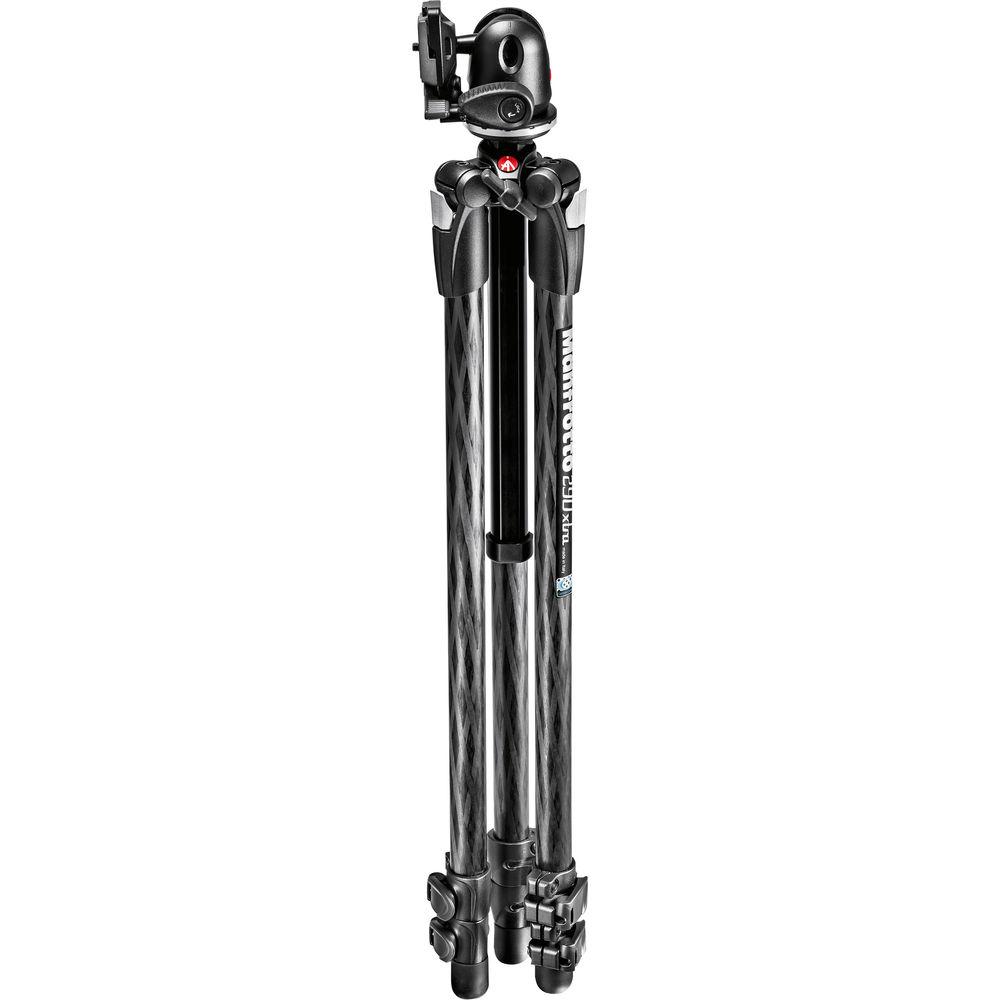

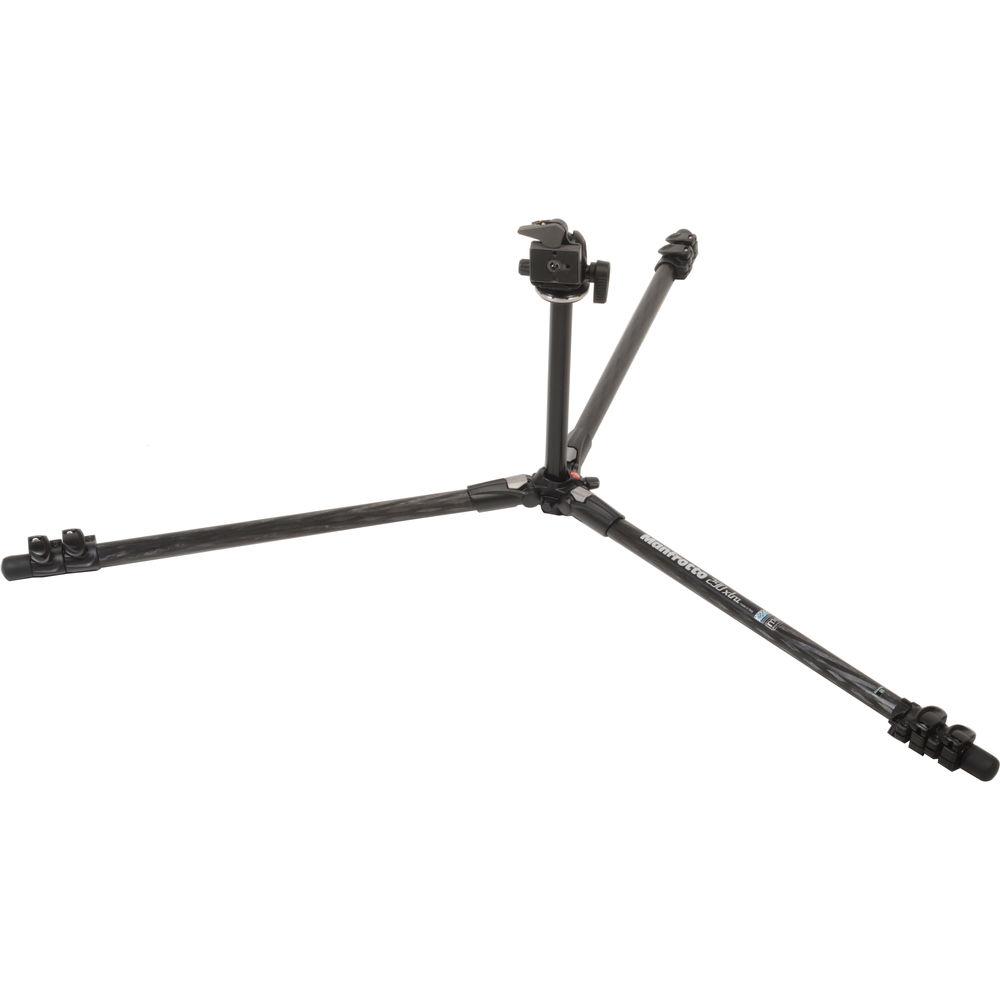

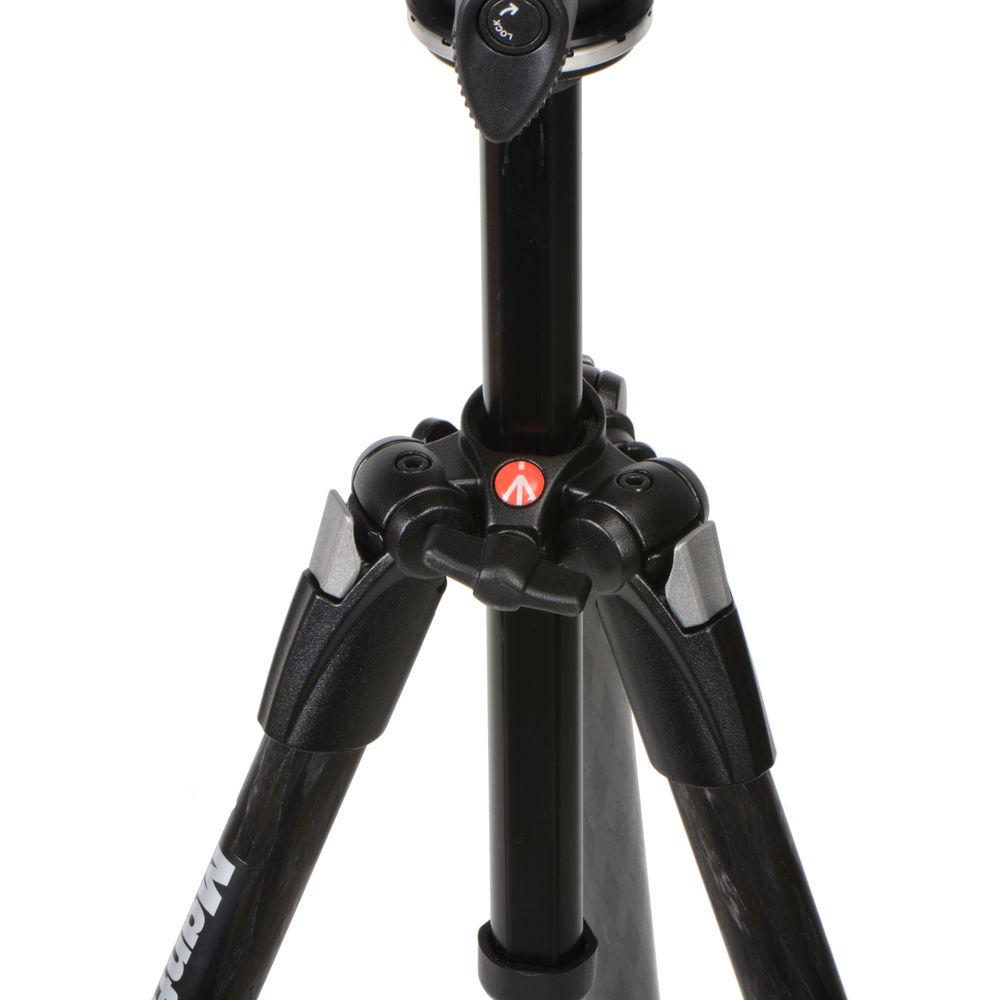

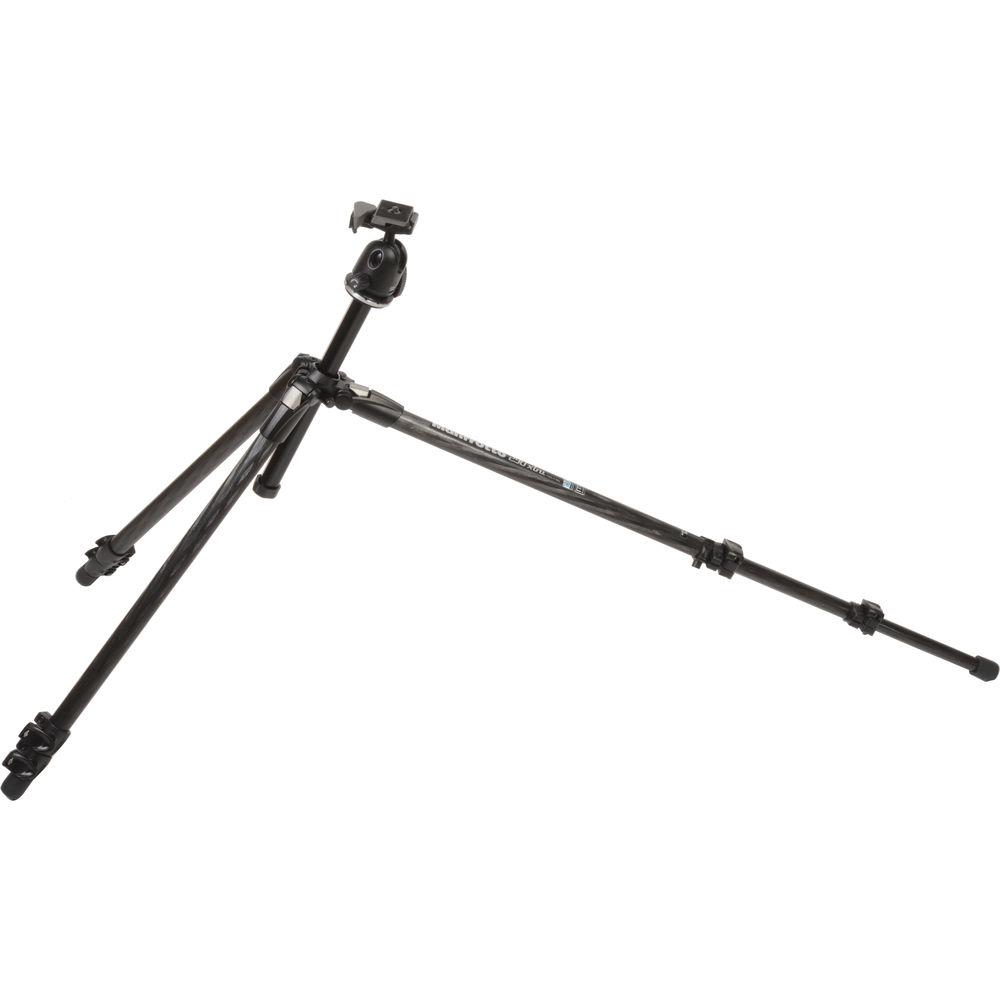

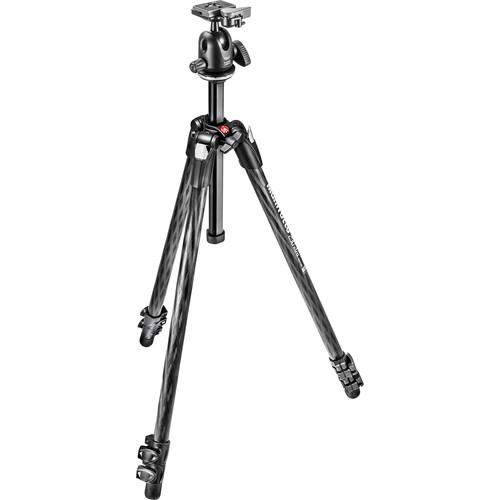

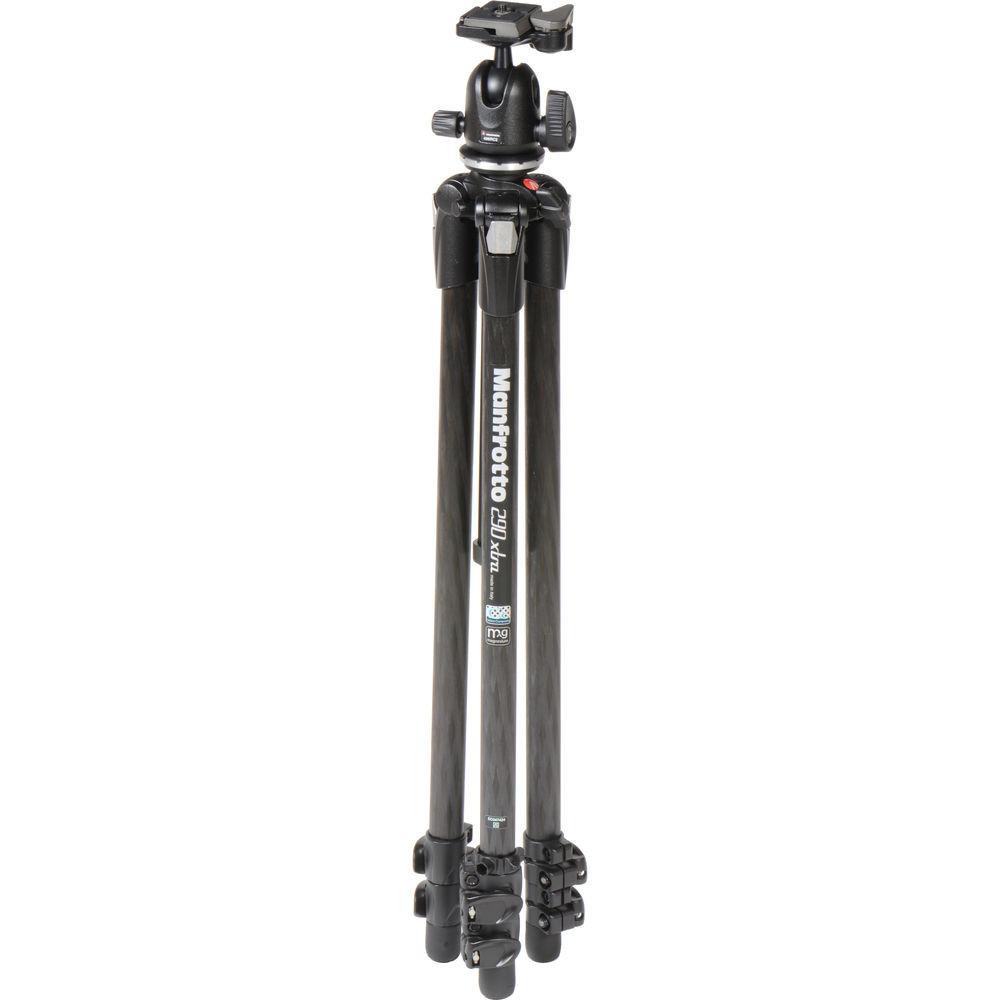

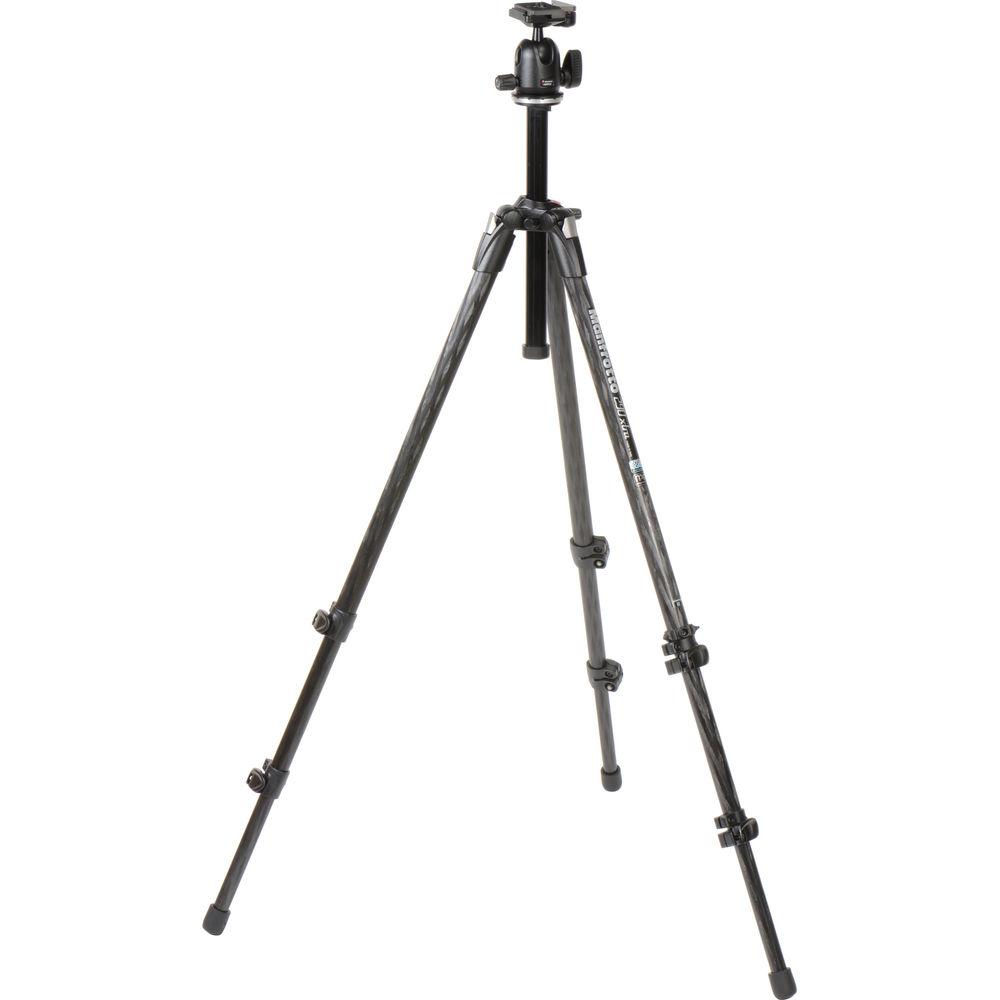

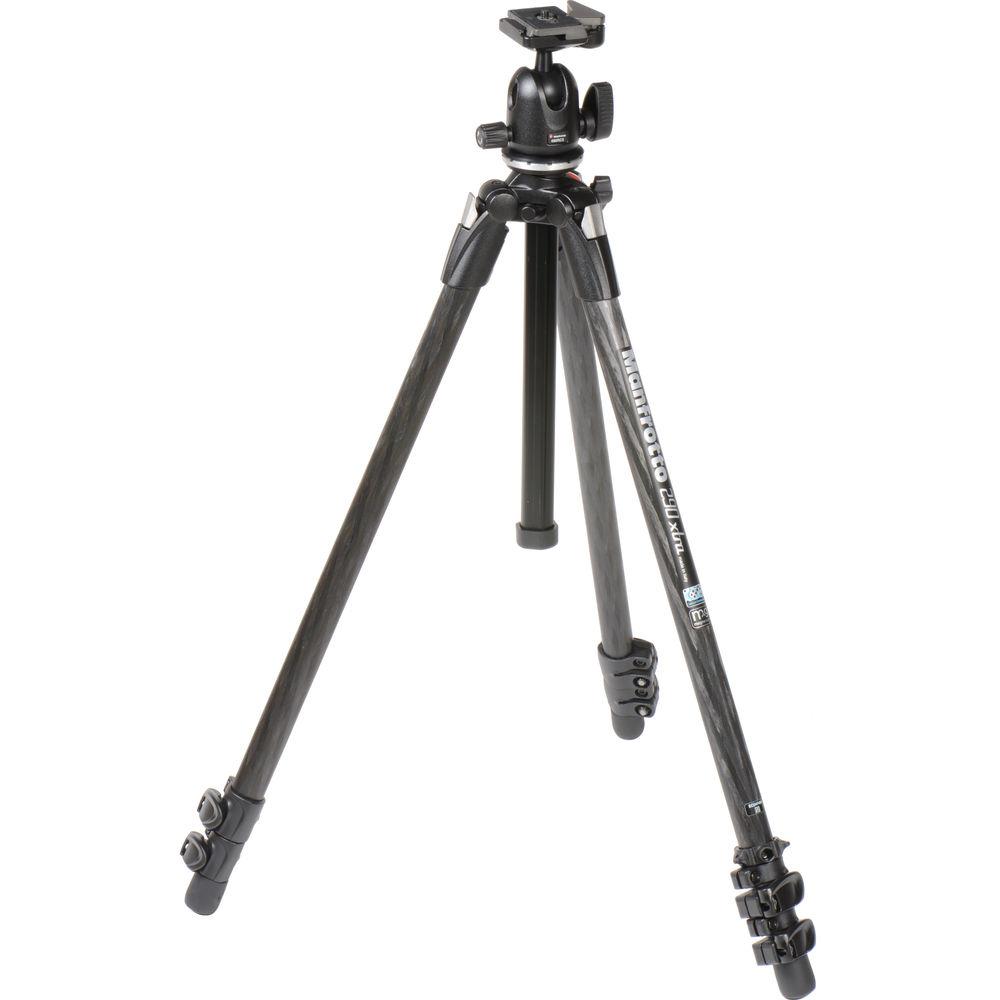

  The Manfrotto MT290XTC3US 290 Xtra Carbon Fiber Tripod extends from 12" to a maximum height of 65.2". It weighs 4.4 lb and can hold up to 11 lb of gear. The tripod's 3-section legs have flip locks to individually change the height of each leg. The locks are tension-adjustable to help maintain a tight lock over the tripod's lifespan. Four leg angles allow you to position the tripod in a variety of ways. A rubber grip on one of the legs aids in carrying the tripod, and rubber feet keep it stable on slippery surfaces. Included with the tripod is a shoulder bag for added comfort and protection during transport. UPC: 719821396710

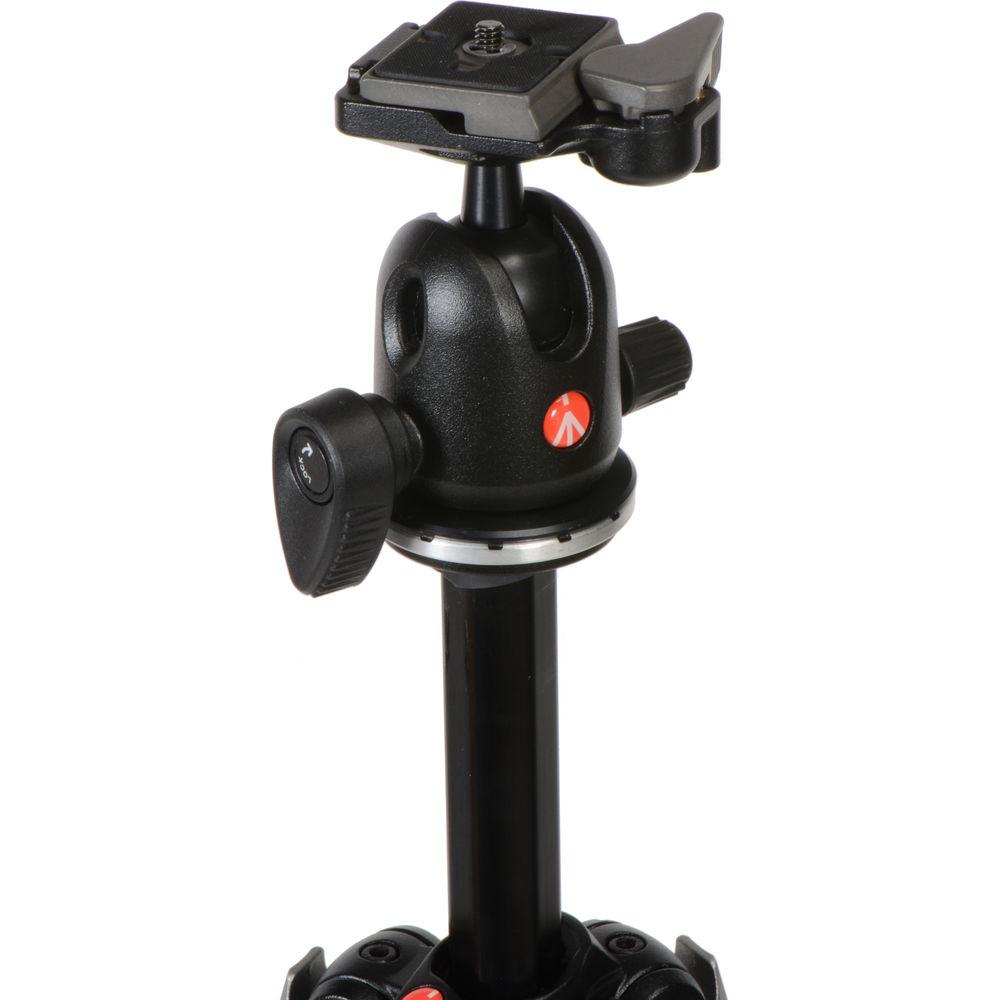

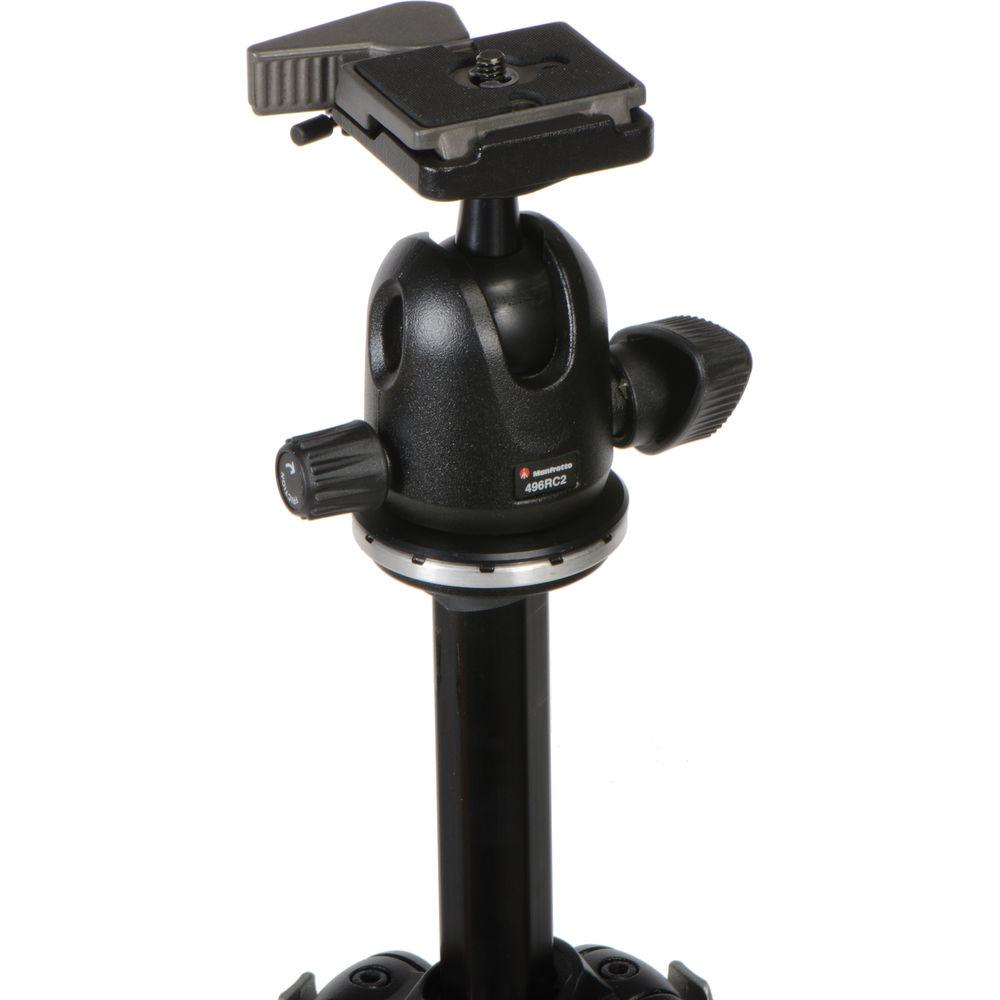

• 496RC2 Compact Ball Head with 200PL-14 Quick Release Plate This 496RC2 Compact Ball Head from Manfrotto features an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. Compatible quick release plates can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting.

  The 496RC2 Compact Ball Head with 200PL-14 Quick Release Plate has a load capacity of 13.2 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the 496RC2's locking knob, its ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. An additional knob opposite the locking knob can be rotated to apply tension control to the ball-and-socket joint's movements.

  Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-14 quick release plate, which measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface.
  496RC2 Compact Ball Head
  • • 13.2 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
    • Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
    • Dual, ball-and-socket joint notches enable two-sided tilt control
    • Integrated RC2 quick release cam lock
    • Locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
    • Dedicated tension control knob for the ball-and-socket joint's movements
    • Durable, aluminum-alloy construction
  200PL-14 Quick Release Plate
  • • Compatible with Manfrotto RC2 quick release cam lock
    • Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
    • 1/4"-20 mount
    • Durable, aluminum-alloy construction
    UPC: 719821311225
  In the Box Bundle Items MT290XTC3US 290 Xtra Carbon Fiber Tripod cudqebqtsaayabrdvueddvwzazbscurrfyvfva
  • Shoulder Carrying Bag
  • Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
  496RC2 Compact Ball Head with 200PL-14 Quick Release Plate
  • 200PL-14 Quick Release Plate
  • Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

Also Includes

• Carrying Bag
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MT290XTC3US 290 Xtra Carbon Fiber Tripod

  Load Capacity	11 lb / 5 kg
  Maximum Working Height	65.2" / 165.6 cm
  Max Height without Center Column	56" / 142.2 cm
  Minimum Working Height	12" / 30.5 cm
  Folded Length	24.5" / 62.2 cm
  Head Mount Type	3/8"-16 Screw
  Weight	3.2 lb / 1.5 kg
  Materials	Carbon Fiber

  Leg Lock Type	Flip Lock
  Leg Positions	4 Positions
  Independent Leg Spread	Yes
  Leg Sections	3

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	No

  Box Dimensions (LxWxH)	25.906 x 5.512 x 5.433"

• 496RC2 Compact Ball Head with 200PL-14 Quick Release Plate

  Head Type	Ball Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male
  Quick Release Plate Type	200PL-14
  Load Capacity	13.2 lb / 5.99 kg
  Number of Bubble Level(s)	None
  Friction Control	Yes
  Independent Pan Lock	No
  Material	Aluminum

  Lateral Tilt
