User Manual for Manfrotto MT055CXPRO3 Carbon Fiber Tripod with 054 Magnesium Ball Head Kit Click to enlarge the picture
Contents of the user manual for the Manfrotto MT055CXPRO3 Carbon Fiber Tripod with
- Product category: Tripods with Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripods with Heads
|
User manual for the Manfrotto MT055CXPRO3 Carbon Fiber Tripod with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|

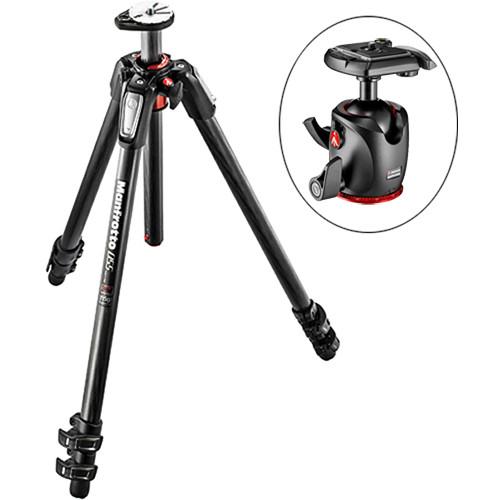

Product description Time-Lapse Tips and Tools Read More This Kit pairs a Manfrotto MT055CXPRO3 Carbon Fiber Tripod with a 054 Magnesium Ball Head. The tripod can hold 19.8 lb of gear, extends from 8.1" to 71.5", and folds down to 28.6" for transport. It features a Quick Power Lock System that allows you to completely extend the tripod legs with just one hand. Once set up you can use the MT055CXPRO3's rapid center column in standard vertical mode or swing it into horizontal position like a boom with Manfrotto's 90° column feature. Enlarged tabs on the individual leg angle selectors allow you to get down to only 8.1" for macro work with the column in horizontal mode. And once you're down there you can attach any of Manfrotto's flexible or articulated arms to hold lights or reflectors via the Easy Link plug built into the tripod's spider.
The 054 ball head is made from magnesium alloy, and has one lock for the movement of the ball, and another for the 360° panning. A notch in the head has an angle selector that allows you to put your camera in portrait mode at either a 90° or 105° angle. Included with the head is a 200PL quick-release plate for attaching your camera to the head. - Manfrotto MT055CXPRO3 Carbon Fiber Tripod The Manfrotto MT055CXPRO3 Carbon Fiber Tripod is a 3-section support that replaces the 055CXPRO3 tripod. It has a load capacity of 19.8 lb and extends from 3.5" to 66.9". Its carbon fiber legs are secured by the Quick Power Locks. These updated flip locks increase the tripod's rigidity by 50% compared to its predecessor.
A redesigned center column has a "one finger" operation, and includes an Easy Link 3/8"-16 attachment for attaching accessories such as an LED light or a reflector via a compatible arm. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull's eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes. UPC: 719821364641 - Manfrotto Manfrotto XPRO Magnesium Ball Head with 200PL-14 Quick Release Plate This XPRO Magnesium Ball Head from Manfrotto features an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent the 200PL-14, or another compatible quick release plate from accidentally disconnecting.
The XPRO Magnesium Ball Head with 200PL-14 Quick Release Plate has a load capacity of 22.1 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening this XPRO Magnesium Ball Head's primary locking knob, its ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Toward the ball head's base is a secondary locking knob that controls the ability to rotate the head 360°. An additional knob opposite the secondary locking knob can be rotated to apply tension control to the ball-and-socket joint's movements.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-14 quick release plate which measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface. - XPRO Magnesium Ball Head
-
- 22.1 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
- Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
- Integrated RC2 quick release cam lock
- Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Secondary locking knob allows head to rotate 360°
- Dedicated tension control knob for the ball-and-socket joint's movements
- One bubble level for landscape orientations and one bubble level for portrait orientations
- Durable, magnesium-alloy construction
- 200PL-14 Quick Release Plate
-
- Compatible with Manfrotto RC2 quick release cam lock
- Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
- 1/4"-20 mount
- Durable, aluminum-alloy construction
UPC: 719821378297 In the Box - MT055CXPRO3 Carbon Fiber Tripod
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- Manfrotto XPRO Magnesium Ball Head with 200PL-14 Quick Release Plate
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MT055CXPRO3 Carbon Fiber Tripod with 054 Magnesium Ball Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto MT055CXPRO3 Carbon Fiber Tripod
| | | Load Capacity | 19.8 lb / 9 kg | | Maximum Working Height | 66.9" / 169.9 cm | | Max Height without Center Column | 55.1" / 140 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Folded Length | 24" / 61 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 4.3 lb / 2 kg | | Materials | Carbon Fiber | | Bubble Level | Yes | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | Yes | | | | Box Dimensions (LxWxH) | 25.0 x 5.5 x 5.5" | - Manfrotto Manfrotto XPRO Magnesium Ball Head with 200PL-14 Quick Release Plate
| | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | RC2 | | Load Capacity | 22.1 lb / 10.02 kg | | Number of Bubble Levels | 2 | | Friction Control | Yes | | Independent Pan Lock | Yes | | Material | Magnesium | | | | Lateral Tilt | -90
