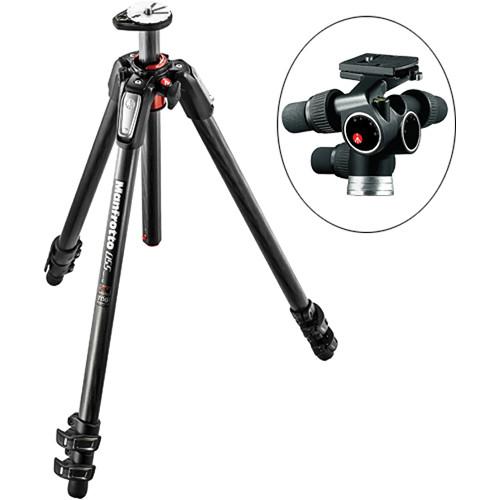

User Manual for Manfrotto MT055CXPRO3 Carbon Fiber Tripod with 405 Pro Digital Geared Head Kit Click to enlarge the picture
Contents of the user manual for the Manfrotto MT055CXPRO3 Carbon Fiber Tripod with
- Product category: Tripods with Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripods with Heads
|
User manual for the Manfrotto MT055CXPRO3 Carbon Fiber Tripod with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More This Kit pairs a MT055CXPRO3 Carbon Fiber Tripod with a 405 Pro Digital Geared Head. Holding up to 16.5 lb, and with a maximum height of 73.2", the tripod features a Quick Power Lock System that allows you to completely extend the legs with just one hand. Once set up you can use the MT055CXPRO3's rapid center column in standard vertical mode or swing it into horizontal position like a boom with Manfrotto's 90° column feature. Enlarged tabs on the individual leg angle selectors allow you to get down low for macro work with the column in horizontal mode. And once you're down there you can attach any of Manfrotto's flexible or articulated arms to hold lights or reflectors via the Easy Link plug built into the tripod's spider.
The 405 head is a geared 3-way pan and tilt head designed for photographers who require both speed and precision. It has three large knobs to control the geared movement of the pan and tilt. You can also disengage the gears and quickly readjust the head by hand. A 410PL quick-release plate is included with the head. - Manfrotto MT055CXPRO3 Carbon Fiber Tripod The Manfrotto MT055CXPRO3 Carbon Fiber Tripod is a 3-section support that replaces the 055CXPRO3 tripod. It has a load capacity of 19.8 lb and extends from 3.5" to 66.9". Its carbon fiber legs are secured by the Quick Power Locks. These updated flip locks increase the tripod's rigidity by 50% compared to its predecessor.
A redesigned center column has a "one finger" operation, and includes an Easy Link 3/8"-16 attachment for attaching accessories such as an LED light or a reflector via a compatible arm. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull's eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes. UPC: 719821364641 - Manfrotto 405 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate This 405 3-Way, Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 16.5 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC4 quick release cam lock and a 410PL Quick Release Plate. RC4 compatible quick release plates such as the 410PL can removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached.
Cameras or accessories that are compatible with a 1/4"-20 or 3/16"-20 mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, snap-lock knobs with easy-to-turn, fluted grips. Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place. An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments, which help to ensure that any device mounted to this 405 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject.
To further promote fast and repeatable device positioning, this 405 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility. - 405 3-Way, Geared Pan-and-Tilt Head
-
- 16.5 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and have individual snap-lock knobs with easy-to-turn, fluted grips
- Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place
- An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments
- Dedicated angle scales for each movement that are designed for easy visibility further promote fast, repeatable, and accurate device positioning
- Integrated, RC4 quick release cam lock
- Two bubble levels for landscape orientations and one bubble level for portrait orientations
- Durable, aluminum-alloy construction
- 410PL Quick Release Plate
-
- Compatible with Manfrotto RC4 quick release cam lock
- Measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface
- 1/4"-20 and 3/8"-16 mount
- Durable, aluminum-alloy construction
UPC: 719821193500 In the Box - MT055CXPRO3 Carbon Fiber Tripod ecfuecwsvutcseaxbxszwafzvbcvyecrzyea
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- 405 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate ecfuecwsvutcseaxbxszwafzvbcvyecrzyea
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MT055CXPRO3 Carbon Fiber Tripod with 405 Pro Digital Geared Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto MT055CXPRO3 Carbon Fiber Tripod
| | | Load Capacity | 19.8 lb / 9 kg | | Maximum Working Height | 66.9" / 169.9 cm | | Max Height without Center Column | 55.1" / 140 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Folded Length | 24" / 61 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 4.3 lb / 2 kg | | Materials | Carbon Fiber | | Bubble Level | Yes | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | Yes | | | | Box Dimensions (LxWxH) | 25.0 x 5.5 x 5.5" | - Manfrotto 405 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate
| | | Head Type | Pan & Tilt Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male, 3/8"-16 Male | | Quick Release Plate Type | RC4 | | Load Capacity | 16.5 lb / 7.48 kg | | Number of Bubble Levels | 3 | | Material | Aluminum | | | | Lateral Tilt | -90
