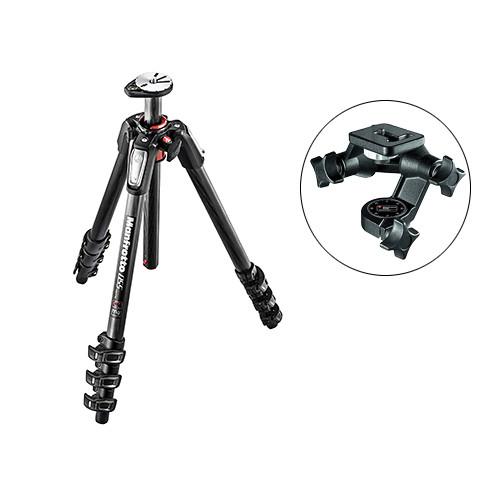

Manfrotto MT055CXPRO4 Carbon Fiber Tripod with

User Manual for Manfrotto MT055CXPRO4 Carbon Fiber Tripod with 056 3D Junior Pan Tilt Head

• Product category: Tripods with Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripods with Heads

Product description

• Manfrotto MT055CXPRO4 Carbon Fiber Tripod
  • Manfrotto 055 Demo
  The Manfrotto MT055CXPRO4 Carbon Fiber Tripod is a 4-section support that replaces the 055CXPRO4 tripod. It has a load capacity of 19.8 lb and extends from 3.5" to 66.9". Its carbon fiber legs are secured by the Quick Power Locks. These updated flip locks increase the tripod's rigidity by 50% compared to its predecessor.

  A redesigned center column has a "one finger" operation, and includes an Easy Link 3/8"-16 attachment for attaching accessories such as an LED light or a reflector via a compatible arm. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull's eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes. UPC: 719821364658
• Manfrotto 056 3-Way, Pan-and-Tilt Head with 1/4"-20 Mount
  • Manfrotto 055 Demo
  The 056 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 6.6 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the head's rubberized, non-slip platform. The head can be rotated 360°, and tilted 180° forwards or 30° backwards, as well as 180° sideways. Each of these three movements function independently of each other and can be locked into place. To promote fast and repeatable device positioning, this 056 3-Way, Pan-and-Tilt Head also includes a dedicated angle scale for rotational movements that is designed for easy visibility.
  • • 6.6 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Can be rotated 360°, tilted 180° forwards or 30° backwards, as well as 180° sideways
    • Rotation, backwards and forwards tilt, as well as sideways tilt each function independently of each other and can be locked into place
    • Rubberized, non-slip platform with 1/4"-20 mount
    • Dedicated angle scale for rotational movements that is positioned for easy visibility helps promote fast and repeatable device positioning
    • Durable, aluminum-alloy construction
  UPC: 719821284017

• MT055CXPRO4 Carbon Fiber Tripod tauftbraxfzdusaawwyu
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

• 056 3-Way, Pan-and-Tilt Head with 1/4"-20 Mount

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MT055CXPRO4 Carbon Fiber Tripod

  Load Capacity	19.8 lb / 9 kg
  Maximum Working Height	66.9" / 169.9 cm
  Max Height without Center Column	55.1" / 140 cm
  Minimum Working Height	3.5" / 8.9 cm
  Folded Length	21.3" / 54.1 cm
  Head Mount Type	3/8"-16 Screw
  Weight	4.6 lb / 2.1 kg
  Materials	Carbon Fiber
  Bubble Level	Yes

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	4

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes

  Box Dimensions (LxWxH)	21.6 x 5.5 x 5.5"

• Manfrotto 056 3-Way, Pan-and-Tilt Head with 1/4"-20 Mount

  Head Type	Pan & Tilt Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male
  Quick Release Plate Type	No Quick Release
  Load Capacity	6.6 lb / 2.99 kg
  Number of Bubble Level(s)	None
  Material	Aluminum

  Lateral Tilt
