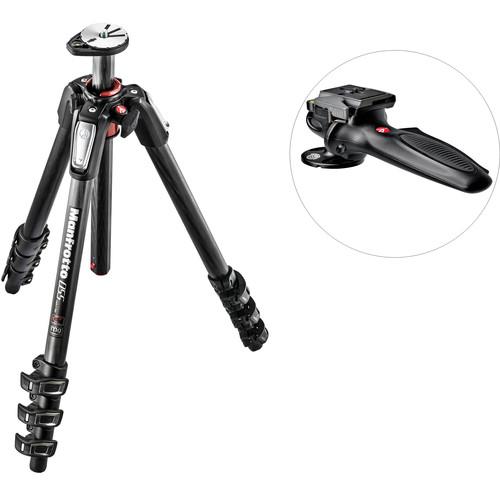

User Manual for Manfrotto MT055CXPRO4 Carbon Fiber Tripod with 327RC2 Light Duty Grip Ball Head Click to enlarge the picture
Contents of the user manual for the Manfrotto MT055CXPRO4 Carbon Fiber Tripod with
- Product category: Tripods with Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripods with Heads
|
User manual for the Manfrotto MT055CXPRO4 Carbon Fiber Tripod with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More This versatile tripod kit from Photo pairs the Manfrotto MT055CXPRO4 Carbon Fiber Tripod with the 327RC2 Light Duty Grip Ball Head. This kit provides a stable camera support with a load capacity of 12.1 lb. It extends from 3.5" to 70.9" and weighs 6 lb. The 90° center column has a one finger operation, and includes an Easy Link 3/8"-16 attachment for attaching accessories such as an LED light or a reflector via a compatible arm. The mounting plate has a bull's eye bubble level that rotates 360° so you can locate it where you can see it.
The included 327RC2 grip ball head offers a unique way of quickly unlocking, moving and locking your camera in place. You can frame and reposition the head freely and frequently to get the perfect photo, you simply grip the head to move the camera and as soon as you release, it locks securely in place. The head features 360° panning, -3°/ +90° lateral tilt, and -90°/ +90° front tilt. - Manfrotto MT055CXPRO4 Carbon Fiber Tripod The Manfrotto MT055CXPRO4 Carbon Fiber Tripod is a 4-section support that replaces the 055CXPRO4 tripod. It has a load capacity of 19.8 lb and extends from 3.5" to 66.9". Its carbon fiber legs are secured by the Quick Power Locks. These updated flip locks increase the tripod's rigidity by 50% compared to its predecessor.
A redesigned center column has a "one finger" operation, and includes an Easy Link 3/8"-16 attachment for attaching accessories such as an LED light or a reflector via a compatible arm. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull's eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes. UPC: 719821364658 - Manfrotto 327RC2 Ball Head with 200PL-14 Quick Release Plate This 327RC2 Ball Head from Manfrotto has a load capacity of 12.1 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting.
The 327RC2 features a ball-and-socket joint with an easy-to-grip control handle. By squeezing the control handle's integrated trigger, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A thumbwheel set within the underside of the control handle can be rotated to apply tension control to the ball-and-socket joint's movements. Once the squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-14 quick release plate, which measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface. The 327RC2 is initially configured for use with the right hand. An included hex key allows the RC2 quick release cam lock to be repositioned along with the control handle, enabling left-handed use. - 327RC2 Ball Head
-
- 12.1 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Uses ball-and-socket joint with easy-to-grip control handle to help maximize pan-and-tilt flexibility
- By squeezing the control handle's integrated trigger, the ball-and-socket joint can be quickly swiveled 360°, fully tilted down to a 90° angle, or returned to its upright position
- When the control handle's squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place
- A thumbwheel set within the underside of the control handle can be rotated to apply tension control to the ball-and-socket joint's movements
- RC2 quick release cam lock
- Built-in bubble level
- Can be configured for left-handed use
- Durable, magnesium-alloy construction
- Hex key to adjust position of RC2 quick release cam lock
- Hex key to adjust tension on ball-and-socket joint
- 200PL-14 Quick Release Plate
-
- Compatible with Manfrotto RC2 quick release cam lock
- Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
- 1/4"-20 mount
- Durable, aluminum-alloy construction
UPC: 719821312536 In the Box - MT055CXPRO4 Carbon Fiber Tripod srfestrtvybetfce
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- 327RC2 Ball Head with 200PL-14 Quick Release Plate
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MT055CXPRO4 Carbon Fiber Tripod with 327RC2 Light Duty Grip Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto MT055CXPRO4 Carbon Fiber Tripod
| | | Load Capacity | 19.8 lb / 9 kg | | Maximum Working Height | 66.9" / 169.9 cm | | Max Height without Center Column | 55.1" / 140 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Folded Length | 21.3" / 54.1 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 4.6 lb / 2.1 kg | | Materials | Carbon Fiber | | Bubble Level | Yes | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | Yes | | | | Box Dimensions (LxWxH) | 21.6 x 5.5 x 5.5" | - Manfrotto 327RC2 Ball Head with 200PL-14 Quick Release Plate
| | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | 200PL-14 | | Load Capacity | 12.1 lb / 5.49 kg | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | No | | Material | Magnesium | | | | Lateral Tilt | -30
