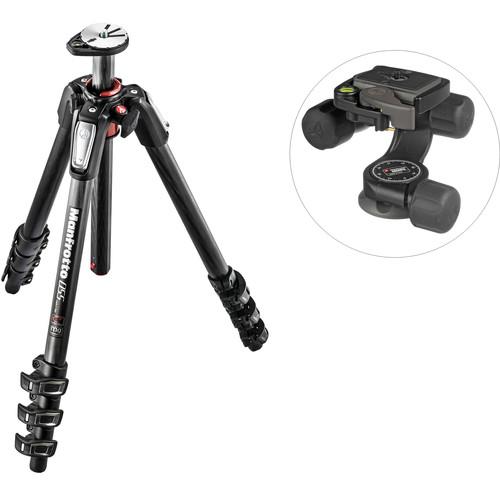

User Manual for Manfrotto MT055CXPRO4 Carbon Fiber Tripod with 460MG 3D Magnesium Head Click to enlarge the picture
Contents of the user manual for the Manfrotto MT055CXPRO4 Carbon Fiber Tripod with
- Product category: Tripods with Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripods with Heads
|
User manual for the Manfrotto MT055CXPRO4 Carbon Fiber Tripod with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More ebrxrvxdcc This Kit pairs the Manfrotto MT055CXPRO4 Carbon Fiber Tripod with the 460MG 3D Magnesium Head to give you a complete tripod setup. This combo extends from 3.1 to 71" and has a load capacity of 6.6 lb. Its carbon fiber legs are secured by the Quick Power Locks, and its center column includes an Easy Link 3/8"-16 attachment for attaching accessories such as an LED light or a reflector via a compatible arm. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc has a bull's eye bubble level that rotates 360° allowing you to level your camera on both the horizontal and vertical planes.
The 460MG head offers three separate axes of movement: panoramic rotation, front-back tilt, and side tilt. The rubber grip knobs provide finger tip control, and keep its dimensions confined to a compact size. It uses a lock-system with spring-loaded conical joints, to allow for greater flexibility. - Manfrotto MT055CXPRO4 Carbon Fiber Tripod The Manfrotto MT055CXPRO4 Carbon Fiber Tripod is a 4-section support that replaces the 055CXPRO4 tripod. It has a load capacity of 19.8 lb and extends from 3.5" to 66.9". Its carbon fiber legs are secured by the Quick Power Locks. These updated flip locks increase the tripod's rigidity by 50% compared to its predecessor.
A redesigned center column has a "one finger" operation, and includes an Easy Link 3/8"-16 attachment for attaching accessories such as an LED light or a reflector via a compatible arm. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull's eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes. UPC: 719821364658 - Manfrotto 460MG 3-Way, Pan-and-Tilt Head with 1/4"-20 Mount This 460MG 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 6.6 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an RC2 quick release cam lock and a 200PL-14 Quick Release Plate. Compatible quick release plates can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting.
The head can be rotated 360°, and tilted 180° forwards or 30° backwards, as well as 180° sideways. Each of these three movements function independently of each other and have large, rubberized twist knobs that allow the corresponding movement to be adjusted or locked into place. Each knob utilizes pressurized fluid, which provides an easy-to-tighten, hydrostatic locking mechanism. To promote fast and repeatable device positioning, this 460MG 3-Way, Pan-and-Tilt Head also includes a dedicated angle scale for rotational movements that is designed for easy visibility. - 460MG 3-Way, Pan-and-Tilt Head
-
- 6.6 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Can be rotated 360°, tilted 180° forwards or 30° backwards, as well as 180° sideways
- Rotation, backwards and forwards tilt, as well as sideways tilt each function independently of each other and have large, rubberized twist knobs which allows the corresponding movement to be adjusted or locked into place
- Easy-to-tighten hydrostatic knobs that utilize pressurized fluid
- Integrated, RC2 quick release cam lock
- Dedicated angle scale for rotational movements that is positioned for easy visibility helps promote fast and repeatable device positioning
- Built-in bubble level
- Durable, magnesium-alloy construction
- 200PL-14 Quick Release Plate
-
- Compatible with Manfrotto RC2 quick release cam lock
- Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
- 1/4"-20 mount
- Durable, aluminum-alloy construction
UPC: 719821287643 In the Box - MT055CXPRO4 Carbon Fiber Tripod ebrxrvxdcc
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- 460MG 3-Way, Pan-and-Tilt Head with 1/4"-20 Mount
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MT055CXPRO4 Carbon Fiber Tripod with 460MG 3D Magnesium Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto MT055CXPRO4 Carbon Fiber Tripod
| | | Load Capacity | 19.8 lb / 9 kg | | Maximum Working Height | 66.9" / 169.9 cm | | Max Height without Center Column | 55.1" / 140 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Folded Length | 21.3" / 54.1 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 4.6 lb / 2.1 kg | | Materials | Carbon Fiber | | Bubble Level | Yes | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | Yes | | | | Box Dimensions (LxWxH) | 21.6 x 5.5 x 5.5" | - Manfrotto 460MG 3-Way, Pan-and-Tilt Head with 1/4"-20 Mount
| | | Head Type | Pan & Tilt Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | RC2 | | Load Capacity | 6.6 lb / 2.99 kg | | Number of Bubble Levels | 1 | | Material | Magnesium | | | | Lateral Tilt | -180
