Product description

• Manfrotto MT055CXPRO4 Carbon Fiber Tripod
  • Manfrotto 055 Demo

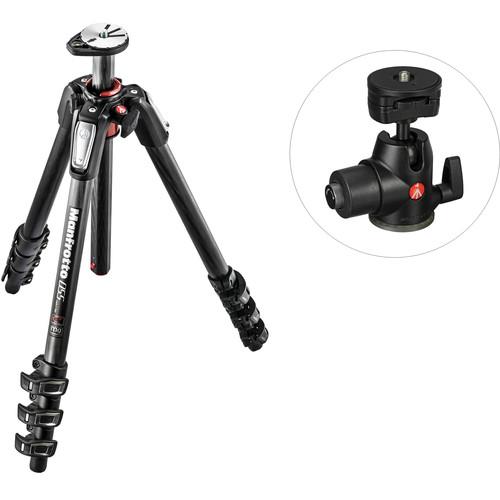

  The Manfrotto MT055CXPRO4 Carbon Fiber Tripod is a 4-section support that replaces the 055CXPRO4 tripod. It has a load capacity of 19.8 lb and extends from 3.5" to 66.9". Its carbon fiber legs are secured by the Quick Power Locks. These updated flip locks increase the tripod's rigidity by 50% compared to its predecessor.

  A redesigned center column has a "one finger" operation, and includes an Easy Link 3/8"-16 attachment for attaching accessories such as an LED light or a reflector via a compatible arm. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull's eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes. UPC: 719821364658
• Manfrotto 468MG Hydrostatic Ball Head
  • Manfrotto 055 Demo
  This Manfrotto 468MG Hydrostatic Ball Head features a ball-and-socket joint that utilizes pressurized fluid, which helps to provide a 35.3 lb load capacity and an easy-to-tighten locking mechanism. By loosening the 468MG Hydrostatic Ball Head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. An additional knob set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.

  The 468MG Hydrostatic Ball Head's rubberized, non-slip platform includes a 1/4"-20 mount inside a spring-loaded 3/8"-16 expansion sleeve. When securing cameras, lenses, sport optics, or accessories that feature 1/4"-20 female accessory threads to the ball head, the expansion sleeve is automatically depressed, allowing those devices to be firmly attached. For items with 3/8"-16 female accessory threads, the expansion sleeve remains engaged and provides a reliable connection point that is reinforced by the 1/4"-20 mount.

  An integrated thumbwheel under the ball head's platform allows both the mount and expansion sleeve, or the mount alone, to be screwed into a corresponding accessory thread. This permits a camera, lens, or sport optic to be attached to the 468MG Hydrostatic Ball Head while it is simultaneously pointed in the subject's direction. To further promote fast and repeatable device positioning, the ball head's platform is engraved with an angle scale along its outer rim.
  • • 35.3 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Easy-to-tighten hydrostatic ball-and-socket joint that utilizes pressurized fluid which helps maximize pan-and-tilt flexibility while enhancing load capacity
    • Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
    • Dual, ball-and-socket joint notches enable two-sided tilt capability
    • Rubberized, non-slip platform with dual function mount accommodates cameras, lenses, sport optics, or accessories that feature 1/4"-20 or 3/8"-16 female accessory threads
    • Integrated thumbwheel under the ball head's non-slip platform allows both the mount and expansion sleeve, or the mount alone, to be screwed into a corresponding accessory thread, permitting a camera, lens, or sport optic to be attached while it is simultaneously pointed in the subject's direction
    • Non-slip platform is engraved with an angle scale along its outer rim to further promote fast and repeatable device positioning
    • Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
    • Secondary locking knob allows head to rotate 360°
    • Dedicated tension control knob for the ball-and-socket joint's movements
    • Durable, magnesium-alloy construction
  UPC: 719821246718

• MT055CXPRO4 Carbon Fiber Tripod srfestrtvybetfce
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

• 468MG Hydrostatic Ball Head

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MT055CXPRO4 Carbon Fiber Tripod

  Load Capacity	19.8 lb / 9 kg
  Maximum Working Height	66.9" / 169.9 cm
  Max Height without Center Column	55.1" / 140 cm
  Minimum Working Height	3.5" / 8.9 cm
  Folded Length	21.3" / 54.1 cm
  Head Mount Type	3/8"-16 Screw
  Weight	4.6 lb / 2.1 kg
  Materials	Carbon Fiber
  Bubble Level	Yes

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	4

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes

  Box Dimensions (LxWxH)	21.6 x 5.5 x 5.5"

• Manfrotto 468MG Hydrostatic Ball Head

  Head Type	Ball Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male, 3/8"-16 Male
  Quick Release Plate Type	No Quick Release
  Load Capacity	35.3 lb / 16.01 kg
  Number of Bubble Level(s)	None
  Friction Control	Yes
  Independent Pan Lock	Yes
  Material	Magnesium

  Lateral Tilt
